  • I like tweaking plots to get the look and feel I want, and luckily Maple has many plotting options that I often play with. Here, I visualize the same data several times, but each time with different styling.

    First, some data.

    restart:
    data_1 := [[0,0],[1,2],[2,1.3],[3,6]]:
    data_2 := [[0.5,3],[1,1],[2,5],[3,2]]:
    data_3 := [[-0.5,3],[1.3,1],[2.5,5],[4.5,2]]:

    This is the default look.

    plot([data_1, data_2, data_3])

    I think the darker background on this plot makes it easier to look at.

    gray_grid :=
     background      = "LightGrey"
    ,color           = [ ColorTools:-Color("RGB",[150/255, 40 /255, 27 /255])
                        ,ColorTools:-Color("RGB",[0  /255, 0  /255, 0  /255])
                        ,ColorTools:-Color("RGB",[68 /255, 108/255, 179/255]) ]
    ,axes            = frame
    ,axis[2]         = [color = black, gridlines = [10, thickness = 1, color = ColorTools:-Color("RGB", [1, 1, 1])]]
    ,axis[1]         = [color = black, gridlines = [10, thickness = 1, color = ColorTools:-Color("RGB", [1, 1, 1])]]
    ,axesfont        = [Arial]
    ,labelfont       = [Arial]
    ,size            = [400*1.78, 400]
    ,labeldirections = [horizontal, vertical]
    ,filled          = false
    ,transparency    = 0
    ,thickness       = 5
    ,style           = line:

    plot([data_1, data_2, data_3], gray_grid);

    I call the next style Excel, for obvious reasons.

    excel :=
     background      = white
    ,color           = [ ColorTools:-Color("RGB",[79/255,  129/255, 189/255])
                        ,ColorTools:-Color("RGB",[192/255, 80/255,   77/255])
                        ,ColorTools:-Color("RGB",[155/255, 187/255,  89/255])]
    ,axes            = frame
    ,axis[2]         = [gridlines = [10, thickness = 0, color = ColorTools:-Color("RGB",[134/255,134/255,134/255])]]
    ,font            = [Calibri]
    ,labelfont       = [Calibri]
    ,size            = [400*1.78, 400]
    ,labeldirections = [horizontal, vertical]
    ,transparency    = 0
    ,thickness       = 3
    ,style           = point
    ,symbol          = [soliddiamond, solidbox, solidcircle]
    ,symbolsize      = 15:

    plot([data_1, data_2, data_3], excel)

    This style makes the plot look a bit like the oscilloscope I have in my garage.

    dark_gridlines :=
     background      = ColorTools:-Color("RGB",[0,0,0])
    ,color           = white
    ,axes            = frame
    ,linestyle       = [solid, dash, dashdot]
    ,axis            = [gridlines = [10, linestyle = dot, color = ColorTools:-Color("RGB",[0.5, 0.5, 0.5])]]
    ,font            = [Arial]
    ,size            = [400*1.78, 400]:

    plot([data_1, data_2, data_3], dark_gridlines);

    The colors in the next style remind me of an Autumn morning.

    autumnal :=
     background      =  ColorTools:-Color("RGB",[236/255, 240/255, 241/255])
    ,color           = [  ColorTools:-Color("RGB",[144/255, 54/255, 24/255])
                         ,ColorTools:-Color("RGB",[105/255, 108/255, 51/255])
                         ,ColorTools:-Color("RGB",[131/255, 112/255, 82/255]) ]
    ,axes            = frame
    ,font            = [Arial]
    ,size            = [400*1.78, 400]
    ,filled          = true
    ,axis[2]         = [gridlines = [10, thickness = 1, color = white]]
    ,axis[1]         = [gridlines = [10, thickness = 1, color = white]]
    ,symbol          = solidcircle
    ,style           = point
    ,transparency    = [0.6, 0.4, 0.2]:

    plot([data_1, data_2, data_3], autumnal);

    In honor of a friend and ex-colleague, I call this style "The Swedish".

    swedish :=
     background      = ColorTools:-Color("RGB", [0/255, 107/255, 168/255])
    ,color           = [ ColorTools:-Color("RGB",[169/255, 158/255, 112/255])
                        ,ColorTools:-Color("RGB",[126/255,  24/255,   9/255])
                        ,ColorTools:-Color("RGB",[254/255, 205/255,   0/255])]
    ,axes            = frame
    ,axis            = [gridlines = [10, color = ColorTools:-Color("RGB",[134/255,134/255,134/255])]]
    ,font            = [Arial]
    ,size            = [400*1.78, 400]
    ,labeldirections = [horizontal, vertical]
    ,filled          = false
    ,thickness       = 10:

    plot([data_1, data_2, data_3], swedish);

    This looks like a plot from a journal article.

    experimental_data_mono :=

    background       = white
    ,color           = black
    ,axes            = box
    ,axis            = [gridlines = [linestyle = dot, color = ColorTools:-Color("RGB",[0.5, 0.5, 0.5])]]
    ,font            = [Arial, 11]
    ,legendstyle     = [font = [Arial, 11]]
    ,size            = [400, 400]
    ,labeldirections = [horizontal, vertical]
    ,style           = point
    ,symbol          = [solidcircle, solidbox, soliddiamond]
    ,symbolsize      = [15,15,20]:

    plot([data_1, data_2, data_3], experimental_data_mono, legend = ["Annihilation", "Authority", "Acceptance"]);

    If you're willing to tinker a little bit, you can add some real character and personality to your visualizations. Try it!

    I'd also be very interested to learn what you find attractive in a plot - please do let me know.

    I'm really fed up with installing the Physics package!

    My install directory of Maple is C:\Maths\Maple

    I don't want to do it manually each time a new Physics Package is installed.

    libname;
    "C:\Maths\Maple\lib", "C:\Users\jm\maple\toolbox\GRTensorIII\lib"

    Physics:-Version();
    The "Physics Updates" version "717" is installed but is not

       active. The active version of Physics is within the library

       C:\Maths\Maple\lib\maple.mla, created 2020, March 5, 2:36 hours

    Please software developpers at Maplesoft do something...Before rel 713 everything was OK.

    Thank you and kind regards to each and every one.



    Hi,

    I would like to share this work I've done.

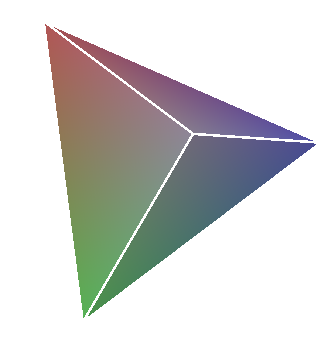

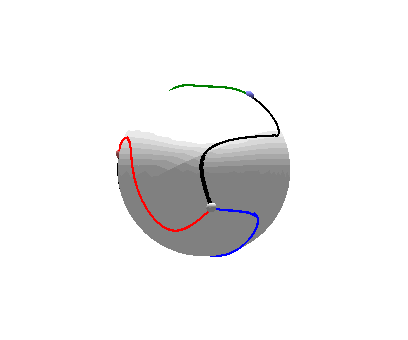

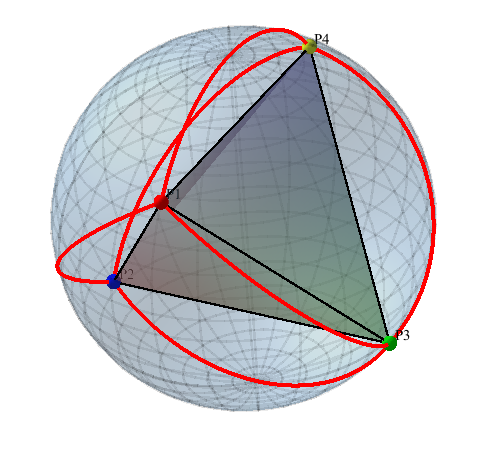

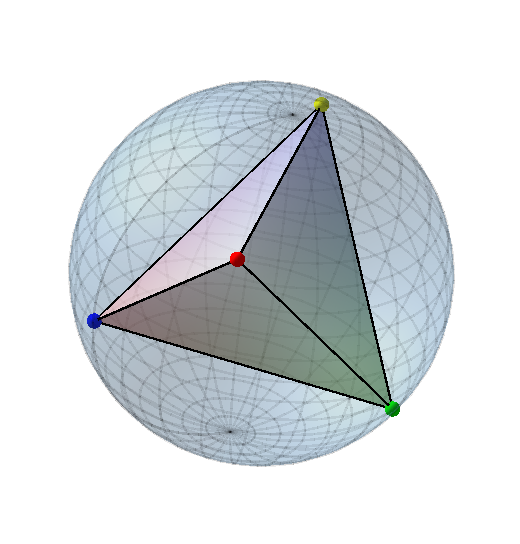

    No big math here, just a demonstrator of Maple's capabilities in 3D visualization.

    All the plots in the file have been discarded to reduce the size of this post. Here is a screen capture to give you an idea of what is inside the file.

    Download 3D_Visualization.mw

    Hi,

    In a recent post  (Monte Carlo Integration) Radaar shared its work about the numerical integration, with the Monte Carlo method, of a function defined in polar coordinates.
    Radaar used a raw strategy based on a sampling in cartesian coordinates plus an ad hoc transformation.
    Radaar obtained reasonably good results, but I posted a comment to show how Monte Carlo summation in polar coordinates can be done in a much simpler way. Behind this is the choice of a "good" sampling distribution which makes the integration problem as simple as Monte Carlo integration over a 2D rectangle with sides parallel to the co-ordinate axis.

    This comment I sent pushed me to share the present work on Monte Carlo integration over simple polygons ("simple" means that two sides do not intersect).

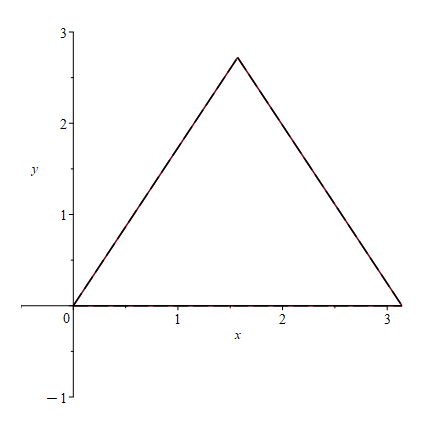

    Here again one can use raw Monte Carlo integration on the rectangle this polygon is inscribed in. But as in Radaar's post, a specific sampling distribution can be used that makes the summation method more elegant.

    This work relies on three main ingredients:

    1. The Dirichlet distribution, whose one form enables sampling the 2D simplex in a uniform way.

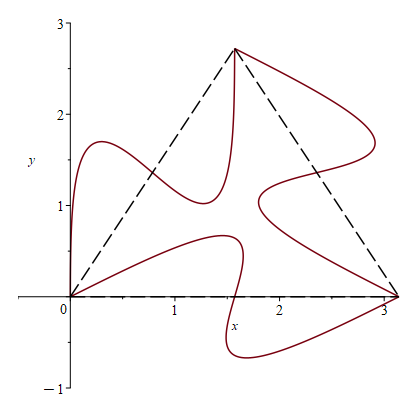

    2. The construction of a 1-to-1 mapping from this simplex into any non degenerated triangle (a mapping whose jacobian is a constant equal to the ratio of the areas of the two triangles).
    3. A tesselation into triangles of the polygon to integrate over.


    This work has been carried out in Maple 2015, which required the development of a module to do the tesselation. Maybe more recent Maple's versions contain internal procedures to do that.


    Monte_Carlo_Integration.mw



    This is an animation of the spread of the COVID-19 over the U.S. in the first 150 days.  It was created in Maple 2020, making extensive use of DataFrames.



    https://www.youtube.com/watch?v=XHXeJKTeoRw



    The animation of 150 Day history includes COVID-19 data published by the NY Times and geographic data assembled from other sources. Each cylinder represents a county or in two special cases New York City and Kansas City. The cross-sectional area of each cylinder is the area in square miles of the corresponding county. The height of each cylinder is on a logarithmic scale (in particular it is 100*log base 2 of the case count for the county. The argument of the logarithm function is the number of cases per county divided by the are in square miles-so an areal density.  Using a logarithmic scale facilitates showing super high density areas (e.g., NYC) along with lower density areas.  The heights are scaled by a prefactor of 100 for visualization.

    Hi. My name is Eugenio and I’m a Professor at the Departamento de Didáctica de las Ciencias Experimentales, Sociales y Matemáticas at the Facultad de Educación of the Universidad Complutense de Madrid (UCM) and a member of the Instituto de Matemática Interdisciplinar (IMI) of the UCM.

    I have a 14-year-old son. In the beginning of the pandemic, a confinement was ordered in Spain. It is not easy to make a kid understand that we shouldn't meet our friends and relatives for some time and that we should all stay at home in the first stage. So, I developed a simplified explanation of virus propagation for kids, firstly in Scratch and later in Maple, the latter using an implementation of turtle geometry that we developed long ago and has a much better graphic resolution (E. Roanes-Lozano and E. Roanes-Macías. An Implementation of “Turtle Graphics” in Maple V. MapleTech. Special Issue, 1994, 82-85). A video (in Spanish) of the Scratch version is available from the Instituto de Matemática Interdisciplinar (IMI) web page: https://www.ucm.es/imi/other-activities

    Introduction

    Surely you are uncomfortable being locked up at home, so I will try to justify that, although we are all looking forward going out, it is good not to meet your friends and family with whom you do not live.

    I firstly need to mention a fractal is. A fractal is a geometric object whose structure is repeated at any scale. An example in nature is Romanesco broccoli, that you perhaps have eaten (you can search for images on the Internet). You can find a simple fractal in the following image (drawn with Maple):

    Notice that each branch is divided into two branches, always forming the same angle and decreasing in size in the same proportion.

    We can say that the tree in the previous image is of “depth 7” because there are 7 levels of branches.

    It is quite easy to create this kind of drawing with the so called “turtle geometry” (with a recursive procedure, that is, a procedure that calls itself). Perhaps you have used Scratch programming language at school (or Logo, if you are older), which graphics are based in turtle geometry.

    All drawings along these pages have been created with Maple. We can easily reform the code that generated the previous tree so that it has three, four, five,… branches at each level, instead of two.

    But let’s begin with a tale that explains in a much simplified way how the spread of a disease works.

    - o O o -

    Let's suppose that a cat returns sick to Catland suffering from a very contagious disease and he meets his friends and family, since he has missed them so much.

    We do not know very well how many cats each sick cat infects in average (before the order to STAY AT HOME arrives, as cats in Catland are very obedient and obey right away). Therefore, we’ll analyze different scenarios:

    1. Each sick cat infects two other cats.
    2. Each sick cat infects three other cats.
    3. Each sick cat infects five other cats



    1. Each Sick Cat Infects Two Cats

    In all the figures that follow, the cat initially sick is in the center of the image. The infected cats are represented by a red square.

    · Before everyone gets confined at home, it only takes time for that first sick cat to see his friends, but then confinement is ordered (depth 1)

    As you can see, with the cat meeting his friends and family, we already have 3 sick cats.

    · Before all cats confine themselves at home, the first cat meets his friends, and these in turn have time to meet their friends (depth 2)

    In this case, the number of sick cats is 7.

    · Before every cat is confined at home, there is time for the initially sick cat to meet his friends, for these to meet their friends, and for the latter (friends of the friends of the first sick cat) to meet their friends (depth 3).

    There are already 15 sick cats...

    · Depth 4: 31 sick cats.

    · Depth 5: 63 sick cats.

    Next we’ll see what would happen if each sick cat infected three cats, instead of two.



    2. Every Sick Cat Infects Three Cats

    · Now we speed up, as you’ve got the idea.

    The first sick cat has infected three friends or family before confining himself at home. So there are 4 infected cats.

    · If each of the recently infected cats in the previous figure have in turn contact with their friends and family, we move on to the following situation, with 13 sick cats:

    · And if each of these 13 infected cats lives a normal life, the disease spreads even more, and we already have 40!

    · At the next step we have 121 sick cats:

    · And, if they keep seeing friends and family, there will be 364 sick cats (the image reminds of what is called a Sierpinski triangle):



    4. Every Sick Cat Infects Five Cats

    · In this case already at depth 2 we already have 31 sick cats.



    5. Conclusion

    This is an example of exponential growth. And the higher the number of cats infected by each sick cat, the worse the situation is.

    Therefore, avoiding meeting friends and relatives that do not live with you is hard, but good for stopping the infection. So, it is hard, but I stay at home at the first stage too!

    We have just released an update to Maple, Maple 2020.1.

    Maple 2020.1 includes corrections and improvement to the mathematics engine, export to PDF, MATLAB connectivity, support for Ubuntu 20.04, and more.  We recommend that all Maple 2020 users install these updates.

    This update is available through Tools>Check for Updates in Maple, and is also available from our website on the Maple 2020.1 download page, where you can also find more details.

    In particular, please note that this update includes a fix to the SMTLIB problem reported on MaplePrimes. Thanks for the feedback!

    Monte Carlo integration uses random sampling unlike classical techniques like the trapezoidal or Simpson's rule in evaluating the integration numerically.

    restart; ff := proc (rho, phi) return exp(rho*cos(phi))*rho end proc; aa := 0; bb := 1; cc := 0; dd := 2*Pi; alfa := 5; nrun := 15000; sum1 := 0; sum2 := 0; X := Statistics:-RandomVariable(Uniform(0, 1)); SX := Statistics:-Sample(X); for ii to nrun do u1 := SX(1)[1]; u2 := SX(1)[1]; xx1 := aa+(bb-aa)*u1; xx2 := cc+(dd-cc)*u2; xx3 := (bb-aa)*(1-u1); xx4 := (dd-cc)*(1-u2); sum1 := sum1+evalf(ff(xx1, xx2)); sum2 := sum2+evalf(ff(xx1, xx2))+evalf(ff(xx1, xx4))+evalf(ff(xx3, xx2))+evalf(ff(xx3, xx4)) end do; area1 := (bb-aa)*(dd-cc)*sum1/nrun; area2 := (bb-aa)*(dd-cc)*sum2/(4*nrun); area2

    HFloat(3.5442090450428574)

    (1)

    evalf(Int(exp(rho*cos(phi))*rho, rho = 0 .. 1, phi = 0 .. 2*Pi))

    3.550999378

    (2)

    NULL




    Download MONTE_CARLO_INTEGRATION1.mw





    The purpose of this document is:

    a) to correct the physics that was used in the document "Minimal Road Radius for Highway Superelevation" recently submitted to the Maple Applications Center;

    b) to confirm the values found in the manual for the American Association of State Highway and Transportation Officials (AASHTO) that engineers use to design and build these banked curves are physically sound.

    c) to highlight the pedagogical value inherent in the Maple language to distinguish between assignment ( := )  and equivalence (  =  );

    d) but most importantly, to demonstrate the pedagogical value Maple has in thinking about solving a problem involving a physical process. Given Maple's symbolic mathematics capabilities, one can implement a top-down approach to the physics and the mathematics, working from the general principle to the specific example. This allows one to avoid the types of errors that occur when translating the problem into a bottom up approach, from specific values of the example to the general principle, an approach that is required by most other computational systems.

    I hope that others are willing to continue to engage in discussions related to the pedagogical value of Maple beyond mathematics.

    I was asked to post this document to both here and the Maple Applications Center

    [Document edited for typos.]

    Minimum_Road_Radius.mw



    We’re excited to announce a new version of MapleSim! The MapleSim 2020 family of products lets you build and test models faster than ever, including faster simulations, powerful new tools for machine builders, and expanded modeling capabilities. Improvements include:

    • Faster results, with more efficient models, faster simulations, and more powerful design tools.
    • Powerful new features for machine builders, with new components, improved visualizations, and automation-focused connectivity tools that make it faster than ever to build and test digital twins.
    • Improved modeling capabilities, with an extensive collection of updates to components, libraries, and analysis tools.
    • More realistic machine visualizations with an expanded Kinematic Cam Generation App.
    • New product: MapleSim Insight, giving machine builders powerful, simulation-based debugging and 3-D visualization capabilities that connect directly to common automation platforms.
    • New add-on library:  MapleSim Ropes and Pulleys Library for the easy creation of winch and pulley systems as part of your machine development.

    See What’s New in MapleSim 2020 for more information about these and other improvements!


    Maple's pdsolve() is quite capable of solving the PDE that describes the motion of a single-span Euler beam.  As far as I have been able to ascertain, there is no obvious way of applying pdsolve() to solve multi-span beams.  The worksheet attached to this post provides tools for solving multi-span Euler beams.  Shown below are a few demos.  The worksheet contains more demos.



    A module for solving the Euler beam with the method of lines

    beamsolve



    The beamsolve proc solves a (possibly multi-span) Euler beam equation:``

    "rho ((∂)^2u)/((∂)^( )t^2)+ ((∂)^2)/((∂)^( )x^2)(EI ((∂)^(2)u)/((∂)^( )x^(2)))=f"

    subject to initial and boundary conditions.  The solution u = u(x, t) is the

    transverse deflection of the beam at point x at time t, subject to the load
    density (i.e., load per unit length) given by f = f(x, t). The coefficient rho

    is the beam's mass density (mass per unit length), E is the Young's modulus of

    the beam's material, and I is the beam's cross-sectional moment of inertia

    about the neutral axis.  The figure below illustrates a 3-span beam (drawn in green)
    supported on four supports, and loaded by a variable density load (drawn in gray)
    which may vary in time.  The objective is to determine the deformed shape of the
    beam as a function of time.


    The number of spans, their lengths, and the nature of the supports may be specified

    as arguments to beamsolve.



    In this worksheet we assume that rho, E, I are constants for simplicity. Since only
    the product of the coefficients E and I enters the calculations, we lump the two

    together into a single variable which we indicate with the two-letter symbol EI.

    Commonly, EI is referred to as the beam's rigidity.



    The PDE needs to be supplied with boundary conditions, two at each end, each

    condition prescribing a value (possibly time-dependent) for one of u, u__x, u__xx, u__xxx
    (that's 36 possible combinations!) where I have used subscripts to indicate

    derivatives.  Thus, for a single-span beam of length L, the following is an admissible

    set of boundary conditions:
    u(0, t) = 0, u__xx(0, t) = 0, u__xx(L, t) = 0, u__xxx(t) = sin*t.   (Oops, coorection, that last
    condition was meant to be uxxx(L,t) = sin t.)

    Additionally, the PDE needs to be supplied with initial conditions which express

    the initial displacement and the initial velocity:
    "u(x,0)=phi(x),   `u__t`(x,0)=psi(x)."



    The PDE is solved through the Method of Lines.  Thus, each span is subdivided into

    subintervals and the PDE's spatial derivatives are approximated through finite differences.

    The time derivatives, however, are not discretized.  This reduces the PDE into a set of

    ODEs which are solved with Maple's dsolve().



    Calling sequence:

            beamsolve(L, n, options)



    Parameters:

            L:  List of span lengths, in order from left to right, as in [L__1, L__2 .. (), `L__ν`].

            n The number of subintervals in the shortest span (for the finite difference approximation)



    Notes:

    •

    It is assumed that the spans are laid back-to-back along the x axis, with the left end
    of the overall beam at x = 0.

    •

    The interior supports, that is, those supports where any two spans meet, are assumed
    to be of the so-called simple type.  A simple support is immobile and it doesn't exert
    a bending moment on the beam.  Supports at the far left and far right of the beam can
    be of general type; see the BC_left and BC_right options below.

    •

    If the beam consists of a single span, then the argument L may be entered as a number
    rather than as a list. That is, L__1 is equivalent to [L__1].



    Options:

            All options are of the form option_name=value, and have built-in default values.

            Only options that are other than the defaults need be specified.



            rho: the beam's (constant) mass density per unit length (default: rho = 1)

            EI: the beam's (constant) rigidity (default: EI = 1)

            T: solve the PDE over the time interval 0 < t and t < T (default: T = 1)

            F: an expression in x and t that describes the applied force f(x, t)  (default: F = 0)
            IC: the list [u(x, 0), u__t(x, 0)]of the initial displacement and velocity,  as
                    expressions in x (default: IC = [0,0])

            BC_left: a list consisting of a pair of boundary conditions at the left end of
                    the overall (possibly multi-span beam.  These can be any two of
                    u = alpha(t), u_x = beta(t), u_xx = gamma(t), u_xxx = delta(t). The right-hand sides of these equations

                    can be any expression in t.  The left-hand sides should be entered literally as indicated.

                    If a right-hand side is omitted, it is taken to be zero.   (default: BC_left = [u, u_xx] which

                    corresponds to a simple support).

            BC_right: like BC_left, but for the right end of the overall beam (default: BC_right = "[u,u_xx])"



    The returned module:

            A call to beamsolve returns a module which presents three methods.  The methods are:



            plot (t, refine=val, options)

                    plots the solution u(x, t) at time t.  If the discretization in the x direction

                    is too coarse and the graph looks non-smooth, the refine option

                    (default: refine=1) may be specified to smooth out the graph by introducing

                    val number of intermediate points within each discretized subinterval.

                    All other options are assumed to be plot options and are passed to plots:-display.



            plot3d (m=val, options)

                    plots the surface u(x, t).  The optional m = val specification requests

                    a grid consisting of val subintervals in the time direction (default: "m=25)"

                    Note that this grid is for plotting purposes only; the solution is computed

                    as a continuous (not discrete) function of time. All other options are assumed

                    to be plot3d options and are passed to plots:-display.



            animate (frames=val, refine=val, options)

                    produces an animation of the beam's motion.  The frames option (default = 50)

                    specifies the number of animation frames.  The refine option is passed to plot
                    (see the description above. All other options are assumed to be plot options and
                    are passed to plots:-display.

    Note:

            In specifying the boundary conditions, the following reminder can be helpful.  If the beam

            is considered to be horizontal, then u is the vertical displacement, `u__x ` is the slope,  EI*u__xx

            is the bending moment, and EI*u__xxx is the transverse shear force.



    A single-span simply-supported beam with initial velocity



    The function u(x, t) = sin(Pi*x)*sin(Pi^2*t) is an exact solution of a simply supported beam with

    "u(x,0)=0,   `u__t`(x,0)=Pi^(2)sin(Pi x)."  The solution is periodic in time with period 2/Pi.

    sol := beamsolve(1, 25, 'T'=2/Pi, 'IC'=[0, Pi^2*sin(Pi*x)]):
    sol:-animate(size=[600,250]);

    The initial condition u(x, 0) = 0, u__t(x, 0) = 1  does not lead to a separable form, and

    therefore the motion is more complex.

    sol := beamsolve(1, 25, 'T'=2/Pi, 'IC'=[0, 1]):
    sol:-animate(frames=200, size=[600,250]);




    A single-span cantilever beam



    A cantilever beam with initial condition "u(x,0)=g(x),  `u__t`(x,0)=0," where g(x) is the
    first eigenmode of its free vibration (calculated in another spreadsheet).  The motion is
    periodic in time, with period "1.787018777."

    g := 0.5*cos(1.875104069*x) - 0.5*cosh(1.875104069*x) - 0.3670477570*sin(1.875104069*x) + 0.3670477570*sinh(1.875104069*x):
    sol := beamsolve(1, 25, 'T'=1.787018777, 'BC_left'=[u,u_x], 'BC_right'=[u_xx,u_xxx], 'IC'=[g, 0]):
    sol:-animate(size=[600,250]);

    If the initial condition is not an eigenmode, then the solution is rather chaotic.

    sol := beamsolve(1, 25, 'T'=3.57, 'BC_left'=[u,u_x], 'BC_right'=[u_xx,u_xxx], 'IC'=[-x^2, 0]):
    sol:-animate(size=[600,250], frames=100);




    A single-span cantilever beam with a weight hanging from its free end



    sol := beamsolve(1, 25, 'T'=3.57, 'BC_left'=[u,u_x], 'BC_right'=[u_xx,u_xxx=1]):
    sol:-animate(size=[600,250], frames=100);




    A single-span cantilever beam with oscillating support



    sol := beamsolve(1, 25, 'T'=Pi, 'BC_left'=[u=0.1*sin(10*t),u_x], 'BC_right'=[u_xx,u_xxx]):
    sol:-animate(size=[600,250], frames=100);




    A dual-span simply-supported beam with moving load



    Load moves across a dual-span beam.

    The beam continues oscillating after the load leaves.

    d := 0.4:  T := 4:  nframes := 100:
    myload := - max(0, -6*(x - t)*(d + x - t)/d^3):
    sol := beamsolve([1,1], 20, 'T'=T, 'F'=myload):
    sol:-animate(frames=nframes):
    plots:-animate(plot, [2e-3*myload(x,t), x=0..2, thickness=1, filled=[color="Green"]], t=0..T, frames=nframes):
    plots:-display([%%,%], size=[600,250]);




    A triple-span simply-supported beam with moving load



    Load moves across a triple-span beam.

    The beam continues oscillating after the load leaves.

    d := 0.4:  T := 6: nframes := 100:
    myload := - max(0, -6*(x - t)*(d + x - t)/d^3):
    sol := beamsolve([1,1,1], 20, 'T'=T, 'F'=myload):
    sol:-plot3d(m=50);
    sol:-animate(frames=nframes):
    plots:-animate(plot, [2e-3*myload(x,t), x=0..3, thickness=1, filled=[color="Green"]], t=0..T, frames=nframes):
    plots:-display([%%,%], size=[600,250]);

    z3d;




    A triple-span beam, moving load falling off the cantilever end



    In this demo the load move across a multi-span beam with a cantilever section at the right.

    As it skips past the cantilever end, the beam snaps back violently.

    d := 0.4:  T := 8: nframes := 200:
    myload := - max(0, -6*(x - t/2)*(d + x - t/2)/d^3):
    sol := beamsolve([1,1,1/2], 10, 'T'=T, 'F'=myload, BC_right=[u_xx, u_xxx]):
    sol:-animate(frames=nframes):
    plots:-animate(plot, [1e-2*myload(x,t), x=0..3, thickness=1, filled=[color="Green"]], t=0..T, frames=nframes):
    plots:-display([%%,%], size=[600,250]);





    Download worksheet: euler-beam-with-method-of-lines.mw

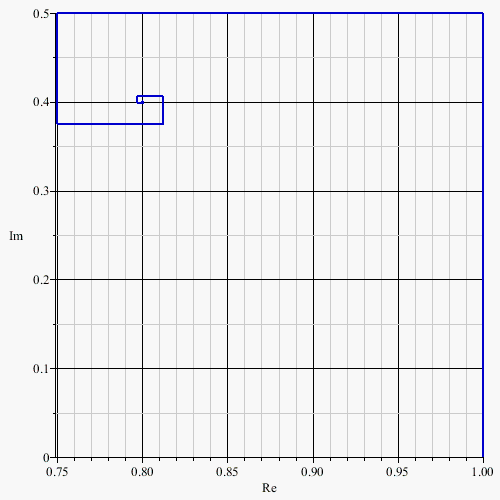

    This is my attempt to produce a subplot within a larger plot for magnifying data in a small region, and putting that subplot into the white space of the figure.
    Based on the questions: How to insert a plot into another plot? and Inset figure in Maple, I wrote a couple of procedures that create sub-plots and allow the user to place the subplot window as he/she chooses. This avoids the graininess issues mentioned by acer in the second link (and experienced by me).

    So far, I only have this completed for point plots, but using acer's method of piecewise functions posted in the plotin2b.mw of the second article, with the subplot function being defined only if it satisfies your conditions, would allow the subplot generating procedure to be generalized easily enough. But the data I'm working with all point plots, so that's the example here.

    The basic idea  is to use one procedure to create boxes, make tickmarks on the expanded region, and make tickmark labels, combine all of those into one graph. Then create scaled and shifted versions of the data series, then make graphs of those. Lastly, combine them all into one picture.

    Hope this helps someone who has to do the same.

    Mapleprimes isn't inserting the contents, but here is the download of the file: SubPlotBoxesandVectorDataSeries.mw



    Hello all ,

    It's been years and years that I have been using Maple (since Maple V.2 in 1992 if my memory is still

    correct. Now we are at Maple 2020 and the brilliant scientific library GMP is still in Maple at version

    5.1.1.

    kernelopts(gmpversion);
                                "5.1.1"

    The relatively new GMP is 6.2.0 : https://gmplib.org/

    I wonder if in a not too far version of Maple we could have GMP updated. It is really an impressive mathematical library alongside with GSL.

    Voilà !



    Kind regards to all,



    Jean-Michel



    Here is a little cute demo that shows how a cube may be paritioned into three congruent pyramids.  This was inspired by a Mathematica demo that I found in the web but I think this one's better :-)

    A Cube as a union of three right pyramids

    Here is an animated demo of the well-known fact that a cube may be partitioned

    into three congruent right pyramids.



    2020-05-21

    restart;

    with(plots):

    with(plottools):

    A proc to plot a general polyhedron.
    V = [[x, y, z], [x, y, z], () .. (), [x, y, z]]                list of vertices
    F = [[n__1, n__2, () .. ()], [n__1, n__2, () .. ()], () .. (), [n__1, n__2, () .. ()]]  list of faces

    An entry "[`n__1`,`n__2`. ...]" in Fdescribes a face made of the vertices "V[`n__1`], V[`n__2`], ...," etc.

    polyhedron := proc(V::list, F::list)
      seq(plottools:-polygon([seq( V[F[i][j]], j=1..nops(F[i]))]), i=1..nops(F));
      plots:-display(%);
    end proc:

    Define the vertices and faces of a pyramid:

    v := [[0,0,0],[1,0,0],[1,1,0],[0,1,0],[0,0,1]];
    f := [ [1,2,3,4], [5,2,3], [5,3,4], [1,5,4], [1,2,5] ];

    [[0, 0, 0], [1, 0, 0], [1, 1, 0], [0, 1, 0], [0, 0, 1]]

    [[1, 2, 3, 4], [5, 2, 3], [5, 3, 4], [1, 5, 4], [1, 2, 5]]

    Build three such pyramids:

    P1 := polyhedron(v, f):
    P2 := reflect(P1, [[1,0,0],[1,1,0],[1,0,1]]):
    P3 := reflect(P1, [[0,1,0],[1,1,0],[0,1,1]]):

    This is what we have so far:

    display(P1,P2,P3, scaling=constrained);

    Define an animation frame.  The parameter t goes from 0 to 1.

    Any extra options are assumed to be plot3d options and are

    passed to plots:-display.

    frame := proc(t)
      plots:-display(
        P1,

        rotate(P2, Pi/2*t, [[1,1,0],[1,0,0]]),
        rotate(P3, Pi/2*t, [[0,1,0],[1,1,0]]),
        color=["Red", "Green", "Blue"], _rest);
    end proc:

    Animate:

    display(frame(0) $40, seq(frame(t), t=0..1, 0.01), frame(1) $40,
      insequence, scaling=constrained, axes=none,
      orientation=[45,0,120], viewpoint=circleleft);



    Download square-partitioned-into-pyramids.mw





    The equations of motion in curvilinear coordinates, tensor notation and Coriolis force

    ``



    The formulation of the equations of motion of a particle is simple in Cartesian coordinates using vector notation. However, depending on the problem, for example when describing the motion of a particle as seen from a non-inertial system of references (e.g. a rotating planet, like earth), there is advantage in using curvilinear coordinates and also tensor notation. When the particle's movement is observed from such a rotating referential, we also see "acceleration" that is not due to any force but to the fact that the referential itself is accelerated. The material below discusses and formulates these topics, and derives the expression for the Coriolis and centripetal force in cylindrical coordinates as seen from a rotating system of references.



    The computation below is reproducible in Maple 2020 using the Maplesoft Physics Updates v.681 or newer.



    Vector notation



    Generally speaking the equations of motion of a particle are easy to formulate: the position vector is a function of time, the velocity is its first derivative and the acceleration is its second derivative. For instance, in Cartesian coordinates

    with(Physics); with(Vectors)

    r_(t) = x(t)*_i+y(t)*_j+z(t)*_k

    r_(t) = x(t)*_i+y(t)*_j+z(t)*_k

    (1)

    diff(r_(t) = x(t)*_i+y(t)*_j+z(t)*_k, t)

    diff(r_(t), t) = (diff(x(t), t))*_i+(diff(y(t), t))*_j+(diff(z(t), t))*_k

    (2)

    diff(diff(r_(t), t) = (diff(x(t), t))*_i+(diff(y(t), t))*_j+(diff(z(t), t))*_k, t)

    diff(diff(r_(t), t), t) = (diff(diff(x(t), t), t))*_i+(diff(diff(y(t), t), t))*_j+(diff(diff(z(t), t), t))*_k

    (3)

    Newton's 2nd law, that in an inertial system of references when there is force there is acceleration and viceversa, is then given by

    F_(t) = m*lhs(diff(diff(r_(t), t), t) = (diff(diff(x(t), t), t))*_i+(diff(diff(y(t), t), t))*_j+(diff(diff(z(t), t), t))*_k)

    F_(t) = m*(diff(diff(r_(t), t), t))

    (4)

    where `#mover(mi("F"),mo("&rarr;"))`(t) = F__x(t)*`#mover(mi("i"),mo("&and;"))`+F__y(t)*`#mover(mi("j"),mo("&and;"))`+F__z(t)*`#mover(mi("k"),mo("&and;"))` represents the total force acting on the particle. This vectorial equation represents three second order differential equations which, for given initial conditions, can be integrated to arrive at a closed form expression for `#mover(mi("r"),mo("&rarr;"))`(t) as a function of t.



    Tensor notation



    In Cartesian coordinates, the tensorial form of the equations (4) is also straightforward. In a flat spacetime - Galilean system of references - the three space coordinates x, y, z form a 3D tensor, and so does its first derivate and the second one. Set the spacetime to be 3-dimensional and Euclidean and use lowercaselatin indices for the corresponding tensors

    Setup(coordinates = cartesian, metric = Euclidean, dimension = 3, spacetimeindices = lowercaselatin)

    `The dimension and signature of the tensor space are set to `[3, `+ + +`]



    `Systems of spacetime coordinates are:`*{X = (x, y, z)}



    _______________________________________________________



    `The Euclidean metric in coordinates `*[x, y, z]



    _______________________________________________________



    Physics:-g_[mu, nu] = Matrix(%id = 18446744078329083054)



    _______________________________________________________

    (5)

    The position, velocity and acceleration vectors are expressed in tensor notation as done in (1), (2) and (3)

    X[j](t)

    (X)[j](t)

    (6)

    diff((X)[j](t), t)

    Physics:-Vectors:-diff((Physics:-SpaceTimeVector[j](X))(t), t)

    (7)

    diff(Physics[Vectors]:-diff((Physics[SpaceTimeVector][j](X))(t), t), t)

    Physics:-Vectors:-diff(Physics:-Vectors:-diff((Physics:-SpaceTimeVector[j](X))(t), t), t)

    (8)

    Setting a tensor F__j(t) to represent the three Cartesian components of the force

    Define(F[j] = [F__x(t), F__y(t), F__z(t)])

    `Defined objects with tensor properties`



    {Physics:-Dgamma[a], F[j], Physics:-Psigma[a], Physics:-d_[a], Physics:-g_[a, b], Physics:-LeviCivita[a, b, c], Physics:-SpaceTimeVector[a](X)}

    (9)

    Newton's 2nd law (4), now expressed in tensorial notation, is given by

    F[j] = m*Physics[Vectors]:-diff(Physics[Vectors]:-diff((Physics[SpaceTimeVector][j](X))(t), t), t)

    F[j] = m*(diff(diff((Physics:-SpaceTimeVector[j](X))(t), t), t))

    (10)

    The three differential equations behind this tensorial form of (4) are as expected

    TensorArray(F[j] = m*(diff(diff((Physics[SpaceTimeVector][j](X))(t), t), t)), output = setofequations)

    {F__x(t) = m*(diff(diff(x(t), t), t)), F__y(t) = m*(diff(diff(y(t), t), t)), F__z(t) = m*(diff(diff(z(t), t), t))}

    (11)

    Things are straightforward in Cartesian coordinates because the components of the line element `#mover(mi("dr"),mo("&rarr;"))` = dx*`#mover(mi("i"),mo("&and;"))`+dy*`#mover(mi("j"),mo("&and;"))`+dz*`#mover(mi("k"),mo("&and;"))` are exactly the components of the tensor d(X[j])

    TensorArray(d_(X[j]))

    Array(%id = 18446744078354237310)

    (12)

    and so, the form factors (see related Mapleprimes post) are all equal to 1.



    In the case of no external forces, `#mover(mi("F"),mo("&rarr;"))`(t) = 0 and 0 = F[j] and the equations of motion, whose solution are the trajectory, can be formulated as the path of minimal length between two points, a geodesic. In the case under consideration, because the spacetime is flat (Galilean) those two points lie on a plane, we are talking about Euclidean geometry, that information is encoded in the metric (the 3x3 identity matrix (5)), and the geodesic is a straight line. The differential equations of this geodesic are thus the equations of motion (11) with  `#mover(mi("F"),mo("&rarr;"))`(t) = 0, and can be computed using Geodesics



    Geodesics(t)

    [diff(diff(z(t), t), t) = 0, diff(diff(y(t), t), t) = 0, diff(diff(x(t), t), t) = 0]

    (13)



    Curvilinear coordinates



    Vector notation



    The form of these equations in the case of curvilinear coordinates, for example in cylindrical or spherical variables, is obtained performing a change of coordinates.

    tr := `~`[`=`]([X], ChangeCoordinates([X], cylindrical))

    [x = rho*cos(phi), y = rho*sin(phi), z = z]

    (14)

    This change keeps the z axis unchanged, so the corresponding unit vector `#mover(mi("k"),mo("&and;"))` remains unchanged.

    Changing the basis and coordinates used to represent the position vector `#mover(mi("r"),mo("&rarr;"))`(t) = x(t)*`#mover(mi("i"),mo("&and;"))`+y(t)*`#mover(mi("j"),mo("&and;"))`+z(t)*`#mover(mi("k"),mo("&and;"))`, it becomes

    r_(t) = ChangeBasis(rhs(r_(t) = x(t)*_i+y(t)*_j+z(t)*_k), cylindrical, alsocomponents)

    r_(t) = z(t)*_k+rho(t)*_rho(t)

    (15)

    where since in (1) the coordinates (x, y, z) depend on t, in (15), not just rho(t) and z(t) but also the unit vector `#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`(t)depends on t. The velocity is computed as usual, differentiating

    diff(r_(t) = z(t)*_k+rho(t)*_rho(t), t)

    diff(r_(t), t) = (diff(z(t), t))*_k+(diff(rho(t), t))*_rho(t)+rho(t)*(diff(phi(t), t))*_phi(t)

    (16)

    The second term is due to the dependency of `#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))` on the coordinate phi together with the chain rule diff(`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`(t), t) = (diff(`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`, phi))*(diff(phi(t), t)) and (diff(`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`, phi))*(diff(phi(t), t)) = `#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))`(t)*(diff(phi(t), t)). The dependency of curvilinear unit vectors on the coordinates is automatically taken into account when differentiating due to the Setup setting geometricdifferentiation = true.



    For the acceleration,

    diff(diff(r_(t), t) = (diff(z(t), t))*_k+(diff(rho(t), t))*_rho(t)+rho(t)*(diff(phi(t), t))*_phi(t), t)

    diff(diff(r_(t), t), t) = _rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k

    (17)

    where the term involving (diff(phi(t), t))^2 comes from differentiating `#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))`(t) in (16) taking into account the dependency of `#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))` on the coordinate "phi." This result can also be obtained by directly changing variables in the acceleration diff(`#mover(mi("r"),mo("&rarr;"))`(t), t, t), in equation (3)

    lhs(diff(diff(r_(t), t), t) = (diff(diff(x(t), t), t))*_i+(diff(diff(y(t), t), t))*_j+(diff(diff(z(t), t), t))*_k) = ChangeBasis(rhs(diff(diff(r_(t), t), t) = (diff(diff(x(t), t), t))*_i+(diff(diff(y(t), t), t))*_j+(diff(diff(z(t), t), t))*_k), cylindrical, alsocomponents)

    diff(diff(r_(t), t), t) = _rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k

    (18)



    Newton's 2nd law becomes

    F_(t) = m*rhs(diff(diff(r_(t), t), t) = _rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k)

    F_(t) = m*(_rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k)

    (19)

    In the absence of external forces, equating to 0 the vector components (coefficients of the unit vectors) of the acceleration diff(`#mover(mi("r"),mo("&rarr;"))`(t), t, t)we get the system of differential equations in cylindrical coordinates whose solution is the trajectory of the particle expressed in the ("rho(t),phi(t),z(t))"

    `~`[`=`]({coeffs(rhs(diff(diff(r_(t), t), t) = _rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k), [`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`(t), `#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))`(t), `#mover(mi("k"),mo("&and;"))`])}, 0)

    {2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)) = 0, diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2 = 0, diff(diff(z(t), t), t) = 0}

    (20)

    solve({2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)) = 0, diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2 = 0, diff(diff(z(t), t), t) = 0}, {diff(phi(t), t, t), diff(rho(t), t, t), diff(z(t), t, t)})

    {diff(diff(phi(t), t), t) = -2*(diff(rho(t), t))*(diff(phi(t), t))/rho(t), diff(diff(rho(t), t), t) = rho(t)*(diff(phi(t), t))^2, diff(diff(z(t), t), t) = 0}

    (21)

    In this formulation (21) with `#mover(mi("F"),mo("&rarr;"))`(t) = 0, although diff(z(t), t, t) = 0, no acceleration in the `#mover(mi("k"),mo("&and;"))` direction, is naturally expected, the same cannot be said about the other two equations for diff(phi(t), t, t) and diff(rho(t), t, t). Those two equations are discussed below under Coriolis and Centripetal forces. The key observation at this point, however, is that the right-hand sides of both unexpected equations involve diff(phi(t), t), rotation around the z axis.



    Tensor notation



    The same equations (19) and (21) result when using tensor notation. For that purpose, one can transform the position, velocity and acceleration tensors (6), (7), (8), but since they are expressed as functions of a parameter (the time), it is simpler to transform only the underlying metric using TransformCoordinates. That has the advantage that all the geometrical subtleties of curvilinear coordinates, like scale factors and dependency of unit vectors on curvilinear coordinates, get automatically, very succinctly, encoded in the metric:

    TransformCoordinates(tr, g_[j, k], [rho, phi, z], setmetric)

    _______________________________________________________



    `Coordinates: `[rho, phi, z]*`. Signature: `(`+ + +`)



    _______________________________________________________



    Physics:-g_[a, b] = Matrix(%id = 18446744078263848958)



    _______________________________________________________

    (22)

    The computation of geodesics assumes that the coordinates (rho, phi, z) depend on a parameter. That parameter is passed as the first argument to Geodesics

    Geodesics(t)

    [diff(diff(rho(t), t), t) = rho(t)*(diff(phi(t), t))^2, diff(diff(phi(t), t), t) = -2*(diff(rho(t), t))*(diff(phi(t), t))/rho(t), diff(diff(z(t), t), t) = 0]

    (23)

    These equations of motion (23) are the same as the equations (21) computed using standard vector notation, differentiating and taking into account the dependency of curvilinear unit vectors on the curvilinear coordinates in (16) and (17).  One of the interesting features of computing with tensors is, as said, that all those geometrical algebraic subtleties of curvilinear coordinates are automatically encoded in the metric (22).



    To understand how are the geodesic equations computed in one go in (23), one can perform the calculation in steps:

    1.

    Make rho be a function of t directly in the metric

    2.

    Compute - not the final form of the equations (23) - but the intermediate form expressing the geodesic equation using tensor notation, in terms of Christoffel symbols

    3.

    Compute the components of that tensorial equation for the geodesic (using TensorArray)



    For step 1, we have

    subs(rho = rho(t), g_[])

    Physics:-g_[a, b] = Matrix(%id = 18446744078354237910)

    (24)

    Set this metric where `&equiv;`(rho, rho(t))

    "Setup(?):"

    _______________________________________________________



    `Coordinates: `[rho, phi, z]*`. Signature: `(`+ + +`)



    _______________________________________________________



    Physics:-g_[a, b] = Matrix(%id = 18446744078342604430)



    _______________________________________________________

    (25)

    Step 2, the geodesic equations in tensor notation with the coordinates depending on the time t are computed passing the optional argument tensornotation

    Geodesics(t, tensornotation)

    diff(diff((Physics:-SpaceTimeVector[`~a`](X))(t), t), t)+Physics:-Christoffel[`~a`, b, c]*(diff((Physics:-SpaceTimeVector[`~b`](X))(t), t))*(diff((Physics:-SpaceTimeVector[`~c`](X))(t), t)) = 0

    (26)

    Step 3: compute the components of this tensorial equation

    TensorArray(diff(diff((Physics[SpaceTimeVector][`~a`](X))(t), t), t)+Physics[Christoffel][`~a`, b, c]*(diff((Physics[SpaceTimeVector][`~b`](X))(t), t))*(diff((Physics[SpaceTimeVector][`~c`](X))(t), t)) = 0, output = listofequations)

    [diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2 = 0, diff(diff(phi(t), t), t)+2*(diff(rho(t), t))*(diff(phi(t), t))/rho(t) = 0, diff(diff(z(t), t), t) = 0]

    (27)

    These are the same equations (23).



    Having the tensorial equation (26) is also useful to formulate the equations of motion in tensorial form in the presence of force. For that purpose, redefine the contravariant tensor F^j to represent the force in the cylindrical basis

    Define(F[`~j`] = [`F__&rho;`(t), `F__&phi;`(t), F__z(t)])

    `Defined objects with tensor properties`



    {Physics:-D_[a], Physics:-Dgamma[a], F[j], Physics:-Psigma[a], Physics:-Ricci[a, b], Physics:-Riemann[a, b, c, d], Physics:-Weyl[a, b, c, d], Physics:-d_[a], Physics:-g_[a, b], Physics:-Christoffel[a, b, c], Physics:-Einstein[a, b], Physics:-LeviCivita[a, b, c], Physics:-SpaceTimeVector[a](X)}

    (28)



    Newton's 2nd law (19)

    F_(t) = m*(_rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k)

    F_(t) = m*(_rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k)

    (29)

    now using tensorial notation, becomes

    F[`~a`] = m*lhs(diff(diff((Physics[SpaceTimeVector][`~a`](X))(t), t), t)+Physics[Christoffel][`~a`, b, c]*(diff((Physics[SpaceTimeVector][`~b`](X))(t), t))*(diff((Physics[SpaceTimeVector][`~c`](X))(t), t)) = 0)

    F[`~a`] = m*(diff(diff((Physics:-SpaceTimeVector[`~a`](X))(t), t), t)+Physics:-Christoffel[`~a`, b, c]*(diff((Physics:-SpaceTimeVector[`~b`](X))(t), t))*(diff((Physics:-SpaceTimeVector[`~c`](X))(t), t)))

    (30)

    TensorArray(F[`~a`] = m*(diff(diff((Physics[SpaceTimeVector][`~a`](X))(t), t), t)+Physics[Christoffel][`~a`, b, c]*(diff((Physics[SpaceTimeVector][`~b`](X))(t), t))*(diff((Physics[SpaceTimeVector][`~c`](X))(t), t))))

    Array(%id = 18446744078329063774)

    (31)

    where we recall (see related Mapleprimes post) that to obtain the vector components entering `#mover(mi("F"),mo("&rarr;"))`(t) from these tensor components F[`~a`]we need to multiply the latter by the scale factors (1, rho(t), 1), the component of `#mover(mi("F"),mo("&rarr;"))`(t) in the direction of `#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))` is given by rho(t)*m*(diff(phi(t), t, t)+2*(diff(rho(t), t))*(diff(phi(t), t))/rho(t)).



    Coriolis force and centripetal force



    After changing variables the position vector of the particle got expressed in (15) as



    `#mover(mi("r"),mo("&rarr;"))`(t) = z(t)*`#mover(mi("k"),mo("&and;"))`+`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`(t)*rho(t)



    A distinction needs to be made here, according to whether the unit vector `#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))` depends or not on the time t, the former being the general case. When `#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))` is a constant, the value of the coordinate phi - the angle between `#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))` and the x axis - does not change, there is no rotation around the z axis. On the other hand, when `&equiv;`(`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`, `#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`(t)), the orientation of `#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))` and so the coordinate phi changes with time, so either the force `#mover(mi("F"),mo("&rarr;"))`(t)acting on the particle has a component in the `#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))` direction that produces rotation around the z axis, or the system of references - itself - is rotating around the z axis.



    Likewise, the expression (15)  can represent the position vector measured in the original Galilean (inertial) system of references, where a force `#mover(mi("F"),mo("&rarr;"))`(t)is producing rotation around the z axis, or it can represent the position of the particle measured in a rotating, non-inertial system references. Hence the transformation (14) can also be interpreted in two different ways, as representing a choice of different functions (generalized coordinates) to represent the position of the particle in the original inertial system of references, or it can represent a transformation from an inertial to another rotating, non-inertial, system of references.



    This equivalence between the trajectory of a particle subject to an external force, as observed in an inertial system of references, and the same trajectory observed from a non-inertial accelerated system of references where there is no external force, actually at the root of the formulation of general relativity, is also well known in classical mechanics. The (apparent) forces observed in the rotating non-inertial system of references, due only to its acceleration, are called Coriolis and centripetal forces.



    To see that the equations



    diff(rho(t), t, t) = (diff(phi(t), t))^2*rho(t), diff(phi(t), t, t) = -2*(diff(phi(t), t))*(diff(rho(t), t))/rho(t)



    that appeared in (27) when in the inertial system of references `#mover(mi("F"),mo("&rarr;"))`(t) = m*(diff(`#mover(mi("r"),mo("&rarr;"))`(t), t, t)) and m*(diff(`#mover(mi("r"),mo("&rarr;"))`(t), t, t)) = 0, are related to the Coriolis and centripetal forces in the non-inertial referencial, following [1] introduce a vector `#mover(mi("&omega;",fontstyle = "normal"),mo("&rarr;"))`representing the rotation of that referencial around the z axis (when, in the inertial system of references, the non-inertial system rotates clockwise, in the non-inertial system phi increases in value in the anti-clockwise direction)

    `#mover(mi("&omega;",fontstyle = "normal"),mo("&rarr;"))` = -(diff(phi(t), t))*`#mover(mi("k"),mo("&and;"))`

    omega_ = -(diff(phi(t), t))*_k

    (32)

    According to [1], (39.7), the acceleration diff(`#mover(mi("r"),mo("&rarr;"))`(t), t, t)in the inertial system is expressed in terms of the quantities in the non-inertial rotating system by the sum of the following three vectorial terms.

    First, the components of the acceleration `#mover(mi("a"),mo("&rarr;"))`(t)measured in the non-inertial system are given by the second derivatives of the coordinates (rho(t), phi(t), z(t)) multiplied by the scale factors, which in this case are given by (1, rho(t), 1) (see this post in Mapleprimes)

    `#mover(mi("a"),mo("&rarr;"))`(t) = (diff(rho(t), t, t))*`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`(t)+rho(t)*(diff(phi(t), t, t))*`#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))`(t)+(diff(z(t), t, t))*`#mover(mi("k"),mo("&and;"))`

    a_(t) = (diff(diff(rho(t), t), t))*_rho(t)+rho(t)*(diff(diff(phi(t), t), t))*_phi(t)+(diff(diff(z(t), t), t))*_k

    (33)

    Second, the Coriolis force divided by the mass, by definition given by

    2*`&x`(diff(r_(t), t) = (diff(z(t), t))*_k+(diff(rho(t), t))*_rho(t)+rho(t)*(diff(phi(t), t))*_phi(t), omega_ = -(diff(phi(t), t))*_k)

    2*Physics:-Vectors:-`&x`(diff(r_(t), t), omega_) = -2*rho(t)*(diff(phi(t), t))^2*_rho(t)+2*(diff(rho(t), t))*(diff(phi(t), t))*_phi(t)

    (34)

    Third the centripetal force divided by the mass, defined by

    `&x`(omega_ = -(diff(phi(t), t))*_k, `&x`(r_(t) = z(t)*_k+rho(t)*_rho(t), omega_ = -(diff(phi(t), t))*_k))

    Physics:-Vectors:-`&x`(omega_, Physics:-Vectors:-`&x`(r_(t), omega_)) = rho(t)*(diff(phi(t), t))^2*_rho(t)

    (35)

    Adding these three terms,

    (a_(t) = (diff(diff(rho(t), t), t))*_rho(t)+rho(t)*(diff(diff(phi(t), t), t))*_phi(t)+(diff(diff(z(t), t), t))*_k)+(2*Physics[Vectors][`&x`](diff(r_(t), t), omega_) = -2*rho(t)*(diff(phi(t), t))^2*_rho(t)+2*(diff(rho(t), t))*(diff(phi(t), t))*_phi(t))+(Physics[Vectors][`&x`](omega_, Physics[Vectors][`&x`](r_(t), omega_)) = rho(t)*(diff(phi(t), t))^2*_rho(t))

    a_(t)+2*Physics:-Vectors:-`&x`(diff(r_(t), t), omega_)+Physics:-Vectors:-`&x`(omega_, Physics:-Vectors:-`&x`(r_(t), omega_)) = _rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k

    (36)

    So that

    diff(`#mover(mi("r"),mo("&rarr;"))`(t), t, t) = lhs(a_(t)+2*Physics[Vectors][`&x`](diff(r_(t), t), omega_)+Physics[Vectors][`&x`](omega_, Physics[Vectors][`&x`](r_(t), omega_)) = _rho(t)*(diff(diff(rho(t), t), t)-(diff(phi(t), t))^2*rho(t))+_phi(t)*(2*(diff(phi(t), t))*(diff(rho(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k)

    diff(diff(r_(t), t), t) = a_(t)+2*Physics:-Vectors:-`&x`(diff(r_(t), t), omega_)+Physics:-Vectors:-`&x`(omega_, Physics:-Vectors:-`&x`(r_(t), omega_))

    (37)

    and where the right-hand side of (36) is, actually, the result computed lines above in (18)

    diff(diff(r_(t), t), t) = _rho(t)*(diff(diff(rho(t), t), t)-(diff(phi(t), t))^2*rho(t))+_phi(t)*(2*(diff(phi(t), t))*(diff(rho(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k

    diff(diff(r_(t), t), t) = _rho(t)*(diff(diff(rho(t), t), t)-rho(t)*(diff(phi(t), t))^2)+_phi(t)*(2*(diff(rho(t), t))*(diff(phi(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k

    (38)

    rhs(a_(t)+2*Physics[Vectors][`&x`](diff(r_(t), t), omega_)+Physics[Vectors][`&x`](omega_, Physics[Vectors][`&x`](r_(t), omega_)) = _rho(t)*(diff(diff(rho(t), t), t)-(diff(phi(t), t))^2*rho(t))+_phi(t)*(2*(diff(phi(t), t))*(diff(rho(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k)-rhs(diff(diff(r_(t), t), t) = _rho(t)*(diff(diff(rho(t), t), t)-(diff(phi(t), t))^2*rho(t))+_phi(t)*(2*(diff(phi(t), t))*(diff(rho(t), t))+rho(t)*(diff(diff(phi(t), t), t)))+(diff(diff(z(t), t), t))*_k)

    0

    (39)

    From (37), in the absence of external forces diff(`#mover(mi("r"),mo("&rarr;"))`(t), t, t) = 0 and so the acceleration `#mover(mi("a"),mo("&rarr;"))`(t) measured in the rotating system is given by the sum of the Coriolis and centripetal accelerations

    isolate(rhs(diff(diff(r_(t), t), t) = a_(t)+2*Physics[Vectors][`&x`](diff(r_(t), t), omega_)+Physics[Vectors][`&x`](omega_, Physics[Vectors][`&x`](r_(t), omega_))), `#mover(mi("a"),mo("&rarr;"))`(t))

    a_(t) = -2*Physics:-Vectors:-`&x`(diff(r_(t), t), omega_)-Physics:-Vectors:-`&x`(omega_, Physics:-Vectors:-`&x`(r_(t), omega_))

    (40)

    In other words: in the absence of external forces, the acceleration of a particle observed in a rotating (non-inertial) system of references is not zero.



    Expressing this equation (40) in terms of (rho(t), phi(t), z(t)) we get

    subs(a_(t) = (diff(diff(rho(t), t), t))*_rho(t)+rho(t)*(diff(diff(phi(t), t), t))*_phi(t)+(diff(diff(z(t), t), t))*_k, -(2*Physics[Vectors][`&x`](diff(r_(t), t), omega_) = -2*rho(t)*(diff(phi(t), t))^2*_rho(t)+2*(diff(rho(t), t))*(diff(phi(t), t))*_phi(t)), Physics[Vectors][`&x`](omega_, Physics[Vectors][`&x`](r_(t), omega_)) = rho(t)*(diff(phi(t), t))^2*_rho(t), a_(t) = -2*Physics[Vectors][`&x`](diff(r_(t), t), omega_)-Physics[Vectors][`&x`](omega_, Physics[Vectors][`&x`](r_(t), omega_)))

    (diff(diff(rho(t), t), t))*_rho(t)+rho(t)*(diff(diff(phi(t), t), t))*_phi(t)+(diff(diff(z(t), t), t))*_k = rho(t)*(diff(phi(t), t))^2*_rho(t)-2*(diff(rho(t), t))*(diff(phi(t), t))*_phi(t)

    (41)

    resulting in the three equations

    ((diff(diff(rho(t), t), t))*_rho(t)+rho(t)*(diff(diff(phi(t), t), t))*_phi(t)+(diff(diff(z(t), t), t))*_k = rho(t)*(diff(phi(t), t))^2*_rho(t)-2*(diff(rho(t), t))*(diff(phi(t), t))*_phi(t)).`#mover(mi("&rho;",fontstyle = "normal"),mo("&and;"))`(t)

    diff(diff(rho(t), t), t) = rho(t)*(diff(phi(t), t))^2

    (42)

    ((diff(diff(rho(t), t), t))*_rho(t)+rho(t)*(diff(diff(phi(t), t), t))*_phi(t)+(diff(diff(z(t), t), t))*_k = rho(t)*(diff(phi(t), t))^2*_rho(t)-2*(diff(rho(t), t))*(diff(phi(t), t))*_phi(t)).`#mover(mi("&phi;",fontstyle = "normal"),mo("&and;"))`(t)

    rho(t)*(diff(diff(phi(t), t), t)) = -2*(diff(rho(t), t))*(diff(phi(t), t))

    (43)

    ((diff(diff(rho(t), t), t))*_rho(t)+rho(t)*(diff(diff(phi(t), t), t))*_phi(t)+(diff(diff(z(t), t), t))*_k = rho(t)*(diff(phi(t), t))^2*_rho(t)-2*(diff(rho(t), t))*(diff(phi(t), t))*_phi(t)).`#mover(mi("k"),mo("&and;"))`

    diff(diff(z(t), t), t) = 0

    (44)

    which are the equations returned by Geodesics in (23)

    [diff(diff(rho(t), t), t) = rho(t)*(diff(phi(t), t))^2, diff(diff(phi(t), t), t) = -2*(diff(rho(t), t))*(diff(phi(t), t))/rho(t), diff(diff(z(t), t), t) = 0]

    [diff(diff(rho(t), t), t) = rho(t)*(diff(phi(t), t))^2, diff(diff(phi(t), t), t) = -2*(diff(rho(t), t))*(diff(phi(t), t))/rho(t), diff(diff(z(t), t), t) = 0]

    (45)

    ``

    References

    [1] L.D. Landau, E.M. Lifchitz, Mechanics, Course of Theoretical Physics, Volume 1, third edition, Elsevier.




    Download The_equations_of_motion_in_curvilinear_coordinates.mw

    Edgardo S. Cheb-Terrab
    Physics, Differential Equations and Mathematical Functions, Maplesoft
