## Rotating Hypercube by Avek Dongol

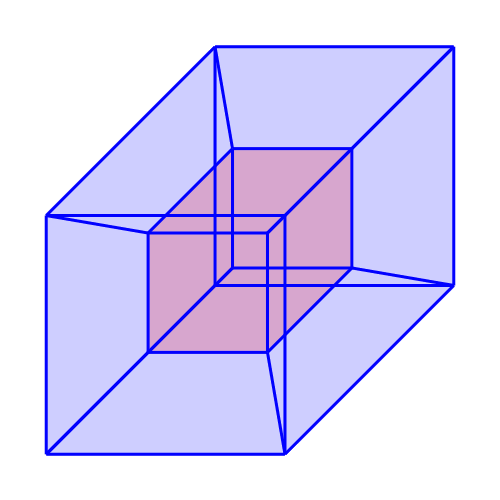

A 4D hypercube undergoing a double rotation

From the 2021 Maple Conference Art Gallery - Special Judges Award

 > #AvekD 4D Hypercube (Now uses equations)
 > restart:with(plots):with(plottools):
 > proj4D3D := proc(p, l) description "Stereographically Project a 4d point into 3d": Matrix([[1/(l-p[4, 1]), 0, 0, 0], [0, 1/(l-p[4, 1]), 0, 0], [0, 0, 1/(l-p[4, 1]), 0]]).p; end proc:
 >
 > proj3D2D := proc(p) description "Project a 3d point into 2d": Matrix([[p[1, 1] + cos(Pi/4) * p[3, 1]], [p[2, 1] + sin(Pi/4) * p[3, 1]]]); end proc:
 >
 > proj4D2D := proc(p, l) description "Stereographically Project a 4d point into 3d, then project that point into 2d": [eval(proj3D2D(proj4D3D(p, l))[1, 1]), eval(proj3D2D(proj4D3D(p, l))[2, 1])] end proc:
 >
 > rXZYW := proc(p, theta) description "Rotate a point by an angle in the xz plane, then rotate it by that same angle in the yw plane": Matrix([[cos(theta), 0, -sin(theta), 0], [0, cos(theta), 0, -sin(theta)], [sin(theta), 0, cos(theta), 0], [0, sin(theta), 0, cos(theta)]]).p;
 > end proc:
 >
 > ltocolmx := proc(l) Matrix(4,1,l);
 > end proc:
 >
 >
 >
 > lines := []:
 > for a from -1 by 2 to 1 do  for b from -1 by 2 to 1 do   for c from -1 by 2 to 1 do    for d from -1 by 2 to 1 do     for e from 1 to 4 do      if ([a, b, c, d][e] = -1) then       if (e = 1) then        lines := [op(lines), [ltocolmx([a, b, c, d]), ltocolmx([1, b, c, d])]];       elif (e = 2) then        lines := [op(lines), [ltocolmx([a, b, c, d]), ltocolmx([a, 1, c, d])]];       elif (e = 3) then        lines := [op(lines), [ltocolmx([a, b, c, d]), ltocolmx([a, b, 1, d])]];       else        lines := [op(lines), [ltocolmx([a, b, c, d]), ltocolmx([a, b, c, 1])]];       end if;      end if;     end do;    end do;   end do;  end do; end do;
 > frames := []:
 > plist := []:
 > redsquares := [ [ltocolmx([-1, -1, -1, -1]), ltocolmx([1, -1, -1, -1]), ltocolmx([1, 1, -1, -1]), ltocolmx([-1, 1, -1, -1])], #XY [ltocolmx([-1, -1, 1, -1]),  ltocolmx([1, -1, 1, -1]),  ltocolmx([1, 1, 1, -1]),  ltocolmx([-1, 1, 1, -1])], #XY + Z [ltocolmx([-1, -1, -1, -1]), ltocolmx([1, -1, -1, -1]), ltocolmx([1, -1, 1, -1]), ltocolmx([-1, -1, 1, -1])], #XZ [ltocolmx([-1, 1, -1, -1]),  ltocolmx([1, 1, -1, -1]),  ltocolmx([1, 1, 1, -1]),  ltocolmx([-1, 1, 1, -1])], #XZ + Y [ltocolmx([-1, -1, -1, -1]), ltocolmx([-1, -1, 1, -1]), ltocolmx([-1, 1, 1, -1]), ltocolmx([-1, 1, -1, -1])], #ZY [ltocolmx([1, -1, -1, -1]),  ltocolmx([1, -1, 1, -1]),  ltocolmx([1, 1, 1, -1]),  ltocolmx([1, 1, -1, -1])] #ZY + X ]:
 > bluesquares := [ [ltocolmx([-1, -1, -1, 1]), ltocolmx([1, -1, -1, 1]), ltocolmx([1, 1, -1, 1]), ltocolmx([-1, 1, -1, 1])], #XY + W [ltocolmx([-1, -1, 1, 1]),  ltocolmx([1, -1, 1, 1]),  ltocolmx([1, 1, 1, 1]),  ltocolmx([-1, 1, 1, 1])], #XY + Z + W [ltocolmx([-1, -1, -1, 1]), ltocolmx([1, -1, -1, 1]), ltocolmx([1, -1, 1, 1]), ltocolmx([-1, -1, 1, 1])], #XZ + W [ltocolmx([-1, 1, -1, 1]),  ltocolmx([1, 1, -1, 1]),  ltocolmx([1, 1, 1, 1]),  ltocolmx([-1, 1, 1, 1])], #XZ + Y + W [ltocolmx([-1, -1, -1, 1]), ltocolmx([-1, -1, 1, 1]), ltocolmx([-1, 1, 1, 1]), ltocolmx([-1, 1, -1, 1])], #YZ + W [ltocolmx([1, -1, -1, 1]),  ltocolmx([1, -1, 1, 1]),  ltocolmx([1, 1, 1, 1]),  ltocolmx([1, 1, -1, 1])] #YZ + X + W ]:
 > nframes := 200:
 > for i from 1 to nframes do  for j in lines do   plist := [plist[], plot([[proj4D2D(rXZYW(j[1], 2*(i-1)*Pi/nframes), 3), proj4D2D(rXZYW(j[2], 2*(i-1)*Pi/nframes), 3)]], color=blue, thickness=3)]:  end do:  for k in redsquares do   plist := [plist[], polygon([proj4D2D(rXZYW(k[1], 2*(i-1)*Pi/nframes), 3), proj4D2D(rXZYW(k[2], 2*(i-1)*Pi/nframes), 3), proj4D2D(rXZYW(k[3], 2*(i-1)*Pi/nframes), 3), proj4D2D(rXZYW(k[4], 2*(i-1)*Pi/nframes), 3)], color=red, filled=true, transparency=0.9)]:  end do:  for m in bluesquares do   plist := [plist[], polygon([proj4D2D(rXZYW(m[1], 2*(i-1)*Pi/nframes), 3), proj4D2D(rXZYW(m[2], 2*(i-1)*Pi/nframes), 3), proj4D2D(rXZYW(m[3], 2*(i-1)*Pi/nframes), 3), proj4D2D(rXZYW(m[4], 2*(i-1)*Pi/nframes), 3)], color=blue, filled=true, transparency=0.9)]:  end do:  frames := [frames[], display(plist)]:  plist := []: end do:
 > movie:=display(frames, insequence=true, scaling=constrained, axes=none):
 > movie;
 >
 >
