restart:

Eq1:=diff(psi(y),y$4)-diff(psi(y),y$2)=0;

dsolve({Eq1});

bcs:=psi(h1)=F,D(psi)(h1)=-1,psi(h2)=-F,D(psi)(h2)=-1;

dsolve({Eq1,bcs});

Error, (in dsolve) found differentiated functions with same name but depending on different arguments in the given DE system: [{psi(h1), psi(h2), psi(y)}, {psi(h2), psi(y)}]

Any suggestion?

Cheers!

how maple calculate exp(x) with e.g. 100000 decimal numbers

a divsion of the series x^k/k! with e.g. 1/25000!/25001 lasts longer than the exp(1.xx) calculation

is there a faster way to calculate exp(x) than with the x^k/k! series

thanks

Hi all,

Say I have some list like this,

tmp:=[[0, 0, 1], [0, 1, 0], [0, 1, 1], [0, 1, 2], [1, 0, 0], [1, 0, 1], [1, 0, 2], [1, 1, 0], [1, 1, 1], [1, 1, 2], [1, 2, 0]];

And I have worked out some probabilities for each of them, a,b,c,d, ect.

I want to print them like this

Pr( 001 ) = 1

Pr( 010 ) = 1-phi[2]+phi[2]*(1-p[3])*(1-phi[3])

Pr( 011 ) = phi[2]*p[3]*(1-phi[3])

and so on.

I there a way to do that?

The probabilities can be extracted from a Vector. I have no problem to print them.

I dont know how to convert the 0,1,2 into the desired format as shown above.

This is the best I can do.

Also, is it possible to convert all the subscripte [] to _ when printing the output?

and get ride of all * as well.

Thanks,

casperyc

ali := (1/12)*(12*c[4]*ln(x+1)*x^4+48*c[4]*ln(x+1)*x^3+72*c[4]*ln(x+1)*x^2+48*c[4]*ln(x+1)*x+12*c[1]*x+30*c[2]*x^2+12*c[2]*x+36*c[3]*x^3+36*c[3]*x^2+12*c[3]*x+12*c[5]*x^5+48*c[5]*x^4+72*c[5]*x^3+48*c[5]*x^2+3*c[0]*x^4+12*c[0]*x^3+18*c[0]*x^2+12*c[0]*x+4*c[1]*x^4+16*c[1]*x^3+24*c[1]*x^2+6*c[2]*x^4+24*c[2]*x^3+12*c[3]*x^4+12*c[4]*ln(x+1)+12*c[5]*x)/(x+1)^4+.1

but simplify(ali-simplify(ali)) is not equal to 0!

restart:

Eq1:=diff(f(x),x)=1;

f:=1:

plot(1,x=0..10);

cs:=(f)(0)=0;

p:=dsolve({Eq1,cs},numeric);

odeplot(p, [x,diff(f(x),x)], 0..10);

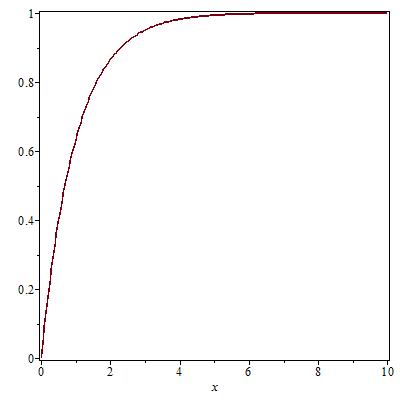

why I cannot get a plot diff(f(x),x) like this?

whats going on here?

Hello everyone!

I have a question that I can't seem to find a straight answer to. I need to fit a circle to a collection of points that a circular in nature. I was trying to use the following elliptical least squares fit, but I can't determine what I should be minimizing.

Here's the page:

http://www.maplesoft.com/applications/view.aspx?SID=1395&view=html

For an ellipse, I used the general conic:

F:=a*x^2+b*x*y+c*y^2+d*x+e*y+f

I minimize using:

V:=Minimize(E,{4*a*c-b^2=1});

What would I use for a circle? Or is there a better way for a circle?

Hello everyone!

I used Maple 17 to fit an ellipse to a set of points using the following guide:

http://www.maplesoft.com/applications/view.aspx?SID=1395&view=html

My rotated ellipse was calculated to be:

SOL;

0.3939708949 x^2 - 0.005975799853 + 0.6345432059 y^2

But everytime I try to graph it in Maple 17, it only shows the axes and nothing else. Any help would be extremely appreciated.

I am recently using maple to plot poincare surface of section, and when I do the harmonic hamiltonian I need to fix different values of p1,q1,p2 and q2 in a tyler series expansion. So i'm expected to use the numbers from a txt file to caculate the tyler series expansion. But after i realize the "readdata" code, i don't know what to do next...

Can anybody tell me how to operate those data please?

Thank you very much!

By the way, I'm not a native English speaker, if my question is unclear please ask me for confirming...

Hi

I have some data:

Matrix(10, 2, {(1, 1) = 0, (1, 2) = 0, (2, 1) = .5, (2, 2) = 3.25, (3, 1) = 1.0, (3, 2) = 5.82, (4, 1) = 1.5, (4, 2) = 7.50, (5, 1) = 2.0, (5, 2) = 8.79, (6, 1) = 2.5, (6, 2) = 9.83, (7, 1) = 3.0, (7, 2) = 10.66, (8, 1) = 3.5, (8, 2) = 11.35, (9, 1) = 4.0, (9, 2) = 11.94, (10, 1) = 4.5, (10, 2) = 12.46})

I want Maple to make a trendline fitting a Logarithmic function. I can make it output some function with this:

LeastSquares(`<,>`(.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5), `<,>`(3.25, 5.82, 7.50, 8.79, 9.83, 10.66, 11.35, 11.94, 12.46), x, curve = a+b*ln(x))

It outputs:

5.96497783539274+4.25309474196387*ln(x)

But please notice, the dataset in the function does not have the first 0 and 0. If i do that:

LeastSquares(`<,>`(0, .5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5), `<,>`(0, 3.25, 5.82, 7.50, 8.79, 9.83, 10.66, 11.35, 11.94, 12.46), x, curve = a+b*ln(x))

It outputs:

Error, (in Matrix) numeric exception: division by zero

Besides that, i need the R-squard value for determinating how well it fits.

If i do the same thing i Excel the data set will give a formular: 5.5464ln(x)-0.2175 with a R-sward value of 0.9985.

How can i do this i maple?

Thanks in Advance!

----

Emil Kristensen

A large procedure I made caused me some problems. I finally found the source of the problem.
There seems to be some interaction between the end of parameters marker, $, and the elementwise operation ~.

Consider these 3 versions of essentially the same procedure:

restart;
Q1:=proc(Var::list,$) local n;
  n:=nops(Var);
  print(Var,n);
  proc(var::list)
       subs(Var=~[seq(1..n)],var); #Elementwise
  end proc;
end proc:
Q1([x,y]); #Doesn't work : "invalid expression"
Q2:=proc(Var::list,$) local n;
  n:=nops(Var);
  print(Var,n);
  proc(var::list)
      subs(zip(`=`,Var,[seq(1..n)]),var); # zip
  end proc;
end proc:
Q2([x,y]); #No problem
Q3:=proc(Var::list) local n; #No end of parameters marker $
  n:=nops(Var);
  print(Var,n);
  proc(var::list)
       subs(Var=~[seq(1..n)],var); # Elementwise
  end proc;
end proc:
Q3([x,y]); # No problem
lprint(Q3([x,y])); #Curious output involving ` $`
#A fourth procedure in which the output is not a procedure works:
Q4:=proc(Var::list,$) local n;
  n:=nops(Var);
  print(Var,n);
  subs(Var=~[seq(1..n)],Var)
end proc:
Q4([x,y]);

Does anybody have any comments? Is it a bug?

so we have to Write a maple function with -> that takes an integer N and a boolean function

F: {(i,j) l 0<= i,j<= N} -> {true,false}

and returns a list containing all [i,j] such that F(i,j). A procedure that does this
would be

proc(N,F) local i, j, RV;
RV:=NULL;
for i from 1 to N do for j from 1 to N do
if F(i,j) then RV:=RV,[i,j] ; end if ;
end do ; end do ;
return RV ;
end proc ;

The problem is to do this inline, i.e. you have to write
(i,j)-> ...

please help...

This is one of these silly ones that crop up every-so-often (and yes, beta, gamma are just the relativistic v/c and energy):

gamma=1/sqrt(1-beta^2);
solve(%,beta);

comes up with ±I*sqrt(-gamma^2+1)/gamma.

While this is not wrong it is nothing I want to throw at any student trying hard enough as it is to keep his/her head above water. What I want is beta=sqrt(1-1/gamma^2) and I am having a devil of a time getting Maple to do this. even doing it "by hand" the I comes in the moment I take the sqrt. "assuming" does not help (and when I try ...assuming beta::positive, gamma > 1 I get an error claiming these to be inconsistent).

What gives?

Mac Dude

Hi,

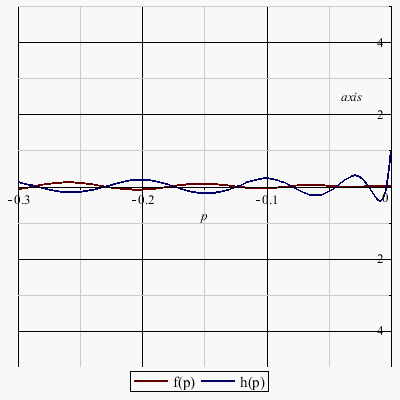

I wish to be able to calculate the roots of the function f(p) by using the roots of the function h(p) and applying the bisection method due to the fact that the roots of h(p) bracket the roots of f(p) as can be seen in the graph below. I have done this before for another example when h:=J₀(p); and hence i could use The commands BesselJZeros(0,n)/BesselJZzeros(0,n+1) to find the roots. So my problem arises with the finding the roots of h(p) and how to insert them into my bisection loop(underlined below).

Any advice would amazing. Many thanks

Download spherical_continue.mw

Download spherical_continue.mw

Hello there,

i got a question regarding derivatives in Matlab.

I got a function for a example:

f:=f1(y)*f2(x)

from this function i need the partial derivatives with respect to x and y, i can easily get them with

diff(f,x)

diff(f,y)

now i want to compute the derivative of f with respect to time t, assuming that y and x both depend on t - how can i tell maple that y and x depend on t?

thanks

ben

(a) Design your own 3-stage explicit Runge-Kutta method with one-step error O(h4).

(b) Test your method by solving y′ = −y. Confirm that the global error in your numerical solution

is O(h3).
