# Question:How can I find the intersection between a plane f(x,y) and a quadric g(x,z)?

## Question:How can I find the intersection between a plane f(x,y) and a quadric g(x,z)?

Maple 18

Hello everyone,

please need some brain power here to help me with this problem. I'm stacked here and I cannot find a solution.

I would like to find the intersection between a plane and a quadric surfaces. Please notice that the two equations are written like f(x,y) and g(x,z) respectively. My first problem is that I cannot visualize the two surfaces correctly as implicitplot3d of the quadric surfaces displays nothing in return.

I want then to find the centre of the ellipse and plot the point and the two surfaces all together in the same 3d plot. Somehow I canont make it. What is wrong with me?

I am pasting here my MWE.

Any kind of help would be really appreciated. Thank you so much.

Andrea

 > restart:
 > with(plottools): with(plots):
 > with(Student:-MultivariateCalculus): with(Student:-Precalculus): with(geometry):
 > with( Optimization ):
 > my_plane := 2024.30587449691-.341275505799078*x-3.89936179341114*y; my_quadric := -10595.4104931095+6.73749956241827*x+42.1022818380012*z-0.654818649508000e-1*x^2-0.421174257681115e-1*z^2;
 (1)

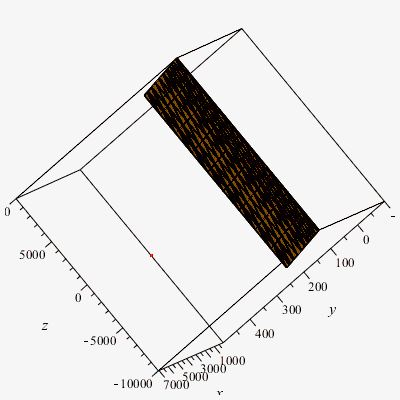

 > my_quadric_plot_3d := implicitplot3d(my_quadric, x=-10000..10000,                                        y = -100..100,                                       z=-10000..10000,color="DodgerBlue"): my_plane_plot_3d := implicitplot3d(my_plane, x=-10000..10000,                                        y = -100..100,                                       z=-10000..10000,color="DarkOrange"):
 > my_ellipse := CompleteSquare( subs(y = solve(z = my_plane, y), my_quadric));
 (2)
 > ellipse(e1, my_ellipse, [x,z]): XY_centre_e1     := coordinates(center(o,e1)): my_center_point := [XY_centre_e1[1],XY_centre_e1[2],                        subs(x=XY_centre_e1[1], y=XY_centre_e1[2], my_plane)]: my_center_point_plot := pointplot3d(my_center_point, color = "red"):
