Question: Plot is not matching

Question:Plot is not matching

666 jvbasha 130 Maple 18
ode dsolve differential-equations duplicate-question
November 29 2019
0

Dear maple users,
Greetings.
I am solving an ode problem with an analytical solution.
programming running properly, but my plot not exact with the already existing article plot.
how to get the exact plot.

Thanking you.

Code:JVB.mw


>

restart
>

N := 3;

3



1

 (1)
>

dsolve(diff(f(x), `$`(x, 3)));

f(x) = (1/2)*_C1*x^2+_C2*x+_C3

 (2)
>

Rf := 2*(diff(f[m-1](x), x, x, x))-(2*mh*mh)*(diff(f[m-1](x), x))+sum(f[m-1-n](x)*(diff(f[n](x), x)), n = 0 .. m-1)-bet*(sum(sum(2*f[m-1-n](x)*(diff(f[n-t](x), x))*(diff(f[t](x), x, x))+f[m-1-n](x)*f[n-t](x)*(diff(f[t](x), x, x, x))+x*(diff(f[m-1-n](x), x))*(diff(f[n-t](x), x))*(diff(f[t](x), x, x)), t = 0 .. n), n = 0 .. m-1));

2*(diff(diff(diff(f[m-1](x), x), x), x))-2*(diff(f[m-1](x), x))+sum(f[m-1-n](x)*(diff(f[n](x), x)), n = 0 .. m-1)-.2*(sum(sum(2*f[m-1-n](x)*(diff(f[n-t](x), x))*(diff(diff(f[t](x), x), x))+f[m-1-n](x)*f[n-t](x)*(diff(diff(diff(f[t](x), x), x), x))+x*(diff(f[m-1-n](x), x))*(diff(f[n-t](x), x))*(diff(diff(f[t](x), x), x)), t = 0 .. n), n = 0 .. m-1))

 (3)
>

dsolve(diff(f[m](x), x, x, x)-CHI[m]*(diff(f[m-1](x), x, x, x)) = h*H*Rf, f[m](x));

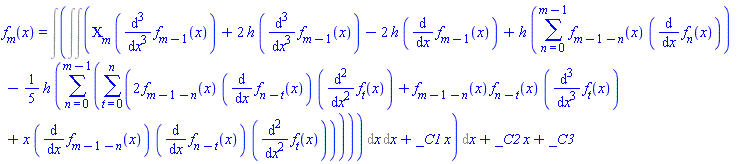

f[m](x) = Int(Int(Int(CHI[m]*(diff(diff(diff(f[m-1](x), x), x), x))+2*h*(diff(diff(diff(f[m-1](x), x), x), x))-2*h*(diff(f[m-1](x), x))+h*(sum(f[m-1-n](x)*(diff(f[n](x), x)), n = 0 .. m-1))-(1/5)*h*(sum(sum(2*f[m-1-n](x)*(diff(f[n-t](x), x))*(diff(diff(f[t](x), x), x))+f[m-1-n](x)*f[n-t](x)*(diff(diff(diff(f[t](x), x), x), x))+x*(diff(f[m-1-n](x), x))*(diff(f[n-t](x), x))*(diff(diff(f[t](x), x), x)), t = 0 .. n), n = 0 .. m-1)), x), x)+_C1*x, x)+_C2*x+_C3

 (4)
>

f[0](x) := 1-exp(x);

1-exp(x)

 (5)
>

for m to N do CHI[m] := `if`(m > 1, 1, 0); f[m](x) := int(int(int(2*CHI[m]*(diff(f[m-1](x), x, x, x))-(2*h*H*mh*mh)*(diff(f[m-1](x), x))+h*H*(sum(f[m-1-n](x)*(diff(f[n](x), x)), n = 0 .. m-1)), x)-h*H*(sum(sum(2*f[m-1-n](x)*(diff(f[n-t](x), x))*(diff(f[t](x), x, x))+f[m-1-n](x)*f[n-t](x)*(diff(f[t](x), x, x, x))+x*(diff(f[m-1-n](x), x))*(diff(f[n-t](x), x))*(diff(f[t](x), x, x)), t = 0 .. n), n = 0 .. m-1))*bet, x)+_C1*x, x)+_C2*x+_C3; s1 := evalf(subs(x = 0, f[m](x))) = 0; s2 := evalf(subs(x = 0, diff(f[m](x), x))) = 0; s3 := evalf(subs(x = 1, f[m](x))) = 0; s := {s1, s2, s3}; f[m](x) := simplify(subs(solve(s, {_C1, _C2, _C3}), f[m](x))) end do:
>

f(x) := sum(f[l](x), l = 0 .. N);

1-0.7644444444e-1*exp(5.*x)*h^2*x-0.1333333333e-1*x^2*exp(5.*x)*h^2-2.675700596*exp(2.*x)*h^2*x-0.5876096022e-1*exp(6.*x)*h^3*x-0.9282030175e-2*x^2*exp(6.*x)*h^3+.9962792493*exp(3.*x)*h^3*x+.1647896790*exp(5.*x)*h^3*x+0.2066962962e-1*x^2*exp(5.*x)*h^3+3.357118680*exp(2.*x)*h^3*x-.3264340965*exp(4.*x)*h^3*x+0.3999999998e-1*exp(2.*x)*ln(exp(x))*h^2+58.61348006*h^3+1.023148148*h^2*x^3+0.1364197531e-1*ln(exp(x))*h^3*x^3-0.8954734530e-1*exp(2.*x)*h^3*x^4-.1353159884*x^3*exp(4.*x)*h^3+.7542645986*exp(3.*x)*h^3*x^2-0.2830138323e-1*x^3*h^3*exp(3.*x)-0.6455420536e-1*exp(x)*h^3*ln(exp(x))*x+0.4775858416e-1*exp(x)*h^3*ln(exp(x))*x^2+0.8888888887e-3*exp(x)*h^3*ln(exp(x))^2+8.400000000*h*exp(x)-exp(x)-0.6666666666e-1*h*ln(exp(x))+.1416666666*exp(4.*x)*h^2*x-.4790123458*exp(3.*x)*h^2*x+.1333333333*exp(3.*x)*h*x+.3791666665*exp(4.*x)*h^2-1.340020575*exp(3.*x)*h^2+.3111111109*exp(3.*x)*h+5.570191338*h^2*exp(2.*x)-.4500000000*h*exp(2.*x)-0.9874869443e-1*exp(6.*x)*h^3+.4125877323*exp(3.*x)*h^3-4.984787877*h^3*exp(2.*x)-.8010958741*exp(4.*x)*h^3+.3215641638*exp(5.*x)*h^3-5.930474628*h^2*x+36.04284024*exp(x)*h^3*x+8.324321524*x^2*h^2-.5362260993*h^3*x^3-6.207072379*exp(x)*x^2*h^3+1.664189246*exp(x)*h^3*x^3-8.237962963*h+.1200000000*exp(x)*h^2*ln(exp(x))+0.2222222222e-1*exp(3*x)*h*x+24.00299428*h^3*x-2.098561083*x^2*h^3-53.48457977*h^3*exp(x)+0.9949705035e-2*ln(exp(x))*h^3*x^4-0.7308641971e-2*ln(exp(x))*exp(4.*x)*h^3+0.8984910834e-2*ln(exp(x))*exp(3.*x)*h^3-0.3741666666e-1*ln(exp(x))*h^3*exp(2.*x)-.1188740741*exp(5.*x)*h^2-12.53662834*x^2*h+25.90916526*h^2*exp(x)-30.39962862*h^2-0.7499999999e-1*h*exp(2*x)+0.5185185185e-1*exp(3*x)*h+5.372840718*exp(x)*x^2*h^2-25.09181716*exp(x)*h^2*x+0.8976305409e-1*h^3*x^5+0.2158026099e-1*exp(7.*x)*h^3+0.8606919260e-1*h^3*x^4+0.5079365079e-3*x^3*exp(7.*x)*h^3-.3215468487*x^2*exp(4.*x)*h^3+0.1762236380e-1*exp(7.*x)*h^3*x+0.5048727639e-2*exp(7.*x)*x^2*h^3-3.116709690*exp(2.*x)*x^2*h^3+.1066289908*exp(2.*x)*h^3*x^3-8.527777777*h*x-0.2814814814e-2*ln(exp(x))*exp(4.*x)*h^3*x-0.1053497943e-2*ln(exp(x))*exp(3.*x)*h^3*x+0.4848332783e-1*h^3*x^6+.7462278773*h^2*x^4+.5519508187*exp(x)*h^3*x^4+0.9367631194e-1*exp(x)*h^3*ln(exp(x))+3.581893812*exp(2.*x)*x^2*h^2




>

NULL




Download JVB.mw
