Plot...

Dkunb 70
September 02 2022
0 0

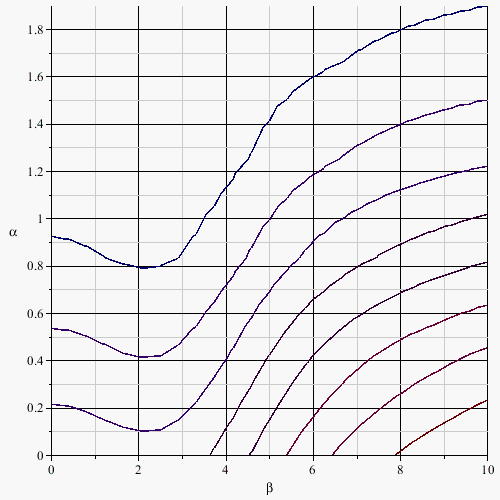

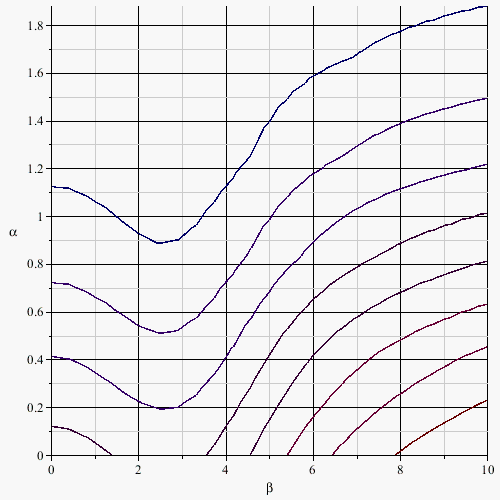

@acer Thank you so much! How can I write the codes for the following plots based on N function?

L function...

Dkunb 70
September 02 2022
0 0

@acer  I do not see any evalf(L) in your codes and If I generated Matrix of N it showed the integral form of L.

Time...

Dkunb 70
September 01 2022
0 0

@acer Thank you again.

I run my codes and yours (I used my original L because F would be varied .)




>

restart;
>

with(plots):
>



>

F:=kappa->kappa;

proc (kappa) options operator, arrow; kappa end proc

 (1)
>

f:=(alpha,delta)->exp(-abs(F(kappa))^2*(1+delta^2)/2-abs(F(kappa))*alpha)/abs(F(kappa));

proc (alpha, delta) options operator, arrow; exp(-(1/2)*abs(F(kappa))^2*(1+delta^2)-abs(F(kappa))*alpha)/abs(F(kappa)) end proc

 (2)
>

L:=(alpha,delta,Lambda)->(lambda^2*exp(-alpha^2/2)/4)*(Int(f(alpha,delta),kappa= -infinity..-Lambda)+Int(f(alpha,delta),kappa= Lambda..infinity));

proc (alpha, delta, Lambda) options operator, arrow; (1/4)*lambda^2*exp(-(1/2)*alpha^2)*(Int(f(alpha, delta), kappa = -infinity .. -Lambda)+Int(f(alpha, delta), kappa = Lambda .. infinity)) end proc

 (3)
>

CodeTools:-Usage(evalf(L(4,1,0.001)));

memory used=1.63MiB, alloc change=0 bytes, cpu time=31.00ms, real time=19.00ms, gc time=0ns



0.8209373770e-3*lambda^2

 (4)
>

g:=(beta,delta)->exp(-I*kappa*beta-abs(F(kappa))^2*(1+delta^2)/2)/abs(F(kappa));

proc (beta, delta) options operator, arrow; exp(-I*kappa*beta-(1/2)*abs(F(kappa))^2*(1+delta^2))/abs(F(kappa)) end proc

 (5)
>

E:=(omega,gamma)->exp(I*omega*gamma)*(1-erf((gamma+I*omega)/sqrt(2)));

proc (omega, gamma) options operator, arrow; exp(I*omega*gamma)*(1-erf((gamma+I*omega)/sqrt(2))) end proc

 (6)
>

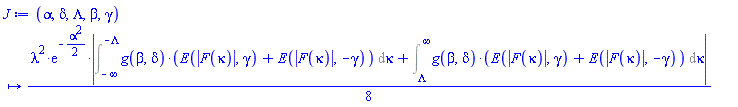

J:=(alpha,delta,Lambda,beta,gamma)->(lambda^2*exp(-alpha^2/2)/8)*abs(Int(g(beta,delta)*(E(abs(F(kappa)),gamma)+E(abs(F(kappa)),-gamma)),kappa=-infinity..-Lambda)+Int(g(beta,delta)*(E(abs(F(kappa)),gamma)+E(abs(F(kappa)),-gamma)),kappa=Lambda..infinity));

proc (alpha, delta, Lambda, beta, gamma) options operator, arrow; (1/8)*lambda^2*exp(-(1/2)*alpha^2)*abs(Int(g(beta, delta)*(E(abs(F(kappa)), gamma)+E(abs(F(kappa)), -gamma)), kappa = -infinity .. -Lambda)+Int(g(beta, delta)*(E(abs(F(kappa)), gamma)+E(abs(F(kappa)), -gamma)), kappa = Lambda .. infinity)) end proc

 (7)
>

CodeTools:-Usage(evalf(J(4,1,0.001,8,3)));

memory used=0.62GiB, alloc change=141.00MiB, cpu time=4.70s, real time=4.72s, gc time=812.50ms



0.7304273935e-3*lambda^2

 (8)
>

N := (beta,alpha)-> (J(alpha,1,0.001,beta,3)-L(alpha,1,0.001))/\lambda^2;

proc (beta, alpha) options operator, arrow; (J(alpha, 1, 0.1e-2, beta, 3)-L(alpha, 1, 0.1e-2))/lambda^2 end proc

 (9)
>



>



>



>



>



>



>

CodeTools:-Usage(contourplot(evalf(N(beta,alpha)), beta=0..10,alpha=0..10,grid=[25,25]));

memory used=138.77GiB, alloc change=1.21GiB, cpu time=16.96m, real time=15.89m, gc time=115.06s




>



>



>






Download Negativity_v2.mw


>

restart;
>

with(plots):
>

F:=kappa->kappa;

proc (kappa) options operator, arrow; kappa end proc

 (1)
>

f:=(alpha,delta)->exp(-abs(F(kappa))^2*(1+delta^2)/2-abs(F(kappa))*alpha)/abs(F(kappa));

proc (alpha, delta) options operator, arrow; exp(-(1/2)*abs(F(kappa))^2*(1+delta^2)-abs(F(kappa))*alpha)/abs(F(kappa)) end proc

 (2)
>

L:=(alpha,delta,Lambda) ->
  (lambda^2*exp(-alpha^2/2)/4)*(Int(f(alpha,delta),kappa= -infinity..-Lambda)+Int(f(alpha,delta),kappa= Lambda..infinity));

proc (alpha, delta, Lambda) options operator, arrow; (1/4)*lambda^2*exp(-(1/2)*alpha^2)*(Int(f(alpha, delta), kappa = -infinity .. -Lambda)+Int(f(alpha, delta), kappa = Lambda .. infinity)) end proc

 (3)
>

#0.0008209373770*lambda^2
forget(evalf);
CodeTools:-Usage( evalf(L(4,1,0.001)) );

memory used=1.63MiB, alloc change=0 bytes, cpu time=15.00ms, real time=19.00ms, gc time=0ns



0.8209373770e-3*lambda^2

 (4)
>

g:=(beta,delta)->exp(-I*kappa*beta-abs(F(kappa))^2*(1+delta^2)/2)/abs(F(kappa));

proc (beta, delta) options operator, arrow; exp(-I*kappa*beta-(1/2)*abs(F(kappa))^2*(1+delta^2))/abs(F(kappa)) end proc

 (5)
>

E:=(omega,gg)->exp(I*omega*gg)*(1-erf((gg+I*omega)/sqrt(2)));

proc (omega, gg) options operator, arrow; exp(I*omega*gg)*(1-erf((gg+I*omega)/sqrt(2))) end proc

 (6)
>

MyHandler := proc(operator,operands,default_value)
               NumericStatus( overflow = false );
               return 10^10;
             end proc:
ig1template := proc(kappa)
              NumericEventHandler(overflow = MyHandler);
              evalhf(__dummy); end proc:
>

igdum:='Re'(simplify(exp(-alpha^2/2)/8*(g(beta,delta)*(E(abs(F(kappa)),gg)+E(abs(F(kappa)),-gg))))):
J := subs(__igdum=igdum, proc(alpha,delta,Lambda,beta,gg) local ig;
  ig := subs(__dummy= __igdum, eval(ig1template));
  evalf(lambda^2*abs(Int(ig,-infinity..-Lambda,epsilon=1e-4,method=_d01amc)
                     +Int(ig,Lambda..infinity,epsilon=1e-4,method=_d01amc)));
end proc):
>

forget(evalf);
CodeTools:-Usage( J(4,1,0.001,8,3) );

memory used=60.12MiB, alloc change=0 bytes, cpu time=344.00ms, real time=343.00ms, gc time=0ns



0.7304272433e-3*lambda^2

 (7)
>

N := (beta,alpha) -> (J(alpha,1,0.001,beta,3)-L(alpha,1,0.001))/lambda^2;

proc (beta, alpha) options operator, arrow; (J(alpha, 1, 0.1e-2, beta, 3)-L(alpha, 1, 0.1e-2))/lambda^2 end proc

 (8)
>

forget(evalf);
CodeTools:-Usage(contourplot(N, 0..10, 0..10, grid=[25,25]));

memory used=20.15GiB, alloc change=108.00MiB, cpu time=2.13m, real time=2.13m, gc time=18.75s




>






Download Negativity_v1(2)_acc.mw









Parallelizing computation...

Dkunb 70
August 31 2022
0 0

@acer Thank you so much!!

MyHandler := proc(operator,operands,default_value)
               NumericStatus( overflow = false );
               return 10^10;
             end proc:
ig1template := proc(kappa)
              NumericEventHandler(overflow = MyHandler);
              evalhf(__dummy); end proc:

Myhandler returns 10^10 and then NumericEventHandler(overflow=10^10)? I do not understand what the code is doing (especially number 10^10...).

Also how to do  parallelizing computation over a 2D Array (over beta and alpha values), and then using listcontplot?

Thank you so much again for your help.

Thank you!...

Dkunb 70
August 12 2022
0 0

@vv Thank you!

@Kitonum yes, I did restart. I am u...

Dkunb 70
January 05 2022
0 0

@Kitonum yes, I did restart. I am using Maple 2021. It might be related to some setting in Maple 2021??

@Kitonum  I got the same issue whe...

Dkunb 70
January 05 2022
0 0

@Kitonum

I got the same issue when running your codes, too.

@Kitonum Thank you so much! ...

Dkunb 70
January 05 2022
0 0

@Kitonum Thank you so much!
