Try this:

RealInt := proc(f, x)
local A, B;
A:=int(f, x);
B:=applyrule(ln(a::anything)=ln(abs(a)), A);
simplify(B) assuming real;
end proc:

Examples of use:
RealInt(1+1/x, x);
RealInt(1/sin(x), x);
RealInt(x/(x^2+1), x);
RealInt(tan(x), x);
RealInt(diff(f(x),x)/f(x), x);
RealInt(1+1/abs(x), x);
RealInt(1/x, x) assuming x<0;



Eq1 := [(1/2)*(R[b]*kh[a2]+R[m]*kh[a2]-Rh[m]*kh[a2]+sqrt(R[b]^2*kh[a2]^2+2*R[b]*R[m]*kh[a2]^2-2*R[b]*Rh[m]*kh[a2]^2+R[m]^2*kh[a2]^2-2*R[m]*Rh[m]*kh[a2]^2+Rh[m]^2*kh[a2]^2))/kh[a2] = 0, 0 = 0, -(1/2)*(R[b]*kh[a2]+R[m]*kh[a2]-Rh[m]*kh[a2]+sqrt(R[b]^2*kh[a2]^2+2*R[b]*R[m]*kh[a2]^2-2*R[b]*Rh[m]*kh[a2]^2+R[m]^2*kh[a2]^2-2*R[m]*Rh[m]*kh[a2]^2+Rh[m]^2*kh[a2]^2))/kh[a2] = 0]:
simplify(Eq1) assuming kh[a2]>0, R[b]+R[m]-Rh[m]>=0 ;
simplify(Eq1) assuming kh[a2]<0, R[b]+R[m]-Rh[m]<=0 ;

   [R[b] + R[m] - Rh[m] = 0, 0 = 0, Rh[m] - R[b] - R[m] = 0]
                            [R[b] + R[m] - Rh[m] = 0, 0 = 0, Rh[m] - R[b] - R[m] = 0]


We see that the expected result is correct if  kh[a2]  and  R[b]+R[m]-Rh[m]  have the same signs.
In the general case  in real domain  we have  sqrt(a^2*b^2)=abs(a*b) .

Edit.

restart;
f:=x->x^2:
A:=plot(f(x), x=0..2.5, color=blue, thickness=2, labels=[x, f(x)]):
T:=plots:-textplot([2.4,f(2), typeset("(",2,",",f(2),")")], font=[times,16]):
P:=plot([[2,f(2)]], style=point, color=red, symbol=solidcircle, symbolsize=15):
L:=plot([[2,t,t=0..f(2)], [t,f(2),t=0..2]], linestyle=2, color=black):
plots:-display(A, T, P, L, scaling=constrained, size=[300,500]);

The result:



Edit.



If I correctly understood the question, then a simple procedure solves the problem:

restart;
f:=diff(ChebyshevT(n, r), r):
g:=unapply(simplify(eval(f, r = 0)), n):
seq(g(n), n=1..20);
piecewise(seq(op([n=k,g(k)]), k=1..20));
# In the form of piecewise


Addition. If, as indicated by Preben to use separate formulas for these cases (even  and  odd), then piecewise form can be written in a general form and shorter:

g:=n->piecewise(n::even, 0, n::odd, n*(-1)^((n-1)/2));
seq(g(n), n=1..20);
# Example of use

If we are interested in the set of all roots of some nonlinear equation, then the examples (OP's and vv's) show that we can not fully trust both  solve  command and fsolve and RootFinding:-Analytic  commands (the last two work in restricted intervals). Therefore, some qualitative analysis of the equation in question (even before its solution) is always useful, which concerns the existence and uniqueness of its roots. The simplest way to do this is to plot the corresponding function. Of course, the graph does not prove anything, but it allows you to notice some properties of the function, which you can then try to prove rigorously. In the example with OP's equation, it is easy to see the monotonicity of the function (it strictly increases). The analysis of the derivative shows that the function actually increases strictly on the whole real axis. Therefore, the equation can not have more than one real root. Since at the ends of the segment  [10, 20]  the function takes values ​​of different signs, the real root exists and it is unique:




restart;
f:=x->sqrt(3)*arctan(x/sqrt(3))-arctan(x)-1;

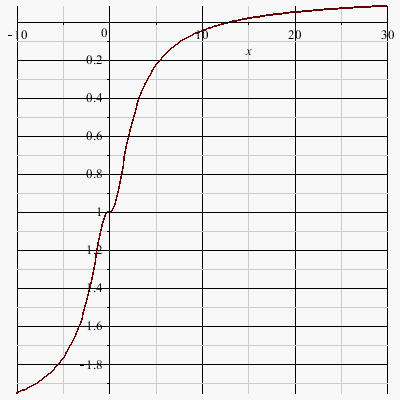

plot(f(x), x=-10..30);
simplify(diff(f(x), x));  # The derivative is positive
evalf([f(10), f(20)]);
fsolve(f(x), x=10..20);

proc (x) options operator, arrow; sqrt(3)*arctan(x/sqrt(3))-arctan(x)-1 end proc





2*x^2/((x^2+3)*(x^2+1))



[-0.47481496e-1, 0.50234438e-1]



13.24164500

(1)






Download root.mw

f:=piecewise( x<5, 100, x>5,200):
M:=maximize(f, x=0..10);
plot(f, x=0..10, y=0..M);



You specified the expression  f1  that depends on two variables  x1  and  x2 . If I understand correctly, then it is necessary to find the values of variables for which this expression is minimal. This task is easily solved by  minimize  command with  location  option:

minimize(8.044048-0.764286*x1-0.756746*x2+0.034524*x1^2+0.022222*x2*x1+0.098413*x2^2, location);  # The code
          3.126413413, {[{x1 = 10.20224318, x2 = 2.692895003}, 3.126413413]}  # The result

So the answer  x1 = 10.20224318, x2 = 2.692895003





Maple does not solve systems of this type:

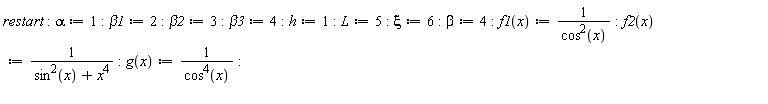

"restart:alpha:=1:beta1:=2:beta2:=3:beta3:=4:h:=1:L:=5:xi:=6:beta:=4:f1(x):=1/(cos^(2)(x)):f2(x):=1/(sin^(2)(x)+x^(4)):g(x):=1/(cos^(4)(x)):  "

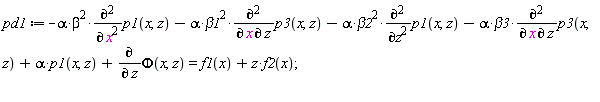

pd1 := -alpha*beta^2*(diff(p1(x, z), x, x))-alpha*beta1^2*(diff(p3(x, z), x, z))-alpha*beta2^2*(diff(p1(x, z), z, z))-alpha*beta3*(diff(p3(x, z), x, z))+alpha*p1(x, z)+diff(Phi(x, z), z) = f1(x)+z*f2(x)

-16*(diff(diff(p1(x, z), x), x))-8*(diff(diff(p3(x, z), x), z))-9*(diff(diff(p1(x, z), z), z))+p1(x, z)+diff(Phi(x, z), z) = 1/cos(x)^2+z/(sin(x)^2+x^4)

(1)

pd2 := -alpha*beta1^2*(diff(p1(x, z), x, z))-alpha*beta^2*(diff(p3(x, z), z, z))-alpha*beta2^2*(diff(p3(x, z), x, x))-alpha*beta3^2*(diff(p1(x, z), x, z))+alpha*p3(x, z)+diff(Phi(x, z), z) = g(x)

-20*(diff(diff(p1(x, z), x), z))-16*(diff(diff(p3(x, z), z), z))-9*(diff(diff(p3(x, z), x), x))+p3(x, z)+diff(Phi(x, z), z) = 1/cos(x)^4

(2)

pd3 := -xi*(diff(Phi(x, z), x, x)+(diff(Phi(x, z), x, x)))+diff(p1(x, z), x)+diff(p3(x, z), z) = 0

-12*(diff(diff(Phi(x, z), x), x))+diff(p1(x, z), x)+diff(p3(x, z), z) = 0

(3)

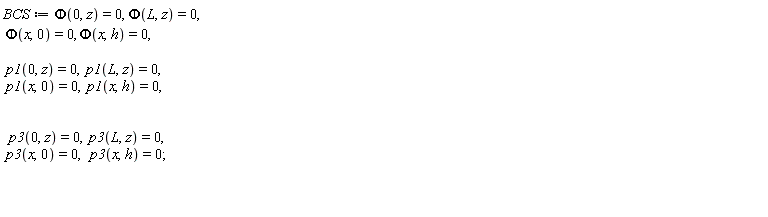

BCS := Phi(0, z) = 0, Phi(L, z) = 0, Phi(x, 0) = 0, Phi(x, h) = 0, p1(0, z) = 0, p1(L, z) = 0, p1(x, 0) = 0, p1(x, h) = 0, p3(0, z) = 0, p3(L, z) = 0, p3(x, 0) = 0, p3(x, h) = 0

Phi(0, z) = 0, Phi(5, z) = 0, Phi(x, 0) = 0, Phi(x, 1) = 0, p1(0, z) = 0, p1(5, z) = 0, p1(x, 0) = 0, p1(x, 1) = 0, p3(0, z) = 0, p3(5, z) = 0, p3(x, 0) = 0, p3(x, 1) = 0

(4)

pdsolve({pd1, pd2, pd3}, {BCS}, numeric);

Error, (in pdsolve/numeric) unable to handle elliptic PDEs



``


Addition: if we try to solve symbolically, Maple returns  NULL :

pdsolve([pd1, pd2, pd3, BCS], [p1(x, z), p3(x, z), Phi(x, z)]);
# NULL



Download 1_(2)_new.mw

For the solution, I used formulas for linear shooting method from the wiki




restart;
a,b:=0,Pi/2:
A,B:=-0.3,-0.1:
h:=Pi/8:  n:=(b-a)/h:
eq:=diff(y(x),x,x)=diff(y(x),x)+2*y(x)+cos(x):

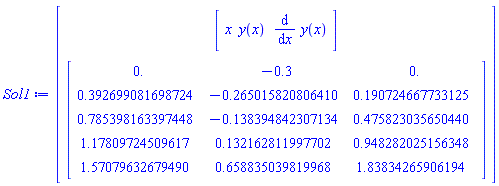

Sol1:=dsolve({eq,y(a)=A,D(y)(a)=0}, numeric, method=classical[rk4], stepsize = h, output=Array([seq(a+h*k,k=0..n)]));
V1:=Sol1[2,1][..,2];

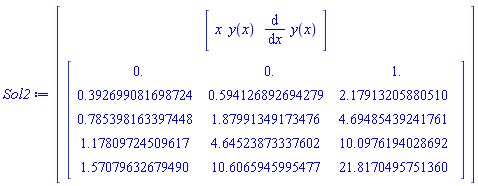

Sol2:=dsolve({eq,y(a)=0,D(y)(a)=1}, numeric, method=classical[rk4], stepsize = h, output=Array([seq(a+h*k,k=0..n)]));
V2:=Sol2[2,1][..,2];
X:=<seq(a+h*k,k=0..n)>;
Y:=V1+(B-V1[n+1])/V2[n+1]*V2;
exact_sol:=-1/10*(sin(x)+3*cos(x)):

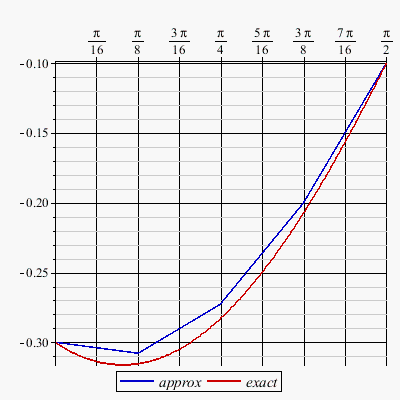

plots:-display([plot(X,Y, color=blue),plot(exact_sol, x=a..b, color=red)], legend=[approx,exact]);

Vector(2, {(1) = Vector[row](3, {(1) = x, (2) = x, (3) = x}), (2) = Matrix(5, 3, {(1, 1) = 0., (1, 2) = -.3, (1, 3) = 0., (2, 1) = .392699081698724, (2, 2) = -.26501582080640973, (2, 3) = .19072466773312516, (3, 1) = .785398163397448, (3, 2) = -.13839484230713406, (3, 3) = .4758230356504398, (4, 1) = 1.17809724509617, (4, 2) = .1321628119977024, (4, 3) = .9482820251563483, (5, 1) = 1.57079632679490, (5, 2) = .6588350398199677, (5, 3) = 1.8383426590619378})})



Vector(5, {(1) = -.3, (2) = -.26501582080640973, (3) = -.13839484230713406, (4) = .1321628119977024, (5) = .6588350398199677})



Vector(2, {(1) = Vector[row](3, {(1) = x, (2) = x, (3) = x}), (2) = Matrix(5, 3, {(1, 1) = 0., (1, 2) = 0., (1, 3) = 1., (2, 1) = .392699081698724, (2, 2) = .594126892694279, (2, 3) = 2.1791320588050986, (3, 1) = .785398163397448, (3, 2) = 1.8799134917347557, (3, 3) = 4.694854392417611, (4, 1) = 1.17809724509617, (4, 2) = 4.645238733376015, (4, 3) = 10.097619402869181, (5, 1) = 1.57079632679490, (5, 2) = 10.606594599547698, (5, 3) = 21.817049575136046})})



Vector(5, {(1) = 0., (2) = .594126892694279, (3) = 1.8799134917347557, (4) = 4.645238733376015, (5) = 10.606594599547698})



Vector(5, {(1) = 0, (2) = (1/8)*Pi, (3) = (1/4)*Pi, (4) = (3/8)*Pi, (5) = (1/2)*Pi})



Vector[column](%id = 18446746529892031414)

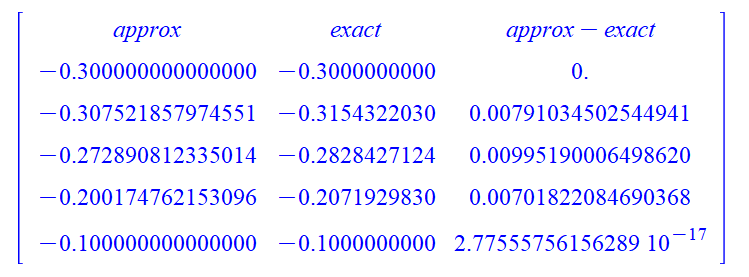

Addition: the comparison in table form:

C1:=<approx, seq(Y[i], i=1..n+1)>:
C2:=<exact, seq(evalf(eval(exact_sol)), x=X)>:
C3:=C1-C2:
<C1|C2|C3>;


Download LSM1.mw

Edit.

This is probably a bug. Here is a workaround:

restart;
int(exp(-t)/(1-t), t = epsilon .. infinity, CauchyPrincipalValue = true);
limit(%, epsilon=0);
evalf(%);





Here is the solution of Problem 1. A comparison of the graphs shows that the exact solution specified in the task is incorrect.

NULL

restart;
eq:=diff(u(x),x,x)+1/9*u(x)=x^2+exp(x);
ics:=u(0)=0, D(u)(0)=a;
sol:=dsolve({eq, ics}, u(x));
a:=solve(eval(sol,[x=1,u(x)=0]));
evalf(a);
exact_sol:=eval(c1*sin(x/3)+c2*cos(x/3)+9*x^2+9*exp(x)/10-162,[c1=-9*(179*cos(1/3)-170+exp(1))/10/sin(sin(13)),c2=1611/10]);

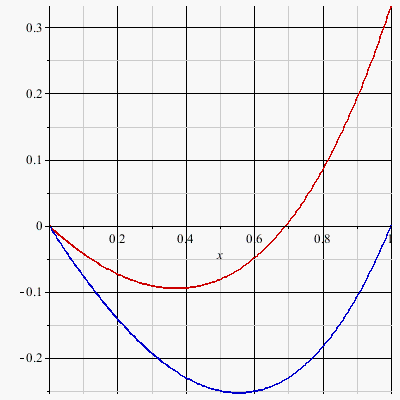

plot([exact_sol,eval(u(x),sol)], x=0..1, color=[red,blue]);


diff(diff(u(x), x), x)+(1/9)*u(x) = x^2+exp(x)



u(0) = 0, (D(u))(0) = a



u(x) = sin((1/3)*x)*(3*a-27/10)+(1611/10)*cos((1/3)*x)+9*x^2-162+(9/10)*exp(x)



(3/10)*(3*sin(1/3)-179*cos(1/3)-exp(1)+170)/sin(1/3)



-.8105184240



-(9/10)*(179*cos(1/3)-170+exp(1))*sin((1/3)*x)/sin(sin(13))+(1611/10)*cos((1/3)*x)+9*x^2+(9/10)*exp(x)-162







NULL




Download shooting.mw



We can easily prove by hand even an more general result, that for any number of roots in the first term (starting from 2) the limit is 1/2.
We denote by  a[n]  the expression with  n  roots. For example  a[3]=sqrt(x+sqrt(x+sqrt(x)))

It's obvious that  for any  n>=2  we have
a[n]=sqrt(x+a[n-1]) limit(a[n]/sqrt(x), x=infinity)=1,  limit(a[n]/x, x=infinity)=0

Below we prove that for any  n>=2  the result holds  limit(a[n]-sqrt(x), x=infinity) = 1/2

We denote  A=sqrt(x+a[n-1]) - sqrt(x) ,  B=sqrt(x+a[n-1]) + sqrt(x)

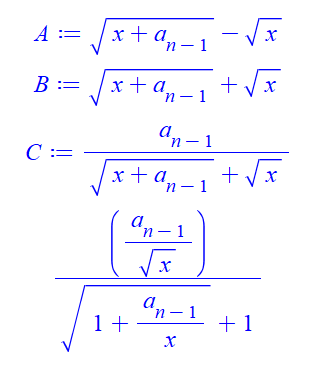

For the proof, it is sufficient to make only 3 steps: multiply and divide   by  , simplify in the numerator using the difference formula for the squares, and then divide the numerator and the denominator by  sqrt(x)  (below is an illustration of these steps in Maple) :

restart;
A:=sqrt(x+a[n-1])-sqrt(x);
B:=sqrt(x+a[n-1])+sqrt(x);
C:=expand(A*B)/B;
``(expand(combine(numer(C)/sqrt(x))))/map(p->expand(combine(p/sqrt(x))),denom(C)) assuming x>0;



Using the above limits, we get the result  1/2


For those who want to check the result in Maple (without any steps) , here's a procedure that allows you to automatically generate the expression  a[n]  for any  :

restart;
a:=proc(n)
if n=1 then return sqrt(x) else
sqrt(x+a(n-1)) fi;
end proc:

Examples of use:

seq(a(n), n=[1,4,10]);



The answer is very simple - your inequality in addition to the basic unknown  r  contains several parameters  (lambda, M) and Maple simply does not know how to solve such inequalities.

Here is a much simpler example that Maple also refuses to solve:

solve(sqrt(a*x+1) < 1, x);
     Warning, solutions may have been lost


This simple example, we can still solve, if to use  assuming  option:

solve(sqrt(a*x+1) < 1, x) assuming a>0;
solve(sqrt(a*x+1) < 1, x) assuming a<0;


But for your inequality and it does not help.

I think first you need to specify the values of the parameters  lambda  and  .





See  ?plot,axis  help page for this.

Do you just want to check that a number  a  is the root of your equation? In this case, do

simplify(eval(F(X)=0, X=a));

Sometimes other commands are required instead of  simplify . Then specify the exact form of your equation and the value of .
