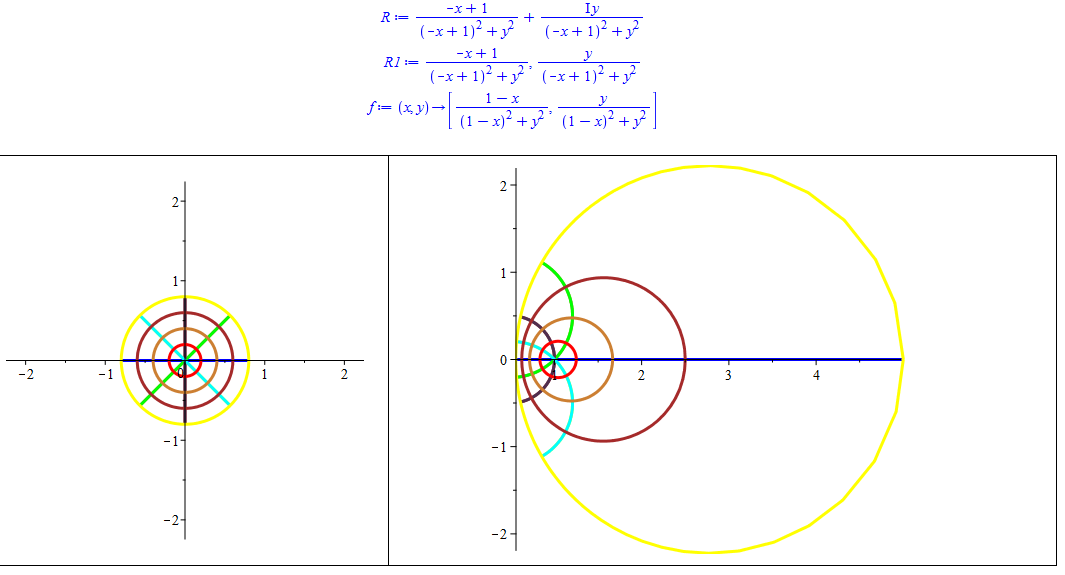

Complex function of a complex argument may be regarded as a mapping from R^2 into R^2. On the left - the space of arguments,  on the right - the space of their images:

R:=evalc(1/(1-(x+I*y)));

R1:=op(1,R),coeff(R,I);

f:=unapply([R1],x,y);

F:=plottools[transform](f):

A:=plot([seq([convert(<cos(Pi/4*i),-sin(Pi/4*i);sin(Pi/4*i),cos(Pi/4*i)>.<t,0>,list)[], t=-0.8..0.8], i=0..7), seq([r*cos(t),r*sin(t),t=0..2*Pi], r=0.2..0.8,0.2)], color=[red,gold,brown,yellow,blue,green,violet,cyan], thickness=3):

plots[display](<A | F(A)>, scaling=constrained);







 Edited.

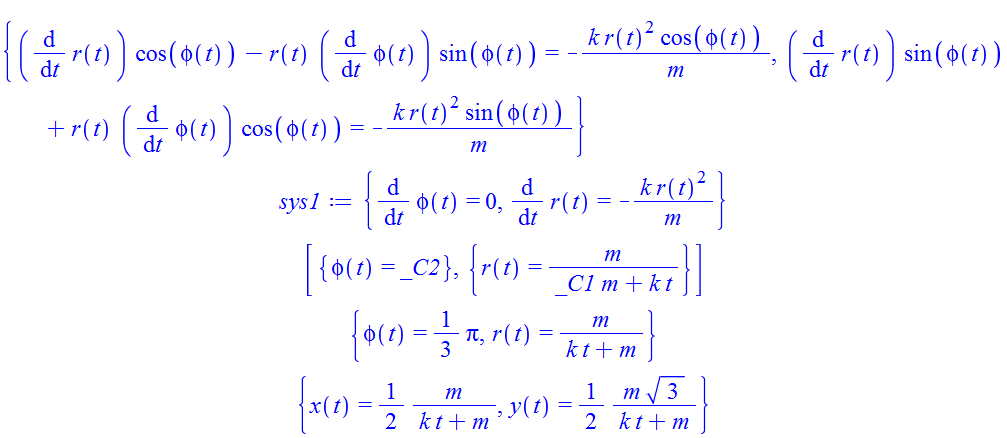

If we go to polar coordinates, Maple can easily find the solution in explicit form, even simpler than Mathematica does:

restart;

T:={x(t)=r(t)*cos(phi(t)), y(t)=r(t)*sin(phi(t))}:  # The transformation to polar coordinates

sys:={diff(x(t),t) = -k/m*x(t)*sqrt(x(t)^2+y(t)^2), diff(y(t),t) = -k/m*y(t)*sqrt(x(t)^2+y(t)^2)}:  # The original system

subs(csgn(r(t))=1, simplify(eval(sys,T)));  # The transformation of original system to polar coordinates

sys1:=solve(%,{diff(r(t),t),diff(phi(t),t)});  # The original system in polar coordinates in standard form

dsolve(sys1, {r(t),phi(t)});  # The general solution in polar coordinates

dsolve(sys1 union {r(0)=1,phi(0)=Pi/3},{r(t),phi(t)});  # The solutin with some initial conditions

eval(T, %);  # The same solution in Cartesian coordinates





In fact, the point moves along a straight line toward the origin.

ConvIntoIneq  procedure solves the problem:

ConvIntoIneq:=proc(Rel)

local t, R, x, y;

t:=indets(Rel)[];

R:=solve(Rel);

x, y:=op(1,R), op(2,R);

if x=-infinity then if type(y,realcons) then return cat(t, "<=", y) else

cat(t, "<", op(1,y)) fi else

if type(x,realcons) then return cat(t, ">=", x) else

cat(t, ">", op(1,x)) fi; fi;

end proc:



Examples of use:

ConvIntoIneq(not x<100), ConvIntoIneq(not x>100), ConvIntoIneq(not x>=100), ConvIntoIneq(not x<=100), ConvIntoIneq(x>100), ConvIntoIneq(x<100), ConvIntoIneq(x>=100) ;







 Addition. Unfortunately, if we want to get a "nice" output, the name of variable can appear on the right side of the inequality:

map(parse, [ConvIntoIneq(not x<100), ConvIntoIneq(not x>100), ConvIntoIneq(not x>=100), ConvIntoIneq(not x<=100), ConvIntoIneq(x>100), ConvIntoIneq(x<100), ConvIntoIneq(x>=100)])[] ;

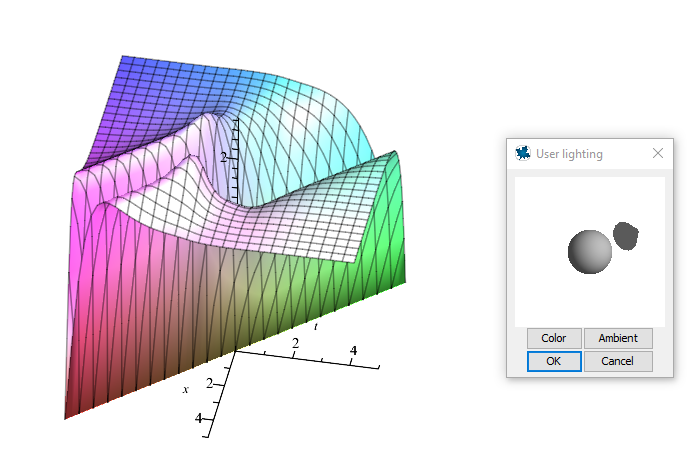

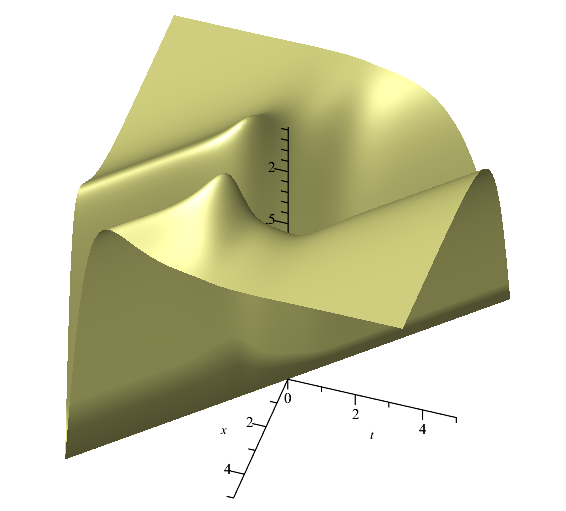

I added 2 options into your code: axes=normal and orientation=[15,50]  and used user lighting :





 Addition. The plot was saved in Paint as png - file.



Another variant. Additionally I added  color=khaki ,  style=surface , numpoints=20000  and changed  user lighting  :

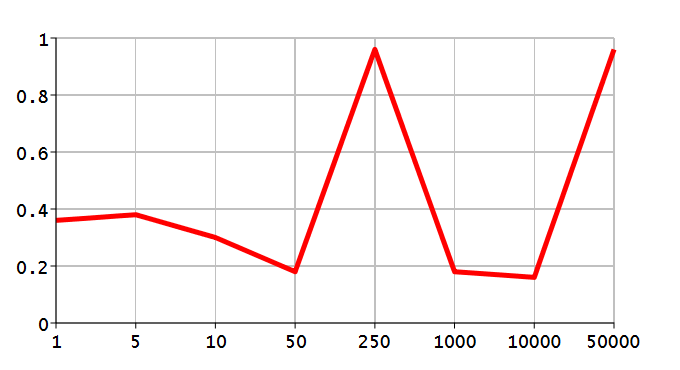

plot([[0,0.36],[5,0.38],[10,0.3],[15,0.18],[20,0.96],[25,0.18],[30,0.16],[35,0.96]], style=line, thickness=5, color=red, view=[0..35,0..1], axis[1] = [gridlines = [7, thickness = 1, subticks = false, color = grey]], axis[2] = [gridlines = [6, thickness = 1, subticks = false, color = grey]], tickmarks=[[0=1,5=5,10=10,15=50,20=250,25=1000,30=10000,35=50000], spacing(0.2,0)], size=[650,350], font=[COURIER,ROMAN,14]);







 Edited.





P := (L, a, b) ->plot(L, x = a .. b, color = [seq(`if`(i::odd, red, black), i = 1 .. nops(L))]):   # L is a list of functions



Example of use:

P([sin(x), cos(x), 2, 3-x], 0, 5);



First, you can find the indices of columns that must be deleted, and then delete them.

Example:

A:=<0,1,0,3; 0,-2,0,4>;

ListTools[SearchAll](0, convert(A[1], list));

LinearAlgebra[DeleteColumn](A, [%]);









Your syntax is wrong there. Below is the text of the procedure called  P  that solves the problem for any  Time  and  solution:

P:=proc(Time, solution)

local n;

n:=nops(Time);

piecewise( seq( op([t>=Time[i] and t<Time[i+1], solution[i]]), i = 1..n-1));

end proc:



Solution of above example:

P([0,1,2,3], [t^2, 1, 3-t]);

plot(%, t=0..3, scaling=constrained);



Edited.

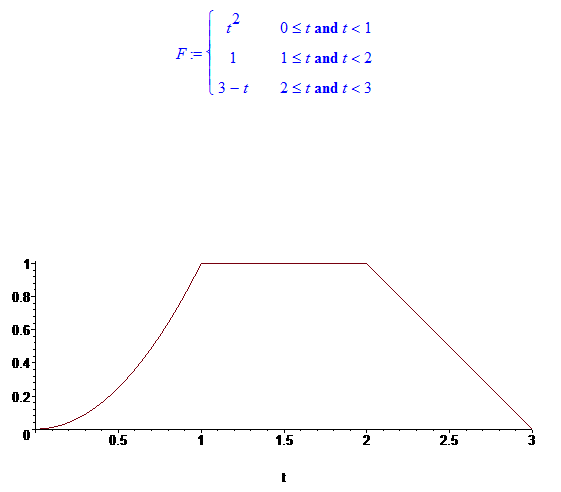

Example:

F:=piecewise(t>=0 and t<1, t^2, t>=1 and t<2, 1, t>=2 and t<3, 3-t);

plot(F, t=0..3, scaling=constrained);



Addition:  outside the interval t=0..3  the function  F by default considered to be equal to

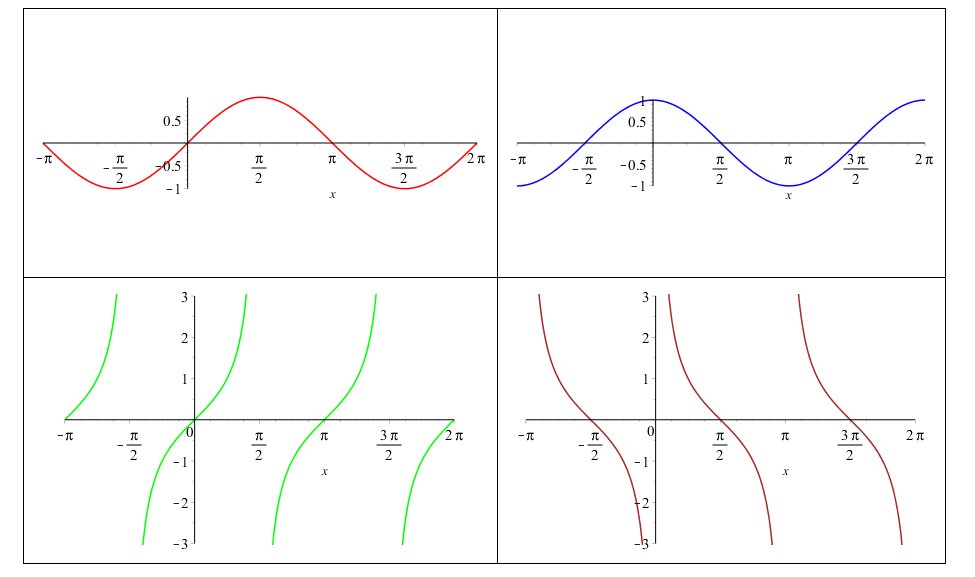

Examples of plotting  4 basic trigonometric functions:



F1 := sin(x): F2 := cos(x): F3 := tan(x): F4 := cot(x): R := x = -Pi .. 2*Pi: C := [red, blue, green, brown]: c := scaling = constrained:

v1 := plot(F1, R, color = C[1]):

v2 := plot(F2, R, color = C[2]):

v3 := plot(F3, R, -3 .. 3, color = C[3], discont):

v4 := plot(F4, R, -3 .. 3, color = C[4], discont):

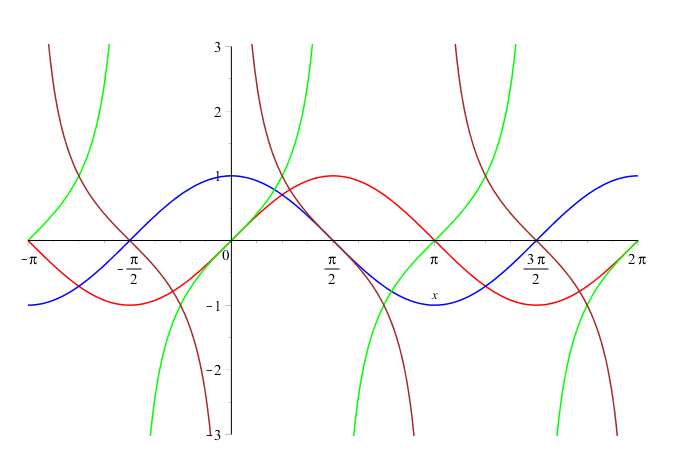

plot([F1, F2, F3, F4], R, -3 .. 3, color = C, discont, c);  # All together in one plot





 plots[display](< v1, v2; v3, v4 >, c, size = [300, 300]);  # Matrix of the plots

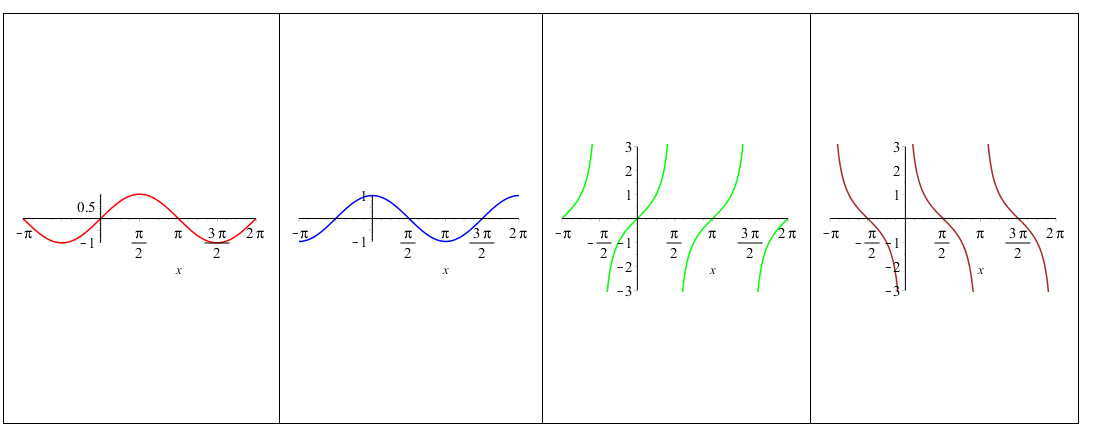

 plots[display](< v1 | v2 | v3 | v4 >, c);  # Vector-row of the plots

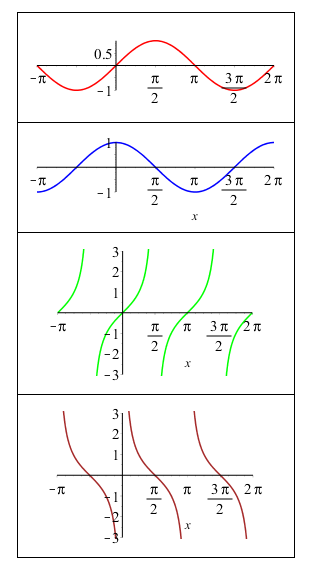

 plots[display](< v1, v2, v3, v4 >, c, size = [100, 100]);  # Vector-column of the plots

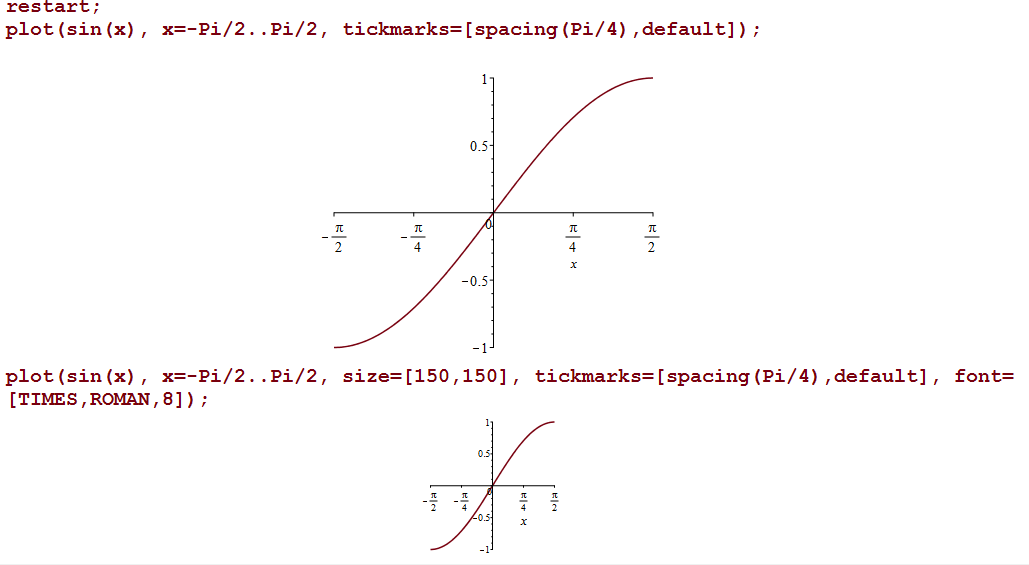

If you want the tickmarks are not lost while reducing the size of the plot, reduce the font size:









combine(y(x) = (1/3)*exp(x)+_C1/(exp(x))^2);

                                     y(x) = 1/3*exp(x)+_C1*exp(-2*x)



Example with other powers not exp:

combine(y(x) = 1/3/2^x+_C1/(3^x)^2);

                                      y(x) = 1/3*2^(-x)+_C1*3^(-2*x)

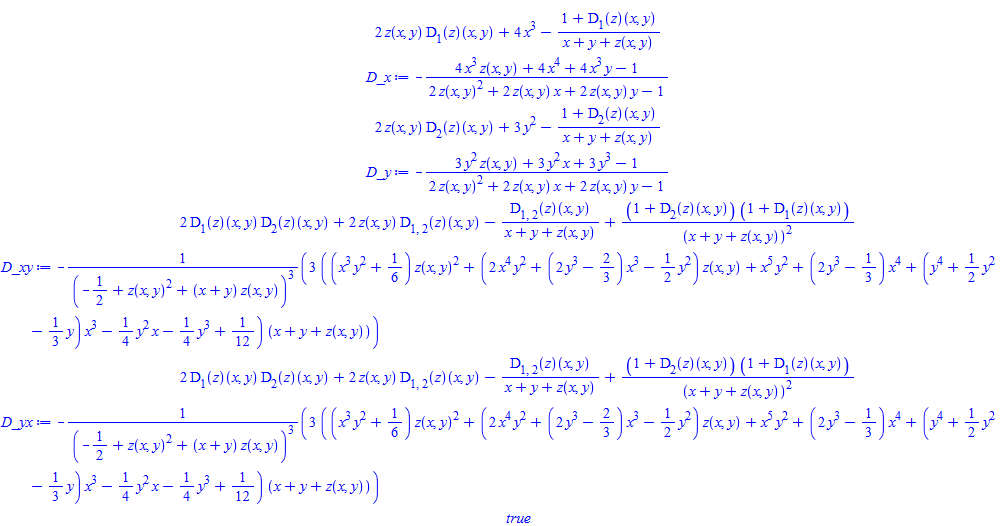

@Rules,  in its solution  you are using  diff  command. Unfortunately during the second differentiation is obtained an incorrect result. D command corrects the situation:

restart;

eq:=z(x,y)^2+y^3+x^4 - ln(x+y+z(x,y)):

F:=(x,y)->z(x,y)^2+y^3+x^4 - ln(x+y+z(x,y)):

D[1](F)(x,y);

D_x:=solve(%,(D[1](z))(x,y));

D[2](F)(x,y);

D_y:=solve(%,(D[2](z))(x,y));

D[1,2](F)(x,y);

D_xy:=simplify(eval(solve(%, (D[1,2](z))(x,y)),{(D[1](z))(x,y)=D_x,(D[2](z))(x,y)=D_y}));

D[2,1](F)(x,y);

D_yx:=simplify(eval(solve(%, (D[2,1](z))(x,y)),{(D[1](z))(x,y)=D_x,(D[2](z))(x,y)=D_y}));

is(D_xy=D_yx);



 Addition. Above I wrote "Unfortunately during the second differentiation is obtained an incorrect result" .  In fact, when used properly,  diff  command also gives the correct result:

restart;

Eq:=z(x,y)^2+y^3+x^4 - ln(x+y+z(x,y)):

diff(Eq,x);

D_x:=solve(%,diff(z(x,y),x));

diff(Eq,y);

D_y:=solve(%,diff(z(x,y),y));

diff(Eq,x,y);

D_xy:=simplify(eval(solve(%,diff(z(x,y),x,y)),{diff(z(x,y),x)=D_x,diff(z(x,y),y)=D_y}));

diff(Eq,y,x);

D_yx:=simplify(eval(solve(%,diff(z(x,y),y,x)),{diff(z(x,y),x)=D_x,diff(z(x,y),y)=D_y}));

is(D_xy=D_yx);

M.Hirnyk, please check this code in Maple 5 R4 .



@Rules, кстати, вы можете задавать свои вопросы по-русски на форуме по Maple на exponenta.ru

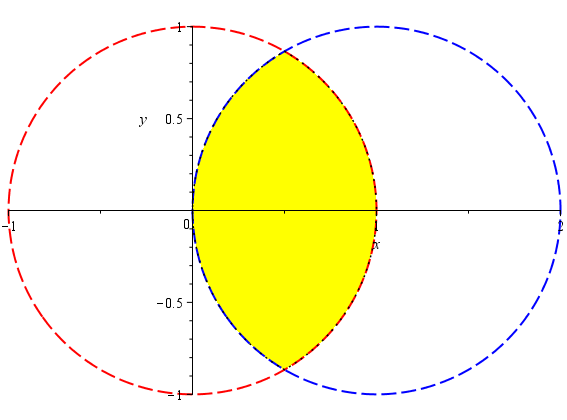

plots[inequal]  command for non-linear inequalities works only in the latest versions of Maple. For earlier versions, you can use  plots[implicitplot]  command with option  filledregions :

A := plots[implicitplot]([x^2+y^2-1, (x-1)^2+y^2-1], x = -2 .. 3, y = -2 .. 2, color = [red, blue], linestyle=3, thickness = 2, gridrefine = 3):

B := plots[implicitplot](max(x^2+y^2-1, (x-1)^2+y^2-1) < 0, x = -2 .. 3, y = -2 .. 2, filledregions, coloring = [yellow, white], gridrefine = 3):

plots[display](A, B, scaling = constrained);







Edited.

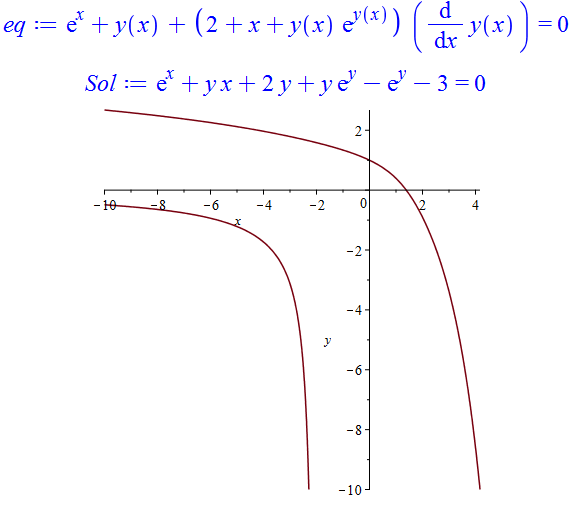

I think the solution of your equation can not be expressed explicitly. Therefore, you can solve it immediately automatically, without using explicit integration (but using implicit option):

restart;

eq:=(exp(x)+y(x))+(2+x+y(x)*exp(y(x)))*diff(y(x),x)=0;  # Replaced  dy/dx=diff(y(x),x)

dsolve({eq, y(0)=1}, y(x), implicit):

Sol:=subs(y(x)=y,%);

plots[implicitplot](Sol,x=-10..10,y=-10..10, gridrefine=3);







 Addition. I wonder what is the cause of the left branch, which is not visually goes through the point  (0, 1) ?
