These are answers submitted by Kitonum

See Carl's idea using  viewpoint  option  here

In this thread are also discussed some other ways to solve the problem.

There is substantial error in procedure  Simpson  - instead  n  should be  n/2 . I made a few less significant corrections. Now everything is working correctly:

Simpson := proc(f, a, b, n::even)

local h, S1, S2, S, i;

h := (b-a)/n;

S1 := 0.;

for i from 0 to n/2-1 do

S1 := S1 + f(a + (2*i+1)*h);

end do;

S2 := 0.;

for i from 1 to n/2-1 do

S2 := S2 + f(a + (2*i)*h);

end do;

evalf(h/3 * ( f(a)+f(b) + 4*S1 + 2*S2 ));

end proc:

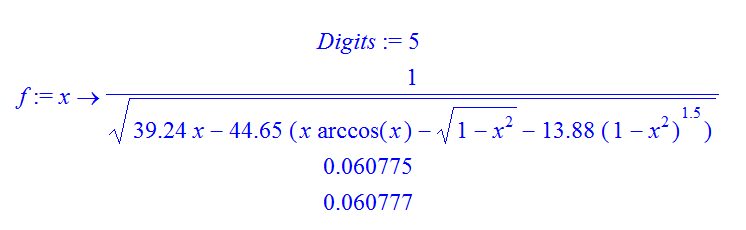

Example of work of the procedure  Simpson  and independent calculation:

Digits := 5;

f := x -> 1/sqrt(39.24*x-44.65*(x*arccos(x)-sqrt(1-x^2)-13.88*(1-x^2)^1.5));

Simpson(f, 0, 1, 100);

evalf(Int(f(x), x=0..1));











is(diff(abs(x), x) = x/abs(x))  assuming x < 0;

is(diff(abs(x), x) = x/abs(x))  assuming x > 0;

                                  true

                                  true

Slightly more programmatically:

op(-1, eval(splcurve) assuming v < 4.2);

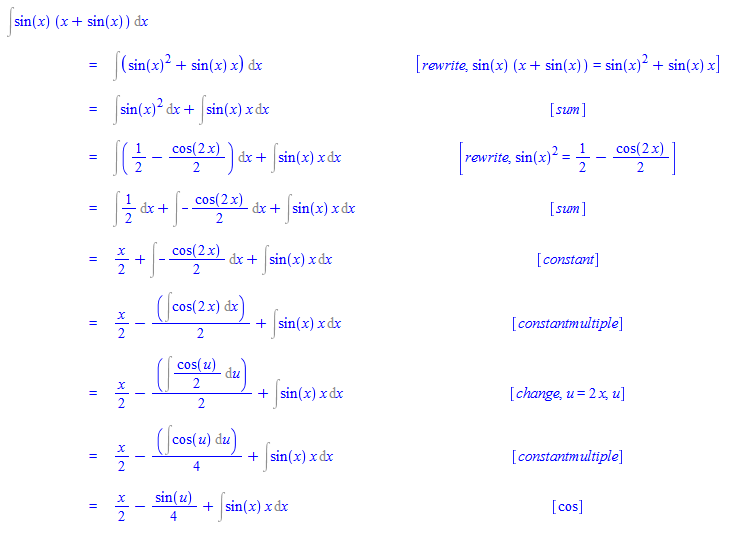

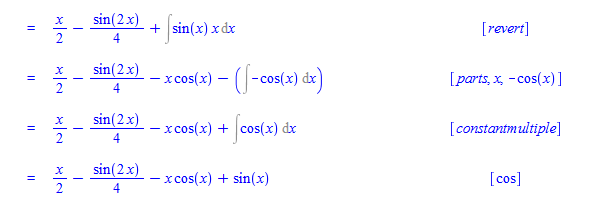

If you want to get a normal manual solution, you can use  Student[Calculus1][ShowSolution]  command.



Example:

Student[Calculus1][ShowSolution](Int(sin(x)*(x + sin(x)),x));

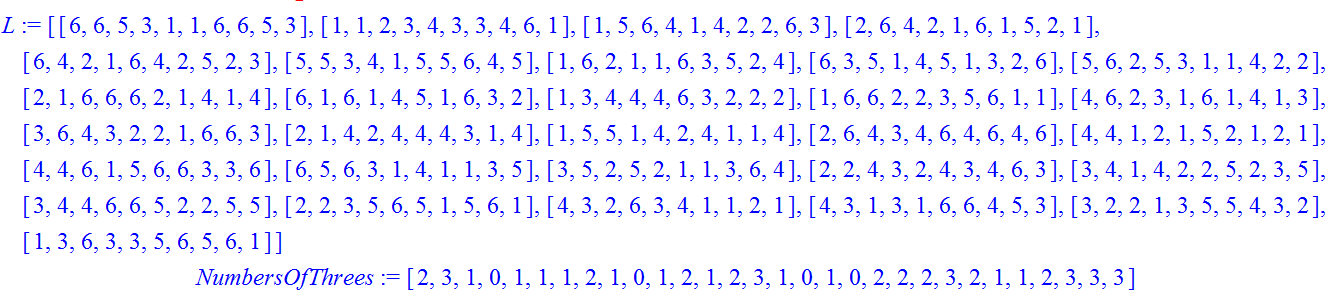

roll:=rand(1..6):

L:=[seq([seq(roll(), j=1..10)], i=1..30)];

NumbersOfThrees:=map(t->ListTools[Occurrences](3, t), L);

The number  pi  should be coded as  Pi .

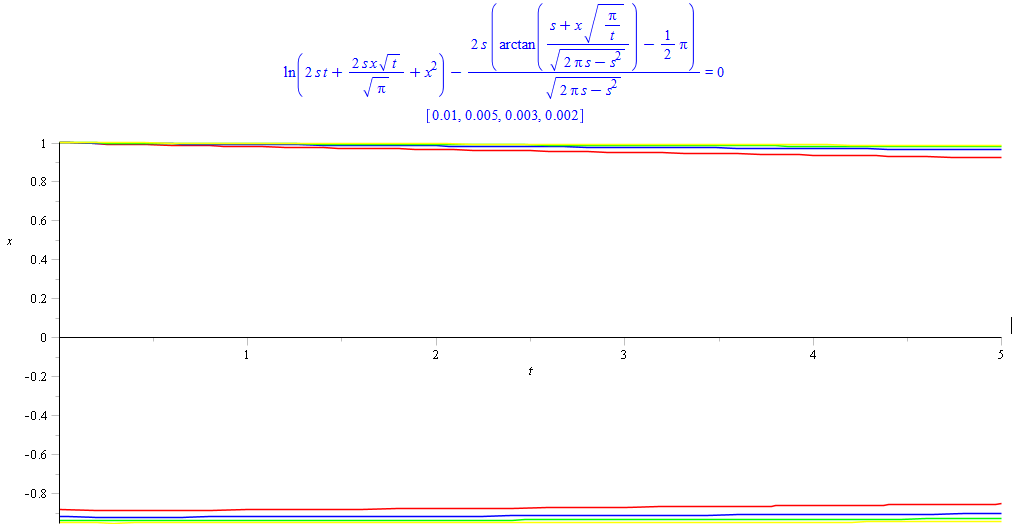

All curves are in the same plot:

restart;

Eq:=ln(2*s*t+2*s*x*sqrt(t)/sqrt(Pi)+x^2)-2*s*(arctan((s+x*sqrt(Pi/t))/sqrt(2*Pi*s-s^2))-(1/2)*Pi)/sqrt(2*Pi*s-s^2) = 0;

S:=[0.01,0.005,0.003,0.002];

plots[implicitplot]([seq(eval(Eq,s=S[i]), i=1..nops(S))], t=0..5, x=-2..2, color=[red,blue,green,yellow], gridrefine=5);

It is easy to verify identity

is(sin(2*x)^2 - cos(8*x)^2 = - cos(10*x)*cos(6*x));

                                         true



Therefore, the equation splits into two equations, which are easy to solve

solve({x >= 0, `or`(cos(10*x) = 0, cos(6*x)+1/2 = 0), x <= (1/2)*Pi}, AllSolutions, explicit);



Consider the function which is defined by the equation and its symmetries:

restart;

f:=x->sin(2*x)^2-cos(8*x)^2-(1/2)*cos(10*x):

is(f(Pi-x)=f(Pi+x)) and is(f(Pi/2-x)=f(Pi/2+x));

                                        true

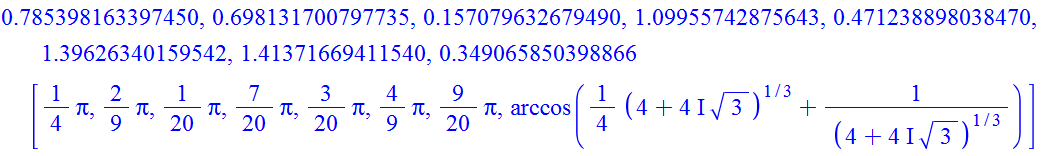

Therefore it is sufficient to solve this equation in the range  0 .. Pi/2

RootFinding[Analytic](f(x), x, re = 0 .. (1/2)*Pi, im = -1 .. 1);

identify([%]);

You can enter a variable (the counter), first assign it the value  , and then at each step of the loop is increased by .

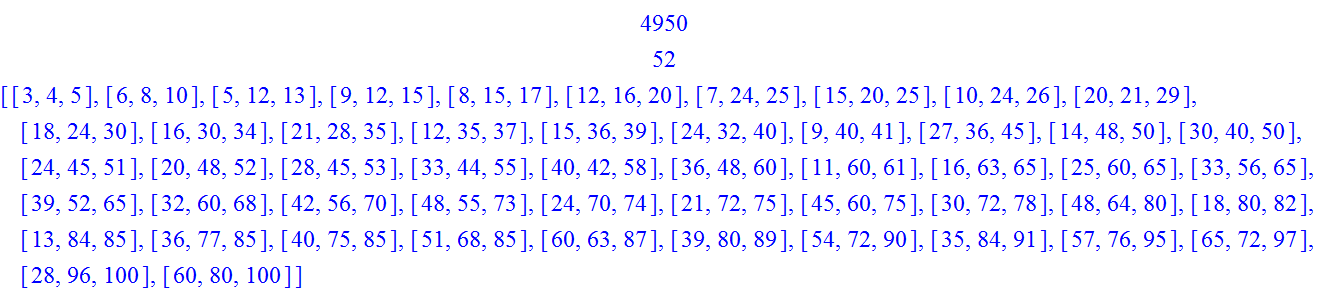

Example: find all Pythagorean triangles with hypotenuse not exceeding 100 . Solution in the for loop:

restart;

k:=0: # The counter for the steps of the loop

n:=0: # The counter for solutions

for c from 2 to 100 do

for a from 1 to c-1 do

k:=k+1:

b:=sqrt(c^2-a^2):

if type(b,integer) and b>a then n:=n+1; L[n]:=[a,b,c] fi;

od:

od:

L:=convert(L, list):

k;  n;  L;





Addition:  The example of a purely illustrative nature. There are far more effective methods of generating Pythagorean triples.

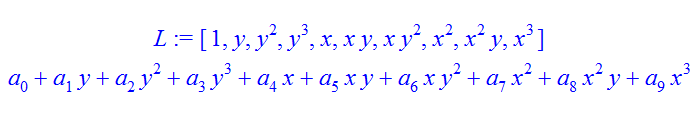

restart;

 L:=[seq(seq(x^i*y^j, j=0..3-i), i=0..3)];

 add(a[k]*L[k+1], k=0..nops(L)-1);





The procedure  Euler  solves your problem:

restart;

Euler:=proc(Eq,Ivp,h,n)  # n is the number of steps

local Y, k;

Y[0]:=Ivp[2];

for k to n do

Y[k]:=Y[k-1]+h*eval(rhs(Eq),{x=Ivp[1]+h*(k-1), y(x)=Y[k-1]});

od;

[seq([Ivp[1]+i*h,Y[i]], i=0..n)];  # List of points of the approximate solution

end proc:

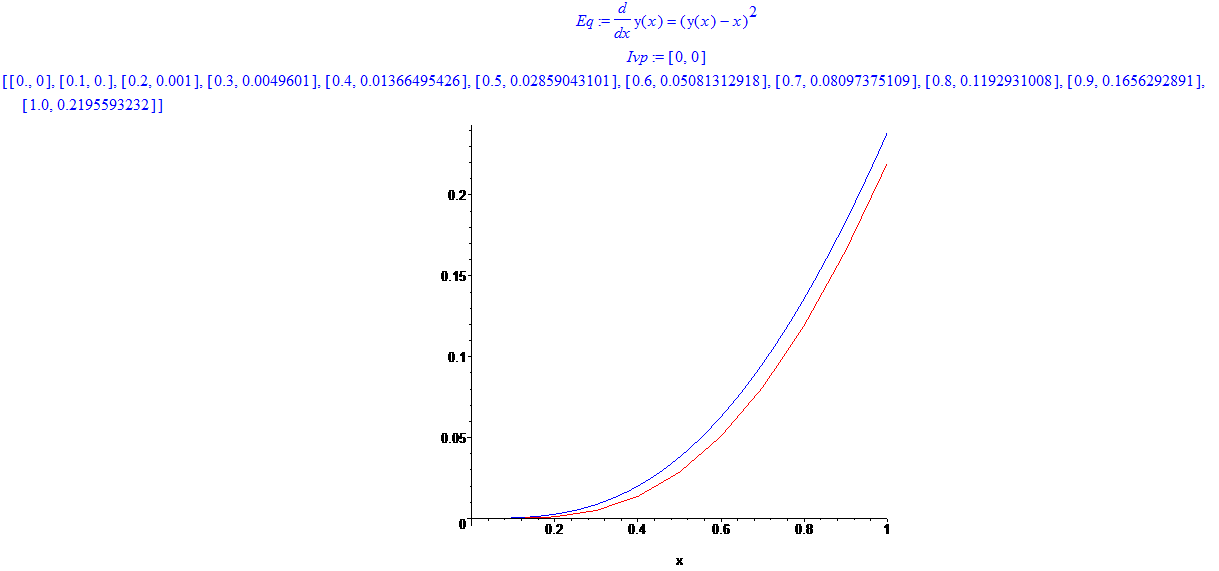

Example of use:

Eq:=diff(y(x),x)=(y(x)-x)^2; Ivp:=[0,0];

Euler(Eq, Ivp, 0.1, 10);

plot([%, x-tanh(x)], x=0..1, color=[red, blue]); # Graphs of approximate (red) and exact (blue) solutions

The code of the procedure was edited.

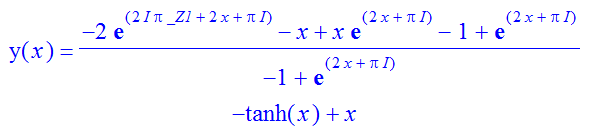

First get more awkward answer, but after a few conversions manages to simplify it.



restart;

dsolve({diff(y(x),x)=(y(x)-x)^2, y(0)=0}, y(x));

assign(%):

convert(expand(simplify(convert(y(x), trig))), tanh);

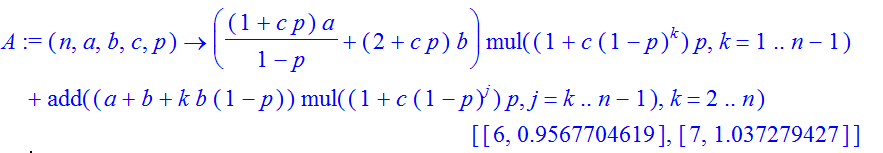

restart;

A:=(n,a,b,c,p)->((1+c*p)*a/(1-p)+(2+c*p)*b)*mul((1+c*(1-p)^k)*p, k=1..n-1)+add((a+b+k*b*(1-p))*mul((1+c*(1-p)^j)*p,j=k..n-1), k=2..n);

for n do

a[n]:=A(n,0.2,0.09,0.57,0.3);

if a[n]>=1  then Sol:=[[n-1,a[n-1]], [n,a[n]]]; break; fi;

od:

Sol;





You choose what  answer to you is more appropriate  n=6  or  n=7

The code is edited.

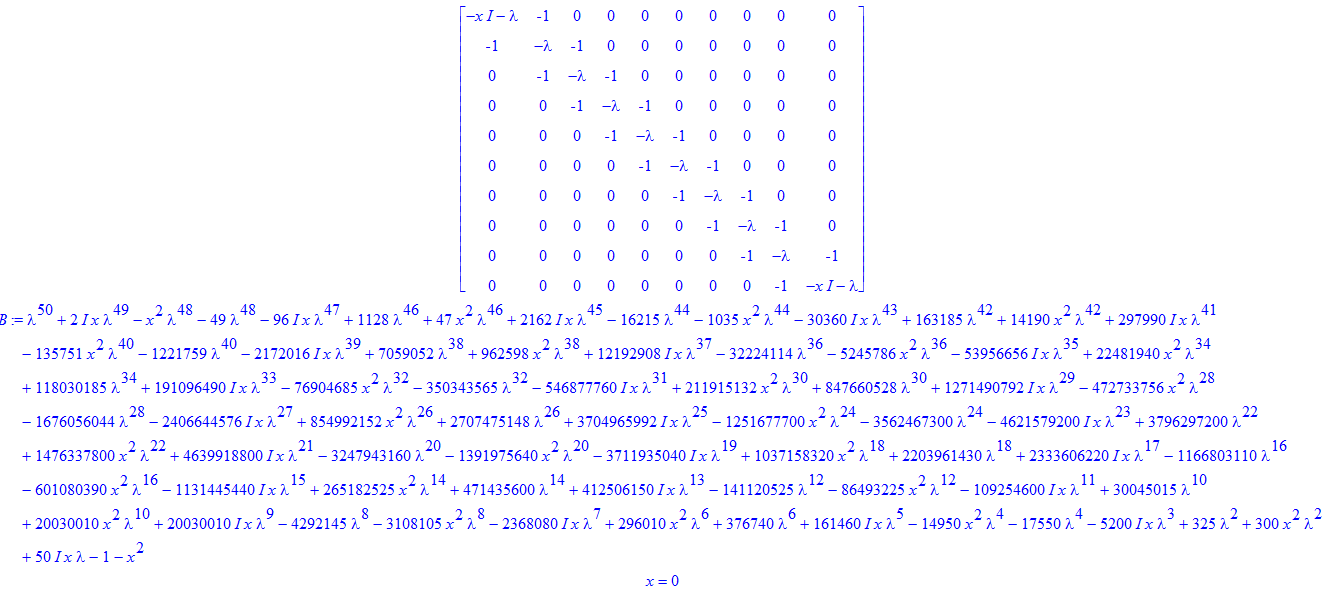

The simple procedure A  constructs the characteristic matrix with your properties of any size. For example displayed  A(10). Then we find the characteristic polynomial for  n = 50, and is set to 0 the coefficient of the imaginary part. We find that it is equal to  0  only for  x = 0. Thus we have a symmetrical real matrix that have only real roots:

A:=n->Matrix(n, {(1,1)=-I*x-lambda, (n,n)=-I*x-lambda, seq((i,i)=-lambda, i=2..n-1), seq((i,i-1)=-1, i=2..n), seq((i-1,i)=-1, i=2..n)}):

A(10);

B:=sort(LinearAlgebra[Determinant](A(50)), lambda);

x=solve(coeff(B,I)=0, x);

Verification:

C:=subs(x=0, B):

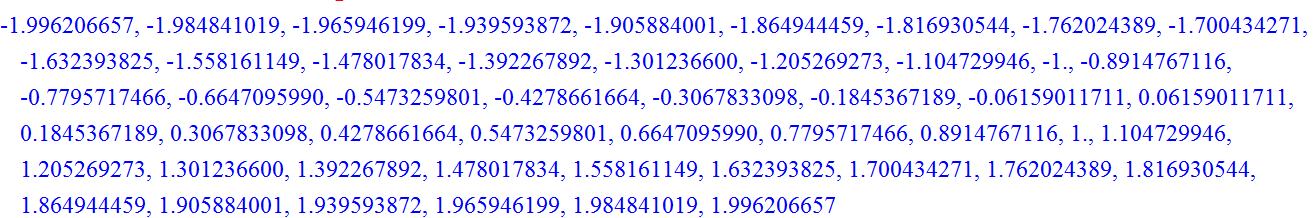

fsolve(C=0, lambda, complex);



We got only real roots.
