MaplePrimes Activity


These are replies submitted by Samir Khan

Stefan

Please send one of your Mathcad worksheets to us at support@maplesoft.com (mark it for my attention)

I'll let you know if we think Maple is a viable alternative.

Samir

@mclaine Could you please email a typical Mathcad worksheet to support@maplesoft.com (marked for my attention). I'd like to take a closer look, and perhaps provide a few recommendations. The technical context always matters

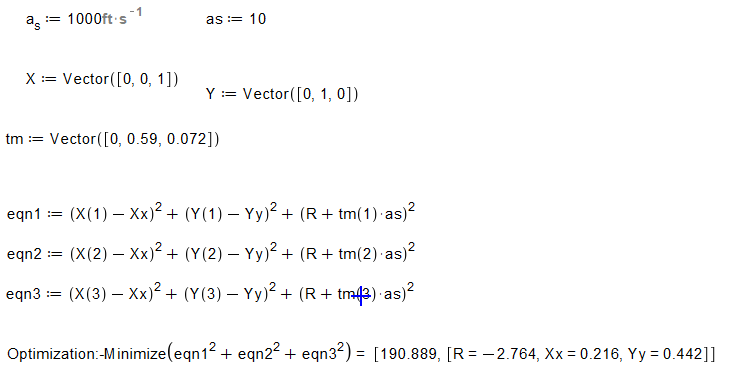

Mathcad will discard angle units in numeric output...

Maple will not, unless you specifically ask it to (with convert(B,unit_free))

If you're thinking about switching from Mathcad to Maple, I would not concentrate on directly reproducing your Mathcad units experience in Maple. The underlying implementation is too different.

Are you doing antenna design? I'm guessing from your previous questions and comments about units, scientific constants, and phasors.

@mclaine I used to work for a Mathcad reseller in tech support, so I know both products well.

Are you attemping to convert an existing Mathcad worksheet to Maple? If so, can you share the Mathcad worksheet? That would help us understand the context of your issue.

@Christopher2222 Here's a rough cut of an analysis.



with(ThermophysicalData):
with(plots):


This function gives the coldest possible temperature (i.e. the wet bulb temperature) in a Zeer as a function of the air temperature

and the relative humidity

Twb_val := (Tdb_val, R_val) -> Property(Twb, HumidAir, Tdb = Tdb_val, R = R_val,

pressure = 101325):


Range of relative humidities to plot:

R_val := [0.3, 0.4, 0.5, 0.6, 0.7]:

p1 := seq(plot(Twb_val(temp, R_val[i]), temp = 280 .. 310, adaptive = false,

numpoints = 20), i = 1 .. 5):

p2 := seq(textplot([310, Twb_val(310, R_val[i]), sprintf("R = %.1f",R_val[i])]),

i = 1 .. 5):

display(p1, p2, labels = ["Air Temperature (K)", "Coldest Possible Temperature in Zeer (K)"],

labeldirections = [horizontal, vertical])



At a constant air temperature, the coldest possible temperature (i.e. the wet bulb temperature) increases as the relative humidity

(i.e. water in air) increases.



This makes sense because

•

If there is more water in the air, less water will evaporate from the wet sand between the two pots in the Zeer

•

and hence less latent heat will be removed


Download Zeer.mw

@Pieter

This MapleSim model contains a Modelica custom component that reads the CoolProp DLL. You'll need to change the path in the code to point to the location of the DLL on your computer.

ExternalCCodeCalls.msim

Samir

@Thomas Richard

  • Those techniques are not appropriate for the typical home user (e.g. ISPs that block port 25, Windows OS etc)
  • MailGun works also on the MapleCloud. I have Cloud applications that email results to the user (after the user has entered their email in a text area). Let me know if you want access.



@Axel Vogt

Here's the full email header

Mailgun_email_header.txt

The header of Sample.txt implies that the data is generated by an oscilliscope.

Can your oscilloscope generate binary data files? Then you could attempt to use ?FileTools[Binary] to import the data.

In addition to the other responses, I find that changing the default 2D math font from Times New Roman to a sans-serif font (like Calibri or equivalent) helps with clarity.

@madruga1155 Right now, viscosity is taken into account when calculating the friction factor (i.e. viscosity is used to calculate the Reynolds number, and the Reynolds number is used to calculate the friction factor).

You could also model non-Newtonian or power law liquids etc. This would need a new pipe model (not difficult) with equations describing the viscosity / bulk shear rate relationship.

In Settings tab, set Compiler=false.

If you install a compiler (as described here), you can simulate the model with Compiler=true.

Samir

As an addendum, here's a Maple 15 worksheet that discretizes the Water Hammer PDEs along the spatial dimension, and solves the resulting set of ODEs numerically.

For a given set of inputs, the results are consistent with those of the MapleSim model. There are a few small differences which can be explained by differences in how boundary conditions are set in MapleSim (i.e. the closure characteristics of the valve) and Maple (i.e. the velocity profile at the end of the pipeline)

Water_Hammer_Application.mw

@acer Go ahead with the Application.

When I first wrote the worksheet, I spoke to experts at Maplesoft about the visualization (the responsiveness of pointplots for large numPoints, or other methods of visualization) but no workable result was presented.

I started writing a 3d convex hull routine to remove the interior points (to make the pointplots more responsive), but I never finished...might have to brush the dust off it.

Samir

@acer

Here's an archive of the worksheet plus screengrabs of plots being produced in situ. I haven't touched the worksheet in over two years because I found it too resource intensive for wider consumption. Use at your own risk :)

Quaternion_Fractal.zip
