MaplePrimes Activity


These are replies submitted by acer

Maple...

acer 32333
November 16 2019
0 0

@permanoon123 So, why can't you be bothered to type in the integral in Maple yourself?

trapezoid?...

acer 32333
November 15 2019
0 0

@permanoon123 Why do you want to work with the trapezoid rule?

y?...

acer 32333
November 15 2019
0 0

What do you mean by stating that y=2, when y is used as a variable of integration?

What is f(y)?

Equation Labels...

acer 32333
November 15 2019
0 0

@Carl Love I believe that the Equation Label needs to be shown to be used, and they are only shown alongside output.

I inserted a Label reference, and then went back and supressed output of the line that had that Label, by terminating the statement with a full colon. Upon re-execution of the whole sheet that inserted reference became "??" and the error "Invalid label reference" was emitted. This was in a Worksheet, in 1D input mode.

Moreover, only one Label gets shown if I have several statements in an Execution Group, each terminated with a semicolon. An inserted reference seems to get the last output.

example...

acer 32333
November 15 2019
0 0

Please provide a complete example.

optimization...

acer 32333
November 14 2019
0 0

Did you perhaps intend this as an optimization problem, to find values which made the equations close to zero?

Why set the data up in floating-point, and incur loss of precision up front?

attachment...

acer 32333
November 14 2019

Did you forget to attach something?

version?...

acer 32333
November 14 2019
0 0

Which Maple version are you using?

Maple 18.02...

acer 32333
November 13 2019
0 0

@Carl Love There is some problematic aspect to that use of thisproc (but I'm not sure just what...), and style=pointline (Maple 2015?).

LogisticMapM1802.mw

integration methodology...

acer 32333
November 13 2019
0 0

@weidade37211

You can also see Wikipedia for more thorough descriptions of symbolic and numeric integration.

Here are some basic notes on Maple syntax for doing both such computations.

>

restart

The following are calls to the active command int  (lowercase), or its 2D Input analogue.

I entered the second one of these using the Expression palette . Notice that the 2D Input integral symbol is in black.

>

int(sin(x), x = 0 .. Pi)

2

>

int(sin(x), x = 0 .. Pi)

2



The following are calls to the inert command Int  (capitalized). Notice that the 2D Input integral symbol is in gray.



>

H := Int(sin(x), x = 0 .. Pi)

Int(sin(x), x = 0 .. Pi)

That can also be entered in 2D Input using command-completion :

>

R := Int(sin(x), x = 0 .. Pi)

Int(sin(x), x = 0 .. Pi)

Those can be turned into active calls using the value  command:

>

value(H), value(R)

2, 2

They can also be computed using numeric integration . (See also here.)

>

evalf(H), evalf(R)

2.000000000, 2.000000000

Numeric integration can also be done by supplying a floating-point value in the integration range, or by supplying the option numeric in a call to active int. (For this to succeed and produce a floating-point result the integrand must evaluate to numeric values for each numeric substitution of the variable of integration, naturally). I do not recommend this syntax, as it blurs the more clear distinctions above.

>

int(sin(x), x = 0. .. 3.1415)

1.999999996

>

int(sin(x), x = 0 .. Pi, numeric)

2.000000000

The syntax evalf(Int(....)) allows for various additional options, which specify the numerical method, working precision, tolerance, etc.

>

evalf(Int(sin(x), x = 0 .. Pi, method = _Dexp, epsilon = 0.1e-13, digits = 15))

2.00000000000000

See also Section 4.2  of the User Manual, and Section 7.4  of the Programming Guide.

Download integration_notes.mw

details...

acer 32333
November 13 2019
0 0

@Norwegian explorer

Could you not share the full details, if you have numeric values for the other parameters, or other definitions in play?

full code to reproduce...

acer 32333
November 13 2019
0 0

Attach a document or worksheet that contains full code to reproduce this.

syntax...

acer 32333
November 13 2019
0 0

Try it as,
    while (eps>0.001) do

And put statement terminators (color or semicolon) on the lines that assign to i and nstar.

...and now using the supplied data...

acer 32333
November 13 2019
0 0

And now here it is using the irregular 3D data (from rows 100 to 2640, I'm not sure yet just what's going on with the first 100 rows).

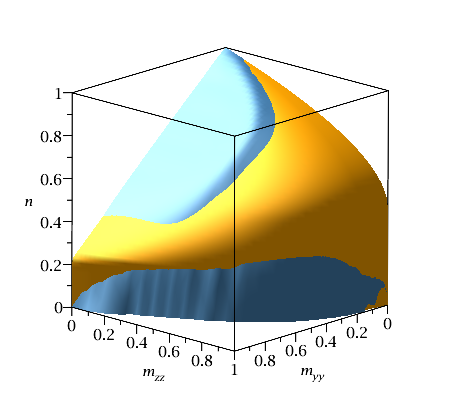

The surface plot looks like the 3d image the OP posted in a followup comment, but much smoother (and faster). The generated explicit expression and interpolating procedure can now be easily used to generate contour plots -- also done below.

>

restart;
>

a := 45/100;
#a := 2/3:

9/20

>

UC := proc(n, m__yy, m__zz)
  piecewise(1/5 < n, m__yy^2/min(1,(1-n)/(1-1/2*aa))^2
                     +(m__zz/piecewise(n <= aa, 1, 1-(n-aa)^2/(1-aa)^2))^(5*n),
                     m__yy^2/min(1,(1-n)/(1-1/2*aa))^2
                     +m__zz/piecewise(n <= aa, 1, 1-(n-aa)^2/(1-aa)^2));
end proc:
>

eval(UC(n, m__yy, m__zz), aa = a):
>

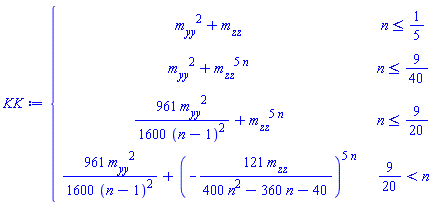

KK := simplify(%);

KK := piecewise(n <= 1/5, m__yy^2+m__zz, n <= 9/40, m__yy^2+m__zz^(5*n), n <= 9/20, 961*m__yy^2/(1600*(n-1)^2)+m__zz^(5*n), 9/20 < n, 961*m__yy^2/(1600*(n-1)^2)+(-121*m__zz/(400*n^2-360*n-40))^(5*n))

>

RR := solve({KK = 1, 0 < m__zz, 0 < n, m__zz < 1, n < 1}, {m__yy}):
RRR := (simplify(RR) assuming (0 < n, n < 1, 0 < m__zz, m__zz < 1)):

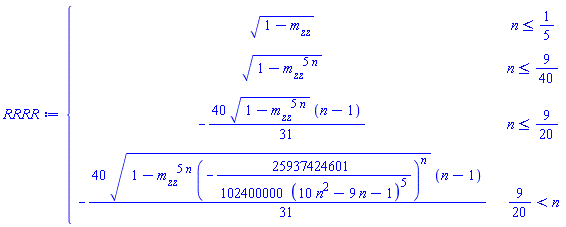

RRRR := subsindets(RRR, list, uu -> eval(m__yy, uu[1]));

RRRR := piecewise(n <= 1/5, sqrt(1-m__zz), n <= 9/40, sqrt(1-m__zz^(5*n)), n <= 9/20, -40*sqrt(1-m__zz^(5*n))*(n-1)*(1/31), 9/20 < n, -40*sqrt(1-m__zz^(5*n)*(-25937424601/(102400000*(10*n^2-9*n-1)^5))^n)*(n-1)*(1/31))

>

FF := [solve({RRRR = 0}, {m__zz})]:
FFF := (eval(m__zz, simplify(%[1])[1]) assuming (a < n));
#evalf(eval(FFF, n = 0.7));

(40/121)/(-1/(10*n^2-9*n-1)^5)^(1/5)

>

P1s := plot3d([RRRR, m__zz, n],
               m__zz = 0 .. piecewise(n <= a, 1, FFF) - 0.1*10^(-8),
               n = 0 .. 1, labels = [m__yy, m__zz, n], color="Orange",
               view = [0 .. 1, 0 .. 1, 0 .. 1], style = surface):
>

REStotaal:=ImportMatrix(cat(kernelopts(homedir),"/mapleprimes/REStotaal.txt")):
>

M:=REStotaal[..,4..6]:
>

FF:=Interpolation:-Interpolate(M[100..,1..2],M[100..,3],
                              method=radialbasisfunction, linear):
>

plots:-display(
  P1s,
  plot3d(FF,0..1,0..1,style=surface,color="SteelBlue")
);

>

C := [1/5, a/2, a, 0.6, 0.7, 0.8, 0.9];
plots:-display(
  plots:-contourplot([RRRR, m__zz, n],
                     m__zz = 0 .. piecewise(n <= a, 1, FFF) - 0.1*10^(-8),
                     n = 0 .. 1 - 0.1*10^(-8), labels = [m__yy, m__zz],
                     view = [0 .. 1, 0 .. 1], coloring = ["LightGreen", "Blue"],
                     contours = C, thickness = 3),
  plots:-contourplot('FF'(m__zz,n), m__zz=0..1, n=0..1,
                     view = [0 .. 1, 0 .. 1], coloring = ["LightGreen", "Blue"],
                     linestyle = dot, contours = C, thickness = 3)
);

[1/5, 9/40, 9/20, .6, .7, .8, .9]

>



Download testd5.mw

data file...

acer 32333
November 12 2019
0 0

Could you attach a text file of the actual (irregular) data? That'd help.

[edit: I've been able to grind out a nice, smooth plot of m__zz vs m__yy and n, using explicit piecewise derived from your formula. I'll try to find time to post later. This may help (as well as look smoother).]
