These are answers submitted by gkokovidis

?D...

gkokovidis 2370
April 04 2011
0 0

What's missing in your original D(f@g) command is (x).  It should look like this:

D(f@g)(x);



Regards,

Georgios Kokovidis

Dräger Medical

Examples...

gkokovidis 2370
April 03 2011
0 0

See the examples here as a starting point.

Regards,

Georgios Kokovidis

Dräger Medical

print...

gkokovidis 2370
April 03 2011
0 0

One way is to use the ?print command.  Another is to suppress output with a colon, instead of a semicolon.  See below.  The last "end do" statement determines what gets displayed during execution of the loop.  You can upload your worksheet as well, so we can have a look at what you have done.

>

restart:
>

a:=1:
b:=1:
total:=0:
count:=0:
while total < 3 do
        a:=a*b;
        total:=total+a;
        count:=count+1;
end do;
count;



















                                         (1)
>

a:=1:
b:=1:
total:=0:
count:=0:
while total < 3 do
        a:=a*b;
        total:=total+a;
        count:=count+1;
end do:
count;

                                         (2)
>



Download print.mw

Regards,

Georgios Kokovidis

Dräger Medical

Syntax...

gkokovidis 2370
March 30 2011
0 0

In your worksheet, you have the following line:

f:=x->(sin(x-2)+x^3)*(1/(x+1)-2*x)/(sin*x^2-exp(x));

sin*x^2 has no meaning.  Do you mean sin(x^2), or sin(x)^2?

>

>

f:=x->(sin(x-2)+x^3)*(1/(x+1)-2*x)/(sin(x)^2-exp(x));

(1)
>

df:=x->diff(f(x),x);

(2)
>

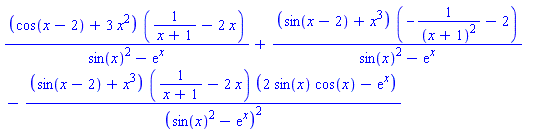

df(x);

(3)
>

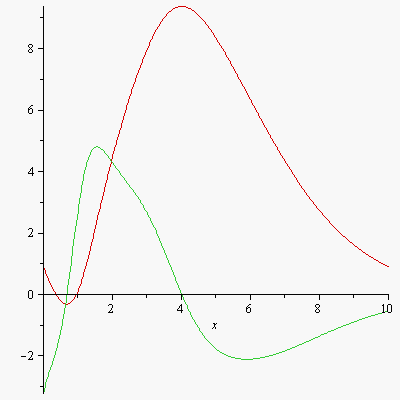

plot([f(x),df(x)],x=0..10);


>



Download d_df_x.mw

Regards,

Georgios Kokovidis

Dräger Medical

Functional operators, plots, display...

gkokovidis 2370
March 29 2011
1 1

See the help page with examples for functional operators (?->) will get you there, and ?plot and ?display.  See also the help page for ?diff.  That should be enough to complete the task at hand.

When you are done, you can export your worksheet as rtf, which you can open in MS Word.

Regards,

Georgios Kokovidis

Dräger Medical

fsolve or Roots...

gkokovidis 2370
March 29 2011
0 0

You can use ?fsolve over a range, or Roots, from the ?Student[Calculus1] package.

>

restart:
>

Prob:=(w,T)->(B^2)*(sin(w*(T/2))^2)/((w/2)^2);

(1)
>

B:=1;

(2)
>

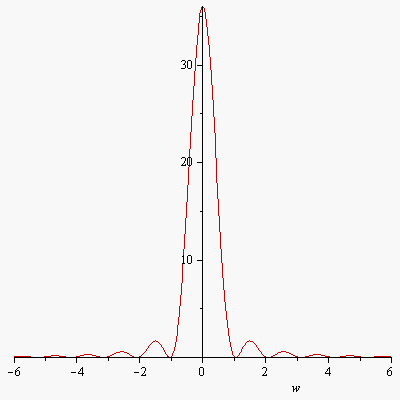

plot(Prob(w,6),w=-6..6);


>

with(Student[Calculus1]):
>

rPos:=Roots(Prob(w,6),0..6);

(3)
>

rNeg:=Roots(Prob(w,6),-6..0);

(4)
>

evalf(rPos);

(5)
>

evalf(rNeg);

(6)
>



Download zeros.mw



 Regards,

Georgios Kokovidis

Dräger Medical

help pages...

gkokovidis 2370
March 22 2011
1 0

See ?plot and ?solve and enter your function as x^2-8*x+20 for each case.  There are many examples that look similar to your problem.  Give it a try and see what happens.



Regards,

Georgios Kokovidis

Dräger Medical

Cut and paste of your code in Maple 14...

gkokovidis 2370
March 20 2011
0 0

It works for me in Maple 14.



>

restart:
>

u:=proc(a::integer)::integer;
>



>

local k;
>



>

a+k;
>



>

end proc:
>



>

u(3);

           (1)
>

u(3.1);

Error, invalid input: u expects its 1st argument, a, to be of type integer, but received 3.1


>

u(-1);

        (2)
>





Download proc_int.mw



Regards,

Georgios Kokovidis

Dräger Medical

Units with 'FPS'...

gkokovidis 2370
March 20 2011
0 0

The example below was taken from the help page for the Units command, using your Z as input. Is this what you are looking for?

>

restart:
>

with(Units):UseSystem('FPS');
>

Z:=5*Unit('ft');

(1)
>

Z^2;

(2)
>



Download units.mw



Regards,

Georgios Kokovidis

Dräger Medical

?arrow...

gkokovidis 2370
March 20 2011
0 0

See the help page for the ?arrow command, which is part of the plots package.

Regards,

Georgios Kokovidis

Dräger Medical

Export as .mpl...

gkokovidis 2370
March 12 2011
0 0

One way would be to export the procedure as Maple input, which will create a file with a .mpl extension, which you can read into a new worksheet.

For example, the procedure example.mpl was created from the following code.

f := proc(x)
if x >= 0 then return (sqrt(x)); else return (FAIL); end if; end;

This was exported to the Windows desktop.  Then it was read into a new Maple worksheet.



>

read `C:/Documents and Settings/kokoge00/Desktop/example.mpl`;

(1)
>

f(2);

(2)
>

f(0);

(3)
>

f(-2);

(4)
>





Download example.mws



Regards,

Georgios Kokovidis

Dräger Medical

Student[VectorCalculus][TangentVector]...

gkokovidis 2370
March 12 2011
1 0

See ?spacecurve and  ?Student[VectorCalculus][TangentVector].  Below is an example without Student[VectorCalculus][TangentVector].  You can use this as a starting point for your own curve.

>

restart:with(plots):with(VectorCalculus):
>

r:=t-><sin(t),cos(t),sqrt(t)>;

(1)
>

diffrt:=unapply(diff(r(t),t),t);

(2)
>

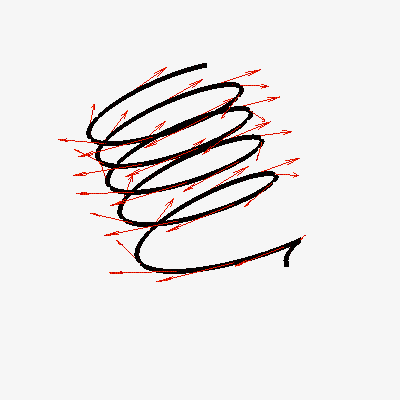

spc:=spacecurve([seq(r(t)[n],n=1..3)],t=0..10*Pi,numpoints=1000,thickness=5,color=black):
>

display(spc,seq(arrow(r(30/40*n),diffrt(30/40*n),shape=arrow),n=1..40),color=red,orientation=[-102,64,-54]);



Download spacecurvewitharrow.mw



Regards,

Georgios Kokovidis

Dräger Medical

plot of columns from matrix...

gkokovidis 2370
March 12 2011
0 0





>

restart:with(LinearAlgebra):with(plots):
>

data:= Matrix([[1, 2, 3], [2, 3, 4],[4,5,6],[6,7,8]]);

(1)
>

ans:=Column(data, [1..3]);

(2)
>

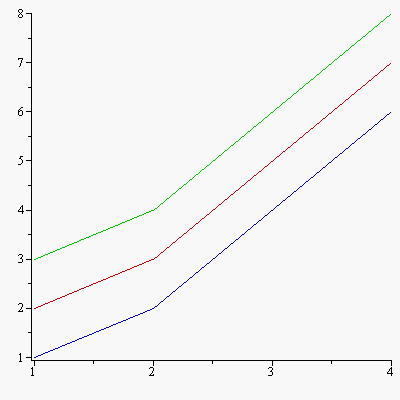

p1:=plot(Vector([seq(1..4)]),ans[1], style = line, color = blue):
>

p2:=plot(Vector([seq(1..4)]),ans[2], style = line, color = red):
>

p3:=plot(Vector([seq(1..4)]),ans[3], style = line, color = green):
>

display(p1,p2,p3);


>



Download matrixplot.mw



Regards,

Georgios Kokovidis

Dräger Medical

frames...

gkokovidis 2370
March 10 2011
0 0

See ?plots/animate for more details.  Change frames= to a high value, and this will slow down the animation.

For example:

animate(plot,[A*x^2,x=-4..4],A=-3..3,frames=100);



Regards,

Georgios Kokovidis

Dräger Medical

textplot...

gkokovidis 2370
March 10 2011
0 0

If the example below is similar to what you are looking for, see ?textplot and ?display

The use of labels = ["",""] will remove the "x" label from the x-axis.



>

restart:with(plots):
>

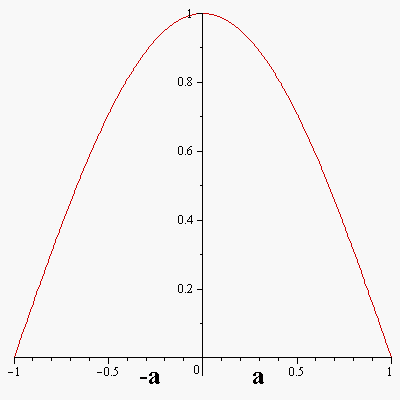

p1:=plot(cos((Pi*x)/2),x=-1..1,labels = ["",""]):
>

p2:=textplot([0, -.05, typeset("-a             a"), font = [TIMES, BOLD, 20]]):
>

display(p1,p2);


>





Download textplot.mw



Regards,

Georgios Kokovidis

Dräger Medical
