I got two point coordinates with fortran,
d=400e-10,betar=2.13972055888224,betai=2.90030000251869e-3
d=400e-10,betar=2.43413173652695,betai=1.89019000247816e-2

still need method with maple.

## points coordinate...

@Markiyan Hirnyk the first point is d=400e-10, beta in the (2.1+I*1e-3..2.2+I*1e-2), the second point is d=400e-10, beta in the (2.25+I*1e-2..2.5+0.1*I).I got the interval for beta from a article, so it's approximate value,not exact value.

## points coordinate...

@Markiyan Hirnyk the first point is d=400e-10, beta in the (2.1+I*1e-3..2.2+I*1e-2), the second point is d=400e-10, beta in the (2.25+I*1e-2..2.5+0.1*I).I got the interval for beta from a article, so it's approximate value,not exact value.

## Markiyan Hirnyk, thank you very much for...

Markiyan Hirnyk, thank you very much for your help.

I'm very appreciated for your method.

But there are some problems.

1. d is an independent variable, beta is a dependent variable. when betar is a constant, then d is a constant too,so does betai. I can't understand your plot between d and betai.

2. Even if your plot is right, the data in the plot is wrong. I supplied two points coordinate which were not included with your plot.

Finally, I use fortran, it solved my problem. firstly produce mesh grid point, second substitute the coordinates into the expression, plot the result, the supplied two points is easy to get although it's approximate. the same steps in maple are so slow, I can't wait more.

thank you all the same, my friend.

Still want to know how to solve the problem with Maple, I'm still waiting for someone to solve it.

## Markiyan Hirnyk, thank you very much for...

Markiyan Hirnyk, thank you very much for your help.

I'm very appreciated for your method.

But there are some problems.

1. d is an independent variable, beta is a dependent variable. when betar is a constant, then d is a constant too,so does betai. I can't understand your plot between d and betai.

2. Even if your plot is right, the data in the plot is wrong. I supplied two points coordinate which were not included with your plot.

Finally, I use fortran, it solved my problem. firstly produce mesh grid point, second substitute the coordinates into the expression, plot the result, the supplied two points is easy to get although it's approximate. the same steps in maple are so slow, I can't wait more.

thank you all the same, my friend.

Still want to know how to solve the problem with Maple, I'm still waiting for someone to solve it.

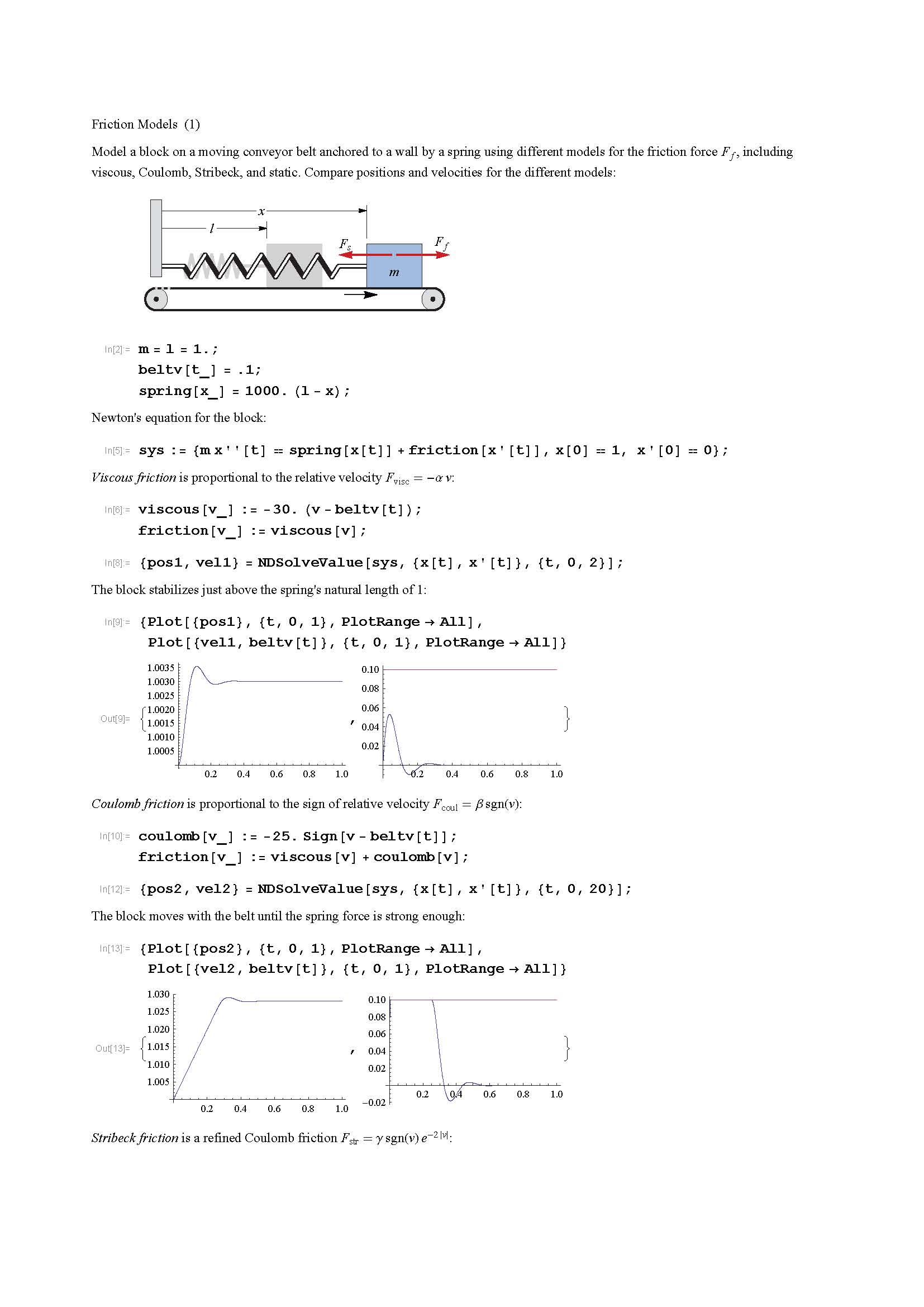

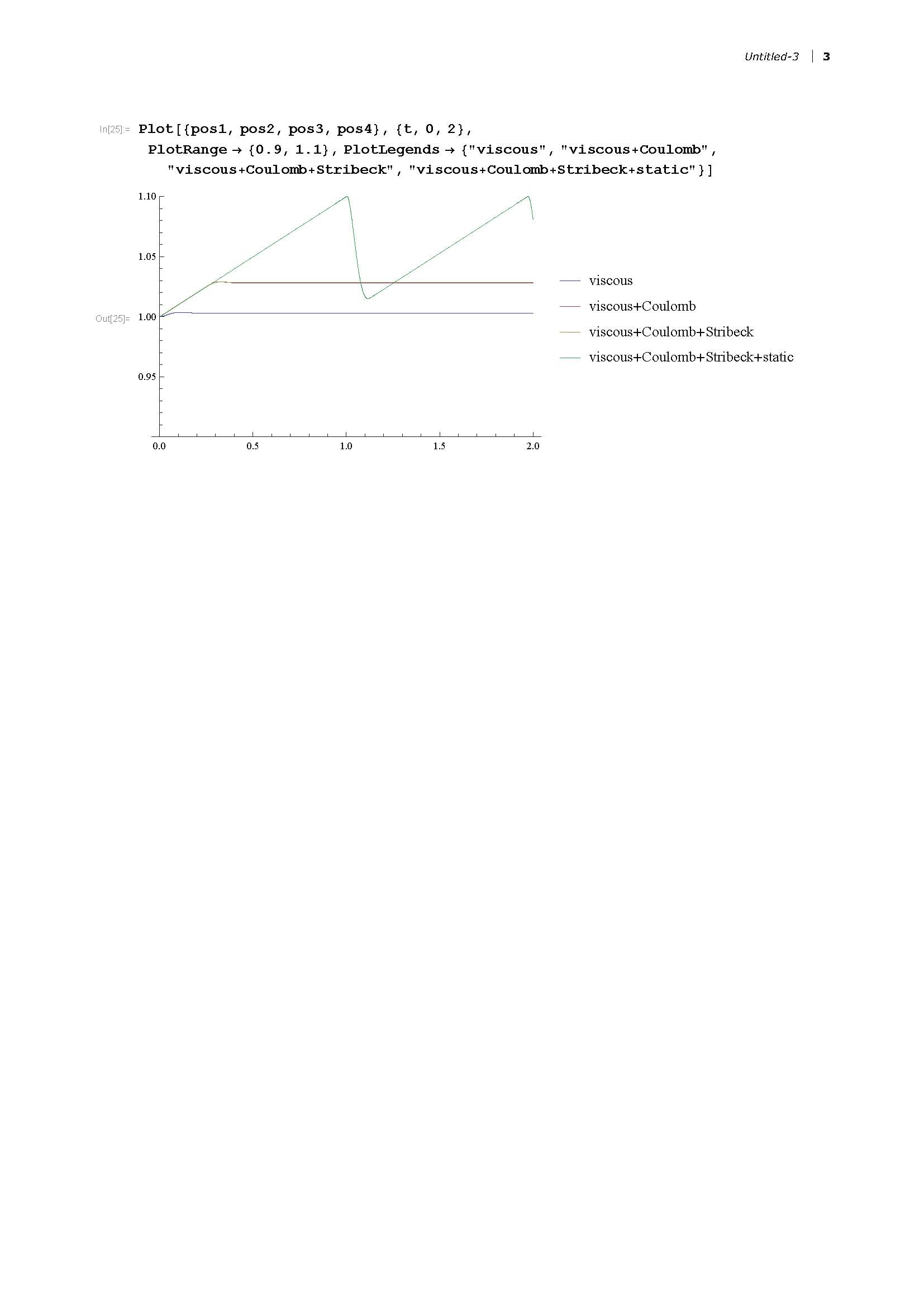

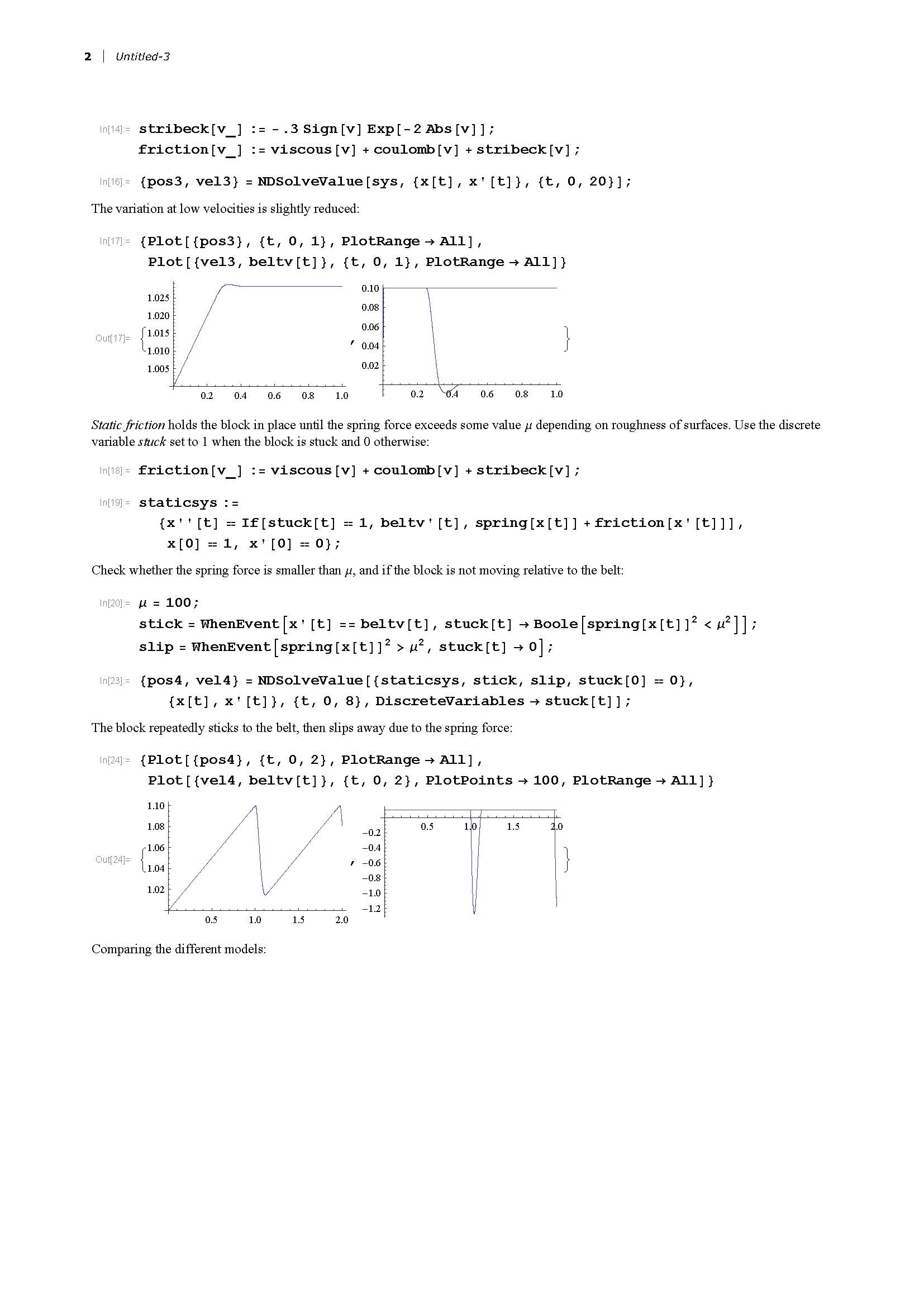

## solutions of the first three models, sti...

solutions of the first three models, still looking for the solution of the fourth model...

restart;
m, l := 1., 1.;
beltv := proc (t) options operator, arrow; .1 end proc;
spring := proc (x) options operator, arrow; 1000.*(l-x) end proc;
sys1 := [m*(diff(x(t), t, t)) = spring(x(t))+friction1(diff(x(t), t)), x(0) = 1, (D(x))(0) = 0];
viscous := proc (v) options operator, arrow; (-1)*30.*(v-beltv(t)) end proc;
friction1 := proc (v) options operator, arrow; viscous(v) end proc;
friction1(v);
sys1;
sol1 := dsolve(sys1, numeric, output = listprocedure, range = 0 .. 2);
plots[odeplot](sol1, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, refine = 2);
plots[odeplot](sol1, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, refine = 2);
sys2 := [m*(diff(x(t), t, t)) = spring(x(t))+friction2(diff(x(t), t)), x(0) = 1, (D(x))(0) = 0];
coulomb := proc (v) options operator, arrow; (-1)*25.*signum(v-beltv(t)) end proc;
friction2 := proc (v) options operator, arrow; viscous(v)+coulomb(v) end proc;
friction2(v);
sys2;
sol2 := dsolve(sys2, numeric, method = classical[abmoulton], stepsize = 0.4500000e-4, output = listprocedure);
plots[odeplot](sol2, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2);
plots[odeplot](sol2, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500);
sys3 := [m*(diff(x(t), t, t)) = spring(x(t))+friction3(diff(x(t), t)), x(0) = 1, (D(x))(0) = 0];
stribeck := proc (v) options operator, arrow; (-1)*.3*signum(v)*exp(-2*abs(v)) end proc;
friction3 := proc (v) options operator, arrow; viscous(v)+coulomb(v)+stribeck(v) end proc;
friction3(v);
sys3;
sol3 := dsolve(sys3, numeric, method = classical[abmoulton], stepsize = 0.4500000e-4, output = listprocedure);
plots[odeplot](sol3, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2);
plots[odeplot](sol3, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500);
plots[display]({plots[odeplot](sol1, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, refine = 2), plots[odeplot](sol2, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, color = green), plots[odeplot](sol3, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, color = blue)}, view = [0 .. 1, 1 .. 1.03]);
plots[display]({plots[odeplot](sol1, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, refine = 2), plots[odeplot](sol2, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500, color = green), plots[odeplot](sol3, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500, color = blue)}, view = [0 .. 1, -0.2e-1 .. .13]);

## solutions of the first three models, sti...

solutions of the first three models, still looking for the solution of the fourth model...

restart;
m, l := 1., 1.;
beltv := proc (t) options operator, arrow; .1 end proc;
spring := proc (x) options operator, arrow; 1000.*(l-x) end proc;
sys1 := [m*(diff(x(t), t, t)) = spring(x(t))+friction1(diff(x(t), t)), x(0) = 1, (D(x))(0) = 0];
viscous := proc (v) options operator, arrow; (-1)*30.*(v-beltv(t)) end proc;
friction1 := proc (v) options operator, arrow; viscous(v) end proc;
friction1(v);
sys1;
sol1 := dsolve(sys1, numeric, output = listprocedure, range = 0 .. 2);
plots[odeplot](sol1, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, refine = 2);
plots[odeplot](sol1, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, refine = 2);
sys2 := [m*(diff(x(t), t, t)) = spring(x(t))+friction2(diff(x(t), t)), x(0) = 1, (D(x))(0) = 0];
coulomb := proc (v) options operator, arrow; (-1)*25.*signum(v-beltv(t)) end proc;
friction2 := proc (v) options operator, arrow; viscous(v)+coulomb(v) end proc;
friction2(v);
sys2;
sol2 := dsolve(sys2, numeric, method = classical[abmoulton], stepsize = 0.4500000e-4, output = listprocedure);
plots[odeplot](sol2, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2);
plots[odeplot](sol2, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500);
sys3 := [m*(diff(x(t), t, t)) = spring(x(t))+friction3(diff(x(t), t)), x(0) = 1, (D(x))(0) = 0];
stribeck := proc (v) options operator, arrow; (-1)*.3*signum(v)*exp(-2*abs(v)) end proc;
friction3 := proc (v) options operator, arrow; viscous(v)+coulomb(v)+stribeck(v) end proc;
friction3(v);
sys3;
sol3 := dsolve(sys3, numeric, method = classical[abmoulton], stepsize = 0.4500000e-4, output = listprocedure);
plots[odeplot](sol3, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2);
plots[odeplot](sol3, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500);
plots[display]({plots[odeplot](sol1, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, refine = 2), plots[odeplot](sol2, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, color = green), plots[odeplot](sol3, [t, x(t)], 0 .. 1, gridlines = true, thickness = 2, color = blue)}, view = [0 .. 1, 1 .. 1.03]);
plots[display]({plots[odeplot](sol1, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, refine = 2), plots[odeplot](sol2, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500, color = green), plots[odeplot](sol3, [[t, diff(x(t), t)], [t, beltv(t)]], 0 .. 1, gridlines = true, thickness = 2, numpoints = 500, color = blue)}, view = [0 .. 1, -0.2e-1 .. .13]);
