Stereographic Projection by Paul DeMarco

Posted: John May 2616

August 05 2024

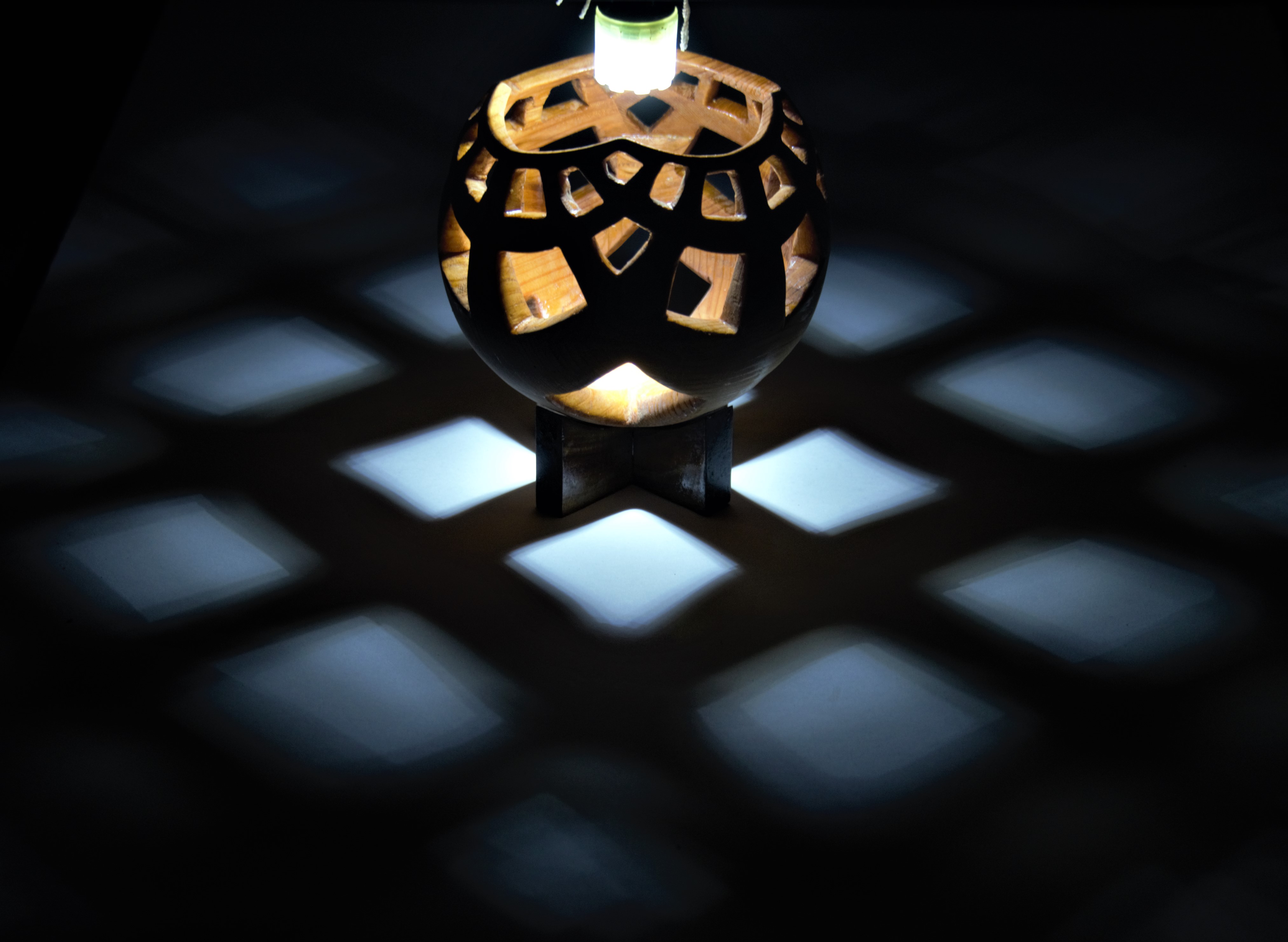

A wooden model of a sphere that casts a rectilinear shadow

The model in the picture is 6.5" in diameter, and is made out of cedar, with a
walnut stand. It was made in two pieces; essentially two bowls, turned on a
lathe to hollow and shape it. The hemispheres are then glued into a sphere and
then cut-out.
Maple is used to calculate the projection layout, calculating the lengths,
widths and intersection points of the arcs on the sphere.

Details: DeMarco-StereographicProjection.pdf

StereographicProjection_Final.mw

Stereographic Projection

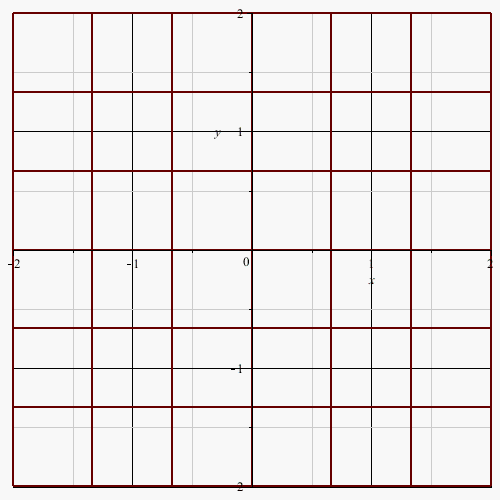

Grid

The goal is to take this grid and project it onto a sphere.

>	plots:-display([ (for i from -2 to 2 by 2/3 do plots:-implicitplot( x=i, x=-2..2,y=-2..2 ), plots:-implicitplot( y=i, x=-2..2,y=-2..2 ); end do) ]);

>	proj := (x,y)->[ 2x/(1+x^2+y^2), 2y/(1+x^2+y^2), (-1+x^2+y^2)/(1+x^2+y^2)];

proc (x, y) options operator, arrow; [2*x/(1+x^2+y^2), 2*y/(1+x^2+y^2), (-1+x^2+y^2)/(1+x^2+y^2)] end proc

(1.1)

plots:-display([
    (for i from -2 to 2 by 2/3 do
         plots:-spacecurve( proj(x,i), x=-2..2 ),
         plots:-spacecurve( proj(i,y), y=-2..2 );
    end do),
    plots:-pointplot3d([
      for i from -2 to 2 by 2/3 do
         (for j from -2 to 2 by 2/3 do
             proj(i,j);
         end do);
      end do], symbol=box)
]);

Physical Grid

The sketch of the globe lacks thickness. Let's redefine the grid to have some width:

Pick a thickness, t:

>	t := .13: # deviation from center line; thickness = 2*t

plots:-display( [
    (for i from -2 to 2 by 2/3 do
         plots:-implicitplot( x=i-t, x=-2-t..2+t,y=-2-t..2+t ),
         plots:-implicitplot( x=i+t, x=-2-t..2+t,y=-2-t..2+t );
    end do),
    (for i from -2 to 2 by 2/3 do
         plots:-implicitplot( y=i-t, x=-2-t..2+t,y=-2-t..2+t ),
         plots:-implicitplot( y=i+t, x=-2-t..2+t,y=-2-t..2+t );
    end do)

]);

>	plots:-display([ (for i from -2 to 2 by 2/3 do plots:-spacecurve( proj(x,i-t), x=-2-t..2+t ), plots:-spacecurve( proj(x,i+t), x=-2-t..2+t ), plots:-spacecurve( proj(i-t,y), y=-2-t..2+t ), plots:-spacecurve( proj(i+t,y), y=-2-t..2+t ); end do) ]);

Visualize a filled globe by shading in the curves, and revealing the cut-outs.

>	plots:-display([ (for i from -2 to 2 by 2/3 do (for j from -t to t by t/20. do plots:-spacecurve( proj(x,i+j), x=-2-t..2+t ), plots:-spacecurve( proj(i+j,y), y=-2-t..2+t ) end do) end do) ],color=black,transparency=.5);

>	for pt in [[-2,0],[0,0]] do proj(pt[1],pt[2]-t), proj(pt[1],pt[2]+t); end do;

(1)

>	proj(-2,-t), proj(0,-t);

(2)

Build Plan

How to build this?

-- look at individual arcs and measure the lengths to each intersection point

Let's look at a particular set of arcs (in red) ...

plots:-display([
    (for i from -2 to 2 by 2/3 do
         plots:-spacecurve( proj(x,i-t), x=-2-t..2+t, `if`(i=0,op([color=red,thickness=10]),NULL) ),
         plots:-spacecurve( proj(x,i+t), x=-2-t..2+t, `if`(i=0,op([color=red,thickness=10]),NULL) ),
         plots:-spacecurve( proj(i-t,y), y=-2-t..2+t ),
         plots:-spacecurve( proj(i+t,y), y=-2-t..2+t );
    end do),
    plots:-pointplot3d([
      for pt in [[-2,0],[0,0]] do
             proj(pt[1],pt[2]-t),
             proj(pt[1],pt[2]+t);
      end do], symbol=box)
]);

The general arclength formula

>	arclen := (L,v) -> local g; int( sqrt(add(diff(g,lhs(v))^2,g=L)),v);

(3.1)

Arclength of our traces

>	arclen( proj(x,y), y=a..b );

int((16*x^2*y^2/(x^2+y^2+1)^4+(2/(x^2+y^2+1)-4*y^2/(x^2+y^2+1)^2)^2+(2*y/(x^2+y^2+1)-2*(x^2+y^2-1)*y/(x^2+y^2+1)^2)^2)^(1/2), y = a .. b)

(3.2)

Some sample lengths:

>	arclen( proj(x,-t), x=-2-t..0 ); #edge to middle of bottom band

(3.3)

>	arclen( proj(x,-t), x=-2-t..2+t ); #edge to edge

(3.4)

>	arclen( proj(x,-2-t), x=-2-t..2+t ); # mouth

(3.5)

>	arclen( proj(x,2+t), x=-2-t..2+t ); # mouth

(3.6)

>	arclen( proj(x,-t), x=-2-t..-2+t ); #thickness of top band

(3.7)

>	arclen( proj(x,-t), x=-t..t ); #thickness of bottom band

(3.8)

>	arclen( proj(-t,y), y=-2..0 );

(3.9)

Scale

The above models a unit sphere. We'll scale it up to a size where we can build it:

>	scale := convert( 6.5, units, inches, cm )/2.0;

(4.1)

>	radius := scale; #radius

(4.2)

>	arclen := (L,v) -> local g; scale * int( sqrt(add(diff(g,lhs(v))^2,g=L)),v);

(4.3)

>	c := 2Piscale; #circumference

(4.4)

>	c - arclen( proj(x,-t), x=-2-t..2+t ); # arclength of opening at top to the mid-point of each well

(4.5)

Arc Length Between Max Points

I'd like to find the length around the globe to these points:

>	p1 := proj(-2,-2); p2 := proj(2,2);

(5.1)

plots:-display([
    (for i from -2 to 2 by 2/3 do
         plots:-spacecurve( proj(x,i), x=-2..2 ),
         plots:-spacecurve( proj(i,y), y=-2..2 );
    end do),
    plots:-pointplot3d([ p1, p2 ], symbol=box),
    plottools:-line( p1,p2, color=green ),
    plottools:-line( [0,0,0],p1, color=green ),
    plottools:-line( [0,0,0],p2, color=green ),
    plots:-textplot3d([0,0,.1,"theta"]),
    plots:-textplot3d([0.3,0.3,.5,"r"]),
    plots:-textplot3d([0.3,0.3,p1[3],"d"])

]);

The distance between these points is:

>	d := sqrt((p1[1]-p2[1])^2 + (p1[2]-p2[2])^2);

(5.2)

The angle at the center with lines to these points is:

>	ap := fsolve( cos(theta) = 1-d^2/(2*1^2), theta);

(5.3)

The (scaled) arc length of the gap is:

>	len := scale * ap;

(5.4)

The (scaled) arc length around the globe is:

>	evalf((2Pi-ap)scale);

(5.5)

Layout

Using the arclengths of each of the inside and outside edges and their crossing points, we can generate the following map that will let us measure the cut lines on the globe.

plots:-display( [
    (for i from -2 to 2 by 2/3 do
         plots:-implicitplot( x=i-t, x=-2-t..2+t,y=-2-t..2+t, `if`(i=0,op([color=red,thickness=3]),NULL) ),
         plots:-implicitplot( x=i+t, x=-2-t..2+t,y=-2-t..2+t, `if`(i=0,op([color=red,thickness=3]),NULL) ),
         plots:-implicitplot( y=i-t, x=-2-t..2+t,y=-2-t..2+t, `if`(i=0,op([color=blue,thickness=3]),NULL) ),
         plots:-implicitplot( y=i+t, x=-2-t..2+t,y=-2-t..2+t, `if`(i=0,op([color=blue,thickness=3]),NULL) );
    end do),
    plots:-textplot([
       for i from -2 to 2 by 2/3 do
         (for j from -2 to 2 by 2/3 do
            y1 := arclen( proj(i-t,y), y=-2-t..j+t );
            y2 := arclen( proj(i+t,y), y=-2-t..j-t );
            y3 := arclen( proj(i-t,y), y=-2-t..j-t );
            y4 := arclen( proj(i+t,y), y=-2-t..j+t );
            [i-t,j+t,sprintf("%.1f",y1),`if`(i=0,color=red,NULL)],
            [i+t,j-t,sprintf("%.1f",y2),`if`(i=0,color=red,NULL)],
            [i-t,j-t,sprintf("%.1f",y3),`if`(i=0,color=red,NULL)],
            [i+t,j+t,sprintf("%.1f",y4),`if`(i=0,color=red,NULL)]
          end do)
      end do],rotation=Pi/2,align={above,right}),
    plots:-textplot([
       for i from -2 to 2 by 2/3 do
         (for j from -2 to 2 by 2/3 do
            x1 := arclen( proj(x,j-t), x=-2-t..i-t );
            x2 := arclen( proj(x,j+t), x=-2-t..i+t );
            x3 := arclen( proj(x,j+t), x=-2-t..i-t );
            x4 := arclen( proj(x,j-t), x=-2-t..i+t );
            [i-t,j-t,sprintf("%.1f",x1),`if`(i=0,color=red,NULL)],
            [i+t,j+t,sprintf("%.1f",x2),`if`(i=0,color=red,NULL)],
            [i-t,j+t,sprintf("%.1f",x3),`if`(i=0,color=red,NULL)],
            [i+t,j-t,sprintf("%.1f",x4),`if`(i=0,color=red,NULL)]
          end do)
      end do],align={below,right})
], axes=none,size=[1000,1000]);

Some quick measurements to see if the sizing will work

>	arclen( proj(x,-2-t), x=-2-t..-2+t ); #thinnest wall

(6.1)

>	arclen( proj(x,-t), x=-t..t ); #thickest wall

(6.2)

Alternate Layout

This visualizes the lines as strips, showing the thickness at the middle of the crossing point. Ultimately the grid above was more helpful for layout, but this better shows the proportions, and may be helpful visualizing the grid above, which is not to scale.

P := Array(1..0):
anno := Array(1..0):
for i from -2 to 2 by 2/3 do
  line1 := Array(1..0): line2 := Array(1..0):
  for j from -2 to 2 by 2/3 do
     len1 := arclen( proj(x,i-t), x=-2-t..j );
     len2 := arclen( proj(x,i+t), x=-2-t..j );

     w := arclen( proj(x,j), x=i-t..i+t );
#     printf("[%f,%f,%f] ",len1,len2,w);

     k := 10*(i+3):
     line1 ,= [len1, k+w/2];
     line2 ,= [len2, k-w/2];
     anno ,= [len1,k,sprintf("%0.2f",w)];
     P ,= plot([line1[-1],line2[-1]],color=yellow);
     anno ,= [len1,k+w/2,sprintf("%0.2f",len1),align=[above,right]];
     anno ,= [len2,k-w/2,sprintf("%0.2f",len2),align=[below,right]];
  end do:
  P ,= plot(convert(line1,list),color=blue):
  P ,= plot(convert(line2,list),color=green)
end do:
P ,= plots:-textplot(convert(anno,list)):
plots[display]( convert(P,list), size=[1000,800], axes=none );
