A more honest and specific version of lemma 3.

CONGRUENT_FUNCTIONS_OF_THE_FRACTIONAL_PART_OVER_Q_LEMMA_4.mw

Maple Worksheet - Error

Failed to load the worksheet /maplenet/convert/CONGRUENT_FUNCTIONS_OF_THE_FRACTIONAL_PART_OVER_Q_LEMMA_4.mw .

Download CONGRUENT_FUNCTIONS_OF_THE_FRACTIONAL_PART_OVER_Q_LEMMA_4.mw

This post is about the relationship between the number of processors used in parallel processing with the Threads package and the resultant real times and cpu times for a computation.

In the worksheet below, I perform the same computation using each possible number of processors on my machine, one thru eight. The computation is adding a list of 32 million pre-selected random integers. The real times and cpu times are collected from each run, and these are analyzed with a variety of metrics that I devised. Note that garbage-collection (gc) time is not an issue in the timings; as you can see below, the gc times are zero throughout.

My conclusion is that there are severely diminishing returns as the number of processors increases. There is a major benefit in going from one processor to two; there is a not-as-great-but-still-substantial benefit in going from two processors to four. But the real-time reduction in going from four processors to eight is very small compared to the substantial increase in resource consumption.

Please discuss the relevance of my six metrics, the soundness of my test technique, and how the presentation could be better. If you have a computer capable of running more than eight threads, please modify and run my worksheet on it.

Download Threads_dim_ret.mw

In a recent conversation I explained whyLSODE was giving wrong results (http://www.mapleprimes.com/questions/210948-Can-We-Trust-Maple#comment230167). After a lot of confusions and weird infinite loops for answers, it turned out that Newton Raphson was not properly done.

Both LSODE and MEBDFI are currently incompletely implemented (only one iteration is done instead of Newton Raphson till convergence). Maplesoft should update the help files accordingly.

The post below explains how better results are obtained with method = mgear. To run the command mgear you will need Maple 6 or earlier versions. For lsode, any current version is fine.  Unfortunately Maple deprecated an algorithm that worked fine. From Maple 8, the algorithm moved to Rosenbrock methods for stiff equations. This is still not ideal.

If Maple had a working algorithm, I am hoping that Maplesoft folks would consider bringing it back in future versions. (At least with the same functionality as in Maple 6).

PLEASE NOTE, the issue is not with solving this example (Very simple). This example is chosen to show how a popular algorithm in the literature is wrongly implemented.

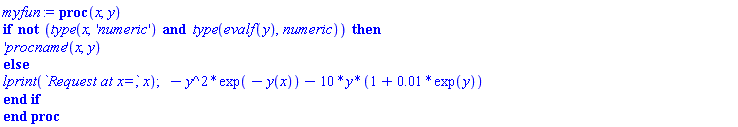

Here Maple's lsode is forced to take only one step and use first order back ward difference formula to integrate from 0 to 1.  LSODE mimics Eulerbackward using the options given below. The post shows that LSODE does not do Newton Raphson and just performs only iteration for nonlinear equations.

Download Lsodeanalysistrunc.mws

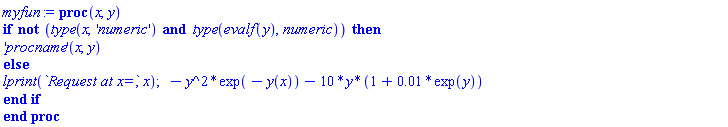

Next see how dsolve method = mgear works just fine in Maple 6 (gives the expected answer upto 3 Digits accuracy). To run this code you will need Maple 6 or earlier versions. Maple 7 has this algorithm, but I don't know to use it as it is hidden. I would like to get support from other members to get Maplesoft's attention to bring this algorithm back.

If Mdy/dt = f(y) is solved using mgear algorithm (instead of dy/dt =f ), then one can have a good DAE solver based on this (M being singular).

Download Mgearworks.mws

Run the following command in Maple:

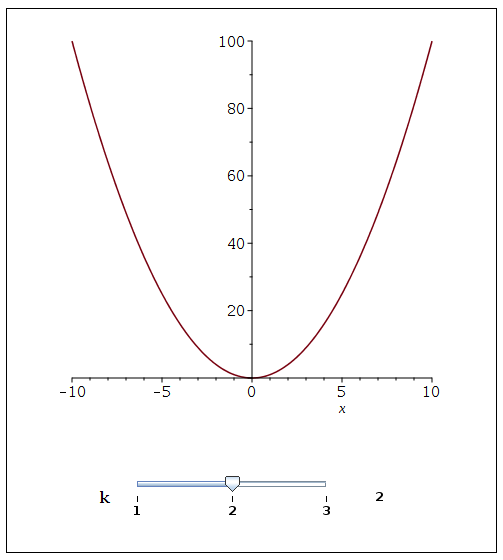

Explore(plot(x^k), k = 1 .. 3);

Once you’ve run the command, move the slider from side to side. Neat, isn’t it?

With this single line of code, you have built an interactive application that shows the graph of x to the power of various exponent powers.

The Explore command is an application builder. More specifically, the Explore command can programmatically generate interactive content in Maple worksheets.

Programmatically generated content is inserted into a Maple worksheet by executing Maple commands. For example, when you run the Explore command on an expression, it inserts a collection of input and output controllers, called Embedded Components, into your Maple worksheet. In the preceding example, the Explore command inserts a table containing:

• a Slider component, which corresponds to the value for the exponent k
• a Plot component, which shows the graph of x raised to the power for k

Together these components form an interactive application that can be used to visualize the effect of changing parameter values.

Explore can be viewed as an easy application creator that generates simple applications with input and output components. Recently added packages for programmatic content generation broaden Maple’s application authoring abilities to form a full development framework for creating customized interactive content in a Maple worksheet. The DocumentTools package contains many of these new tools. Components and Layout are two sub-packages that generate XML using function calls that represents GUI elements, such as embedded components, tables, input, or output. For example, the DocumentTools:-Components:-Plot command creates a new Plot component. These key pieces of functionality provide all of the building blocks needed to create customizable interfaces inside of the Maple worksheet. For me, this new functionality has completely altered my approach to building Maple worksheets and made it much easier to create new applications that can explore hundreds of data sets, visualize mathematical functions, and more.

I would go so far as to say that the ability to programmatically generate content is one of the most important new sources of functionality over the past few years, and is something that has the potential to significantly alter the way in which we all use Maple. Programmatic content generation allows you to create applications with hundreds of interactive components in a very short period of time when compared to building them manually using embedded components. As an illustration of this, I will show you how I easily created a table with over 180 embedded components—and the logic to control them.

Building an interface for exploring data sets:

In my previous blog post on working with data sets in Maple, I demonstrated a simple customized interface for exploring country data sets. That post only hinted at the much bigger story of how the Maple programming language was used to author the application. What follows is the method that I used, and a couple of lessons that I learned along the way.

When I started building an application to explore the country data sets, I began with an approach that I had used to build several MathApps in the past. I started with a blank Maple worksheet and manually added embedded components for controlling input and output. This included checkbox components for each of the world’s countries, drop down boxes for available data sets, and a couple of control buttons for retrieving data to complete my application.

This manual, piece-by-piece method seemed like the most direct approach, but building my application by hand proved time-consuming, given that I needed to create 180 checkboxes to house all available countries with data. What I really needed was a quicker, more scriptable way to build my interface.

So jumping right into it, you can view the code that I wrote to create the country data application here:PECCode.txt

Note that you can download a copy of the associated Maple worksheet at the bottom of this page.

I won’t go into too much detail on how to write this code, but the first thing to note is the length of the code; in fewer than 70 lines, this code generates an interface with all of the required underlying code to drive interaction for 180+ checkboxes, 2 buttons and a plot. In fact, if you open up the application, you’ll see that every check box has several lines of code behind it. If you tried to do this by hand, the amount of effort would be multiplied several times over.

This is really the key benefit to the world of programmatic content generation. You can easily build and rebuild any kind of interactive application that you need using the Maple programming language. The possibilities are endless.

Some tips and tricks:

There are a few pitfalls to be aware of when you learn to create content with Maple code. One of the first lessons I learned was that it is always important to consider embedded component name collision and name resolution.

For those that have experimented with embedded components, you may have noticed that Maple’s GUI gives unique names to components that are copied (or added) in a Maple worksheet. For example, the first TextArea component that you add to a worksheet usually has the default name TextArea0. If you next add another TextArea, this new TextArea gets the name TextArea1, so as to not collide with the first component. Similar behaviour can be observed with any other component and even within some component properties such as ‘group’ name.

Many of the options for commands in the DocumentTools sub-packages can have “action code”, or code that is run when the component is interacted with. When building action code for a generated component, the action code is specified using a long string that encapsulates all of the code. Due to this code being provided as a long string, one trick that I quickly picked up is that it is important to separate out the names for any components into sub-strings inside of a longer cat statement.

For example, here is a line that is contained within a longer cat statement in the preceding code:

cat( "DocumentTools:-SetProperty( \"", "ComboBox_0", "\", 'value', \"Internet Users\" );\n" )

It is necessary to enclose “ComboBox_0” in quotes, as well as to add in escaped quotes in order to have the resulting action code look like (also note the added new line at the end):

“DocumentTools:-SetProperty( “ComboBox_0”, ‘value’, “Internet Users” );”

Doing so ensures that when the components are created, the names are not hard-coded to always just look for a given name. This means that the GUI can scrape through the code and update any newly generated components with a new name when needed. This is important if “ComboBox_0” already exists so that the GUI can instead create “ComboBox_1”.

Another challenge for coding applications is adding a component state. One of the most common problems encountered with running any interactive content in Maple is that if state is not persistent, errors can occur when, for example, a play button is clicked but the required procedures have not been run. This is a very challenging problem, which often require solutions like the use of auto-executing start-up code or more involved component programming. Some features in Maple 2016 have started working to address this, but state is still something that usually needs to be considered on an application by application basis.

In my example, I needed to save the state of a table containing country names so that the interface retains the information for check box state (checked or unchecked) after restart. That is, if I saved the application with two countries selected, I wanted to ensure that when I opened the file again those same two countries would still be selected, both in the interface as well as in the table that is used to generate the plot. Now accomplishing this was a more interesting task: my hack was to insert a DataTable component, which stored my table as an entry of a 1x1 Matrix rtable. Since the rtable that underlies a DataTable is loaded into memory on Maple load, this gave me a way to ensure that the checked country table was loaded on open.

Here, for example, is the initial creation of this table:

"if not eval( :-_SelectedCountries )::Matrix then\n",

"    :-_SelectedCountries := Matrix(1,1,[table([])]):\n",

"end if;\n",

For more details, just look for the term: “:-_SelectedCountries” in the preceding code.

I could easily devote separate posts to discussing in detail each of these two quick tips. Similarly, there’s much more that can be discussed with respect to authoring an interface using programmatic tools from the DocumentTools packages, but I found the best way to learn more about a command is to try it out yourself. Once you do, you’ll find that there are an endless number of combinations for the kinds of interfaces that can be quickly built using programmatic content generation. Several commands in Maple have already started down the path of inserting customized content for their output (see DataSets:-InsertSearchBox and AudioTools:-Preview as a couple of examples) and I can only see this trend growing.

Finally, I would like to say that getting started with programmatic content generation was intimidating at first, but with a little bit of experimentation, it was a rewarding experience that has changed the way in which I work in Maple. In many cases, I now view output as something that can be customized for any command. More often than not, I turn to commands like ‘Explore’ to create an interface to see how sweeping through parameters effects my results, and any time I want to perform a more complex analysis or visualization for my data, I write code to create interfaces that can more easily be customized and re-used for other applications.

If you are interested in learning more about this topic, some good examples to get started with are the examples page for programmatic content generation as well as the help pages for the DocumentTools:-Components and DocumentTools:-Layout sub-packages.

To download a copy of the worksheet used in this post, click here (note that the code can be found in the start-up code of this worksheet): CountryDataPEC.mw To create the datasets interface, simply run the CountrySelection(); command.

        General description of the method of solving underdetermined systems of equations. As a particular application of the idea proposed a universal method  kinematic analysis for all kinds of  spatial and planar link mechanisms with any number degrees of freedom.  The method can be used for powerful CAD linkages.
         http://www.maplesoft.com/applications/view.aspx?SID=154228



      Some examples of a much larger number calculated by the proposed method. Examples gathered here not to look for them on the forum and opportunity to demonstrate the method.  Among the examples, I think, there are very complicated.

https://vk.com/doc242471809_408704758
https://vk.com/doc242471809_408704572
https://vk.com/doc242471809_376439263
https://vk.com/doc242471809_402619761
https://vk.com/doc242471809_402610228
https://vk.com/doc242471809_401188803
https://vk.com/doc242471809_400465891
https://vk.com/doc242471809_400711315
https://vk.com/doc242471809_387358164
https://vk.com/doc242471809_380837279
https://vk.com/doc242471809_379935473
https://vk.com/doc242471809_380217387
https://vk.com/doc242471809_363266817
https://vk.com/doc242471809_353980472
https://vk.com/doc242471809_375452868
https://vk.com/doc242471809_353988163
https://vk.com/doc242471809_353986884
https://vk.com/doc242471809_353987119
https://vk.com/doc242471809_324249241
https://vk.com/doc242471809_324102889
https://vk.com/doc242471809_322219275
https://vk.com/doc242471809_437298137
https://vk.com/doc242471809_437308238
https://vk.com/doc242471809_437308241
https://vk.com/doc242471809_437308243
https://vk.com/doc242471809_437308245
https://vk.com/doc242471809_437308246
https://vk.com/doc242471809_437401651
https://vk.com/doc242471809_437664558

Aggregate statistics are calculated by splitting the rows of a DataFrame by each factor in a given column into subsets and computing summary statistics for each of these subsets.

The following is a short example of how the Aggregate command is used to compute aggregate statistics for a DataFrame with housing data:

To begin, we construct a DataFrame with housing data: The first column has number of bedrooms, the second has the area in square feet, the third has price.


bedrooms := <3, 4, 2, 4, 3, 2, 2, 3, 4, 4, 2, 4, 4, 3, 3>:
area := <1130, 1123, 1049, 1527, 907, 580, 878, 1075,
         1040, 1295, 1100, 995, 908, 853, 856>:
price := <114700, 125200, 81600, 127400, 88500, 59500, 96500, 113300,
          104400, 136600, 80100, 128000, 115700, 94700, 89400>:
HouseSalesData := DataFrame([bedrooms, area, price], columns = [Bedrooms, Area, Price]);

Note that the Bedrooms column has three distinct levels: 2, 3, and 4.

convert(HouseSalesData[Bedrooms], set);

The following returns the mean of all other columns for each distinct level in the column, Bedrooms:

Aggregate(HouseSalesData, Bedrooms);

Adding the columns option controls which columns are returned.

Aggregate(HouseSalesData, Bedrooms, columns = [Price])

Additionally, the tally option returns a tally for each of the levels.

Aggregate(HouseSalesData, Bedrooms, tally)

The function option allows for the specification of any command that can be applied to a DataSeries. For example, the Statistics:-Median command computes the median for each of the levels of Bedrooms.

Aggregate(HouseSalesData, Bedrooms, function = Statistics:-Median);

By default, Aggregate uses the SplitByColumn command to creates a separate sub-DataFrame for every discrete level in the column given by bycolumn.

with(Statistics);

ByRooms := SplitByColumn(HouseSalesData, Bedrooms);

We can create box plots of the price for subgroups of sales defined by number of bedrooms.

BoxPlot( map( (m)->m[Price], ByRooms),
             deciles=false,
             datasetlabels=["2 bdrms", "3 bdrms", "4 bdrms"],
             color=["Red", "Purple", "Blue"]);

I have recorded a short video that walks through this example here:

The worksheet for this example can be downloaded here: Aggregate.mw

We have just released a new version of the Multivariate Calculus Study Guide.  It provides a new section on Vector Calculus, with over 100 additional worked problems, and makes extensive use of Maple’s Clickable Math tools as well as commands.

Existing study guide customers can get the new content via a free update, available through the Check for Updates system or from our website. See Multivariate Calculus Study Guide 2016 Update for details.

For more information about this guide, including a full table of contents, visit Multivariate Calculus Study Guide.

eithne

A few people have asked me how I created the sections in the Maple application in this video: https://youtu.be/voohdmfTRn0?t=572

Here's the worksheet (Maple 2016 only). As you can see, the “sections” look different what you would normally expect (I often like to experiment with small changes in presentation!)

These aren't, however, sections in the traditional Maple sense; they're a demonstration of Maple 2016's new tools for programmatically changing the properties of a table (including the visibility of its rows and columns). @dskoog gets the credit for showing me the technique.

Each "section" consists of a table with two rows.

• The table has a name, specified in its properties.
• The first row (colored blue) contains (1) a toggle button and (2) the title of each section (with the text in white)
• The second row (colored white) is visible or invisible based upon the state of the toggle button, and contains the content of my section.

Each toggle button has

• a name, specified in its properties
• + and - images associated with its on and off states (with the image background color matching the color of the first table row)
• Click action code that enables or disables the visibility of the second row

The Click action code for the toggle button in the "Pure Fluid Properties" section is, for example,

As I said at the start, I often try to make worksheets look different to the out-of-the-box defaults. Programmatic table properties have simply given me one more option to play about with.

Disclaimer: This blog post has been contributed by Prof. Nicola Wilkin, Head of Teaching Innovation (Science), College of Engineering and Physical Sciences and Jonathan Watkins from the University of Birmingham Maple T.A. user group*.

Written for Maple T.A. 2016. For Maple T.A. 10 users, this question can be written using the queston designer.

This is the second of three blog posts about working with data sets in Maple.

In my previous post, I discussed how to use Maple to access a large number of data sets from Quandl, an online data aggregator. In this post, I’ll focus on exploring built-in data sets in Maple.

Data is being generated at an ever increasing rate. New data is generated every minute, adding to an expanding network of online information. Navigating through this information can be daunting. Simply preparing a tabular data set that collects information from several sources is often a difficult and time consuming effort. For example, even though the example in my previous post only required a couple of lines of Maple code to merge 540 different data sets from various sources, the effort to manually search for and select sources for data took significantly more time.

In an attempt to make the process of finding data easier, Maple’s built-in country data set collects information on country-specific variables including financial and economic data, as well as information on country codes, population, area, and more.

The built-in database for Country data can be accessed programmatically by creating a new DataSets Reference:

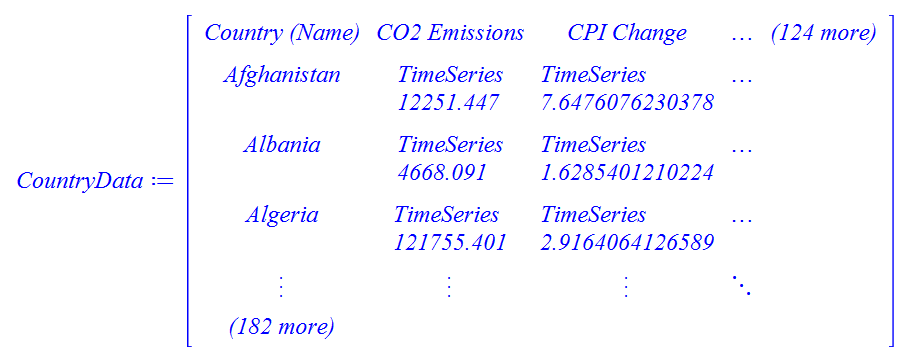

CountryData := DataSets:-Reference( "builtin", "country" );

This returns a Reference object, which can be further interrogated. There are several commands that are applicable to a DataSets Reference, including the following exports for the Reference object:

exports( CountryData, static );

The list of available countries in this data set is given using the following:

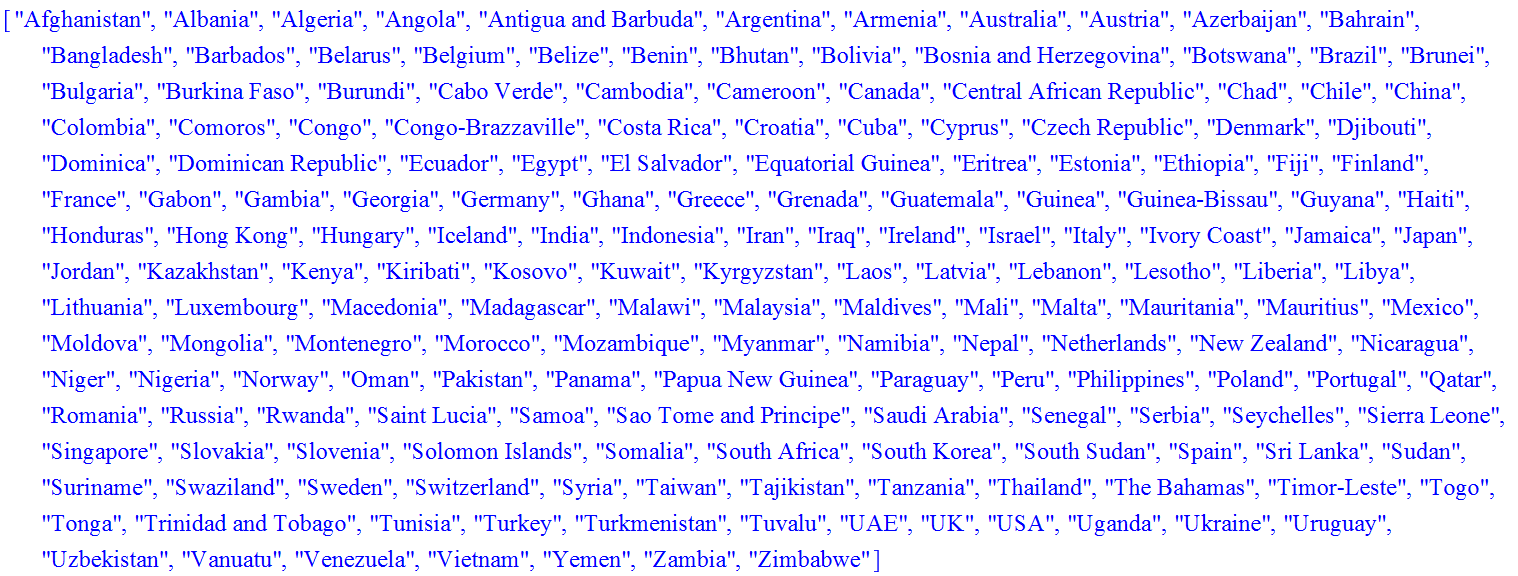

GetElementNames( CountryData );

The available data for each of these countries can be found using:

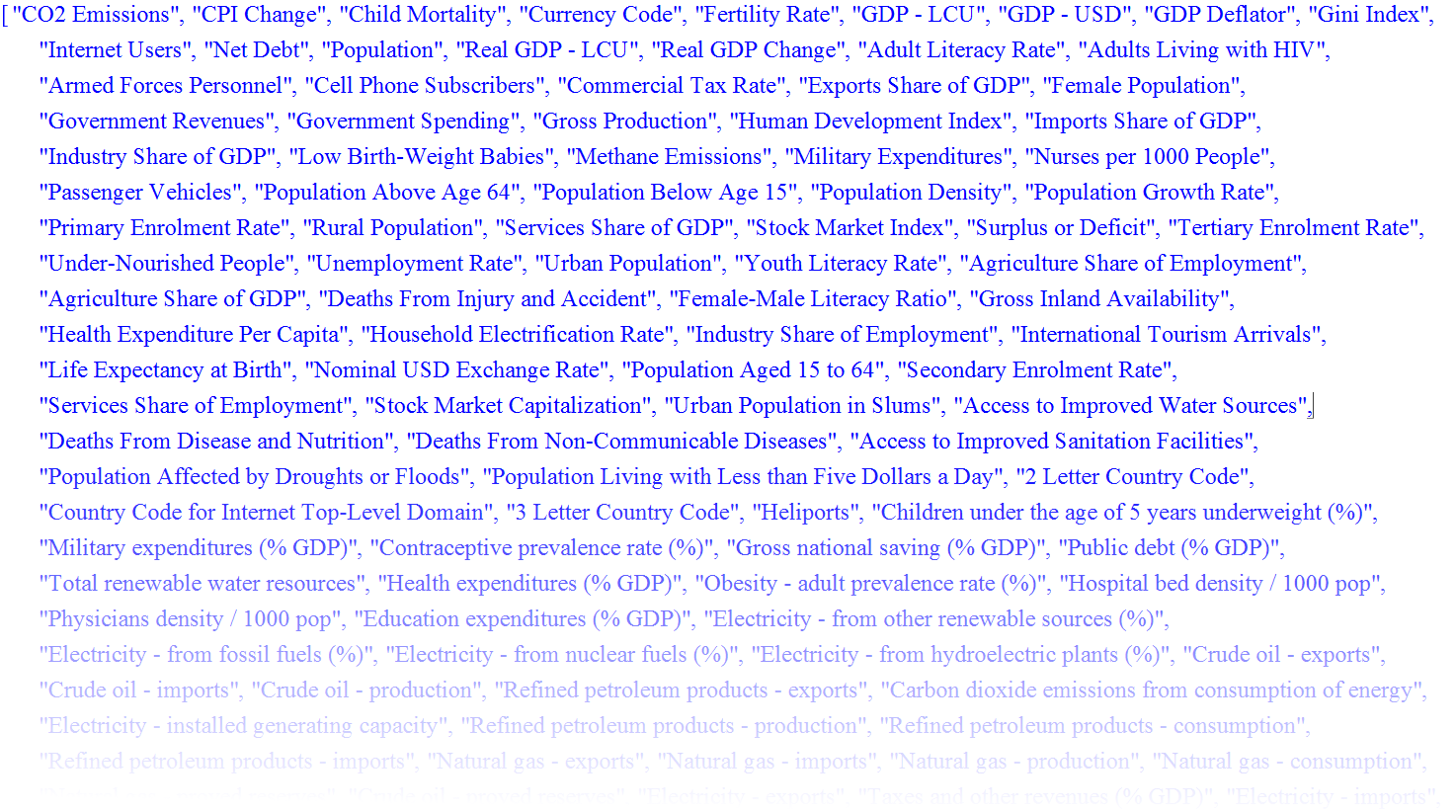

GetHeaders( CountryData );

There are many different data sets available for country data, 126 different variables to be exact. Similar to Maple’s DataFrame, the columns of information in the built-in data set can be accessed used the labelled name.

For example, the three-letter country codes for each country can be returned using:

CountryData[.., "3 Letter Country Code"];

The three-letter country code for Denmark is:

CountryData["Denmark", "3 Letter Country Code"];

Built-in data can also be queried in a similar manner to DataFrames. For example, to return the countries with a population density less than 3%:

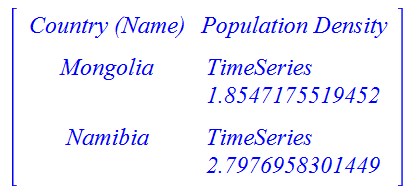

pop_density := CountryData[ .., "Population Density" ]:

pop_density[ `Population Density` < 3 ];

At this time, Maple’s built-in country data collection contains 126 data sets for 185 countries. When I built the example from my first post, I knew exactly the data sets that I wanted to use and I built a script to collect these into a larger data container. Attempting a similar task using Maple’s built-in data left me with the difficult decision of choosing which data sets to use in my next example.

So rather than choose between these available options, I built a user interface that lets you quickly browse through all of Maple’s collection of built-in data.

Using a couple of tricks that I found in the pages for Programmatic Content Generation, I built the interface pictured above. (I’ll give more details on the method that I used to construct the interface in my next post.)

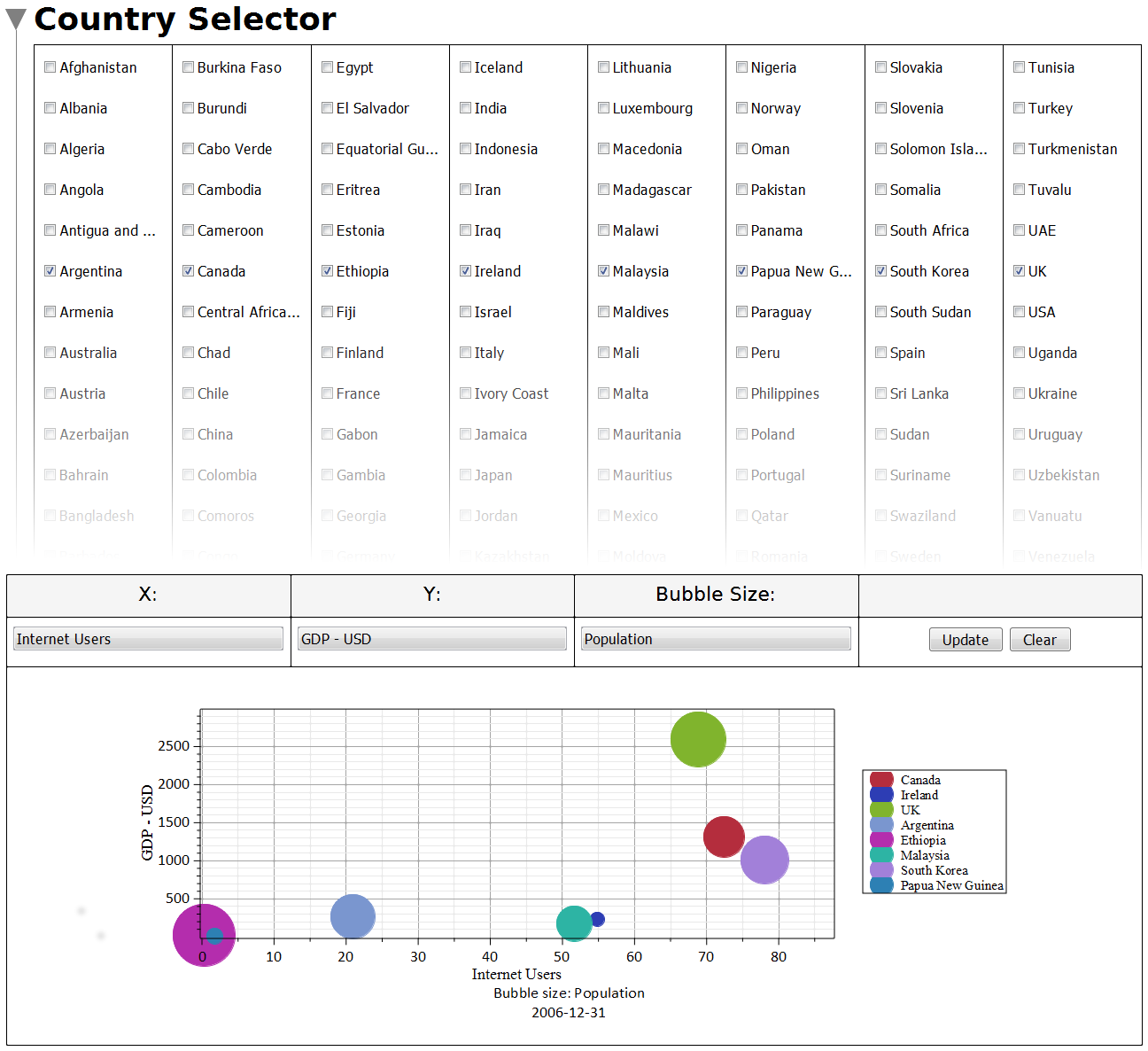

This interface allows you to select from a list of countries, and visualize up to three variables of the country data with a BubblePlot. Using the preassigned defaults, you can select several countries and then visualize how their overall number of internet users has changed along with their gross domestic product. The BubblePlot visualization also adds a third dimension of information by adjusting the bubble size according to the relative population compared with the other selected countries.

Now you may notice that the list of available data sets is longer than the list of available options in each of the selection boxes. In order to be able to generate BubblePlot animations, I made an arbitrary choice to filter out any of the built-in data sets that were not of type TimeSeries. This is something that could easily be changed in the code. The choice of a BubblePlot could also be updated to be any other type of Statistical visualization with some additional modifications.

You can download a copy of this application here: VisualizingCountryDataSets.mw

You can also interact with it via the MapleCloud: http://maplecloud.maplesoft.com/application.jsp?appId=5743882790764544

I’ll be following up this post with an in-depth post on how I authored the country selector interface using programmatic content generation.

     Example of the equidistant surface at a distance of 0.25 to the surface
x3-0.1 * (sin (4 * x1) + sin (3 * x2 + x3) + sin (2 * x2)) = 0
Constructed on the basis of universal parameterization of surfaces.

equidistant_surface.mw

This is the first of three blog posts about working with data sets in Maple.

In 2013, I wrote a library for Maple that used the HTTP package to access the Quandl data API and import data sets into Maple. I was motivated by the fact that, when I was downloading data, I often used multiple data sources, manually updated data when updates were available, and cleaned or manipulated the data into a standardized form (which left me spending too much time on the data acquisition step).

Simply put, I needed a source for data that would provide me with a searchable, stable data API, which would also return data in a form that did not require too much post-processing.

My initial library had really just scratched the surface of what was possible.

Maple 2015 introduced the new DataSets package, which fully integrated a data set search into core library routines and made its functionality more discoverable through availability in Maple’s search bar.

Accessing online data suddenly became much easier. From within Maple, I could now search through over 12 million time series data sets provided by Quandl, and then automatically import the data into a format that I could readily work with.

If you’re not already aware of this online service, Quandl is an online data aggregator that delivers a wide variety of high quality financial and economic data. This includes the latest data on stocks and commodities, exchange rates, and macroeconomic indicators such as population, inflation, unemployment, and so on. Quandl collects both open and proprietary data sets from many sources, such as the US Federal Reserve System, OECD, Eurostat, The World Bank, and Open Data for Africa. Best of all, Quandl's powerful API is free to use.

One of the first examples for the DataSets package that I constructed was in part based on the inspirational work of Hans Rosling. I was drawn in by his ability to use statistical visualizations to break down complex multidimensional data sets and provide insight into underlying patterns; a key example investigating the correlation between rising incomes and life expectancy.

As well as online data, the DataSets package had a database for country data. Hence it seemed fitting to add an example that explored macroeconomic indicators for several countries. Accordingly, I set out to create an example that visualized variables such as Gross Domestic Product, Life Expectancy, and Population for a collection of countries.

I’ll now describe how I constructed this application.

The three key variables are Gross Domestic Product at Power Purchasing Parity, Life Expectancy, and Population. Having browsed through Quandl’s website for available data sets, the World Bank and Open Data for Africa projects seemingly had the most available relevant data; therefore I chose these as my data sources.

Pulling data for a single country from one of these sources was pretty straight forward. For example, the DataSets Reference for the Open Data for Africa data set on GDP at PPP for Canada is:

DataSets:-Reference("quandl", "ODA/CAN_PPPPC"));

In this command, the second argument is the Quandl data set code. If you are on Quandl’s website, this is listed near the top of the data set page as well as in the last few characters of the web address itself: https://www.quandl.com/data/ODA/CAN_PPPPC . Deconstructing the code, “ODA” stands for Open Data for Africa and the rest of the string is constructed from the three letter country code for Canada, “CAN”, and the code for the GDP and PPP. Looking at a small sample of other data set codes, I theorized that both of the data sources used a standardized data set name that included the ISO-3166 3-letter country code for available data sets. Based on this theory, I created a simple script to query for available data and discovered that there was data available for many countries using this standardized code. However, not every country had available data, so I needed to filter my list somewhat in order to pick only those countries for which information was available.

The script that I had constructed required three letter country codes. In order to test all available countries, I created a table to house the country names and three-letter country codes using data from the built-in database for countries:

ccdata := DataSets:-Builtin:-Reference("country")[.., "3 Letter Country Code"];

cctable := table([seq(op(GetElementNames(ccdata[i])) = ccdata[i, "3 Letter Country Code"],
                                i = 1 .. CountRows(ccdata))]):

My script filtered this table, returning a subset of the original table, something like:

Countries := table( [“Canada” = “CAN”, “Sweden” = “SWE”, … ] );

You can see the filtered country list in the code edit region of the application below.

With this shorter list of countries, I was now ready to download some data. I created three vectors to hold the data sets by mapping in the DataSets Reference onto the “standardized” data set names that I pulled from Quandl. Here’s the first vector for the data on GDP at PPP.

V1 := Vector( [ (x) -> Reference("quandl", cat("ODA/", x, "_PPPPC"))

                   ~([entries(Countries, nolist, indexorder)])]):

#Open Data for Africa GDP at PPP

Having created three data vectors consisting of 180 x 3 = 540 data sets, I was finally ready to visualize the large set of data that I had amassed.

In Maple’s Statistics package, BubblePlots can use the horizontal axis, vertical axis and the relative bubble size to illustrate multidimensional information. Moreover, if incoming data is stored as a TimeSeries object, BubblePlots can generate animations over a common period of time.

Putting all of this together generated the following animation for 180 available countries.

This example will be included with the next version of Maple, but for now, you can download a copy here:DataSetsBubblePlot.mw

*Note: if you try this application at home, it will download 540 data sets. This operation plus the additional BubblePlot construction can take some time, so if you just want to see the finished product, you can simply interact with the animation in the Maple worksheet using the animation toolbar.

A more advanced example that uses multiple threads for data download can be seen at the bottom of the following page: https://www.maplesoft.com/products/maple/new_features/maple19/datasets_maple2015.pdf You can also interact with this example in Maple by searching for: ?updates,Maple2015,DataSets

In my next post, I’ll discuss how I used programmatic content generation to construct an interactive application for data retrieval.

Below is the worksheet with the whole material presented yesterday in the webinar, “Applying the power of computer algebra to theoretical physics”, broadcasted by the “Institute of Physics” (IOP, England). The material was very well received, rated 4.5 out of 5 (around 30 voters among the more than 300 attendants), and generated a lot of feedback. The webinar was recorded so that it is possible to watch it (for free, of course, click the link above, it will ask you for registration, though, that’s how IOP works).

Anyway, you can reproduce the presentation with the worksheet below (mw file linked at the end, or the corresponding pdf also linked with all the input lines executed). As usual, to reproduce the input/output you need to have installed the latest version of Physics, available in the Maplesoft R&D Physics webpage.

Physics_2016_IOP_webinar.mw     Physics_2016_IOP_webinar.pdf

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Maple 2016.1a now available, fixes issues reported here http://www.mapleprimes.com/questions/211561-Why-Does-Maple-20161-Improperly-Treat-X2

Thank you Maplesoft for your quick response to this issue.

An update to Maple 2016 is now available. Maple 2016.1 provides:

• Updated translations for Simplified and Traditional Chinese,  French, Greek, Japanese, Brazilian Portuguese, and Spanish
• Updates to the new Maple Workbook
• Enhancements to Maple’s context-sensitive menus
• A variety of improvements to the math engine and interface

To get this update, use Tools>Check for Updates from within Maple, or visit the Maple 2016.1 downloads page.

eithne
