## How to express a chemistry equation in prefix expr...

How to express a chemistry equation in prefix expression

## Conversion of this mathematica expression to Maple...

I am not unfamiliar with the Wolfram syntax but also not very good with it, and there is a particular element in a Mathematica code I have been given which I do not entirely understand how to efficiently write in Maple. The basic idea is to read in a list of expressions from an external file (LIST) and process the non zero elements and assign them to a function (COEF) which can be called later on. Here is the Mathematica exert:

```k = 0;
i = 0;
a = b = \[Theta];
Do[k = k + 1; KK = LIST[[k]];
If[KK =!= 0, i = i + 1; ff = Factor[KK];
COEF[x,y, z, l_, m_, n_] = ff], {z, -2,
2}, {y, -2, 2}, {x, -2, 2}];

```

The LIST has the following form and only contains l, m and n and another factor E which is left undefined for now. It does not contain x, y or z. The LIST can contain any number of terms depending on the problem. Here is an example:

`LIST={0, 0, 0, 0, 0, 0, 0, a^2 b m (-1 + n) n (a^2 + b^2 - 2 E), ... ,0,0, a^3 n(l+1+m) ... }`

So the Do loop cycles through the LIST and extracts out the non zero terms. What I am unsure about is how it is looping over x,y and z when they do not appear in the LIST at all. I assume it is attaching a x,y,z combination to each COEF and they can be called like this:

```COEF[0,1,1,0,2,3]
```

For the instance of when x=0, y=1, z=1, l=0, m=2 n=3. Is this correct? What would be the best way to replicate this in Maple?

- Yeti

## Plotting the movement of 4 planets...

Greetings,

currently im working on a project in which i basically have to calcuate and plot a little solar system, using newton mechanic. The work is done, but as it appears, the solution simply cannot be true. In the given example you can see that the planets move in more or less straight lines. I presume that the error is somewhere in the solution of the system of differential equations, but i can't see where it is.

I am grateful for every advice.

PlanetenSpacecurve.mw

## How to convert a system of differential equations ...

How to convert a system of differential equations to a matrix?

can infolevel show this matrix during the process?

## Blind users of maple18, maple2015...

I am looking for persons with experience in setting up maple for the blind. The setting is a 21-year old blind
student who wants to do math. He uses Mac OS/X and the built-in VoiceOver screen reader, plus refreshable Braille display (one-line), a Braille printer, and Nemeth, the Braille extension for math symbols.

Initially, we are working from no experience whatsoever, trying ideas, mostly failure. Getting some advice from persons who are blind and using maple would be wonderful. If anyone knows of an instance, a person who is blind and regularly uses maple, then we would both would be delighted to receive advice on what to install, how to set it up, and how to use maple on a daily basis.

One trouble for the VoiceOver screen reader is verbosity of maple output. Any methods to reduce the amount of output would be welcome. To uderstand the issue, look at the output of these two commands when interface(prettyprint=0) has been set to help out the VoiceOver screen reader:

matrix([[1,2],6,7]]); Matrix([[1,2],[6,7]]);

The first outputs the same text, which VoiceOver will read accurately. The second dumps out two lines of extraneous and confusing information, only 20% of which is useful. The verbosity is not restricted to matrix packages linalg or LinearAlgebra. It is a problem wtih nearly all packages.

-Grant Gustafson, Salt Lake City, Univ of Utah Math Dept

## Problem to solve differential equations and plot t...

Dear friends:

I am facing two problems

1. one is to get solution of the below system of ODE for L=100 (highlited as red) and

2. the other is I want the graph in the form of solid line not poit, asterisk etc.

restart; epsilon := .1; Pr := 1; beta := .1; Sc := 1; S := 1; L := 20;
for i from -L while i <= L do;
a[i] := 1.0*i/L;
end do;
for i2 from -L while i2 <= L do;

fw := a[i2];

Eq1[i2] := eval(diff(F(eta), eta, eta, eta)+F(eta)*(diff(F(eta), eta, eta))-(diff(F(eta), eta))^2+S*(epsilon-(diff(F(eta), eta)))+epsilon^2);
Eq2[i2] := eval((diff(G(eta), eta, eta))/Pr-G(eta)*(diff(F(eta), eta))+F(eta)*(diff(G(eta), eta)));
Eq3[i2] := eval(diff(H(eta), eta, eta)+Sc*(F(eta)*(diff(H(eta), eta))-beta*H(eta)));
IC[i2] := F(0) = a[i2], (D(F))(0) = 1, (D(F))(L) = epsilon, G(0) = 1, G(L) = 0, H(0) = 1, H(L) = 0;
dsys1[i2] := {Eq1[i2], Eq2[i2], Eq3[i2], IC[i2]};
dsol1[i2] := dsolve(dsys1[i2], numeric, output = listprocedure, range = 0 .. L);
dsol1x[i2] := subs(dsol1[i2], diff(F(eta), eta, eta));
dsol1y[i2] := subs(dsol1[i2], G(eta));
dsol1z[i2] := subs(dsol1[i2], H(eta)) end do;

for j from -L while j <= L do;
g[j] := eval(-dsol1x[j](0)) end do;
with(plots);

g6 := pointplot({seq([n/L, g[n]], n = -L .. L)}, symbol = asterisk, symbolsize = 15, color = red);
display(g6);

Please see the problem and correct as soon as possible. I am waiting your positive respone.

School of Mathematical Sciences
Peking University, Beijing, China

## How to pdeplot Curl(A(x,y,z))=0 in maple...

How to pdeplot Curl(A(x,y,z))=0 in maple

it has A1(x,y,z) , A2(x,y,z) and A3(x,y,z)

## Is there a method to relate groebner bases with mo...

Is there a method to relate groebner bases with monomials ideals

## how to convert a nested for loop to iterative vers...

how to convert a nested for loop to iterative version with stack

## how to use assuming x > 0 in if condition statemen...

#my testing for wildcard to one
#after testing, it loop a very long time and not stop
ppp := [[0,0,0,x],[0,0,1,0],[0,1,0,0],[1,0,0,0]]:
check1 := [seq(0,ii=1..nops(ppp))];
ttt1 := [[0,0,0,1],[0,0,1,0],[0,1,0,0],[1,0,0,0]]:
mmmeaght1 := [seq(0,ii=1..nops(ppp[1]))]:
bbb1 := [seq(0,ii=1..nops(ppp[1]))]:
emap := [(xx) -> if [xx < 0 assuming x > 0] then 0 else 1 end if, (xx) -> evalf(1/(1+exp(xx)))]:
#trace(perceptronrule1);
MM(ppp, ttt1, mmmeaght1, bbb1, check1, emap);

when test wildcard variable for input, would like to assume x > 0 then

i try assuming x > 0 , got error

## Want to solve system of nonlinear ODEs...

Hello! Hope everyone would be fine. I want to solve the following system of ODEs please help to find the numerical solution

N := .6; alpha := .4; beta := .1; Nt := .2; Pr := .5; Nb := .1; s := .2; lambda[1] := 1; delta := .5; gm := 1; Sc := 1:L:=1:

Eq1 := (alpha*s+1)*(diff(F(eta), eta, eta, eta))-(F(eta)+(1/2)*s*eta)*(diff(F(eta), eta, eta))+((1/2)*(diff(F(eta), eta))-s)*(diff(F(eta), eta))-2*(G(eta)^2-(1-gm)^2)-2*lambda[1]*(H(eta)+N*Y(eta))-(alpha+beta-(1/4)*delta*(diff(F(eta), eta, eta, eta)))*(diff(F(eta), eta, eta))^2-(alpha-2*beta)*(diff(F(eta), eta))*(diff(F(eta), eta, eta, eta))-(2*(alpha-beta-(1/4)*delta*(diff(F(eta), eta, eta, eta))))*(diff(G(eta), eta))^2-(2*(alpha-(1/4)*delta*(diff(F(eta), eta, eta))))*G(eta)*(diff(G(eta), eta, eta)) = 0; Eq2 := (alpha*s+1)*(diff(G(eta), eta, eta))-F(eta)*(diff(G(eta), eta))+G(eta)*(diff(F(eta), eta))+s*(1-gm-G(eta)-(1/2)*eta*(diff(G(eta), eta)))-(1/2)*alpha*s*eta*(diff(G(eta), eta, eta, eta))+((3/2)*alpha+beta)*G(eta)*(diff(F(eta), eta, eta, eta))-((1/2)*alpha+beta)*(diff(F(eta), eta))*(diff(G(eta), eta, eta))-delta*((diff(F(eta), eta, eta))^2+6*(diff(G(eta), eta))^2)*(diff(G(eta), eta, eta)) = 0; Eq3 := (diff(H(eta), eta, eta))/Pr-F(eta)*(diff(H(eta), eta))+(1/2)*H(eta)*(diff(F(eta), eta))-s*(2*H(eta)+(1/2)*eta*(diff(H(eta), eta)))+Nb*(diff(H(eta), eta))*(diff(Y(eta), eta))+Nt*(diff(H(eta), eta))^2 = 0; Eq4 := (diff(Y(eta), eta, eta))/Sc-F(eta)*(diff(Y(eta), eta))+(1/2)*Y(eta)*(diff(F(eta), eta))-s*(2*Y(eta)+(1/2)*eta*(diff(Y(eta), eta)))+Nt*(diff(H(eta), eta, eta))/Nb = 0;

IC1 := F(0) = 0, (D(F))(0) = 0, G(0) = gm, H(0) = 1, Y(0) = 1; IC2 := (D(F))(L) = 0, G(L) = 1-gm, (D(G))(L) = 0, H(L) = 0, Y(L) = 0; dsys1 := {Eq1, Eq2, Eq3, Eq4, IC1, IC2}; dsol1 := dsolve(dsys1, numeric, output = listprocedure, range = 0 .. L);

dsol1f := subs(dsol1, F(eta));

dsol1g := subs(dsol1, G(eta)); dsol1h := subs(dsol1, H(eta)); dsol1y := subs(dsol1, Y(eta));

With my best regards and sincerely.

## How to print without 2 rows for power with cmaple ...

When print a formula , if variable has power, the power will print in another row

how can it print like a^2 in one row

## driver does not evaluate to a module...

Hello

Tryed to work this application, but problems encountered.

http://www.maplesoft.com/applications/view.aspx?SID=89020

and

I installed PostgreSQL, (i believe version 8.4 from 2010) which I found at "oldapps" (the current version is 9.6).

I'm running Win 7, 64 bit. Anyways, I have to change the paths below "Query the database":

driver := LoadDriver(classpath = "C://Program Files (x86)//PostgreSQL//pgJDBC//postgresql-8.4-701.jdbc4.jar");

I fail to see pgJDBC folder and a search for .jar files in the directory yields only 3 jar files, non resembling the above. tried example.jar

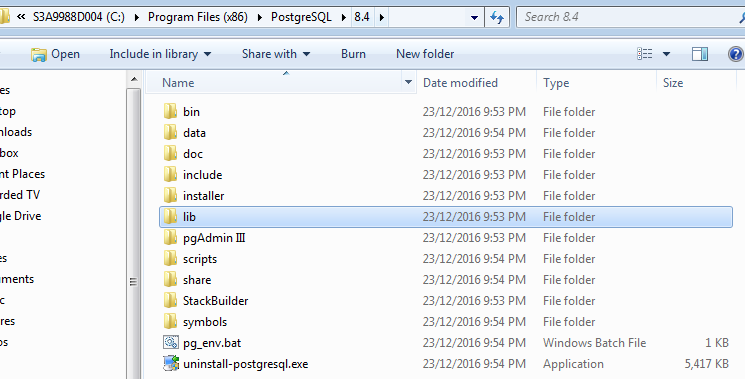

same error. heres a screenshot of my directory

## How to execute an "exported as maplet" worksheet ...

Hi everybody,

I write a worksheet which contains thesimple code provided in ?Maplets[Button] :

with(Maplets[Elements]):
maplet := Maplet(["Select one:", ......])
Maplets[Display](maplet):

As mentioned in ?MapleViewer it is possible to export a worksheet in a .maplet file (I use Windows 7) and to execute it by double clicking on the corresponding icon.
I proceeded as explained in the help page
But double clicking does not work with me : a "User Interface Customization System" window opens and shuts after a few seconds without displaying the expected maplet

(right click + open with and select mapleviewer.exe shows that mapleviewer.exe does exist, so the issue does not likely come from an incomplete Maple installation).

I tried a few variants of the worksheet, such that
with(Maplets[Elements]):
Maplets[Display](Maplet(["Select one:", ......])  ):

or even
Maplets[Display](Maplet(["Select one:", ......])  ):

TIA
