es posible obtener la función del contorno de un dominio convexhull ?

Hi, friends!

I'm not a math =) but it is interesting

How can i solve this equation like the gambler's ruin with Maple's function rsolve

f(n)=0.5*f(n-1)+0.5*f(n+1), f(0)=1, f(6)=0

rsolve({f(n)=0.5*f(n-1)+0.5*f(n+1), f(0)=1, f(6)=0}, {f});

it returns this

{f(n) = 7 f(5) - f(5) (n + 1)}

I don't understand :(

for example Wolfram Alpha return the true result

Found a strange behaviour in Mapke 2015 of the sqrt-function after loading the GRTensor package:

the square-root of a non-square integer, e.g. sqrt(5), does not terminate. 5^(1/2) instead works fine.

Can be reproduced with Maple 18, but not with Maple 11.

I consider this a serious bug, as it makes any expressions containing such roots useless.

As it worked with Maple 11 I am inclined to see it as your fault.

hi.i trust that attached equation has more answer but fsolve only gain some of them!!! how i can gain another that i know value of them?

another root  that i known, are : 0.165237712988657e-1    and     .103583272213766    and    .290071279318035

thanks

root.mw

hi .how i can calculate eigenvector associated with the eigenvalue of the matrix.for example according attached file below

what are  eigenvector associated with the eigenvalue of matrix q which  determined as (2646.408147, 3142.030259, 6621.757707) respectively??

thanks...

eign.mw

hi.after calculate Determinant of matrix  and gain value omega'' ω'' by fsolve rule ,when substuting result (ω) in matrix (q) and calculate Determinant again, this value is not zero!!!! may i use LUDecomposition?determinan.mw

Should restart always be in separate execution group? I noticed when I write something like

>restart;
  foo:=proc()
  local sys;
  with(DynamicSystems):
  sys := TransferFunction(25/(s^2+4*s+25)):
  print(ResponsePlot(sys, Step(),duration=4));
end proc;
>

then type foo(); in the next execution group, it does not work. The plot is not generated. No matter how many times I evaluate the execution group. The proc() does not seem to be fully defined. But if I do this:

>restart;  #hit return
>foo:=proc()
  local sys;
  with(DynamicSystems):
  sys := TransferFunction(25/(s^2+4*s+25)):
  print(ResponsePlot(sys, Step(),duration=4));
end proc;
>#hit another return

and now calling foo(); then it works, and the proc() returns the plot. Only difference is that restart was in separate group. But also I had to call foo() once, then evaluate the execution group where foo() is defined two times ! for it to work (why two times?) why one time did not work? is it becuase I am loading package inside the proc()?

What are the rules for putting the restart() call? Should it always be in separate group? I put it in the same group, so that I do not have to hit return 2 times, being a lazy person. But it seems to cause problem sometimes.

And related question, why did I have to hit return 2 times in the execution group to have proc() work in the second case above?

I have a system of equations in several variables and I just need one numerical solution of it, I tryed to use fsolve of Maple but it always show me some errors or gives back the command as the output.

aaghulu := {-6-4*y-x-(1+y)*x+sqrt((4*(1+y))*(2+x)*(4+2*y+x)+(-(1+y)*x+2+x)^2), (2*(4+2*y+x))*(1+y)-(1+y)*x+2+x+sqrt((4*(1+y))*(2+x)*(4+2*y+x)+(-(1+y)*x+2+x)^2)-(2+y)*(-(1+y)*x+2+x+sqrt((4*(1+y))*(2+x)*(4+2*y+x)+(-(1+y)*x+2+x)^2))};

fsolve(aaghulu, {x, y}, maxsols = 1);

I will be happy if someone guide me how to do these kinds of things using Maple.

This is a stripped down example of something I've been doing. Basically I'm building matrices which I then, using unapply, convert into functions of some variables of t.
.... but found that simplify seems to often not work as i'd wish.


restart:
mm:=Matrix([[cos(sqrt(g__1^2)*t), (-I*g__1*sin(sqrt(g__1^2)*t))*(1/sqrt(g__1^2))], [(-I*g__1*sin(sqrt(g__1^2)*t))*(1/sqrt(g__1^2)) ,cos(sqrt(g__1^2)*t)]]);

#great - simplifies as i'd expect:
simplify(mm) assuming g__1::positive;

Do the same thing but when matrix is a function of t
mmFun:=unapply(mm, t);

#the function works - gives what i'd expect
mmFun(3); mmFun(t);

#but now the simplification does not work - why the g__1 in the argument of cos does not get properly simplified?
simplify(mmFun(t)) assuming g__1::positive;

Any ideas if this is a bug? I'm using maple 2015.2 on linux 64-bit.

here is the worksheet: simplify_issue.mw

thanks

EDIT:

as a side note once can sometimes overcome this with mapping simplify  as in :

map(simplify, resultMatrix ) assuming g__1::positive;

but this is not optimal, and sometimes does not work when i first multiply the matrix by say a vector.

hi...amount of Determinant  is infinity?how i can remove this bad calculation ?

thanks...mode_shape2.mw

hi .by changing amount of variable such as '' f '' or 'D5 ' in input data, not changing  in final result!!!!please chek attached file

thanksX4.mw

Consider the well-known Euler's formula

 e^ix = cos x + i sin x

When we calculate that for  x = π  we get:

e^iπ = cos π + i sin π   or

e^iπ = −1 + i × 0   (because cos π = −1 and sin π = 0)  or

e^iπ = −1  or  e^iπ + 1 = 0

It seems absolutely magical that such a neat equation combines  5  fundamental constants: e ,  i ,  π , 1 , 0

The purpose of this post - to give a simple visualization of equality  e^iπ = −1  (statical and animated) by expanding  e^iπ  in a series of complex numbers. These numbers we represent as vectors in the plane. We will see that the partial sums of this series are broken lines like a spiral, twisting around the point -1 steadily approaching to it.

Euler procedure has one required parameter  n is positive integer - the number of displayed terms of the series  for  e^iπ

Optional parameter  a  is any symbol (by default  a=NULL). We use this option if  instead of a static spiral want to see an animated spiral.

Procedure code can be found in the attached file  Euler.mw

Examples of use.

The first example shows  8 terms of the series (broken line of 8 units):

Euler(8);

The terms of the series where  n> = 10  on the same plot can not be seen as very small. In this case, we use  the second plot with magnification of  100 : 1 .

The second example:

Euler(14);

In the third example, we see an animated broken line. It's  first 9 units represented  on the left plot, and then for n> = 10 on the right plot:

Euler(13, a);

Euler.mw

Can somebody help me to find the solution?

I think there is something wrong with the definition of bvw1. If I use dsolve (in soln) with only bvw as Initial Condition,

I get a solution but if I also insert bvw1 as an Initial condition soln won't appear.

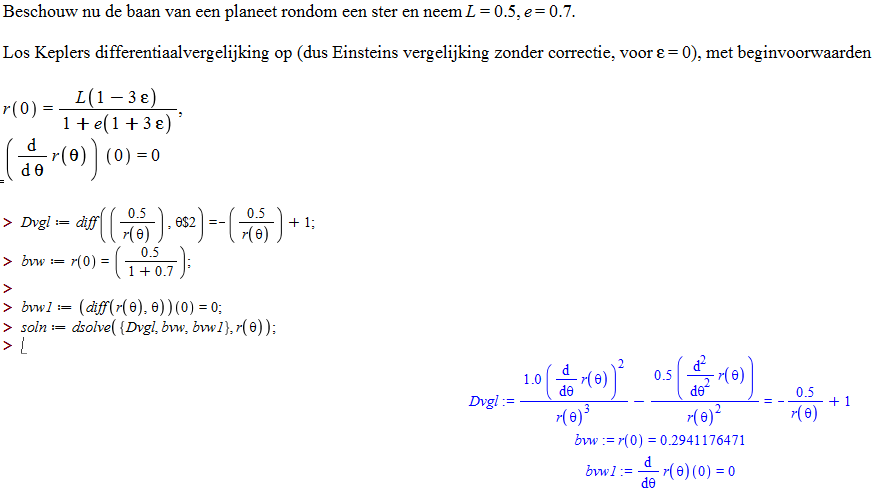

Here's what's written in the image:

'Imagine the course of a planet around a star with L=0.5 and e=0.7'

Solve Keppler's differential equation with Initial Conditions:'

hi.please remove error in attached file

thanks...gfhf.mw

In this paper we will demonstrate the importance of using simple to complex algorithms applied to complex systems in civil and mechanical engineering. In order to develop solutions that developers need to be involved in issues of advanced dynamic computer science. We show how is that with the Maple scientific program and through component-based algorithms can generate power then then be inserted into specific algorithms. Will form patterns with movements of rotation and revolution of their axes, in each case to model and analyze the curves thereof comprising. With these modelalos and curve analysis we can predict manufacturing costs, freight, inter alia estrcturas which they can be used with the correct use of Maplesoft.

IX_Fast_2016.pdf

Solid_Algorithms_applied_in_complex_3D_structures_for_Civil_Engineering_with_Maplesoft.mw

(in spanish)

Lenin Araujo Castillo
