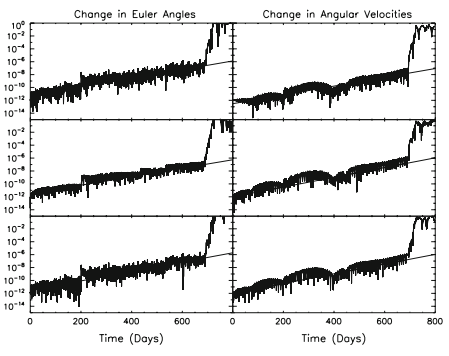

I'd like to make a graph like the below. So I know that using the display command and putting graphs in matrix form produces something similar (display(<graph1|graph2|graph3>), however it doesn't allow me to export it as one graph. Any ideas?

Hello folks, i recently had really confusing times when i plotted the function (x^(5/3)-5*x^(2/3)) in maple 2016. I know how this graph looks like as i have it printed in my undergraduate textbook. But in maple i'm not getting function(above given) values plotted for negative numbers. When i evaluate the function for x=-1 i'm getting some complex numbers, when i'm supposed to have simply -6. Could anybody tell me what's going on?

Respected member!
Please help me to find the solution of attached problem, I am a new user so pleaes forgive any mistakes.


Download mplprimes.mw

Hello.

I have a Pde solution in from of the sum.

pde := diff(u(x, t), t) = diff(u(x, t), x$2)

symbolic := pdsolve([pde, u(x, 0) = 1, u(0, t) = 0, u(1, t) = 0])

symbolic := u(x, t) = Sum(-(2*((-1)^_Z9-1))*sin(_Z9*Pi*x)*exp(-Pi^2*_Z9^2*t)/(Pi*_Z9), _Z9 = 1 .. infinity)

I tried a subs or eval command dosen't work.

Thanks.

pdex1.mw


Download pdex1.mw

The piecewise plot below displays a sphere truncated by the plane z = 2 - y.

f := proc (x, y, z) options operator, arrow; piecewise(z <= 2-y, x^2+y^2+z^2-16, z-2+y) end proc; implicitplot3d(f, -4 .. 4, -4 .. 4, -4 .. 4, style = surface, numpoints = 50000);

The 3 transforms below when executed in display(T(sphere([0, 0, 0], 4, numpoints = 50000)), scaling = constrained) display the truncated sphere differently:

1) the truncating plane only partly conforms to the boundary of the truncated sphere

2) the truncated sphere is correct provided that the else condition coordinate is in the truncating plane and truncated sphere

3) the truncated sphere is correct but hollow

1) T := transform(proc (x, y, z) options operator, arrow; `if`(z <= 2-y, [x, y, z], [x, y, 2-y]) end proc)

2) T := transform(proc (x, y, z) options operator, arrow; `if`(z <= 2-y, [x, y, z], [0, 0, 2]) end proc)

3) T := transform(proc (x, y, z) options operator, arrow; `if`(z <= 2-y, [x, y, z], [`&+-`(sqrt(16-y^2-z^2)), y, 2-y]) end proc)

Please explain the different behavior of the three transforms.

Good evening sir.

I request your valuable support with regard to the above cited query.

With thanks & regards.

Mr.M.Anand

Associate Professor in Mathematics

I need hepl.  I work with the physics paсkage and I set:

with(Physics);
with(StandardModel);
Setup(mathematicalnotation = true)

Coordinates(X)

Define(p)

Setup(su2)

CompactDisplay(p(X))

U := 1+i*(1/f)*p[a](X)*Psigma[a]

H := v*U

DD[mu] := (d_[mu]+2*i*nu_5*KroneckerDelta[mu, 0])*Psigma[0]

And next:

Trace(DD[mu]*H*DD[mu]*H) or simplify(DD[mu]*H*DD[mu]*H)

Maple speaks:

Error, (in Physics:-Trace) invalid input: `union` received Physics:-d_[mu] = F1, which is not valid for its 1st argument

What I am doing wrong? (f, v, nu_5 is constans; a=1,2,3 and mu=0,1,2,3, Psigma[0] is unit matrix 2x2)

And if I write:

simplify(Trace(Psigma[a]*Psigma[a]))

Maple doesn't understand that it equals six.

Let us consider

Student[Precalculus]:-LimitTutor(sqrt(x), x = 2);

One expects a nice illustration of the result sqrt(2). But instead of that one reads "f(x) approaches 1.41 as x approaches 2". This is simply clueless and forms a wrong understanding of limits. It should also be noticed that all the entries (left, 2-sided, and right) produce the same animation. The same issue with other limits I tried, e.g.

Student[Precalculus]:-LimitTutor(sqrt(x), x = 1);

. I think this command should be completely rewritten or excluded from Maple.

Hi

I have a set P which is filled with 2D elements e.g.

P:={[1,1],[1,2],[1,3]...}

Later I'm wanting to add a new element e.g. {[1,10]}
At the moment I have

P union {[10, 10]}

If I were to print this I get what I want, but I want to update P.
When I try and do

 P:= P union {[10,10]}

I get an error "Error, illegal use of an object as a name"

What am I doing wrong and how can I solve this? Much appreciated!

Hi,

I'm just doing a small project/HW for school where I am trying to create a histogram of the appearance of the digits of Pi. My problem is that I lose connection with the Maple Kernel whenever I go over 1000 digits. Why? Is this because my function scales badly? Any help would be appreciated.

Thanks in advance.

d:=1500;
Digits:=d;
                              1500
                              1500
valpi:=evalf(Pi):

dg:=proc(n,k)
floor(n/10^(ceil(log10(n)-k))) mod 10;
end:

with(Statistics):
L:=[seq(dg(valpi,i),i=1..d)]:
Histogram(L)

Hello

I am trying to write my Measuring Data into several Arrays with lengt of rowdim

I was able to extract them from the Datafile and Refering them to separate Vectors

My Code is in the attachemend and the Datafile too.

Insert the txt Path in the Messdaten in definition of A to load it.

I was able to convert the Time from Seconds to Minutes. What i realy want is an x-Axis wich is like hh:mm:ss

and Plot for Example T__1,T__2,T__Scheibe together in one Plot as y Axis and t__Minuten as x Axis

But the

plot([seq([`t__Sekunden`[i],`T__1`[i]],i=1..rowdim,LinearAlgebra[rowdim](`t__Sekunden`))

doesnt work and i also tried others

Thank you for your Help

Hallo,

im currently using Mathcad 15 and i want to change to a newer and better software with more possibilities.

But up to now i have not found a better software for calculating. One big advantage with mathcad is the possibilitie of symbolic formula input and calculation with units.

Now my question: Is it possible with Maple to write symbolic formulas (2D Structure of big formulas)

I dont write a formula in one row. Its nearly impossible ...

And can i calculate with units?

Thx Stefan

hope you can understand it.

I did not realize Maple 2016, since Maple 2015 actually, had stopped Windows XP support.

hi

how i can remove this error?

1) ''Error, invalid input: lhs received diff(diff(diff(diff(w(x, y, t), x), x), x), x)+.12*(diff(diff(diff(diff(w(x, y, t), x), x), y), y))+0.11e-2*(diff(diff(diff(diff(w(x, y, t), y), y), y), y))+10-.4*(diff(diff(w(x, y, t), x), x))-0.4e-2*(diff(diff(w(x, y, t), y), y))+diff(diff(w(x, y, t), t), t)-w(x, y, t)-tau, which is not valid for its 1st argument, expr'''''

2)'' Error, incorrect number of extra arguments in select''

thanks

scale.mw


Download scale.mw
