Error message at Data Set Search...

Asked by: Murad Demir 20
search dataset
May 10 2020
0  0

Hello

I use Maple 20018.2.

When I use "Data Set Search" and press Search I get following Error Message. I check that the network access to the internet is on enable. Does anybody has an Idea?

thank you

Murad

How to numericaly solve a system of differential e...

Asked by: asceduardo 65
ode pde numeric
May 07 2020
1  2

I'm trying to obtain the dynamical response of a simply-supported beam with a cantilever extension, coupled to a spring-mass system. In mathematical terms, this system is ruled by three PDEs (relative to each bare part of the main structure) and one ODE (relative to the spring-mass system). I think my mathemical model is finely formulated, but Maple keeps telling me this:

Error, (in pdsolve/numeric/process_IBCs) improper op or subscript selector

I believe it is because my PDEs depend on "x" and "t", while the ODE depends solely on "t". I have tried to transform my ODE into a "PDE", making it also dependent of "x", but without imposing any boundary conditions relative to "x". However, after this Maple points a new error message:

Error, (in pdsolve/numeric) initial/boundary conditions must be defined at one or two points for each independent variable

Could someone help me finding a solution? My algorythm in shown in the attached file below.

Worksheet.mw

Fractional Reduced Differential Transform Method...

Asked by: PreethiPandian 15
April 28 2020
1  0

Can anyone help me to frame the equations in Fractional Reduced Differential Transform Method

system of nonlinear ordinary differential equations
ds/ dt = b−γ s(t)− (δ s(t)(i(t) + βa(t)) /N − ε s(t) m(t)
de/ dt = δ (s(t)(i(t) + βa(t))/ N + ε s(t) m(t) − (1−ϑ) θ e(t) − ϑ α e(t) − γ e(t)
di/ dt = (1−ϑ) θ e(t) − (ρ + γ) i(t)
da/ dt = ϑ α e(t) − (σ + γ) a(t)
dr /dt = ρ i(t) + σ a(t) − γ r(t)
dm /dt = τ i(t) + κ a(t) − ω m(t)

Maple 2018 recently become sluggish to start up ...

Asked by: Melvin Brown 124
performance
April 15 2020
0  2

Maple 2018  has recently has  become sluggish to start up  -and very slow to respond to input. Can anyone suggest remedies?  I have plenty of space and CPU. Other apps seem to start fine.  Can any suggest a diagnosis and/or solution?

Melvin

Coupled PDEs:Error, (in pdsolve/numeric/animate) u...

Asked by: Melvin Brown 124
pde numeric pdsolve
March 02 2020
0  1




Analysis of the semiclassical (SC) momentum rate equations

Plotting the ICs and BCs and examining sensitivity to the Re and Im forces

MRB: 24/2/2020, 27/2/2020, 2/3/2020.

We examine solution of the SC version of the momentum rate equations, in which O`ℏ`^2 terms for u(x, t) are removed. A high level of sensitivity to ICs and BCs makes solution finding difficult.

>

restart;
>

with(PDETools): with(CodeTools):with(plots):

We set up the initial conditions:

>

ICu := {u(x, 0) = .1*sin(2*Pi*x)}; ICv := {v(x, 0) = .2*sin(Pi*x)};

{u(x, 0) = .1*sin(2*Pi*x)}



{v(x, 0) = .2*sin(Pi*x)}

 (1)
>

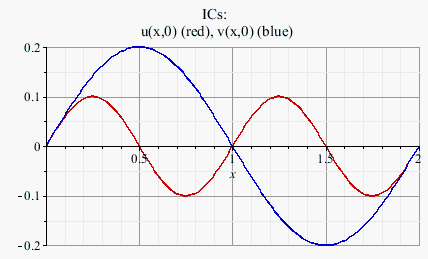

plot([0.1*sin(2*Pi*x),0.2*sin(Pi*x)],x = 0..2, title="ICs:\n u(x,0) (red), v(x,0) (blue)",color=[red,blue],gridlines=true);



The above initial conditions represent a positive velocity field v(x, 0) (blue) and a colliding momentum field u(x, t)(red).



Here are the BCs

>

BCu := {u(0,t) = 0.5*(1-cos(2*Pi*t))};

{u(0, t) = .5-.5*cos(2*Pi*t)}

 (2)
>

BCv := {v(0,t) = 0.5*sin(2*Pi*t),v(2,t)=-0.5*sin(2*Pi*t)};

{v(0, t) = .5*sin(2*Pi*t), v(2, t) = -.5*sin(2*Pi*t)}

 (3)
>

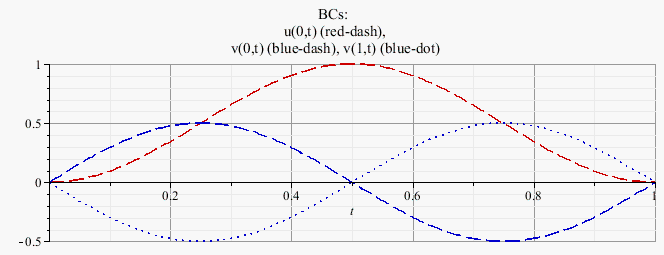

plot([0.5*(1-cos(2*Pi*t)),0.5*sin(2*Pi*t),-0.5*sin(2*Pi*t)],t=0..1,color=[red,blue,blue],linestyle=[dash,dash,dot],title="BCs:\n u(0,t) (red-dash),\n v(0,t) (blue-dash), v(1,t) (blue-dot)",gridlines=true);
>





We can now set up the PDEs for the semiclassical case.

>

hBar:= 1:m:= 1:Fu:= 0.2:Fv:= 0.1:#1.0,0.2
>

pdeu := diff(u(x,t),t)+u(x,t)/m*(diff(u(x,t),x)) = Fu;

diff(u(x, t), t)+u(x, t)*(diff(u(x, t), x)) = .2

 (4)
>

pdev := diff(v(x,t),t)+u(x,t)/m*(diff(v(x,t),x))-hBar*(diff(u(x,t),x$2))/(2*m)+v(x,t)*(diff(u(x,t),x))/m = Fv;

diff(v(x, t), t)+u(x, t)*(diff(v(x, t), x))-(1/2)*(diff(diff(u(x, t), x), x))+v(x, t)*(diff(u(x, t), x)) = .1

 (5)
>

ICu:={u(x,0) = 0.1*sin(2*Pi*x)};

{u(x, 0) = .1*sin(2*Pi*x)}

 (6)
>

ICv:={v(x,0) = 0.2*sin(Pi*x/2)};

{v(x, 0) = .2*sin((1/2)*Pi*x)}

 (7)
>

IC := ICu union ICv;

{u(x, 0) = .1*sin(2*Pi*x), v(x, 0) = .2*sin((1/2)*Pi*x)}

 (8)
>

BCu := {u(0,t) = 0.5*(1-cos(2*Pi*t)), D[1](u)(2,t) = 0.1*cos(2*Pi*t)};

{u(0, t) = .5-.5*cos(2*Pi*t), (D[1](u))(2, t) = .1*cos(2*Pi*t)}

 (9)
>

BCv := {v(0,t) = 0.2*(1-cos(2*Pi*t))};

{v(0, t) = .2-.2*cos(2*Pi*t)}

 (10)
>

BC := BCu union BCv;

{u(0, t) = .5-.5*cos(2*Pi*t), v(0, t) = .2-.2*cos(2*Pi*t), (D[1](u))(2, t) = .1*cos(2*Pi*t)}

 (11)

We now set up the PDE solver:

>

pds := pdsolve({pdeu,pdev},{BC[],IC[]},time = t,range = 0..2,numeric);#'numeric' solution

_m2592591229440

 (12)
>

Cp:=pds:-animate({[u, color = red, linestyle = dash],[v,color = blue,linestyle = dash]},t = 30,frames = 400,numpoints = 400,title="Semiclassical momentum equations solution for Re and Im momenta u(x,t) (red) and v(x,t) (blue) \n under respective constant positive forces [0.2, 0.1] \n with sinusoidal boundary conditions at x = 0, 1 and sinusoidal initial conditions: \n time = %f ", gridlines = true,linestyle=solid):Cp;

Error, (in pdsolve/numeric/animate) unable to compute solution for t>HFloat(0.0):
Newton iteration is not converging



Cp

 (13)

Observations on the quantum case:

The classical equation for u(x, t) is independent of the equation for v(x, t).  u(x, t) (red) is a solution of the classical Burgers equation subject to a force 0.2, but u(x, t) is NOT influenced by v(x, t).  On the otherhand, v(x, t) (blue) is a solution of the quantum dynamics equation subject to force 0.1 and is influenced by u(x, t).   This one way causality (u " implies v")  is a feature of the semiclassical case, and it emphasises the controlling influence of the classical u(x, t), which modulates the quantum solution for v(x, t).  Causally, we have u" implies v".



The initial conditions are of low momentum amplitude:"+/-"0.1 for the classical u(x, 0) (red) field and`&+-`(0).2 for v(x, 0) (blue)  but their influence is soon washed out by the boundary conditions "u(0,t) ~1, v(0,t)~0.5" and "v(1,t)~0.5" that drive the momentum dynamics.



The temporal frequency of the boundary condition on the v-field is twice that of the classical u-field. This is evident in the above blue transient plot. Moreover, the">=0" boundary condition on the classical u-momentum (red), drives that field in the positive direction, initially overtaking the quantum v(x, t) field, as consistent with the applied forces [0.2, 0.1]. NULLAlthough initially of greater amplitude than the classical u(x, t)field, the v(x, t) momentum field is asymptotically of the same amplitude as the u(x, t) field, but has greater spatial and temporal frequency, owing to the boundary conditions.



Referring to the semiclassical momentum rate equations, we note that the classical field u(x, t) (red) modulates the quantum momentum rate equation for v(x, t).

>

``










Download SC-plots.mw

I am having difficulty getting solutions to a pair of PDEs.  Would anyone like to cast an eye over the attached file, incase I am missing something.

Thanks

Melvin

Maple 2018.2 crashs while using plot3d()...

Asked by: Tom97 0
February 18 2020
0  2

Hello,

For a few days Maple crashs everytime i try to use the command "plot3d()".

I had'nt this problem befor and I have no idea what the reason could be. It ist irrelevant what Funktion I try to visualize,  the window just get closed evertime.

I hope someone can help me.

Thank you!

Tom

How do I simplify KdV equation in Maple by using t...

Asked by: alaloush 35
simplification differential-equations
February 04 2020
1  2

How do I simplify KdV equation in Maple by using =fxt))xx)?)




>

``

   I am by using =2*difffxtxx)

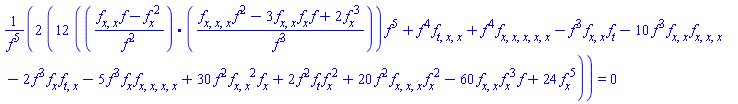

    My aim is to get the form
   diff((f*(diff(f, x, t))-(diff(f, x))*(diff(f, t))+f*(diff(f, x, x, x))-4*(diff(f, x, x, x))*(diff(f, x))+3*(diff(f, x, x))^2)/f^2, x) = 0

>

NULL
>

``
>

restart; with(PDEtools); with(DEtools)
>

``
>

alias(u = u(x, t)); declare(u(x, t)); alias(f = f(x, t)); declare(f(x, t))

u



` u`(x, t)*`will now be displayed as`*u



u, f



` f`(x, t)*`will now be displayed as`*f

 (1)
>

KdV := diff(u, t)+6*u.(diff(u, x))+diff(u, x, x, x) = 0

diff(u, t)+6*(u.(diff(u, x)))+diff(diff(diff(u, x), x), x) = 0

 (2)
>

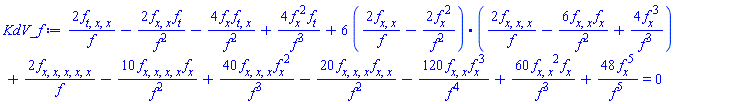

KdV_f := eval(KdV, u = 2*(diff(ln(f), x, x)))

2*(diff(diff(diff(f, t), x), x))/f-2*(diff(diff(f, x), x))*(diff(f, t))/f^2-4*(diff(f, x))*(diff(diff(f, t), x))/f^2+4*(diff(f, x))^2*(diff(f, t))/f^3+6*((2*(diff(diff(f, x), x))/f-2*(diff(f, x))^2/f^2).(2*(diff(diff(diff(f, x), x), x))/f-6*(diff(diff(f, x), x))*(diff(f, x))/f^2+4*(diff(f, x))^3/f^3))+2*(diff(diff(diff(diff(diff(f, x), x), x), x), x))/f-10*(diff(diff(diff(diff(f, x), x), x), x))*(diff(f, x))/f^2+40*(diff(diff(diff(f, x), x), x))*(diff(f, x))^2/f^3-20*(diff(diff(diff(f, x), x), x))*(diff(diff(f, x), x))/f^2-120*(diff(diff(f, x), x))*(diff(f, x))^3/f^4+60*(diff(diff(f, x), x))^2*(diff(f, x))/f^3+48*(diff(f, x))^5/f^5 = 0

 (3)
>

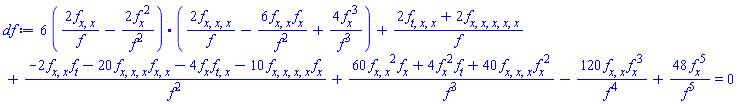

df := collect(KdV_f, f)

6*((2*(diff(diff(f, x), x))/f-2*(diff(f, x))^2/f^2).(2*(diff(diff(diff(f, x), x), x))/f-6*(diff(diff(f, x), x))*(diff(f, x))/f^2+4*(diff(f, x))^3/f^3))+(2*(diff(diff(diff(f, t), x), x))+2*(diff(diff(diff(diff(diff(f, x), x), x), x), x)))/f+(-2*(diff(diff(f, x), x))*(diff(f, t))-20*(diff(diff(diff(f, x), x), x))*(diff(diff(f, x), x))-4*(diff(f, x))*(diff(diff(f, t), x))-10*(diff(diff(diff(diff(f, x), x), x), x))*(diff(f, x)))/f^2+(60*(diff(diff(f, x), x))^2*(diff(f, x))+4*(diff(f, x))^2*(diff(f, t))+40*(diff(diff(diff(f, x), x), x))*(diff(f, x))^2)/f^3-120*(diff(diff(f, x), x))*(diff(f, x))^3/f^4+48*(diff(f, x))^5/f^5 = 0

 (4)
>

factor(simplify(df, size))

2*(12*(((diff(diff(f, x), x))*f-(diff(f, x))^2)/f^2.(((diff(diff(diff(f, x), x), x))*f^2-3*(diff(diff(f, x), x))*(diff(f, x))*f+2*(diff(f, x))^3)/f^3))*f^5+f^4*(diff(diff(diff(f, t), x), x))+f^4*(diff(diff(diff(diff(diff(f, x), x), x), x), x))-f^3*(diff(diff(f, x), x))*(diff(f, t))-10*f^3*(diff(diff(f, x), x))*(diff(diff(diff(f, x), x), x))-2*f^3*(diff(f, x))*(diff(diff(f, t), x))-5*f^3*(diff(f, x))*(diff(diff(diff(diff(f, x), x), x), x))+30*f^2*(diff(diff(f, x), x))^2*(diff(f, x))+2*f^2*(diff(f, t))*(diff(f, x))^2+20*f^2*(diff(diff(diff(f, x), x), x))*(diff(f, x))^2-60*(diff(diff(f, x), x))*(diff(f, x))^3*f+24*(diff(f, x))^5)/f^5 = 0

 (5)
>

``
>

``
>

``
>

``




Download KdV_simplify

How do I find Lax pair for this equation?...

Asked by: alaloush 35
pde detools pdetools
January 25 2020
0  0

Hello
    In this example, we have the KdV equation
         t] - 6 uux] + xxx] = 0
    I would like to find the Lax pair for the KdV equation, which are
               Lψ=λψ
               ψ[t] = Mψ

              Lt+ML-LM = 0  called a compatibility condition
    So, I will start from this purpose
    Then we will assume M in the form
    will assume M in the form
              M := a3*Dx^3+a^2+a1*Dx+a0
    thenb using M and L in the for L[tL-LM = 0can find
      Dx^5+( ) Dx^4+( ) Dx^3+( ) Dx^2+( ) Dx+( )=0
    then wean find a_i =0,1,2,3
  In the following maple code to do that
  my question is
   .How I canoue the soluo get a_i2,3 usinmaple code
    any maple packge to find Lax pair for PDE -




>

restart; with(DEtools); with(PDEtools)

     in this exampile we have KdV equation

      u[t]-6*uu[x]+u[xxx] = 0

    I would likeind the Lax pair for the KdV equation, which are

       Lψ=λψ

    psi[t] = M*psi

   where``

    L[t]+ML-LM = 0    called  apatibility  condition

    So, I  will start this purpose

     L:=-Dx^2+u;

    then we will assume M the m

    Ma3*Dx^3+a2*Dx^2+Dx+a0

    then busing in the form L[t]+ML-LM = 0 can find

  ( ) Dx^5+( ) Dx^4+( ) Dx^3+( ) Dx^2+( ) Dx+( )=0

 then we can find a_i ;i=,2,3



the fllowile code to

 my queion is ;

  1) How I can continue the solution  to get a_i ;i=0,1,2,3 using maple code  ?

  2) isir any maple packge to find  Lax pair for PDE ?



>

alias(u = u(x, t)); declare(u(x, t)); alias(a3 = a3(x, t)); declare(a3(x, t)); alias(a2 = a2(x, t)); declare(a2(x, t)); alias(a1 = a1(x, t)); declare(a1(x, t)); alias(a0 = a0(x, t)); declare(a0(x, t))

u



` u`(x, t)*`will now be displayed as`*u



u, a3



` a3`(x, t)*`will now be displayed as`*a3



u, a3, a2



` a2`(x, t)*`will now be displayed as`*a2



u, a3, a2, a1



` a1`(x, t)*`will now be displayed as`*a1



u, a3, a2, a1, a0



` a0`(x, t)*`will now be displayed as`*a0

 (1)
>

_Envdiffopdomain := [Dx, x]

[Dx, x]

 (2)
>

L := -Dx^2+u

-Dx^2+u

 (3)
>

M := Dx^3*a3+Dx^2*a2+Dx*a1+a0

a3*Dx^3+a2*Dx^2+a1*Dx+a0

 (4)
>






>

LM := expand(mult(L, M))

-a3*Dx^5-2*Dx^4*(diff(a3, x))-a2*Dx^4+Dx^3*u*a3-Dx^3*(diff(diff(a3, x), x))-2*Dx^3*(diff(a2, x))-Dx^3*a1+Dx^2*u*a2-Dx^2*(diff(diff(a2, x), x))-2*Dx^2*(diff(a1, x))-Dx^2*a0+Dx*u*a1-Dx*(diff(diff(a1, x), x))-2*Dx*(diff(a0, x))+u*a0-(diff(diff(a0, x), x))

 (5)
>

ML := expand(mult(M, L))

-a3*Dx^5-a2*Dx^4+Dx^3*u*a3-Dx^3*a1+3*Dx^2*a3*(diff(u, x))+Dx^2*u*a2-Dx^2*a0+3*Dx*a3*(diff(diff(u, x), x))+2*Dx*a2*(diff(u, x))+Dx*u*a1+a3*(diff(diff(diff(u, x), x), x))+a2*(diff(diff(u, x), x))+a1*(diff(u, x))+u*a0

 (6)
>

Commutator := simplify(ML-LM)

a3*(diff(diff(diff(u, x), x), x))+(3*Dx*a3+a2)*(diff(diff(u, x), x))+diff(diff(a0, x), x)+Dx*(diff(diff(a1, x), x))+Dx^2*(diff(diff(a2, x), x))+Dx^3*(diff(diff(a3, x), x))+(3*Dx^2*a3+2*Dx*a2+a1)*(diff(u, x))+2*Dx^4*(diff(a3, x))+2*Dx^3*(diff(a2, x))+2*Dx^2*(diff(a1, x))+2*Dx*(diff(a0, x))

 (7)
>

sol := diff(L, t)-Commutator = 0

diff(u, t)-a3*(diff(diff(diff(u, x), x), x))-(3*Dx*a3+a2)*(diff(diff(u, x), x))-(diff(diff(a0, x), x))-Dx*(diff(diff(a1, x), x))-Dx^2*(diff(diff(a2, x), x))-Dx^3*(diff(diff(a3, x), x))-(3*Dx^2*a3+2*Dx*a2+a1)*(diff(u, x))-2*Dx^4*(diff(a3, x))-2*Dx^3*(diff(a2, x))-2*Dx^2*(diff(a1, x))-2*Dx*(diff(a0, x)) = 0

 (8)
>

collect(sol, [Dx, x])

-2*Dx^4*(diff(a3, x))+(-(diff(diff(a3, x), x))-2*(diff(a2, x)))*Dx^3+(-3*a3*(diff(u, x))-(diff(diff(a2, x), x))-2*(diff(a1, x)))*Dx^2+(-2*a2*(diff(u, x))-3*a3*(diff(diff(u, x), x))-(diff(diff(a1, x), x))-2*(diff(a0, x)))*Dx-a1*(diff(u, x))-a2*(diff(diff(u, x), x))-a3*(diff(diff(diff(u, x), x), x))-(diff(diff(a0, x), x))+diff(u, t) = 0

 (9)



>



>



>



>

``
>

NULL




Download find_lax_pair.mw

How to define differential forms as function of so...

Asked by: 5
differentialgeometry
January 17 2020
1  0

I want to define the co-ordianates (phi, PI, ....)  as functions of some variable eg:- x,y.



Numeric solve of a system with coupled pde/ode...

Asked by: asceduardo 65
ode pde numeric
November 26 2019
1  1

I am studying the motion of a beam coupled to piezoelectric strips. This continuous system is modelled by two DE:

YI*diff(w(x,t), x$4)-N[0]*cos(2*omega*t)*diff(w(x,t), x$2)+c*diff(w(x,t), t)+`ρA`*diff(w(x,t), t$2)+C[em,m]*v(t) = 0;

And:

C[p]*diff(v(t), t)+1/R[l]*v(t) = C[em,e]*(D[1,2](w)(0,t)-D[1,2](w)(ell,t));


where "w(x,t)" stands for the beam's vibration and "v(t)" means the electric voltage, which is constant throught the beam. I would like to numerically solve both DE simultaneosly, but maple will not let me do it. I would like to know why. I am getting the following error:

Error, (in pdsolve/numeric/process_PDEs) number of dependent variables and number of PDE must be the same


I suppose it is because "w(x,t)" depends on "x" and "t", while "v(t)" depends solely on time, but I am not sure. Could someone help me out? Here is my current code:

restart:
with(PDEtools):
declare(w(x,t), v(t)):

YI*diff(w(x,t), x$4)-N[0]*cos(2*omega*t)*diff(w(x,t), x$2)+c*diff(w(x,t), t)+`ρA`*diff(w(x,t), t$2)+C[em,m]*v(t) = 0;
pde1:= subs([YI = 1e4, N[0] = 5e3, c = 300, omega = 3.2233993, C[em,m] = 1], %):
ibc1:= w(0,t) = 0, D[1,1](w)(0,t) = 0, w(ell,t) = 0, D[1,1](w)(ell,t) = 0, D[2](w)(x,0) = 0, w(x,0) = sin(Pi*x/ell):

C[p]*diff(v(t), t)+1/R[l]*v(t) = C[em,e]*(D[1,2](w)(0,t)-D[1,2](w)(ell,t));
pde2:= subs([C[p] = 10, R[l] = 1000, C[em,e] = 1, ell = 5], %):
ibc2:= v(0) = 0:

pdsolve({pde1, pde2}, {ibc1, ibc2}, numeric);

Thanks.

Firewall blocking Maple 2018 after upgrading comp...

Asked by: Melvin Brown 124
windows firewall windows10
November 20 2019
1  1

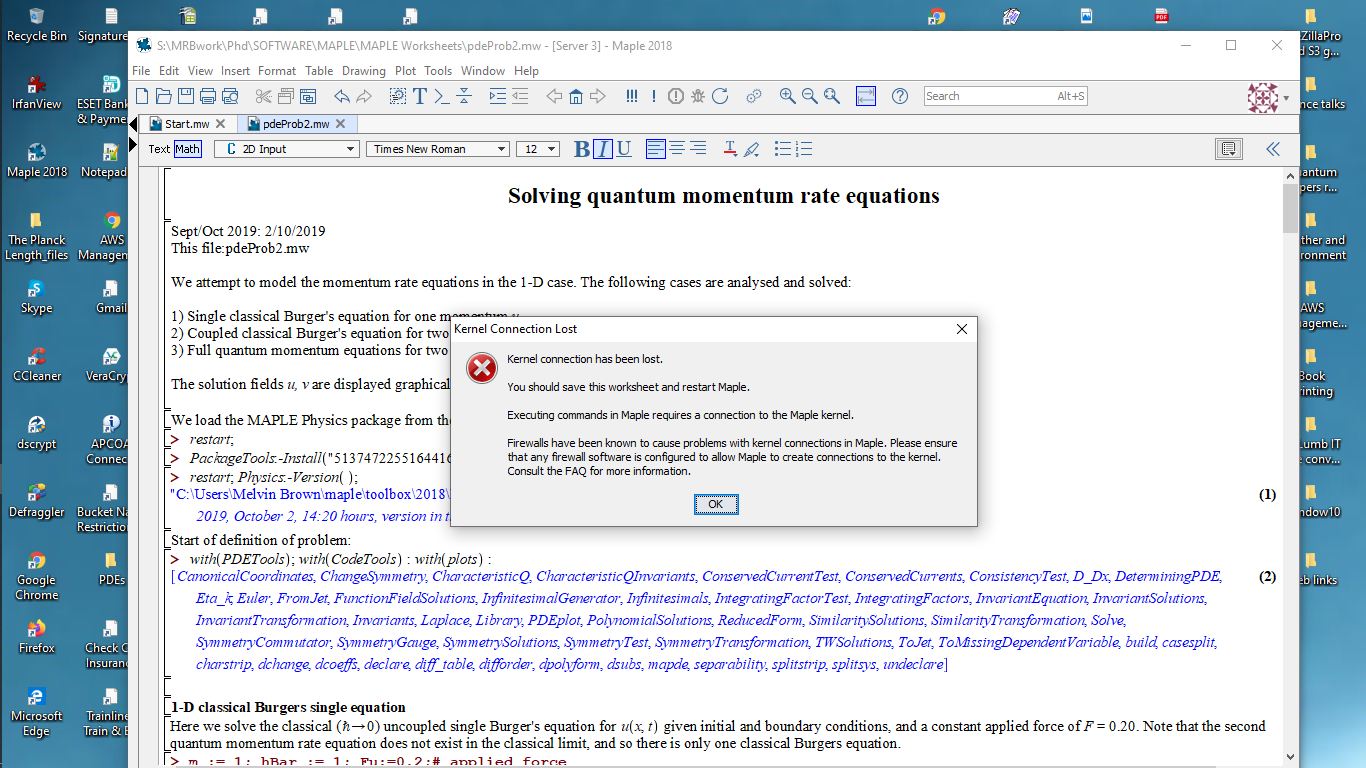

I have just upgraded my laptop from Windows 7 to Windows 10.  On starting up Maple 2018,  I receive the attached message on screen.  This is after previously loading the worksheet successfully.   Today,  I am not able to do so.  I need to permanently register my firewall to allow Maple to run; can anyone help?

Melvin



Maple 2018.2 is not compatible with macOS Catalina...

Asked by: operade 5
October 06 2019
1  1

Hi everybody

l I tried to install Maple 2018.2 on the golden master of Catalina and it didn't work : the installation process ended after the entering of the password to authorize the installation. In fact Maple 2018.2 still contains 32 bit elements. Is there a solution ? Thank you




David



Chebyshev series in different intervals...

Asked by: kfli 75
piecewise series chebyshev
August 07 2019
1  0

Hello,

My question is mathematical in nature, so it might be a little out of place but I though I would give it a shot.

You have a series of chebyshev coefficients in two connecting subdomains lets say S1 = [0,0.5] and S2=[0.5,1]. So far you are still in the spectral space. If you want to compute the solution in real space you can sum the coefficients with the Chebyshev polynomials.

Now imagine you change the interval to S1 = [0,0.6] and S2 = [0.6,1]. Is there a way to manipulate the Chebyshev coefficients from both initial subdomains to create a new set of Chebyshev coefficients that fit the solution in the new subdomains.

The brute force method would be to create the real solution of Chebyshev polynomials and then use that to form a new set of Chebyshev coefficients. Or you can use Clenshaw to compute the solution at several points, and then use the points to create new Chebyshev coefficients.

But what if we can stay in spectral space and create the new chebyshev coefficients. Is that possible? If so, how?

I Have a problem in Do loop...

Asked by: amrramadaneg 76
do-loop limit
July 28 2019
0  2

Dears, greeting for all

I have a problem, I try to explain it by a figure

This formula does not work.

I need to substitute n=0 to give G_n+1 as a function of the parameter s, then find the limit.

.where G_n is a function in s.

this is the result



Wrong values for Eigenvalues, depending on Digits ...

Asked by: Dobrica 20
linearalgebra datatype digits
July 27 2019
4  3

Hello!

I want to calculate Eigenvalues. Depending on values for digits and which datatype I choose Maple sometimes returns zero as Eigenvalues. Maybe there is a problem with the used routines: CLAPACK sw_dgeevx_, CLAPACK sw_zgeevx_.

Thank you for your suggestions!


``

>



Problems LinearAlgebra:-Eigenvalues, Digits, ':-datatype' = ':-sfloat', ':-datatype' = ':-complex'( ':-sfloat' )


>

restart;

>

interface( ':-displayprecision' = 5 ):

>

infolevel['LinearAlgebra'] := 5;
myPlatform := kernelopts( ':-platform' );
myVersion := kernelopts( ':-version' );

5



"windows"



`Maple 2018.2, X86 64 WINDOWS, Nov 16 2018, Build ID 1362973`

(1.1)

Example 1


>

A1 := Matrix( 5, 5, [[0, 1, 0, 0, 0], [0, 0, 1, 0, 0], [0, 0, 0, 1, 0], [0, 0, 0, 0, 1], [-10201/1000, 30199/10000, -5049/250, 97/50, -48/5]] );

Matrix(5, 5, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 1, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 1, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 1, (5, 1) = -10201/1000, (5, 2) = 30199/10000, (5, 3) = -5049/250, (5, 4) = 97/50, (5, 5) = -48/5})

(1.1.1)
>

LinearAlgebra:-Eigenvalues( A1 );

CharacteristicPolynomial: working on determinant of minor 2
CharacteristicPolynomial: working on determinant of minor 3
CharacteristicPolynomial: working on determinant of minor 4
CharacteristicPolynomial: working on determinant of minor 5



Vector(5, {(1) = -10, (2) = 1/10+I, (3) = 1/10-I, (4) = 1/10+I, (5) = 1/10-I})

(1.1.2)
>

A11 := Matrix( op( 1, A1 ),( i,j ) -> evalf( A1[i,j] ), ':-datatype' = ':-sfloat' );

Matrix(5, 5, {(1, 1) = 0., (1, 2) = 1.00000, (1, 3) = 0., (1, 4) = 0., (1, 5) = 0., (2, 1) = 0., (2, 2) = 0., (2, 3) = 1.00000, (2, 4) = 0., (2, 5) = 0., (3, 1) = 0., (3, 2) = 0., (3, 3) = 0., (3, 4) = 1.00000, (3, 5) = 0., (4, 1) = 0., (4, 2) = 0., (4, 3) = 0., (4, 4) = 0., (4, 5) = 1.00000, (5, 1) = -10.20100, (5, 2) = 3.01990, (5, 3) = -20.19600, (5, 4) = 1.94000, (5, 5) = -9.60000})

(1.1.3)
>

Digits := 89;
LinearAlgebra:-Eigenvalues( A11 );

Digits := 89



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881249354686)

(1.1.4)
>

Digits := 90;
LinearAlgebra:-Eigenvalues( A11 );

Digits := 90



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881249352150)

(1.1.5)
>

A12 := Matrix( op( 1, A1 ),( i,j ) -> evalf( A1[i,j] ), ':-datatype' = ':-complex'( ':-sfloat' ) );

Matrix(5, 5, {(1, 1) = 0.+0.*I, (1, 2) = 1.00000+0.*I, (1, 3) = 0.+0.*I, (1, 4) = 0.+0.*I, (1, 5) = 0.+0.*I, (2, 1) = 0.+0.*I, (2, 2) = 0.+0.*I, (2, 3) = 1.00000+0.*I, (2, 4) = 0.+0.*I, (2, 5) = 0.+0.*I, (3, 1) = 0.+0.*I, (3, 2) = 0.+0.*I, (3, 3) = 0.+0.*I, (3, 4) = 1.00000+0.*I, (3, 5) = 0.+0.*I, (4, 1) = 0.+0.*I, (4, 2) = 0.+0.*I, (4, 3) = 0.+0.*I, (4, 4) = 0.+0.*I, (4, 5) = 1.00000+0.*I, (5, 1) = -10.20100+0.*I, (5, 2) = 3.01990+0.*I, (5, 3) = -20.19600+0.*I, (5, 4) = 1.94000+0.*I, (5, 5) = -9.60000+0.*I})

(1.1.6)
>

Digits := 100;
LinearAlgebra:-Eigenvalues( A12 );

Digits := 100



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881249345038)

(1.1.7)
>

Digits := 250;
LinearAlgebra:-Eigenvalues( A12 );

Digits := 250



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881342643606)

(1.1.8)
>



>



Example 2


>

A2 := Matrix(3, 3, [[0, 1, 0], [0, 0, 1], [3375, -675, 45]]);

Matrix(3, 3, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 1, (3, 1) = 3375, (3, 2) = -675, (3, 3) = 45})

(1.2.1)
>

LinearAlgebra:-Eigenvalues( A2 );

IntegerCharacteristicPolynomial: Computing characteristic polynomial for a 3 x 3 matrix

IntegerCharacteristicPolynomial: Using prime 33554393
IntegerCharacteristicPolynomial: Using prime 33554383
IntegerCharacteristicPolynomial: Used total of  2  prime(s)



Vector(3, {(1) = 15, (2) = 15, (3) = 15})

(1.2.2)
>

A21 := Matrix( op( 1, A2 ),( i,j ) -> evalf( A2[i,j] ), ':-datatype' = ':-sfloat' );

Matrix(3, 3, {(1, 1) = 0., (1, 2) = 1.00000, (1, 3) = 0., (2, 1) = 0., (2, 2) = 0., (2, 3) = 1.00000, (3, 1) = 3375.00000, (3, 2) = -675.00000, (3, 3) = 45.00000})

(1.2.3)
>

Digits := 77;
LinearAlgebra:-Eigenvalues( A21 );

Digits := 77



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881342621686)

(1.2.4)
>

Digits := 78;
LinearAlgebra:-Eigenvalues( A21 );

Digits := 78



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881342617230)

(1.2.5)
>

A22 := Matrix( op( 1, A2 ),( i,j ) -> evalf( A2[i,j] ), ':-datatype' = ':-complex'( ':-sfloat' ) );

Matrix(3, 3, {(1, 1) = 0.+0.*I, (1, 2) = 1.00000+0.*I, (1, 3) = 0.+0.*I, (2, 1) = 0.+0.*I, (2, 2) = 0.+0.*I, (2, 3) = 1.00000+0.*I, (3, 1) = 3375.00000+0.*I, (3, 2) = -675.00000+0.*I, (3, 3) = 45.00000+0.*I})

(1.2.6)
>

Digits := 58;
LinearAlgebra:-Eigenvalues( A22 );

Digits := 58



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881342614934)

(1.2.7)
>

Digits := 59;
LinearAlgebra:-Eigenvalues( A22 );

Digits := 59



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881325525942)

(1.2.8)
>



>



Example 3


>

A3 := Matrix(4, 4, [[0, 1, 0, 0], [0, 0, 1, 0], [0, 0, 0, 1], [-48841, 8840, -842, 40]]);

Matrix(4, 4, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (1, 4) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 1, (2, 4) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 1, (4, 1) = -48841, (4, 2) = 8840, (4, 3) = -842, (4, 4) = 40})

(1.3.1)
>

LinearAlgebra:-Eigenvalues( A3 );

IntegerCharacteristicPolynomial: Computing characteristic polynomial for a 4 x 4 matrix
IntegerCharacteristicPolynomial: Using prime 33554393

IntegerCharacteristicPolynomial: Using prime 33554383
IntegerCharacteristicPolynomial: Used total of  2  prime(s)



Vector(4, {(1) = 10+11*I, (2) = 10-11*I, (3) = 10+11*I, (4) = 10-11*I})

(1.3.2)
>

A31 := Matrix( op( 1, A3 ),( i,j ) -> evalf( A3[i,j] ), ':-datatype' = ':-sfloat' );

Matrix(4, 4, {(1, 1) = 0., (1, 2) = 1.00000, (1, 3) = 0., (1, 4) = 0., (2, 1) = 0., (2, 2) = 0., (2, 3) = 1.00000, (2, 4) = 0., (3, 1) = 0., (3, 2) = 0., (3, 3) = 0., (3, 4) = 1.00000, (4, 1) = -48841.00000, (4, 2) = 8840.00000, (4, 3) = -842.00000, (4, 4) = 40.00000})

(1.3.3)
>

Digits := 75;
LinearAlgebra:-Eigenvalues( A31 );

Digits := 75



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881324662046)

(1.3.4)
>

Digits := 76;
LinearAlgebra:-Eigenvalues( A31 );

Digits := 76



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881324657710)

(1.3.5)
>

A32 := Matrix( op( 1, A3 ),( i,j ) -> evalf( A3[i,j] ), ':-datatype' = ':-complex'( ':-sfloat' ) );

Matrix(4, 4, {(1, 1) = 0.+0.*I, (1, 2) = 1.00000+0.*I, (1, 3) = 0.+0.*I, (1, 4) = 0.+0.*I, (2, 1) = 0.+0.*I, (2, 2) = 0.+0.*I, (2, 3) = 1.00000+0.*I, (2, 4) = 0.+0.*I, (3, 1) = 0.+0.*I, (3, 2) = 0.+0.*I, (3, 3) = 0.+0.*I, (3, 4) = 1.00000+0.*I, (4, 1) = -48841.00000+0.*I, (4, 2) = 8840.00000+0.*I, (4, 3) = -842.00000+0.*I, (4, 4) = 40.00000+0.*I})

(1.3.6)
>

Digits := 100;
LinearAlgebra:-Eigenvalues( A32 );

Digits := 100



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881324648198)

(1.3.7)
>

Digits := 250;
LinearAlgebra:-Eigenvalues( A32 );

Digits := 250



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881327288182)

(1.3.8)
>



>



Example 4


>

A4 := Matrix(8, 8, [[0, 1, 0, 0, 0, 0, 0, 0], [0, 0, 1, 0, 0, 0, 0, 0], [0, 0, 0, 1, 0, 0, 0, 0], [0, 0, 0, 0, 1, 0, 0, 0], [0, 0, 0, 0, 0, 1, 0, 0], [0, 0, 0, 0, 0, 0, 1, 0], [0, 0, 0, 0, 0, 0, 0, 1], [-1050625/20736, 529925/1296, -15417673/10368, 3622249/1296, -55468465/20736, 93265/108, -1345/8, 52/3]]);

Matrix(8, 8, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (1, 6) = 0, (1, 7) = 0, (1, 8) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 1, (2, 4) = 0, (2, 5) = 0, (2, 6) = 0, (2, 7) = 0, (2, 8) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 1, (3, 5) = 0, (3, 6) = 0, (3, 7) = 0, (3, 8) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 1, (4, 6) = 0, (4, 7) = 0, (4, 8) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0, (5, 6) = 1, (5, 7) = 0, (5, 8) = 0, (6, 1) = 0, (6, 2) = 0, (6, 3) = 0, (6, 4) = 0, (6, 5) = 0, (6, 6) = 0, (6, 7) = 1, (6, 8) = 0, (7, 1) = 0, (7, 2) = 0, (7, 3) = 0, (7, 4) = 0, (7, 5) = 0, (7, 6) = 0, (7, 7) = 0, (7, 8) = 1, (8, 1) = -1050625/20736, (8, 2) = 529925/1296, (8, 3) = -15417673/10368, (8, 4) = 3622249/1296, (8, 5) = -55468465/20736, (8, 6) = 93265/108, (8, 7) = -1345/8, (8, 8) = 52/3})

(1.4.1)
>

LinearAlgebra:-Eigenvalues( A4 );

CharacteristicPolynomial: working on determinant of minor 2
CharacteristicPolynomial: working on determinant of minor 3

CharacteristicPolynomial: working on determinant of minor 4
CharacteristicPolynomial: working on determinant of minor 5
CharacteristicPolynomial: working on determinant of minor 6
CharacteristicPolynomial: working on determinant of minor 7
CharacteristicPolynomial: working on determinant of minor 8



Vector(8, {(1) = 1/3-(1/4)*I, (2) = 1/3+(1/4)*I, (3) = 4-5*I, (4) = 4+5*I, (5) = 1/3-(1/4)*I, (6) = 1/3+(1/4)*I, (7) = 4-5*I, (8) = 4+5*I})

(1.4.2)
>

A41 := Matrix( op( 1, A4 ),( i,j ) -> evalf( A4[i,j] ), ':-datatype' = ':-sfloat' );

Matrix(8, 8, {(1, 1) = 0., (1, 2) = 1.00000, (1, 3) = 0., (1, 4) = 0., (1, 5) = 0., (1, 6) = 0., (1, 7) = 0., (1, 8) = 0., (2, 1) = 0., (2, 2) = 0., (2, 3) = 1.00000, (2, 4) = 0., (2, 5) = 0., (2, 6) = 0., (2, 7) = 0., (2, 8) = 0., (3, 1) = 0., (3, 2) = 0., (3, 3) = 0., (3, 4) = 1.00000, (3, 5) = 0., (3, 6) = 0., (3, 7) = 0., (3, 8) = 0., (4, 1) = 0., (4, 2) = 0., (4, 3) = 0., (4, 4) = 0., (4, 5) = 1.00000, (4, 6) = 0., (4, 7) = 0., (4, 8) = 0., (5, 1) = 0., (5, 2) = 0., (5, 3) = 0., (5, 4) = 0., (5, 5) = 0., (5, 6) = 1.00000, (5, 7) = 0., (5, 8) = 0., (6, 1) = 0., (6, 2) = 0., (6, 3) = 0., (6, 4) = 0., (6, 5) = 0., (6, 6) = 0., (6, 7) = 1.00000, (6, 8) = 0., (7, 1) = 0., (7, 2) = 0., (7, 3) = 0., (7, 4) = 0., (7, 5) = 0., (7, 6) = 0., (7, 7) = 0., (7, 8) = 1.00000, (8, 1) = -50.66671, (8, 2) = 408.89275, (8, 3) = -1487.04408, (8, 4) = 2794.94522, (8, 5) = -2674.98384, (8, 6) = 863.56481, (8, 7) = -168.12500, (8, 8) = 17.33333})

 (1.4.3)
>

Digits := 74;
LinearAlgebra:-Eigenvalues( A41 );

Digits := 74



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881317242630)

(1.4.4)
>

Digits := 75;
LinearAlgebra:-Eigenvalues( A41 );

Digits := 75



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_dgeevx_



Vector[column](%id = 18446745881317239134)

(1.4.5)
>

A42 := Matrix( op( 1, A4 ),( i,j ) -> evalf( A4[i,j] ), ':-datatype' = ':-complex'( ':-sfloat' ) );

Matrix(8, 8, {(1, 1) = 0.+0.*I, (1, 2) = 1.00000+0.*I, (1, 3) = 0.+0.*I, (1, 4) = 0.+0.*I, (1, 5) = 0.+0.*I, (1, 6) = 0.+0.*I, (1, 7) = 0.+0.*I, (1, 8) = 0.+0.*I, (2, 1) = 0.+0.*I, (2, 2) = 0.+0.*I, (2, 3) = 1.00000+0.*I, (2, 4) = 0.+0.*I, (2, 5) = 0.+0.*I, (2, 6) = 0.+0.*I, (2, 7) = 0.+0.*I, (2, 8) = 0.+0.*I, (3, 1) = 0.+0.*I, (3, 2) = 0.+0.*I, (3, 3) = 0.+0.*I, (3, 4) = 1.00000+0.*I, (3, 5) = 0.+0.*I, (3, 6) = 0.+0.*I, (3, 7) = 0.+0.*I, (3, 8) = 0.+0.*I, (4, 1) = 0.+0.*I, (4, 2) = 0.+0.*I, (4, 3) = 0.+0.*I, (4, 4) = 0.+0.*I, (4, 5) = 1.00000+0.*I, (4, 6) = 0.+0.*I, (4, 7) = 0.+0.*I, (4, 8) = 0.+0.*I, (5, 1) = 0.+0.*I, (5, 2) = 0.+0.*I, (5, 3) = 0.+0.*I, (5, 4) = 0.+0.*I, (5, 5) = 0.+0.*I, (5, 6) = 1.00000+0.*I, (5, 7) = 0.+0.*I, (5, 8) = 0.+0.*I, (6, 1) = 0.+0.*I, (6, 2) = 0.+0.*I, (6, 3) = 0.+0.*I, (6, 4) = 0.+0.*I, (6, 5) = 0.+0.*I, (6, 6) = 0.+0.*I, (6, 7) = 1.00000+0.*I, (6, 8) = 0.+0.*I, (7, 1) = 0.+0.*I, (7, 2) = 0.+0.*I, (7, 3) = 0.+0.*I, (7, 4) = 0.+0.*I, (7, 5) = 0.+0.*I, (7, 6) = 0.+0.*I, (7, 7) = 0.+0.*I, (7, 8) = 1.00000+0.*I, (8, 1) = -50.66671+0.*I, (8, 2) = 408.89275+0.*I, (8, 3) = -1487.04408+0.*I, (8, 4) = 2794.94522+0.*I, (8, 5) = -2674.98384+0.*I, (8, 6) = 863.56481+0.*I, (8, 7) = -168.12500+0.*I, (8, 8) = 17.33333+0.*I})

 (1.4.6)
>

Digits := 100;
LinearAlgebra:-Eigenvalues( A42 );

Digits := 100



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881317227806)

(1.4.7)
>

Digits := 250;
LinearAlgebra:-Eigenvalues( A42 );

Digits := 250



Eigenvalues: calling external function
Eigenvalues: initializing the output object
Eigenvalues: using software external library
Eigenvalues: CLAPACK sw_zgeevx_



Vector[column](%id = 18446745881356880102)

(1.4.8)
>



>



>



>



>



>



>



>



>



>



``




Download Problems_LinearAlgebra_Eigenvalues.mw

2 3 4 5 6 7 8 Last Page 4 of 64
