Question: How to plot the figure at time

Question:How to plot the figure at time

666 jvbasha 130
pde numeric pdsolve differential-equations plotting
May 01 2021
1

Dear maple users,

Greetings.

In this code, the problem has executed. But I unable to get the graph.
Kindly do the needful to plot the figure at time t=0.45.
Also, please explain how to import the computed values into an excel file.

Waiting for your reply.JVB.mw


>

restart:
>

with(PDEtools):
>

with(plots):
>

ra:=1:b1:=4:na:=0.7:we:=0.5:eta[1]:=4*0.1:beta:=0.5/1:xi:=tan(0):m:=na:ea:=0.5:
>

R:=z->piecewise(beta<=z,(1+xi*z)*(1-(64/10)*eta[1]*((11/32)*(z-beta)-(47/48)*(z-beta)^2+(z-beta)^3-(1/3)*(z-beta)^4)),z<=beta+(3/2),(1+xi*z)*(1-(64/10)*eta[1]*((11/32)*(z-beta)-(47/48)*(z-beta)^2+(z-beta)^3-(1/3)*(z-beta)^4)),(1+xi*z));

proc (z) options operator, arrow; piecewise(beta <= z, (1+xi*z)*(1-(32/5)*eta[1]*((11/32)*z-(11/32)*beta-(47/48)*(z-beta)^2+(z-beta)^3-(1/3)*(z-beta)^4)), z <= beta+3/2, (1+xi*z)*(1-(32/5)*eta[1]*((11/32)*z-(11/32)*beta-(47/48)*(z-beta)^2+(z-beta)^3-(1/3)*(z-beta)^4)), 1+xi*z) end proc

 (1)
>

``
>

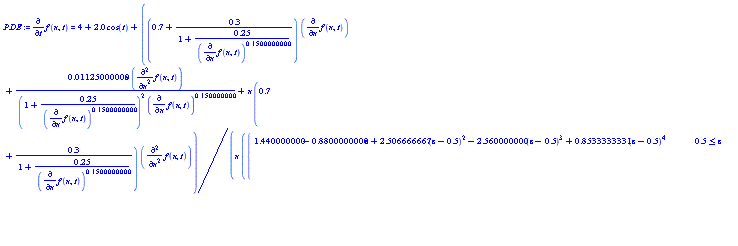

PDE :=ra*(diff(f(x,t),t))=+b1*(1+ea*cos(t))+(1/(x*R(z)^2))*diff((x*(m+(1-m)*(1+(we*we*((diff(f(x,t),x)))^((na-1)/2)))^(-1))*(diff(f(x,t),x))),x);

PDE := diff(f(x, t), t) = 4+2.0*cos(t)+((.7+.3/(1+.25/(diff(f(x, t), x))^.1500000000))*(diff(f(x, t), x))+0.1125000000e-1*x*(diff(f(x, t), x, x))/((1+.25/(diff(f(x, t), x))^.1500000000)^2*(diff(f(x, t), x))^.150000000)+x*(.7+.3/(1+.25/(diff(f(x, t), x))^.1500000000))*(diff(f(x, t), x, x)))/(x*piecewise(.5 <= z, 1.440000000-.8800000000*z+2.506666667*(z-.5)^2-2.560000000*(z-.5)^3+.8533333331*(z-.5)^4, z <= 2.000000000, 1.440000000-.8800000000*z+2.506666667*(z-.5)^2-2.560000000*(z-.5)^3+.8533333331*(z-.5)^4, 1)^2)

 (2)
>

IBC := {D[1](f)(0,t)=0,f(1,t)=0,f(x,0)=0};

{f(1, t) = 0, f(x, 0) = 0, (D[1](f))(0, t) = 0}

 (3)
>

z:=0.77:
>

``
>

sol := pdsolve(PDE, IBC, numeric, spacestep = 0.1e-1);

module () local INFO; export plot, plot3d, animate, value, settings; option `Copyright (c) 2001 by Waterloo Maple Inc. All rights reserved.`; end module

 (4)
>





>

``




Download JVB.mw
