@chriskiwi

I meant: You could upload screen shots that we can see how a small palette looks like.

I use a PC with monitors of different resolutions, which requires adjusting the scaling options. Maple in native 4K resolution works, but menus are just too small on a notebook (but a real joy on a large screen)

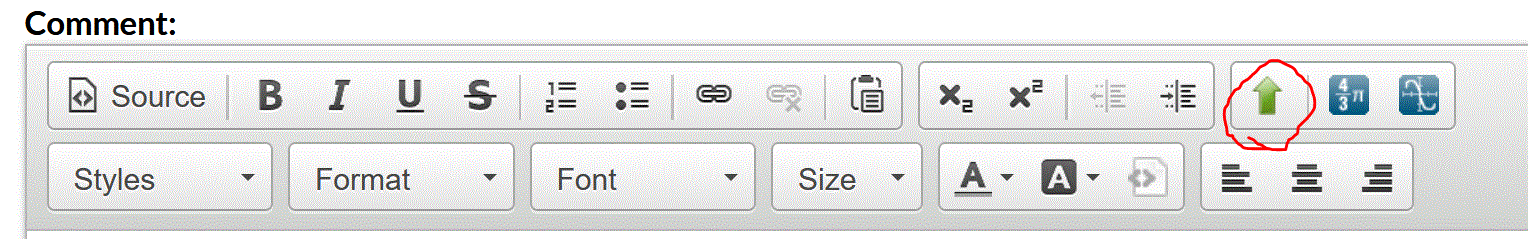

attached samples (green arrow for upload) are also helpfull.

@Joe Riel

I did that (with the Custom Component App) before I generated the C code with the same list of equations.

That worked well and matched the kinematics of a MapleSim model.

Now I want to test (verify) C code with MapleSim before using it outside MapleSim. A test simliar to what is demonstrated here https://www.youtube.com/watch?v=uaQh_bXcIGA.

Let's see how far I get with the solution of Thomas. I will send an update.

@Thomas Richard

In other words: string can be the value of output but if the value of output is a string its a filename.

I missed the two meanings of the string string in the paragraph of the help page. At least it is not obvious.

Thank you!

@tomleslie

Now it makes sense.

The equation label (2) in my example labels an output (the return value xa,xc of cat). Referring in a subsequent statement to the same equation label evaluates the output to its value (which are equations). This explains why no eval is needed when two statements are used.

This also explains why no additional eval is needed in nested statements when an output or a return value is already evaluated, which is the case for most commands.

Thanks for the help in identifying this subtle difference.

@Carl Love

Your answer provides an operator that returns an evaluated expression for the types of operands I have used. Comparing the help page of || to the answer of Tom makes the different levels of evaluation clear.

Thanks for this "discouraged" and unbeatable compact alternative!

@tomleslie

This explains why rhs returns a name (unevaluated).

What I still do not understand in my example is why two separate statements (lines of input) do not need an eval. A which point is the eval happening? Maybe it’s because the “termination of a statement” (an input line) forces an evaluation.

Thank you!

@wmcnally

The RLC circuit is a linear time-invariant system (LTI system). Linearization is independed of the linearization point which is not the case for the double pendulum

Newer MapleSim versions may provide a “foolproof” way.

In the attachment, the use of contact components instead of an elasto gap component shows no dependence on the sign of the axis of the prismatic joint for the case discussed.

Prismatic_Joint_with_Contact_Components.msim

@Joe Riel

I overlooked the fact that my suggestion only makes sense for conventional compression springs.  It looks like we will have to live with the current implementation unless a better contact condition is proposed that can also handle an unstretched spring length s_rel0 of zero length or even of negative spring length. Some experts might find such length definition useful.

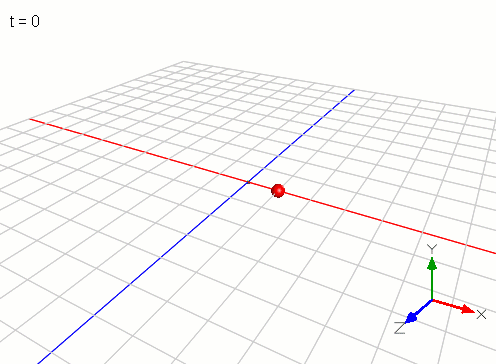

I am afraid that my main concern, of pointing out potential use errors of sign, is not well reflected in this post. Here is another attempt that hopefully better illustrates the consequences of an invalid configuration (red mass).

As indicated by the green mass, there should be no movement, but the red mass starts moving towards the contact point (at the x=0.1) because of an error of sign that is not obvious to avoid. It seems that the only way to deal with it is measuring s_rel and verifying the sign.

On a different case I was lucky enough to see that “something” was wrong with the results, but it took me considerable time to identify the cause. Unfortunately the text passage of the help page of the Elasto Gap component, that I consulted several times to make sure that I used the component correctly, is rather supporting the natural interpretation of a distance in terms of magnitude. I think a reminder of the importance of the sign would not harm (Or examples. The model gallery is full of it, but there is no way to filter for components used in a model.)

Thank you for your comment. I hope the discussion at least helps to draw attention to the fact that there can be errors of sign that are not obviously avoidable by either good practice or by component design.

Prismatic_Joint_wo_spring_with_Elasto_Gap.msim

@phil2  @Joe Riel

The original proposal to add a visual marker to the components in the workspace is unlikely to provide a quick and complete overview for complex models.

I recently found that the initialization diagnostics app basically provides such an overview. Unfortunately, it doesn't always work, and sometimes it lists components that are set to ignore (see Q1 and Q2 in https://www.mapleprimes.com/questions/234537-Initialization-Diagnostics-Questions). Also, it is not possible to quickly check and change ICs in the model workspace (complex models can have many components with similar names, which makes finding components even more difficult).

For these reasons, I think a new item in the Model Tree for filtering components with ICs set would be the best place for a quick and complete overview.  A click on a list element would provide direct access to the ICs for checking and/or changing.

I have already submitted a software change request, but cannot provide more background to it. So I do it here.

@dharr

I was not aware of this type of routing in the schematics. MapleSim uses the same type of routing for several physical domains, including electrical. Connections to a connection line are modeled with a dot. Such a connection is not mandatory. I (and probably other users) prefer to connect component to component. In such situations, ambigeous layouts are possible because MapleSim adds gaps to the routing where the lines are actually connected. Gaps are also added when connection lines cross.
It seems that this new way of layouting does not require gaps. How it works in multidomain layouts is hard to say without trying it.

Thanks for pointing out the new way of layouting.

@one man

Perhaps the difference can be explained by the type of joints? Does your model correspond to the use of universal joints?

I used exclusively revolute joints.

It seems that your questions are difficult to answer. Perhaps you can be more specific about what type of commands or syntax you would like a better reference for. Maplesoft states that there are more than 2000 commands. I don't think they all need to be referenced in the way you want, and I doubt (with all that legacy) this is technically possible in a consistent way as we know it from programming languages developed from scratch.

Since I use Maple, I don't need programming languages for my purposes. Many high-level commands eliminate the need for programming. From this point of view, I have never thought of Maple as a programming language, but rather as a mathematical environment.

But I agree that without this forum I would never have learned some command details (partly because I couldn't find the relevant help pages, partly because of missing references). And if there was a badge for "looking for documentation", I would have erned it by now.

Pointing out missing information, inconsistencies, or confusing syntax to Maplesoft will help Maplesoft better understand where and why users are getting stuck.


@acer

I will do that.

This is probably the best way to safely use gama as a name for the third Euler angle.

Thank you again!
