Excellent questions, TomM. There is no bug, but the answers to your questions are very poorly documented, if documented at all. It took me several hours on 17-Jan-2013 to figure out the answers to those same questions.
On Maple 16.02, plattools[transform] only works for very simple procedures. It does not work for procedures with the `if` function even with the simple arrow definition. or with any if-block in a more general proc definition.
You can use procedures of arbitrary complexity, but it requires a little trick at the beginning of the procedure. Let's call the procedure which is passed to plottools:-transform "the point transformer", and let's call the procedure that plottools:-transform returns "the plot transformer". When the plot transformer is called, the first call that it makes to the point transformer will be with symbolic (i.e. non-numeric) arguments. It does this to check the number of dimensions returned (because plottools:-transform can be used to transform 2D to 3D and vice versa). On this first call, the point transformer must return a list (or other object) with the correct number of elements.
simp:= plot(sin(x), x= 0..Pi);
f:=(xx,yy)->`if`(yy > 0, [xx,4*yy], [xx,yy]);
So, for the above, your point transformer should be written:
f:=(xx,yy)-> `if`(not (xx::numeric and yy::numeric), [xx,yy], `if`(yy > 0, [xx,4*yy], [xx,yy]));

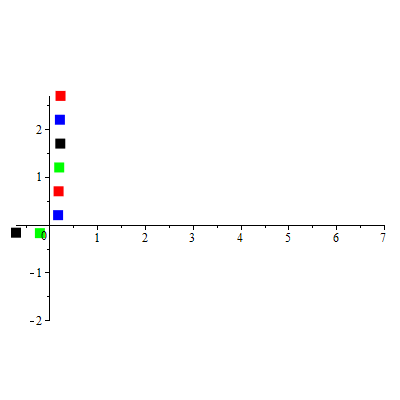

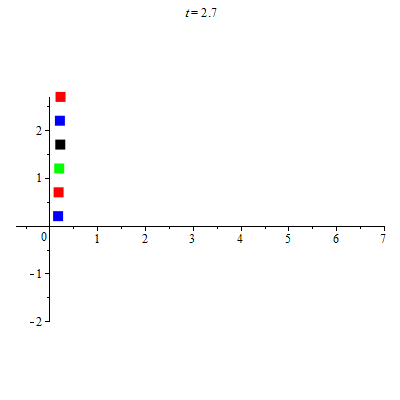

For an example of a much more complex point transformer, see my MaplePrimes post BubblePlot plotting view: Modification so that the axes don't change.
From examining op(trns), the error seems to occur in the procedure: `transform/object`. However, I cannot find a way to print out this procedure, even with verboseproc=2, with print or op. Where is this procedure, and how can I print it out?
It is a procedure local to module plottools. So, to print it out, do
kernelopts(opaquemodules= false); #Get access to module locals
You can also showstat that procedure, or trace it; which is how I figured out the answer to your first problem.
On the other hand, with f:=(xx,yy)-> [xx, 3*max(0,yy)+yy], the transform works and produces the same plot as the non-working sequence above.
It works because the above f will return a list of two elements even if it is passed symbolic arguments. But if it was inside an `if`, then it would just return the unevaluated `if`, which is not a list, and doesn't have two elements.
