These are replies submitted by Ronan

@Mac Dude  Thank you.  Got it to work. I manually made a folder on the C drive "libR". Then ran the work sheet. That created the help file and added the 2 document. Great. I Underatand to edit the help contents delete the .help file and after modyfing the worksheets run the "help edit to databse" again. All good so far.



One more question on this.

This first worksheet added opens in the browser when searched for. The second one opens as a worksheet in Maple.

Any Idea why?

 Edit:- I fixed the problem additional help files not opening in the browser. This is what the document properties "Active"= true opens the help as the maple worksheet, false opens the help in the browser.

I have not tried moving the  .help file to where the .mla file is yet. Is that important?



NULL

NULL

currentdir();

"C:\Users\Ronan.Ronan-PC\Documents\MAPLE\Rational Trinonometry"

(1)



``

HelpTools[Database][Create]("C:/libR/RatTrig.help");

"C:/libR/RatTrig.help"

(2)

HelpTools[Database][Add]("C:/libR/RatTrig.help");

["C:\Program Files\Maple 2016\lib\maple.help", "C:\Program Files\Maple 2016\lib\update.help"]

(3)

HelpTools[Database][GetActive]();

["C:/libR/RatTrig.help", "C:\Program Files\Maple 2016\lib\maple.help", "C:\Program Files\Maple 2016\lib\update.help"]

(4)

``

makehelp("RationalTrigonometry", "Rational Trigonometry Overiew Help.mw", "C:/libR/RatTrig.help", browser = ["Rational Trigonometry", "Overview"]);

["C:/libR/RatTrig.help", "C:\Program Files\Maple 2016\lib\maple.help", "C:\Program Files\Maple 2016\lib\update.help"]

(5)

makehelp("RationalTrigonometry,Quadrance", "Help Quadrance.mw", "C:/libR/RatTrig.help", browser = ["RationalTrigonometry", "Quadrance"]);

``

NULL



Download help_edit_to_Database.mw



help_edit_to_Database.mw    @Mac Dude Thank you that is a helpful concept. See your worksheet was created in Maple2015. I have edited your

worksheet. Cant seem to get it to work. Found what your mentioned on setting active to false. Didnt make afifference. I have uploaded 2 files your's edited and the one I used to make the database path. Wonder if there is a syntax change between 2015 and 2016?




restart

currentdir();

"C:\Users\Ronan.Ronan-PC\Documents\MAPLE\Rational Trinonometry"

(1)



HelpTools[Database][GetActive]();

["C:\Program Files\Maple 2016\lib\maple.help", "C:\Program Files\Maple 2016\lib\update.help", "C:\Users\Ronan.Ronan-PC\maple\toolbox\UserHelp\lib\maple.help"]

(2)

NULL

makehelp("Rational Trigonometry", "Rational Trigonometry Overiew Help.mw", "C:\Users\Ronan.Ronan-PC\maple\toolbox\UserHelp\lib\maple.help", browser = ["Rational Trigonometry", "Overview"])

Error, (in HelpTools:-HelpCallUI) help database 'C:\Users\Ronan.Ronan-PC\Documents\MAPLE\Rational Trinonometry\C:UsersRonan.Ronan-PCmaple        oolboxUserHelplibmaple.help' already exists



["C:\Program Files\Maple 2016\lib\maple.help", "C:\Program Files\Maple 2016\lib\update.help", "C:\Users\Ronan.Ronan-PC\maple\toolbox\UserHelp\lib\maple.help"]

(3)

["C:\Program Files\Maple 2016\lib\maple.help", "C:\Program Files\Maple 2016\lib\update.help", "C:\Users\Ronan.Ronan-PC\maple\toolbox\UserHelp\lib\maple.help"]

(4)

NULL


Download help_edit_to_Database.mw

@Mac Dude


@John Fredsted  Thank you for your help. This worked.

restart

mylibdir := cat(kernelopts(homedir), kernelopts(dirsep), "maple", kernelopts(dirsep), "toolbox", kernelopts(dirsep), "personal", kernelopts(dirsep), "lib")

"C:\Users\Ronan.Ronan-PC\maple\toolbox\personal\lib"

(1)

NULL

libname := mylibdir, libname

"C:\Users\Ronan.Ronan-PC\maple\toolbox\personal\lib", "C:\Program Files\Maple 2016\lib", "C:\Users\Ronan.Ronan-PC\maple\toolbox\personal\lib"

(2)

RTest := module () export Point2, Point3, LinePts, Line, LinePrll, LinePrpnd, Linepts, Quadrance; option package;  Point2 := proc (x1, y1) options operator, arrow; [x1, y1] end proc; Point3 := proc (x1, y1, z1) options operator, arrow; [x1, y1, z1] end proc; Linepts := proc (p1, p2) options operator, arrow; (p2[2]-p1[2])*x+(p1[1]-p2[1])*y-p2[2]*p1[1]+p1[2]*p2[1] end proc; Line := proc (a, b, c) options operator, arrow; a*x+b*y+c end proc; LinePrll := proc (l1, l2) options operator, arrow; is(coeff(l1, x)*coeff(l2, y)-coeff(l2, x)*coeff(l1, y) = 0) end proc; LinePrpnd := proc (l1, l2) options operator, arrow; is(coeff(l1, x)*coeff(l2, x)+coeff(l1, y)*coeff(l2, y) = 0) end proc; Quadrance := proc (a1, a2) options operator, arrow; (a1[1]-a2[1])^2+(a1[2]-a2[2])^2 end proc end module

_m643596096

(3)

``

NULL

savelib('RTest')

restart

with(RTest)

[Line, LinePrll, LinePrpnd, LinePts, Linepts, Point2, Point3, Quadrance]

(4)

NULL


Download Library_Creation1.mw





@John Fredsted

Sorry to be a pain on this. Now it procudes Error cannot open C:\........\lib, for writing.

Any ideas what would cause this. Using Maple 2016.

in Mable 2016 libname gives  "C:\Program Files\Maple 2016\lib"

Interesting it works in Maple 18

in Maple 18 libname gives "C:\Program Files\Maple 18\lib"  ,  "." What is this "."

It Must be where RTest was stored because it is not showing up .....Maple 18\lib.




 Ok Thank you. That helps. I don't get the savelib part. I just cant make sense of the maple documentation.

restart

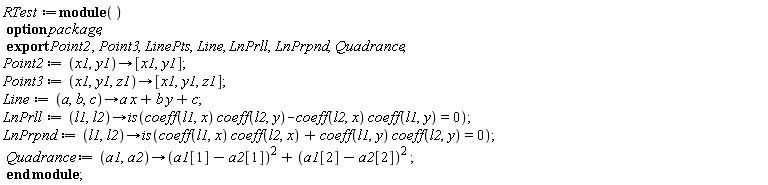

RTest := module () export Point2, Point3, LinePts, Line, LnPrll, LnPrpnd, Quadrance; option package;  Point2 := proc (x1, y1) options operator, arrow; [x1, y1] end proc; Point3 := proc (x1, y1, z1) options operator, arrow; [x1, y1, z1] end proc; Line := proc (a, b, c) options operator, arrow; a*x+b*y+c end proc; LnPrll := proc (l1, l2) options operator, arrow; is(coeff(l1, x)*coeff(l2, y)-coeff(l2, x)*coeff(l1, y) = 0) end proc; LnPrpnd := proc (l1, l2) options operator, arrow; is(coeff(l1, x)*coeff(l2, x)+coeff(l1, y)*coeff(l2, y) = 0) end proc; Quadrance := proc (a1, a2) options operator, arrow; (a1[1]-a2[1])^2+(a1[2]-a2[2])^2 end proc end module

_m1047098624

(1)

the Library folder should be C:\Program Files\Maple 2016\lib

savelib(RTest.mla)

Error, invalid input: savelib expects its 1st argument, to be of type symbol, but received RTest . mla



``


Download test_Package.mw

@John Fredsted





This may be of some assistence to you



https://www.youtube.com/user/MaplesoftVideo/videos?view=0

https://www.youtube.com/watch?v=AZDw3SJE_jE

And Peter Stones site

http://www.peterstone.name/Maplepgs/maple_index.html



http://www.mapleprimes.com/maplesoftblog/203933-A-New-Section-Style-With-Programmatic

This is 2nd in the list on the right of your screen.



@Carl Love I have the quite a few looks in help for this. Haven't found anything useful on it. It seems a very powerful tool. I could ask a list of questions on this but would rather do some basic study on it and see how I can apply it myself before asking questions.




 You probably can't solve this without assinging values to to constants. Convert the constants to rational numbers. I just made up random values for them. Then run Groebner basis using tdeg. Convert the Basis using the FGLM command to plex form. Gives 4 equations that can be solved in sequence.

Actually you can run Basis([Q1,Q2,Q3,Q4],plex(p1,p2,q1,q2)) and it gets you straight to the 4 equations.

I just picked this method because I was using Groebnr recently.

restart

(1)

``

``

with(Groebner)

[Basis, FGLM, HilbertDimension, HilbertPolynomial, HilbertSeries, Homogenize, InitialForm, InterReduce, IsBasis, IsProper, IsZeroDimensional, LeadingCoefficient, LeadingMonomial, LeadingTerm, MatrixOrder, MaximalIndependentSet, MonomialOrder, MultiplicationMatrix, MultivariateCyclicVector, NormalForm, NormalSet, RationalUnivariateRepresentation, Reduce, RememberBasis, SPolynomial, Solve, SuggestVariableOrder, Support, TestOrder, ToricIdealBasis, TrailingTerm, UnivariatePolynomial, Walk, WeightedDegree]

(2)

delta12 := 2; 1; gamma11 := 3; 1; s11 := 5; 1; s12 := 7; 1; F := 9; 1; mu1 := 2; -1; upsilon := 3; -1; delta1 := 2/3; 1; gamma12 := 3/2; 1; upsilon1 := 5/2; 1; gamma22 := 2; 1; gamma21 := 4; 1; mu2 := 3; 1; upsilon2 := 1/2; -1; delta2 := 1; 1; s21 := 5/3

5/3

(3)

Q1 := -mu1*p1-upsilon1*q1+gamma11*q1*(p1^2+q1^2)+gamma12*q1*(p2^2+q2^2)-delta1*(2*p1*q1*p2-q2*(p1^2-q1^2))-s11*F*q1+s12*F*q2

-2*p1-(95/2)*q1+3*q1*(p1^2+q1^2)+(3/2)*q1*(p2^2+q2^2)-(4/3)*p1*q1*p2+(2/3)*q2*(p1^2-q1^2)+63*q2

(4)

Q2 := -mu1*q1+upsilon1*p1-gamma11*p1*(p1^2+q1^2)-gamma12*p1*(p2^2+q2^2)-delta1*(2*p1*q1*q2+p2*(p1^2-q1^2))-s11*F*p1-s12*F*p2

-2*q1-(85/2)*p1-3*p1*(p1^2+q1^2)-(3/2)*p1*(p2^2+q2^2)-(4/3)*p1*q1*q2-(2/3)*p2*(p1^2-q1^2)-63*p2

(5)

Q3 := -mu2*p2-upsilon2*q2+gamma21*q2*(p1^2+q1^2)+gamma22*q2*(p2^2+q2^2)+delta2*(3*p1^2*q1-q1^3)+s21*F*q1

-3*p2-(1/2)*q2+4*q2*(p1^2+q1^2)+2*q2*(p2^2+q2^2)+3*p1^2*q1-q1^3+15*q1

(6)

Q4 := -mu2*q2+upsilon2*p2-gamma21*p2*(p1^2+q1^2)-gamma22*p2*(p2^2+q2^2)+delta2*(-p1^3+3*p1*q1^2)-s21*F*p1

-3*q2+(1/2)*p2-4*p2*(p1^2+q1^2)-2*p2*(p2^2+q2^2)-p1^3+3*q1^2*p1-15*p1

(7)

for i to 4 do Q || i := expand(Q || i) end do

-3*q2+(1/2)*p2-4*p1^2*p2-4*p2*q1^2-2*p2^3-2*p2*q2^2-p1^3+3*q1^2*p1-15*p1

(8)

``

``

``

GrB := Basis([Q1, Q2, Q3, Q4], tdeg(p1, p2, q1, q2)):

nops(GrB)

17

(9)

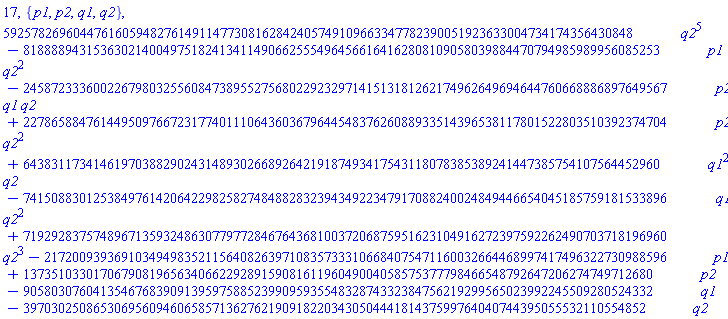

for i to nops(GrB) do i, indets(GrB[i]), GrB[i] end do

17, {p1, p2, q1, q2}, 592578269604476160594827614911477308162842405749109663347782390051923633004734174356430848*q2^5-8188889431536302140049751824134114906625554964566164162808109058039884470794985989956085253*p1*q2^2-24587233360022679803255608473895527568022923297141513181262174962649694644760668886897649567*p2*q1*q2+22786588476144950976672317740111064360367964454837626088933514396538117801522803510392374704*p2*q2^2+6438311734146197038829024314893026689264219187493417543118078385389241447385754107564452960*q1^2*q2-74150883012538497614206422982582748488283239434922347917088240024849446654045185759181533896*q1*q2^2+71929283757489671359324863077977284676436810037206875951623104916272397592262490703718196960*q2^3-21720093936910349498352115640826397108357333106684075471160032664468997417496322730988596*p1+137351033017067908196563406622928915908161196049004058575377798466548792647206274749712680*p2-905803076041354676839091395975885239909593554832874332384756219299565023992245509280524332*q1-39703025086530695609460658571362762190918220343050444181437599764040744395055532110554852*q2

(10)

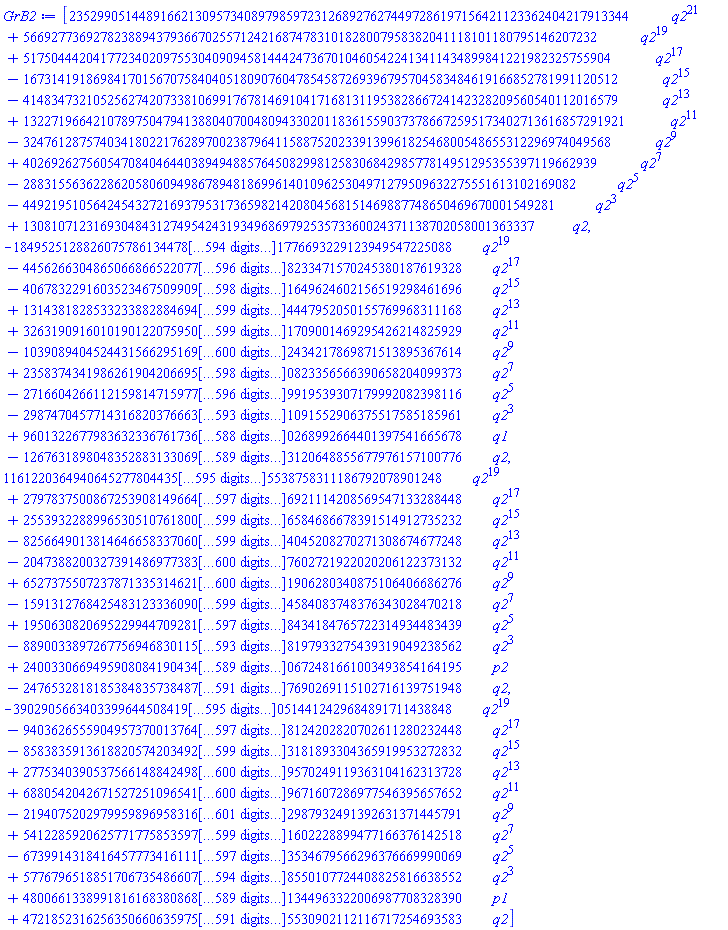

GrB2 := FGLM(GrB, tdeg(p1, p2, q1, q2), plex(p1, p2, q1, q2))

[23529905144891662130957340897985972312689276274497286197156421123362404217913344*q2^21+5669277369278238894379366702557124216874783101828007958382041118101180795146207232*q2^19+517504442041772340209755304090945814442473670104605422413411434899841221982325755904*q2^17-1673141918698417015670758404051809076047854587269396795704583484619166852781991120512*q2^15-4148347321052562742073381069917678146910417168131195382866724142328209560540112016579*q2^13+13227196642107897504794138804070048094330201183615590373786672595173402713616857291921*q2^11-324761287574034180221762897002387964115887520233913996182546800548655312296974049568*q2^9+4026926275605470840464403894948857645082998125830684298577814951295355397119662939*q2^7-2883155636228620580609498678948186996140109625304971279509632275551613102169082*q2^5-4492195105642454327216937953173659821420804568151469887748650469670001549281*q2^3+1308107123169304843127495424319349686979253573360024371138702058001363337*q2, -18495251288260757861344781741648014476775101683984202117929009455111064670768473931126567232765673953873392585100077315914904994775083809335762048542236312836512137057426176168098294543369347490262874396091808959093124048414688771291094153182322745031464016209482353458034907400377339587661889233771361169048117210565053359337937049205623712903387727738904687414085887251134460652937072745047807449764808572531497172435037232893845898846502436819379176251952751585440744204902796912412417447369100911398799554430335398411306309632823588844652150632462043384887995614739479039047149863997208316787911129122647090116132931776693229123949547225088*q2^19-4456266304865066866522077621576181322538418522659162766345426723065130527360468502715490779920393473182290111142983363451196116958685978477385850215624036247778682210160682133267182671890048997060299047565421214107913626539830132017426835956927048716929827521881627820010553400309620100188372871756205407296881723535145292729106997196130360049943943745967410659318278000792246261503813454543683707986839067718167144189427000075857308384307742701627287428936036000472274979139539842236493918187650613034440276415280683238842913945527646004762436671682605287722665403198381300364763350052621725513107703000302929775953444338233471570245380187619328*q2^17-406783229160352346750990985480126279075320418621820284659003495844275173866954838992171281522239658065521190721987595558838842591467914380405730441306364622741914989898149190351274764642622475606529421822188493213088253913699516173744529511337296500023129996085657927139119421019203461306566894902276473393439581383726229526091257672770116013694385983737494786146837689205443763390909036343118202494645401410910903648465623604043434218841497453589685560339329077597462295875616931681891009103458558619583193169165383201943006143816126875394016435747848278434517603401457771793885737039941693049734451044865073082048722831871649624602156519298461696*q2^15+1314381828533233882884694369653494347797768185379331791631550606512505400580338647145788814571530587135389169004860265584524490107292789570503700558107989577590774359493497852229793681646252998048255317218714128739713780255797064412974123804295351657230161937816192881279982516931681996617841062567656661200938912351547860540573184020241183159036062668286925395553342024151948863949596694515988992657285356260053067042269349131746711830152609124950142789314542801353248457047050159127220398729896868502732962972887220320931896167649763723241483534087921001301344820396269434879674748106968775224771768608690505651067563894244447952050155769968311168*q2^13+3263190916010190122075950199983057956163906246860798097663729940936607223849143593569138063110471487104508235535004742670104287281504095091516863006213642869109626710922712245017336146336412078761799028742144808042731654888504032442524340133817570071779104731164781234477988437566657804579250733514102022541623891175455301161649746881051707200613009293678514488812324770803846486004838441930477722617895474284313176730938631505219221891553805377719669193009754017030565713979339490607890971750810986601028739114461248081471914541361074474649064022390868951881026566385365257503316439685181808875378046399406983027863532818071709001469295426214825929*q2^11-10390894045244315662951695098920934580231095943793902060721981695131181082105029079915741890389879830614730401122777092048822707212682397981835454262852614760682246985192469942318722596345822705827631324617030646257352144699714872837017977167735899866846477044371316021843614221177630653797220088727620588348333763785897524959315469331507366117835148453624531988622435022923202048157756144796680265739373187691869844831441406978340031712904221835833568005280772546455124399994443844386208274923770859726522227993670301695504405498657819577088103198746012359107776852969307512970019925230881832066596601167659652251145216435102434217869871513895367614*q2^9+235837434198626190420669581725727182177715502337260240893454552316507989590317015453586528008259928314736176059358916536995322613017907730452168505348338950307037459947235208701415451546071749732916118995724275324297952923731356439081836114499840123968224777980861726282998817172223465641461947688020069180444426026624024532693440282677900050138711783801353448893478289092813643919186174954074891593864619879122280077014466015117570282630468042487756228095507501329138413484468319557586234252938737986912186555717390906295984877194294990860727357988728197855284193974662226107158463405048897204507799360932805750421739689360823356566390658204099373*q2^7-2716604266112159814715977313149435248445221533300929632757455294792229585475881237140800985959871167825425884989104754887635441319108165554352693322368588645732077799833018530349225446432573260015926872557650618013277722715117214085887902537873585748026390890874768682205779369210091459578548994525860842933106923174405142550848535317885138081294027844622477957224840418664390631646564487601652879861380041327013696422024096785211589655843117589304492845526767767085850366535761917743709648986899895152394738096053126432423272936594284378527171754281867972489056551426232191339621689085289754838193747870216486879883644729919539307179992082398116*q2^5-2987470457714316820376663376261489678743674796281966813440673426996666055301317898056618872940587944788047446506863092227602832144057647424949306992244361191146037088415719336274416696020106849742762274051489806372168540924741087699155345603566761822998755460734941523384409172711487789324377342321114373564565303092187704897198236017536546454242971454258762616117931616141443506124753208726170388754709686067524747524785495267809528599802469419661638514099028613954579232147322670459069295420140340711846725027440851424049008764882278486247922491599187057450591620619995782760972377269232984220185683568508603997335201091552906375517585185961*q2^3+96013226779836323367617362523779424044530021376376253614734535770626736256613614483575818209764228904778736698348526559546539853023440551094123973625857422025638922639272143624845550502523648506865684575708702529595890383409292110659725675496245173856808896522971243459325590313248951175723487324199282198373017926330335426317167913880367518377544815722962252841333819822182092493407957908437444191477504989356104604927997683166456471090887539983076300945248318316496889605573385510987155918724973310732030274804668374175551492490253799804153928196584740458435058714257590435668283932177787794133403592633806370380268992664401397541665678*q1-126763189804835288313306953030178391118374054052450455263498891260251595589976269144884042811971736170230677004284352775371630110831079130875574534568147774235185574003377998210821036614878745707297805472918141788813818307597926664209278464984986254920968622215552040914339146243057720711948731410765741019021286164396149169343648101882220307665549516167287859756120370093827721688281372793318170840903677941630415530195808420788505606452149407975491810201557476131651460198564643502155526294421820639451813324895469043009903265467520896008587225452537682213127343133935862322675961350830051437258613727031620515823120648855677976157100776*q2, 116122036494064527780443542321897761698158544199793204954858534564368841522388931809440753493391455349764525979284786258698388296009538955020616449430755260682459169607351632952006555956308402614748921757252591998993704113616493680203054624233391953963304796244123905361941053666345995866277351913293442743317237661986855209435155265327072729162111428978533726055938052522865182841683401884685221468737457599297410566807188399656363150993565013267784007144681019862865898697620304565288695462036264167099143219671201108921358104350703349183874984861104039053765224502382548740042908992758423083869941979978354782914378185538758311186792078901248*q2^19+27978375008672539081496646262752802197441046453710024801751651696452680205382858898550169851424638698672438820563476320886259422097795665341365597881477927130800326405498812769884985959933138956626127940969306097156593471329684810675154603064565202693567500601255780480102416631062778021640336643391756052057750497065848512413914675206176856830913990226895368749670857483545998339026858607451873139815205765741996437279680615681873511128487835582282659510403659482093346706067003954387728549054198808453222909959465545981376932707972633047208204357438508463355078595670894090930023817136434209848610016051320886099489891706921114208569547133288448*q2^17+2553932288996530510761800900268632904312939874919701213036942357684780648177534674312911071728180338583343971507587802063237137031507160922019816077431674907606393389557489575223718799427340303643546372680945822324158136959008495275123224870305812408100159207112743856545548021500770265083035442363769835024918019962615391190866075492400970358423921345047524118188339493964875387508773469886571442477506116214903222434718285067546336848665087574951035490973175039686930312069612708880638074714569033937385712809142185614320265426023208734966955596765369480212595166986936639319135772648267190541421316280254177281833989906996584686678391514912735232*q2^15-8256649013814646658337060104783800426022156796759430468731646919195543712712576563511499806557644739594656943688351796161816356391186523710826228565978696656985393613669127975301539683809841649824477709263338827688324448425674163446063489220010972209289472828717488044314372832417930581159467108732587758177911224892096154012920046547060673634218062613418609456203054263525871338611329850489590537171951978533787221100869518732279227900717613726291665660539147808428848182358514868393720149445763942297466247867242832214724111377525108592674460472465718921620812764963143862891213566418208913178617711089756776902736775318314045208270271308674677248*q2^13-20473882003273914869773834712838407999355035440561349187891741969332648612707862450007602024843187699395995662098172512316449783627842055823438607381796400273937900604362886245633923895765131769267476823169561117254267343041233643936276250873653940470538172400928275072290612390017739890600072984799759121194697516613534938557029022725766979134373678255333904891309073594229760958734005457030561339834925767346770870301268740051137490080816773973993137633321094008923742583915527289949615988645211370864594725382024928980418801219697268249444809463456194752480515437670626976557273478561430100882655436946893517869091956975207602721922020206122373132*q2^11+65273755072378713353146213985613868963544189412048851721106630014059277007467059138837874973505774590453294246434008718091538654611202664086103488744167559823095908206166932666892905865933202140397907283561012303971909040336529376571274941297229909419114443244898445464472127718800891986687623074246106078985402873779115881952955507934156670490084842146264497150928870587981462785681521202086171458702666123960841264072805320162984449771499717692447829428217293748586513228592271185178363087992340023943772626459617488478577827155080297378894390197281907347082355321136128357740446636312344796403394680982963677028454503023651906280340875106406686276*q2^9-1591312768425483123336090051897937730718248955364770080809199989430173311839215900603660671480979166769365213893947207569928526598637324473309280095283890821301590947858260090533945659470769144747337815857407662912351645009710058993996743480579710657007357447427018181620262163393654921546721783951670501984689247980286722686350454553136766449548295862502010660269094681030784981377439718254415244873791475418219143575496289799186935431103937688798947474869294108624373833212752144048734902116222674947633198076636213138924628811063604932716206093140921227653602581015543694542506702827464928359028131465706196784872768635034584083748376343028470218*q2^7+19506308206952299447092814239516251356560095037419077677353269383823654688259834273753870461134838703354344357772951166001656108845870882070127565229074739140118186114604369955508366613748959183319652645739439662534546401481482828899631975408871884442712691920390859666804681022222656964597076058642794746974979250187851066156906055677487357746258814091155168297519330541140437154334522800186605009905801141452967731910336235974411208893330230327927350786496436880657033510371144141188888037488433691312227655389858223807298523631546725454710050449866520838536265215347016336386645314033495039620235989090342413778578000178434184765722314934483439*q2^5-8890033897267756946830115250570253088139146016462439207821942929228295416184120143776593807060244567129958488262835844389188648873490356709519569622124185774507443008628832679795006606750413650225529626928386127045765537105820628266184446272986556003444473471725751251004594702883910816788673350014979108068284351219659371084865501594346583549322190683998267949248693127077636255139784493668496830570213412967747034012916882792820126490426770254234688553750033247457935674997970446193270791546229381021596962864859987051659098189675935460762487204528504466922175315326819627189997282439842056774490454784475575701224308197933275439319049238562*q2^3+240033066949590808419043406309448560111325053440940634036836339426566840641534036208939545524410572261946841745871316398866349632558601377735309934064643555064097306598180359062113876256309121267164211439271756323989725958523230276649314188740612934642022241307428108648313975783122377939308718310498205495932544815825838565792919784700918795943862039307405632103334549555455231233519894771093610478693762473390261512319994207916141177727218849957690752363120795791242224013933463777467889796812433276830075687011670935438878731225634499510384820491461851146087646785643976089170709830444469485333508981584515925950672481661003493854164195*p2-24765328181853848357384873103720062928316418787504556175501132823427902197743797310768944622744105087633342964880620598858580514239402631470333260184042493201573109426919045896405739986704995462515535414647869360287542198278559853666204494718343671130250623100287998747814835095716190054465611424031455386108819801557045165156877202697693234402448282842404793039408591294719433909255256081918199603379551830258582764829709012447308801413534723542474174347746767709896011448920984062552467340743685177003369809068672997969348551687607799946320385703908572078046388767482506371573899708389433528627833977379580195574667690269115102716139751948*q2, -390290566340339964450841979725464004484168918359040029278772591371723554419219715842640841856876550753764429336494118982409565748262342792847113658594797961554695506229716114326238308950708520160125525528382198517342464502378750014015940282261952602233012386636039024484726912271080532726519308837396274649898279776328640419651075706949219870194719763592378720885364412098444676026990239992926507154227713037096638087372267682098929537653918741634954201780519749982831285200329636543364135716922946732297861468984978379800962111505423917141512401633618165385964240179317172477608505727190130370906923806993157848175041270514412429684891711438848*q2^19-94036265559049573700137647118346357576147517062868584911588711831241489320509392231083092640937154603769577006173954976880806079235850950079324856876413993057951281041749514612288300600310258502177149846839874373229058122282749106626545276386556452948183813836526192359888960812678374890251161359807639770046971989743827269274641067720863892180744210677226442585076886373352822421811626554111683684069001986053691043886611341088410705689573847754710856430156186049653691480056168434525366712118869523610977665611824342138233593023216207233145622847343578439987136474984217322984547000633054105037501516670163730349227635808124202820702611280232448*q2^17-8583835913618820574203492452075672450998789445777846939940038025087931576748605305502607495156563035623219792317822458797546454888340949199800651046269447056018663782685476241930911711484090944463934105772931817399230088197652770985050297762507055824047798416998967773905233360822320089863727682135512730733138099825758415043342773424051900586254385675423607989268580071299589054708314000841163829176949711391933117716751353169883767620125421790375348593104378837256173801765786688755883788991528134762634941091527939086458658672533806691202333679352715446246481652614317315385395226119277399311443910602617708455965957113073181893304365919953272832*q2^15+27753403905375661488424987496456453445319429211815088175271599156379790150047346964901072237051408344425455603504296587155421094532986633917607730923269787955128402509179237427283750450854554602882668802339422440761201798768302055142842192447279185445357532039448634789971631056460342659980509289455722408314613388137180456450287825925429214619487143792291069276826931583708106772989114186381235514943755024301812333898055370271615171505113415470754780810367580878915069780457636583617441382375156903327585517987246264350788235098832777365156181428253274872992641554385370877269222822099096233040727542038013255126798724513029570249119363104162313728*q2^13+68805420426715272510965415684074832410415251714680264454833735445400562521387845234226742524193284753037419283264138377880392870417165297625963868560191136982593097447091141042685687714143301956517252278196737542074429755687448175990563233677510285462320087072236030166618872334030468268819118623305383578373473400476572340653714033799985559611768168560524924134802959713288789282074109298292978629317634120466210875227618217347245659046518251392191709870181468095537438874618661012062666953177993031231437660389151584106251526392457028330346450879459768677073492114555014942648959870245694984192688653948343937538554025641909671607286977546395657652*q2^11-219407520297995989695831675671499217935731879234597533908967356146581202836972126891710935153043244495888336109670727031600374080895234564379052842779352744713447486983810050157047875919172190265948505027033324758478939482486826927538022012633700561774820657644660694813607322092622798637926283815289966356393065630361902863961604558496994215233622209227918554332974617473537695389896356892820534571904912832327366369891666738111352769201390947038213807268025355486860802822847959533322868368800913634569814358507943261393544457747319334373785897037521623904832740268540561575659362704363489220149935771804845706844436322570182987932491392631371445791*q2^9+5412285920625771775853597173065194025942082020330806347089349617853863243129258570110831222661350211530933955137170133553450380353506256441170790225412923928092610390647912313243830810135578496645086257509656715164143354625885041113840574758429916952340731463795775947355962785129745244349679374553470994124530688581767684329474344733470607402316638315374383909414981549000313493057858271504183448117670757100014021590992374880872708619746011728663415431883902808608077779254385963661579598109015530400354325864409190824681562679457270697672589180706004330133440013122980553320555546779569537294936217286021176433589909280751602228899477166376142518*q2^7-67399143184164577734161118512532542529013436301758779058578412359050392518741810300075623512168767929646400129049227940128995953594595477753066605620328666713453386630892913623484473661421085261660581489176648423803288744275683205292704106562788975116558377411402669071434572135810774401449180360195309794669071183128994382975419060400200958039132429229644644056069384853268695866329797602930301319277929761628264083294188395874222847436839061010366689335080480221165008632748220500754270978257549473572017800569468903205107859156505589305532032796314050114441173210958859894591933935454433840187737280303846595084045651403534679566296376669990069*q2^5+57767965188517067354866076614545992050932089229740265407544903101056798927925397473706005713420600011255683233042912696428768679519052550148669023326851044337411675662218167229250995297701838161931040338626868730749004107070409682776340978116004184800429663798612990334106100142469444695682024667964946998204735490746280882764069844639017310110346018032082281548476760016399225068692305610045881740222302587344867490035105806032794879031292741227552478536844644874755862407430548318352162647569955898213879995187918557220053667107393900156168256983448975079313592934636131342843948273873141928613507938100221779240408198550107724408825816638552*q2^3+480066133899181616838086812618897120222650106881881268073672678853133681283068072417879091048821144523893683491742632797732699265117202755470619868129287110128194613196360718124227752512618242534328422878543512647979451917046460553298628377481225869284044482614856217296627951566244755878617436620996410991865089631651677131585839569401837591887724078614811264206669099110910462467039789542187220957387524946780523024639988415832282355454437699915381504726241591582484448027866927554935779593624866553660151374023341870877757462451268999020769640982923702292175293571287952178341419660888938970667017963169031851901344963322006987708328390*p1+47218523162563506606359754791822860875638392954402128101232582859473190275048703674703843336324679960537904057520998432027259617667523628575634898267949658367834461224148571870659797502070405771278005365837441897251534788503664320714030806163375524926614829915308279717595020890319203574867425971354977016068108947978758631562480561492512971718962997571926373035781882812875147623470560925078967775915475769435807239417190524181497876879643846637970934629322940326995322002712994695846142907398787436812125985876944599676342828219329809465466491031847857697963005389052535368205129296996645425749682625205470110136255530902112116717254693583*q2]

(11)

``

for i to nops(GrB2) do i, indets(GrB2[i]) end do

4, {p1, q2}

(12)

``


Download solve1.mw

@Carl Love  I don't quiet understand. I took what you did, looked at "help" in Maple and after a good dose of trial and error got it to work.

@Carl Love Thank you, I also manged to use technique to built a diagonal matrix of 1's and insert a 3 x 3 matrix in lower right corner

M1:=<<Matrix(S*(dmax-1),shape=identity);Matrix(S,S&(dmax-1))>|<Matrix(S*(dmax-1),S);C||dmax>>

C||dmax is a 3 x 3 Matrix.

@Kitonum Thanks, easy to follow the logic.

@John Fredsted Thank you



@acer That's whats causing it. Thank for all you explaninations on this.

@acer  I should have said I downloaded your wokksheet.and ran it as it is. That is what I meant. Wondering if it is to do with a Maple setting. I'm using Maple 18. Am well aware how to upload worksheets as I usually do an example one, when I have a question, Admittately in 2D format.
