Thank you Acer and Carl for your help. Things look so easy when you know what you're doing.

This is day #14 since I installed Maple.  In frustration, I think I gave up using it about three times so far. You guys on Mapleprimes make a huge difference.

Tom K.

This works:

display({plots[odeplot](dsn, [[t, Sx(t), color = green], [t, Ex(t), color = black], [t, Ix(t), color = blue],[t, R(t), color = red]],  0 .. 100, legend = [ Sx(t), Ex(t), Ix(t), R(t)], labels = [t,""] ),PointPlot(FLDat)});

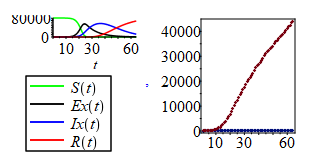

I appreciate the feedback.  The suggestion does not combined the plots, that is, plot them on the same abcissa, but generates two separate plots. My goal is to compare a model plot to a data plot.


Delayed Differential Equations - SEIR Compartmental Model Modified with 2 Time Delays - Progr



Delayed SEIR Model:



The goal is to model COVID-19 data from Flor

NULL

restart: with(plots): with(DEtools):with(LinearAlgebra):with(Statistics):with(CurveFitting):with(Statistics):
with(Optimization):

FLDat := ImportMatrix("FL Matrix Total Cases 3-11 to 5-17.txt")

``

PointPlot(FLDat)



ddesys := {diff(S(t),t) = -beta*S(t)*Ix(t)/N,
diff(Ex(t),t) = beta*S(t)*Ix(t)/N - sigma*Ex(t-tau__1),
diff(Ix(t), t) = sigma*Ex(t - tau__1)- gamma*Ix(t-tau__2),
diff(R(t),t) = gamma*Ix(t-tau__2),
diff(Dx(t),t) = delta*Ix(t),
S(0) = 80900, Ex(0) = 1, Ix(0) = 1, R(0) = 0, Dx(0) = 0 };

{Dx(0) = 0, Ex(0) = 1, Ix(0) = 1, R(0) = 0, S(0) = 80900, diff(Dx(t), t) = delta*Ix(t), diff(Ex(t), t) = beta*S(t)*Ix(t)/N-sigma*Ex(t-tau__1), diff(Ix(t), t) = sigma*Ex(t-tau__1)-gamma*Ix(t-tau__2), diff(R(t), t) = gamma*Ix(t-tau__2), diff(S(t), t) = -beta*S(t)*Ix(t)/N}

(1.1)

dsn := dsolve(eval(ddesys, {beta = 4, gamma = 0.0478, sigma = 0.10, delta = 0.0005, N=80900, tau__1 = 1.1,tau__2 = 8.7,tau__3 = 0}), numeric):

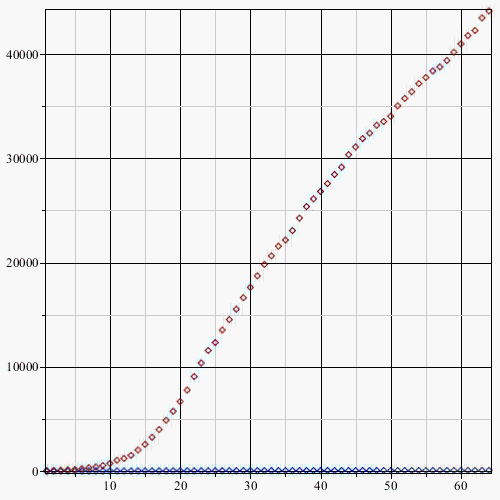

plots:-odeplot(dsn, [[t, S(t), color = green], [t, Ex(t), color = black], [t, Ix(t), color = blue],[t, R(t), color = red]],  0 .. 64, legend = [ S(t), Ex(t), Ix(t), R(t)], labels = [t,""] ), PointPlot(FLDat);

INTERFACE_PLOT(CURVES(Array(1..201, 1..2, {(1, 1) = .0, (1, 2) = 80900.0, (2, 1) = .32, (2, 2) = 80898.70931973589, (3, 1) = .64, (3, 2) = 80897.39727962836, (4, 1) = .96, (4, 2) = 80896.06388071735, (5, 1) = 1.28, (5, 2) = 80894.70760299974, (6, 1) = 1.6, (6, 2) = 80893.3002928243, (7, 1) = 1.92, (7, 2) = 80891.79062339861, (8, 1) = 2.24, (8, 2) = 80890.12568389365, (9, 1) = 2.56, (9, 2) = 80888.25177268042, (10, 1) = 2.88, (10, 2) = 80886.11465271187, (11, 1) = 3.2, (11, 2) = 80883.6584304741, (12, 1) = 3.52, (12, 2) = 80880.82355639263, (13, 1) = 3.84, (13, 2) = 80877.54455150057, (14, 1) = 4.16, (14, 2) = 80873.74797358717, (15, 1) = 4.48, (15, 2) = 80869.35003716091, (16, 1) = 4.8, (16, 2) = 80864.25459855855, (17, 1) = 5.12, (17, 2) = 80858.3505303249, (18, 1) = 5.44, (18, 2) = 80851.5094316545, (19, 1) = 5.76, (19, 2) = 80843.582417111, (20, 1) = 6.08, (20, 2) = 80834.39718506459, (21, 1) = 6.4, (21, 2) = 80823.75390748605, (22, 1) = 6.72, (22, 2) = 80811.42124655306, (23, 1) = 7.04, (23, 2) = 80797.13104764797, (24, 1) = 7.36, (24, 2) = 80780.57283384023, (25, 1) = 7.68, (25, 2) = 80761.38696566978, (26, 1) = 8.0, (26, 2) = 80739.15698997388, (27, 1) = 8.32, (27, 2) = 80713.40089483521, (28, 1) = 8.64, (28, 2) = 80683.56048854395, (29, 1) = 8.96, (29, 2) = 80648.99019402167, (30, 1) = 9.28, (30, 2) = 80608.94317112632, (31, 1) = 9.6, (31, 2) = 80562.55548755769, (32, 1) = 9.92, (32, 2) = 80508.82866560952, (33, 1) = 10.24, (33, 2) = 80446.60878120405, (34, 1) = 10.56, (34, 2) = 80374.5629987512, (35, 1) = 10.88, (35, 2) = 80291.15411429598, (36, 1) = 11.2, (36, 2) = 80194.60803337181, (37, 1) = 11.52, (37, 2) = 80082.88162081027, (38, 1) = 11.84, (38, 2) = 79953.61969874235, (39, 1) = 12.16, (39, 2) = 79804.11541808334, (40, 1) = 12.48, (40, 2) = 79631.25491035426, (41, 1) = 12.8, (41, 2) = 79431.46864516582, (42, 1) = 13.12, (42, 2) = 79200.66318758723, (43, 1) = 13.44, (43, 2) = 78934.16159982634, (44, 1) = 13.76, (44, 2) = 78626.62472388685, (45, 1) = 14.08, (45, 2) = 78271.9787903433, (46, 1) = 14.4, (46, 2) = 77863.33379471097, (47, 1) = 14.72, (47, 2) = 77392.89872428366, (48, 1) = 15.04, (48, 2) = 76851.91091977216, (49, 1) = 15.36, (49, 2) = 76230.54976821554, (50, 1) = 15.68, (50, 2) = 75517.89304895444, (51, 1) = 16.0, (51, 2) = 74701.86672058607, (52, 1) = 16.32, (52, 2) = 73769.24547507486, (53, 1) = 16.64, (53, 2) = 72705.70541630106, (54, 1) = 16.96, (54, 2) = 71495.91710038215, (55, 1) = 17.28, (55, 2) = 70123.76436820159, (56, 1) = 17.6, (56, 2) = 68572.65442128316, (57, 1) = 17.92, (57, 2) = 66825.9645240491, (58, 1) = 18.24, (58, 2) = 64867.69582069701, (59, 1) = 18.56, (59, 2) = 62683.29702688955, (60, 1) = 18.88, (60, 2) = 60260.70658229984, (61, 1) = 19.2, (61, 2) = 57591.6527346296, (62, 1) = 19.52, (62, 2) = 54673.13526065292, (63, 1) = 19.84, (63, 2) = 51509.03867453769, (64, 1) = 20.16, (64, 2) = 48111.83024372886, (65, 1) = 20.48, (65, 2) = 44504.1288413157, (66, 1) = 20.8, (66, 2) = 40719.89196393027, (67, 1) = 21.12, (67, 2) = 36805.038203904085, (68, 1) = 21.44, (68, 2) = 32817.135492308786, (69, 1) = 21.76, (69, 2) = 28823.863909968364, (70, 1) = 22.08, (70, 2) = 24900.187801458, (71, 1) = 22.4, (71, 2) = 21124.079817915554, (72, 1) = 22.72, (72, 2) = 17571.21461043677, (73, 1) = 23.04, (73, 2) = 14309.08878546319, (74, 1) = 23.36, (74, 2) = 11391.362978881945, (75, 1) = 23.68, (75, 2) = 8853.348668180854, (76, 1) = 24.0, (76, 2) = 6709.446749761095, (77, 1) = 24.32, (77, 2) = 4953.044616043911, (78, 1) = 24.64, (78, 2) = 3558.89493255131, (79, 1) = 24.96, (79, 2) = 2487.5237524757545, (80, 1) = 25.28, (80, 2) = 1690.7669191260732, (81, 1) = 25.6, (81, 2) = 1117.434384965206, (82, 1) = 25.92, (82, 2) = 718.1828664187036, (83, 1) = 26.24, (83, 2) = 449.01511112585837, (84, 1) = 26.56, (84, 2) = 273.2187904091181, (85, 1) = 26.88, (85, 2) = 161.90244120104308, (86, 1) = 27.2, (86, 2) = 93.49839820269194, (87, 1) = 27.52, (87, 2) = 52.66357132370759, (88, 1) = 27.84, (88, 2) = 28.956197089164775, (89, 1) = 28.16, (89, 2) = 15.555409659412017, (90, 1) = 28.48, (90, 2) = 8.171872361528305, (91, 1) = 28.8, (91, 2) = 4.202008851741483, (92, 1) = 29.12, (92, 2) = 2.116818229711541, (93, 1) = 29.44, (93, 2) = 1.0456750208660672, (94, 1) = 29.76, (94, 2) = .5069799325061027, (95, 1) = 30.08, (95, 2) = .2414675588991685, (96, 1) = 30.4, (96, 2) = .11308189636674436, (97, 1) = 30.72, (97, 2) = 0.5211774572600726e-1, (98, 1) = 31.04, (98, 2) = 0.23660731760223784e-1, (99, 1) = 31.36, (99, 2) = 0.10590427551798e-1, (100, 1) = 31.68, (100, 2) = 0.467772178933653e-2, (101, 1) = 32.0, (101, 2) = 0.20407295241065613e-2, (102, 1) = 32.32, (102, 2) = 0.8801557091092659e-3, (103, 1) = 32.64, (103, 2) = 0.3756177027611988e-3, (104, 1) = 32.96, (104, 2) = 0.15875271850003195e-3, (105, 1) = 33.28, (105, 2) = 0.6651173427882801e-4, (106, 1) = 33.6, (106, 2) = 0.2764409576506488e-4, (107, 1) = 33.92, (107, 2) = 0.1140532373882259e-4, (108, 1) = 34.24, (108, 2) = 0.4674630915796458e-5, (109, 1) = 34.56, (109, 2) = 0.19037262877402192e-5, (110, 1) = 34.88, (110, 2) = 0.7667067457622032e-6, (111, 1) = 35.2, (111, 2) = 0.30566847637599495e-6, (112, 1) = 35.52, (112, 2) = 0.12132548142248575e-6, (113, 1) = 35.84, (113, 2) = 0.4427451096228786e-7, (114, 1) = 36.16, (114, 2) = 0.1644918768022575e-7, (115, 1) = 36.48, (115, 2) = 0.4490275001314776e-8, (116, 1) = 36.8, (116, 2) = -0.28810116243822003e-9, (117, 1) = 37.12, (117, 2) = -0.27291502898133267e-9, (118, 1) = 37.44, (118, 2) = -0.9614671679105932e-10, (119, 1) = 37.76, (119, 2) = -0.37366648850550894e-10, (120, 1) = 38.08, (120, 2) = -0.1336339016922732e-10, (121, 1) = 38.4, (121, 2) = -0.517679858779552e-11, (122, 1) = 38.72, (122, 2) = -0.8119936676268137e-12, (123, 1) = 39.04, (123, 2) = 0.640950986384344e-12, (124, 1) = 39.36, (124, 2) = 0.31311477510928366e-12, (125, 1) = 39.68, (125, 2) = 0.4302336386088107e-13, (126, 1) = 40.0, (126, 2) = -0.32852301083747975e-13, (127, 1) = 40.32, (127, 2) = -0.14215830058068425e-13, (128, 1) = 40.64, (128, 2) = -0.1901326543709851e-14, (129, 1) = 40.96, (129, 2) = 0.10495724292937888e-14, (130, 1) = 41.28, (130, 2) = 0.4126616661516361e-15, (131, 1) = 41.6, (131, 2) = 0.626071416143433e-16, (132, 1) = 41.92, (132, 2) = -0.11970697418217774e-16, (133, 1) = 42.24, (133, 2) = -0.4317793404501904e-17, (134, 1) = 42.56, (134, 2) = -0.12610378460340191e-17, (135, 1) = 42.88, (135, 2) = -0.4819842083265967e-18, (136, 1) = 43.2, (136, 2) = -0.18629346366663397e-18, (137, 1) = 43.52, (137, 2) = -0.6201719480581209e-19, (138, 1) = 43.84, (138, 2) = -0.278160830496205e-19, (139, 1) = 44.16, (139, 2) = -0.988637523235426e-20, (140, 1) = 44.48, (140, 2) = -0.342795831410814e-20, (141, 1) = 44.8, (141, 2) = -0.15990608062424882e-20, (142, 1) = 45.12, (142, 2) = -0.6072906248190234e-21, (143, 1) = 45.44, (143, 2) = -0.25856672728357974e-21, (144, 1) = 45.76, (144, 2) = -0.1203988409039881e-21, (145, 1) = 46.08, (145, 2) = -0.4800321816684375e-22, (146, 1) = 46.4, (146, 2) = -0.2253888977879717e-22, (147, 1) = 46.72, (147, 2) = -0.10757976666494605e-22, (148, 1) = 47.04, (148, 2) = -0.4743822849582088e-23, (149, 1) = 47.36, (149, 2) = -0.2411502498580796e-23, (150, 1) = 47.68, (150, 2) = -0.11903319649908708e-23, (151, 1) = 48.0, (151, 2) = -0.5721564687423482e-24, (152, 1) = 48.32, (152, 2) = -0.3057031289149236e-24, (153, 1) = 48.64, (153, 2) = -0.15716284746791152e-24, (154, 1) = 48.96, (154, 2) = -0.8114537872845003e-25, (155, 1) = 49.28, (155, 2) = -0.44976312464301665e-25, (156, 1) = 49.6, (156, 2) = -0.241334880186438e-25, (157, 1) = 49.92, (157, 2) = -0.1321545501568266e-25, (158, 1) = 50.24, (158, 2) = -0.7557945256107853e-26, (159, 1) = 50.56, (159, 2) = -0.42321254298100214e-26, (160, 1) = 50.88, (160, 2) = -0.24331133578274086e-26, (161, 1) = 51.2, (161, 2) = -0.14334948972649345e-26, (162, 1) = 51.52, (162, 2) = -0.8363113387094302e-27, (163, 1) = 51.84, (163, 2) = -0.5009873714508156e-27, (164, 1) = 52.16, (164, 2) = -0.30405374433544443e-27, (165, 1) = 52.48, (165, 2) = -0.18437618961893016e-27, (166, 1) = 52.8, (166, 2) = -0.11447050978527714e-27, (167, 1) = 53.12, (167, 2) = -0.7158528513906427e-28, (168, 1) = 53.44, (168, 2) = -0.4500013722285011e-28, (169, 1) = 53.76, (169, 2) = -0.288501020553322e-28, (170, 1) = 54.08, (170, 2) = -0.18590557454536723e-28, (171, 1) = 54.4, (171, 2) = -0.12083610589580716e-28, (172, 1) = 54.72, (172, 2) = -0.7980058642210538e-29, (173, 1) = 55.04, (173, 2) = -0.52964419930802154e-29, (174, 1) = 55.36, (174, 2) = -0.3551208668161648e-29, (175, 1) = 55.68, (175, 2) = -0.24117312618784497e-29, (176, 1) = 56.0, (176, 2) = -0.1647267597659524e-29, (177, 1) = 56.32, (177, 2) = -0.11369294798740569e-29, (178, 1) = 56.64, (178, 2) = -0.7930193227014733e-30, (179, 1) = 56.96, (179, 2) = -0.5567437672172911e-30, (180, 1) = 57.28, (180, 2) = -0.3948217356566857e-30, (181, 1) = 57.6, (181, 2) = -0.28252888675860077e-30, (182, 1) = 57.92, (182, 2) = -0.2036038493817891e-30, (183, 1) = 58.24, (183, 2) = -0.14811401451121598e-30, (184, 1) = 58.56, (184, 2) = -0.108614850421222e-30, (185, 1) = 58.88, (185, 2) = -0.8023334127410985e-31, (186, 1) = 59.2, (186, 2) = -0.5978388154488554e-31, (187, 1) = 59.52, (187, 2) = -0.44875856014779703e-31, (188, 1) = 59.84, (188, 2) = -0.33932155624344004e-31, (189, 1) = 60.16, (189, 2) = -0.25861920990725146e-31, (190, 1) = 60.48, (190, 2) = -0.19847739296217145e-31, (191, 1) = 60.8, (191, 2) = -0.15340706889236052e-31, (192, 1) = 61.12, (192, 2) = -0.1194393472493409e-31, (193, 1) = 61.44, (193, 2) = -0.9360362424452093e-32, (194, 1) = 61.76, (194, 2) = -0.7385556755610283e-32, (195, 1) = 62.08, (195, 2) = -0.58666828046311634e-32, (196, 1) = 62.4, (196, 2) = -0.4689232106155744e-32, (197, 1) = 62.72, (197, 2) = -0.3772154468603243e-32, (198, 1) = 63.04, (198, 2) = -0.30533546644235658e-32, (199, 1) = 63.36, (199, 2) = -0.24861254753634195e-32, (200, 1) = 63.68, (200, 2) = -0.2036430988555844e-32, (201, 1) = 64.0, (201, 2) = -0.16777276927495806e-32}, datatype = float[8], order = C_order), COLOUR(RGB, 0., 1.00000000, 0.), LEGEND(S(t))), CURVES(Array(1..201, 1..2, {(1, 1) = .0, (1, 2) = 1.0, (2, 1) = .32, (2, 2) = 2.258680264120784, (3, 1) = .64, (3, 2) = 3.538720371652481, (4, 1) = .96, (4, 2) = 4.840119282660327, (5, 1) = 1.28, (5, 2) = 6.158057055879038, (6, 1) = 1.6, (6, 2) = 7.490520927458109, (7, 1) = 1.92, (7, 2) = 8.884340048613403, (8, 1) = 2.24, (8, 2) = 10.391740980584233, (9, 1) = 2.56, (9, 2) = 12.065938871586548, (10, 1) = 2.88, (10, 2) = 13.96056312799495, (11, 1) = 3.2, (11, 2) = 16.129439986631763, (12, 1) = 3.52, (12, 2) = 18.628377414100292, (13, 1) = 3.84, (13, 2) = 21.517408912737487, (14, 1) = 4.16, (14, 2) = 24.862816156377704, (15, 1) = 4.48, (15, 2) = 28.73949660839129, (16, 1) = 4.8, (16, 2) = 33.23291080145628, (17, 1) = 5.12, (17, 2) = 38.44156871539471, (18, 1) = 5.44, (18, 2) = 44.479114556541, (19, 1) = 5.76, (19, 2) = 51.4772579721177, (20, 1) = 6.08, (20, 2) = 59.58836485246682, (21, 1) = 6.4, (21, 2) = 68.9891396329274, (22, 1) = 6.72, (22, 2) = 79.88413152777876, (23, 1) = 7.04, (23, 2) = 92.51043533734699, (24, 1) = 7.36, (24, 2) = 107.1425629053898, (25, 1) = 7.68, (25, 2) = 124.09845025264111, (26, 1) = 8.0, (26, 2) = 143.74626780612374, (27, 1) = 8.32, (27, 2) = 166.51204253612806, (28, 1) = 8.64, (28, 2) = 192.8891510736957, (29, 1) = 8.96, (29, 2) = 223.44803803692992, (30, 1) = 9.28, (30, 2) = 258.8485243101155, (31, 1) = 9.6, (31, 2) = 299.8537895109653, (32, 1) = 9.92, (32, 2) = 347.3455464463857, (33, 1) = 10.24, (33, 2) = 402.34254686173904, (34, 1) = 10.56, (34, 2) = 466.0211791199694, (35, 1) = 10.88, (35, 2) = 539.7374220961759, (36, 1) = 11.2, (36, 2) = 625.0557857896451, (37, 1) = 11.52, (37, 2) = 723.7767558785603, (38, 1) = 11.84, (38, 2) = 837.9749946004675, (39, 1) = 12.16, (39, 2) = 970.0328729758925, (40, 1) = 12.48, (40, 2) = 1122.689364235292, (41, 1) = 12.8, (41, 2) = 1299.0808317115805, (42, 1) = 13.12, (42, 2) = 1502.800559852136, (43, 1) = 13.44, (43, 2) = 1737.948420696631, (44, 1) = 13.76, (44, 2) = 2009.1978947465323, (45, 1) = 14.08, (45, 2) = 2321.8560378796365, (46, 1) = 14.4, (46, 2) = 2681.929765828578, (47, 1) = 14.72, (47, 2) = 3096.1950511428654, (48, 1) = 15.04, (48, 2) = 3572.248250939195, (49, 1) = 15.36, (49, 2) = 4118.572766083893, (50, 1) = 15.68, (50, 2) = 4744.559635485486, (51, 1) = 16.0, (51, 2) = 5460.533194005638, (52, 1) = 16.32, (52, 2) = 6277.724393758994, (53, 1) = 16.64, (53, 2) = 7208.189138834742, (54, 1) = 16.96, (54, 2) = 8264.686742009915, (55, 1) = 17.28, (55, 2) = 9460.430971927579, (56, 1) = 17.6, (56, 2) = 10808.751125239703, (57, 1) = 17.92, (57, 2) = 12322.619372454377, (58, 1) = 18.24, (58, 2) = 14013.974823483088, (59, 1) = 18.56, (59, 2) = 15892.886072051266, (60, 1) = 18.88, (60, 2) = 17966.50624641219, (61, 1) = 19.2, (61, 2) = 20237.78585540491, (62, 1) = 19.52, (62, 2) = 22704.02603202431, (63, 1) = 19.84, (63, 2) = 25355.326954917025, (64, 1) = 20.16, (64, 2) = 28172.985761825817, (65, 1) = 20.48, (65, 2) = 31128.066199954013, (66, 1) = 20.8, (66, 2) = 34180.39434171648, (67, 1) = 21.12, (67, 2) = 37278.169358299514, (68, 1) = 21.44, (68, 2) = 40358.56218873579, (69, 1) = 21.76, (69, 2) = 43349.58030034358, (70, 1) = 22.08, (70, 2) = 46173.25456752588, (71, 1) = 22.4, (71, 2) = 48750.289334573536, (72, 1) = 22.72, (72, 2) = 51005.71445043382, (73, 1) = 23.04, (73, 2) = 52875.05269870903, (74, 1) = 23.36, (74, 2) = 54310.15885765442, (75, 1) = 23.68, (75, 2) = 55283.76370608358, (76, 1) = 24.0, (76, 2) = 55791.88422039021, (77, 1) = 24.32, (77, 2) = 55853.57884829566, (78, 1) = 24.64, (78, 2) = 55508.037240984835, (79, 1) = 24.96, (79, 2) = 54809.500200983566, (80, 1) = 25.28, (80, 2) = 53820.9794909712, (81, 1) = 25.6, (81, 2) = 52607.863146229465, (82, 1) = 25.92, (82, 2) = 51232.41001971026, (83, 1) = 26.24, (83, 2) = 49749.782067757966, (84, 1) = 26.56, (84, 2) = 48205.837954710165, (85, 1) = 26.88, (85, 2) = 46636.53188283522, (86, 1) = 27.2, (86, 2) = 45068.518185946305, (87, 1) = 27.52, (87, 2) = 43520.481338046724, (88, 1) = 27.84, (88, 2) = 42004.75737318267, (89, 1) = 28.16, (89, 2) = 40528.92944504883, (90, 1) = 28.48, (90, 2) = 39097.211731262905, (91, 1) = 28.8, (91, 2) = 37711.54679742038, (92, 1) = 29.12, (92, 2) = 36372.416701437825, (93, 1) = 29.44, (93, 2) = 35079.408582138974, (94, 1) = 29.76, (94, 2) = 33831.58973376804, (95, 1) = 30.08, (95, 2) = 32627.745491542293, (96, 1) = 30.4, (96, 2) = 31466.524072503384, (97, 1) = 30.72, (97, 2) = 30346.521410508467, (98, 1) = 31.04, (98, 2) = 29266.328941114152, (99, 1) = 31.36, (99, 2) = 28224.559376766763, (100, 1) = 31.68, (100, 2) = 27219.8598571962, (101, 1) = 32.0, (101, 2) = 26250.91808950572, (102, 1) = 32.32, (102, 2) = 25316.4647163056, (103, 1) = 32.64, (103, 2) = 24415.273718663728, (104, 1) = 32.96, (104, 2) = 23546.161832606856, (105, 1) = 33.28, (105, 2) = 22707.987495033787, (106, 1) = 33.6, (106, 2) = 21899.6495831654, (107, 1) = 33.92, (107, 2) = 21120.086081080095, (108, 1) = 34.24, (108, 2) = 20368.272736760977, (109, 1) = 34.56, (109, 2) = 19643.22174039264, (110, 1) = 34.88, (110, 2) = 18943.98043623414, (111, 1) = 35.2, (111, 2) = 18269.63007527194, (112, 1) = 35.52, (112, 2) = 17619.284621142317, (113, 1) = 35.84, (113, 2) = 16992.08955660781, (114, 1) = 36.16, (114, 2) = 16387.2208153785, (115, 1) = 36.48, (115, 2) = 15803.883604130067, (116, 1) = 36.8, (116, 2) = 15241.31153903023, (117, 1) = 37.12, (117, 2) = 14698.765374546741, (118, 1) = 37.44, (118, 2) = 14175.53226846912, (119, 1) = 37.76, (119, 2) = 13670.924734027716, (120, 1) = 38.08, (120, 2) = 13184.279750930766, (121, 1) = 38.4, (121, 2) = 12714.957909108916, (122, 1) = 38.72, (122, 2) = 12262.342529016905, (123, 1) = 39.04, (123, 2) = 11825.838983145723, (124, 1) = 39.36, (124, 2) = 11404.873658761955, (125, 1) = 39.68, (125, 2) = 10998.893458770843, (126, 1) = 40.0, (126, 2) = 10607.365006636031, (127, 1) = 40.32, (127, 2) = 10229.773791070402, (128, 1) = 40.64, (128, 2) = 9865.623721289368, (129, 1) = 40.96, (129, 2) = 9514.436357336206, (130, 1) = 41.28, (130, 2) = 9175.75020548652, (131, 1) = 41.6, (131, 2) = 8849.120303030975, (132, 1) = 41.92, (132, 2) = 8534.117486790175, (133, 1) = 42.24, (133, 2) = 8230.32782504624, (134, 1) = 42.56, (134, 2) = 7937.352204278553, (135, 1) = 42.88, (135, 2) = 7654.805658933793, (136, 1) = 43.2, (136, 2) = 7382.316929463815, (137, 1) = 43.52, (137, 2) = 7119.528024086577, (138, 1) = 43.84, (138, 2) = 6866.093621510407, (139, 1) = 44.16, (139, 2) = 6621.680741032411, (140, 1) = 44.48, (140, 2) = 6385.968262659628, (141, 1) = 44.8, (141, 2) = 6158.646440357111, (142, 1) = 45.12, (142, 2) = 5939.416619469001, (143, 1) = 45.44, (143, 2) = 5727.9907470302305, (144, 1) = 45.76, (144, 2) = 5524.09099938491, (145, 1) = 46.08, (145, 2) = 5327.449503153375, (146, 1) = 46.4, (146, 2) = 5137.807869956205, (147, 1) = 46.72, (147, 2) = 4954.916908938221, (148, 1) = 47.04, (148, 2) = 4778.536349545669, (149, 1) = 47.36, (149, 2) = 4608.43441884578, (150, 1) = 47.68, (150, 2) = 4444.387606983493, (151, 1) = 48.0, (151, 2) = 4286.180400170951, (152, 1) = 48.32, (152, 2) = 4133.6049008981645, (153, 1) = 48.64, (153, 2) = 3986.4606342029647, (154, 1) = 48.96, (154, 2) = 3844.5542898497015, (155, 1) = 49.28, (155, 2) = 3707.699387845448, (156, 1) = 49.6, (156, 2) = 3575.7161154629257, (157, 1) = 49.92, (157, 2) = 3448.431075376526, (158, 1) = 50.24, (158, 2) = 3325.677000814612, (159, 1) = 50.56, (159, 2) = 3207.2926118448772, (160, 1) = 50.88, (160, 2) = 3093.1223710772038, (161, 1) = 51.2, (161, 2) = 2983.016247153045, (162, 1) = 51.52, (162, 2) = 2876.829582247826, (163, 1) = 51.84, (163, 2) = 2774.4228585880273, (164, 1) = 52.16, (164, 2) = 2675.661505574439, (165, 1) = 52.48, (165, 2) = 2580.415773444972, (166, 1) = 52.8, (166, 2) = 2488.5605140642024, (167, 1) = 53.12, (167, 2) = 2399.9750251909745, (168, 1) = 53.44, (168, 2) = 2314.54292776137, (169, 1) = 53.76, (169, 2) = 2232.1519637225583, (170, 1) = 54.08, (170, 2) = 2152.6938703118226, (171, 1) = 54.4, (171, 2) = 2076.0642604742848, (172, 1) = 54.72, (172, 2) = 2002.1624393214097, (173, 1) = 55.04, (173, 2) = 1930.8913014215243, (174, 1) = 55.36, (174, 2) = 1862.1572154876255, (175, 1) = 55.68, (175, 2) = 1795.8698593796748, (176, 1) = 56.0, (176, 2) = 1731.9421352604566, (177, 1) = 56.32, (177, 2) = 1670.2900584708086, (178, 1) = 56.64, (178, 2) = 1610.8326117262966, (179, 1) = 56.96, (179, 2) = 1553.4916740201656, (180, 1) = 57.28, (180, 2) = 1498.1919120686887, (181, 1) = 57.6, (181, 2) = 1444.8606557941594, (182, 1) = 57.92, (182, 2) = 1393.427835913335, (183, 1) = 58.24, (183, 2) = 1343.825878530261, (184, 1) = 58.56, (184, 2) = 1295.9896015304614, (185, 1) = 58.88, (185, 2) = 1249.8561572637648, (186, 1) = 59.2, (186, 2) = 1205.3649316439298, (187, 1) = 59.52, (187, 2) = 1162.457459537114, (188, 1) = 59.84, (188, 2) = 1121.0773702523104, (189, 1) = 60.16, (189, 2) = 1081.170292644683, (190, 1) = 60.48, (190, 2) = 1042.6837867577103, (191, 1) = 60.8, (191, 2) = 1005.5672909349157, (192, 1) = 61.12, (192, 2) = 969.7720341573132, (193, 1) = 61.44, (193, 2) = 935.250980883235, (194, 1) = 61.76, (194, 2) = 901.958779496266, (195, 1) = 62.08, (195, 2) = 869.8516826103908, (196, 1) = 62.4, (196, 2) = 838.8875020825678, (197, 1) = 62.72, (197, 2) = 809.0255592252608, (198, 1) = 63.04, (198, 2) = 780.2266131250439, (199, 1) = 63.36, (199, 2) = 752.4528234786926, (200, 1) = 63.68, (200, 2) = 725.6677027006438, (201, 1) = 64.0, (201, 2) = 699.8360523800205}, datatype = float[8], order = C_order), COLOUR(RGB, 0., 0., 0.), LEGEND(Ex(t))), CURVES(Array(1..201, 1..2, {(1, 1) = .0, (1, 2) = 1.0, (2, 1) = .32, (2, 2) = 1.0167040000000003, (3, 1) = .64, (3, 2) = 1.0334079999999999, (4, 1) = .96, (4, 2) = 1.050112, (5, 1) = 1.28, (5, 2) = 1.0731559444070764, (6, 1) = 1.6, (6, 2) = 1.132706248266651, (7, 1) = 1.92, (7, 2) = 1.233260552773337, (8, 1) = 2.24, (8, 2) = 1.3755031257497343, (9, 1) = 2.56, (9, 2) = 1.5599204480208622, (10, 1) = 2.88, (10, 2) = 1.7871201601910243, (11, 1) = 3.2, (11, 2) = 2.0591695393021108, (12, 1) = 3.52, (12, 2) = 2.3798101933034603, (13, 1) = 3.84, (13, 2) = 2.7544875866890193, (14, 1) = 4.16, (14, 2) = 3.190362256477154, (15, 1) = 4.48, (15, 2) = 3.6963222306999537, (16, 1) = 4.8, (16, 2) = 4.28305064003098, (17, 1) = 5.12, (17, 2) = 4.963164959770766, (18, 1) = 5.44, (18, 2) = 5.7514217889942145, (19, 1) = 5.76, (19, 2) = 6.66499691694105, (20, 1) = 6.08, (20, 2) = 7.723826083001953, (21, 1) = 6.4, (21, 2) = 8.9510328810598, (22, 1) = 6.72, (22, 2) = 10.37340591923433, (23, 1) = 7.04, (23, 2) = 12.022005014728803, (24, 1) = 7.36, (24, 2) = 13.932795254410347, (25, 1) = 7.68, (25, 2) = 16.147480077626362, (26, 1) = 8.0, (26, 2) = 18.714342220015304, (27, 1) = 8.32, (27, 2) = 21.689366628681885, (28, 1) = 8.64, (28, 2) = 25.137368382388665, (29, 1) = 8.96, (29, 2) = 29.133395342564793, (30, 1) = 9.28, (30, 2) = 33.76430061522263, (31, 1) = 9.6, (31, 2) = 39.130832129084496, (32, 1) = 9.92, (32, 2) = 45.34974950615478, (33, 1) = 10.24, (33, 2) = 52.555974761735, (34, 1) = 10.56, (34, 2) = 60.90536002866523, (35, 1) = 10.88, (35, 2) = 70.57849996741248, (36, 1) = 11.2, (36, 2) = 81.78433850912691, (37, 1) = 11.52, (37, 2) = 94.76487813275867, (38, 1) = 11.84, (38, 2) = 109.7999721002721, (39, 1) = 12.16, (39, 2) = 127.21339598709682, (40, 1) = 12.48, (40, 2) = 147.3792776990953, (41, 1) = 12.8, (41, 2) = 170.7299251224628, (42, 1) = 13.12, (42, 2) = 197.76451194873846, (43, 1) = 13.44, (43, 2) = 229.05898282665746, (44, 1) = 13.76, (44, 2) = 265.2777212885933, (45, 1) = 14.08, (45, 2) = 307.18594459124904, (46, 1) = 14.4, (46, 2) = 355.6650073382648, (47, 1) = 14.72, (47, 2) = 411.7279410647097, (48, 1) = 15.04, (48, 2) = 476.53871851910185, (49, 1) = 15.36, (49, 2) = 551.4318525852566, (50, 1) = 15.68, (50, 2) = 637.9353958224116, (51, 1) = 16.0, (51, 2) = 737.7954275241387, (52, 1) = 16.32, (52, 2) = 853.0021006738766, (53, 1) = 16.64, (53, 2) = 985.8185345437839, (54, 1) = 16.96, (54, 2) = 1138.8092144310158, (55, 1) = 17.28, (55, 2) = 1314.8699875876957, (56, 1) = 17.6, (56, 2) = 1517.256772583209, (57, 1) = 17.92, (57, 2) = 1749.6113506270112, (58, 1) = 18.24, (58, 2) = 2015.983289738139, (59, 1) = 18.56, (59, 2) = 2320.843486864531, (60, 1) = 18.88, (60, 2) = 2669.0867112191277, (61, 1) = 19.2, (61, 2) = 3066.018382629247, (62, 1) = 19.52, (62, 2) = 3517.3192679818853, (63, 1) = 19.84, (63, 2) = 4028.983458863199, (64, 1) = 20.16, (64, 2) = 4607.2219857060845, (65, 1) = 20.48, (65, 2) = 5258.323784564869, (66, 1) = 20.8, (66, 2) = 5988.472358787082, (67, 1) = 21.12, (67, 2) = 6803.51183519928, (68, 1) = 21.44, (68, 2) = 7708.659236073502, (69, 1) = 21.76, (69, 2) = 8708.175984378906, (70, 1) = 22.08, (70, 2) = 9805.00784480085, (71, 1) = 22.4, (71, 2) = 11000.409580221116, (72, 1) = 22.72, (72, 2) = 12293.597819500286, (73, 1) = 23.04, (73, 2) = 13681.462058733912, (74, 1) = 23.36, (74, 2) = 15158.381676068739, (75, 1) = 23.68, (75, 2) = 16716.193009444087, (76, 1) = 24.0, (76, 2) = 18344.33818437519, (77, 1) = 24.32, (77, 2) = 20030.210042599887, (78, 1) = 24.64, (78, 2) = 21759.680561943325, (79, 1) = 24.96, (79, 2) = 23517.76933259681, (80, 1) = 25.28, (80, 2) = 25289.383477392796, (81, 1) = 25.6, (81, 2) = 27060.04371133403, (82, 1) = 25.92, (82, 2) = 28816.512384908, (83, 1) = 26.24, (83, 2) = 30547.2567274863, (84, 1) = 26.56, (84, 2) = 32242.71071387912, (85, 1) = 26.88, (85, 2) = 33895.33427896479, (86, 1) = 27.2, (86, 2) = 35499.49948197524, (87, 1) = 27.52, (87, 2) = 37051.253247966015, (88, 1) = 27.84, (88, 2) = 38548.01275954538, (89, 1) = 28.16, (89, 2) = 39988.24418807808, (90, 1) = 28.48, (90, 2) = 41371.162679224144, (91, 1) = 28.8, (91, 2) = 42696.47639386878, (92, 1) = 29.12, (92, 2) = 43964.18388806846, (93, 1) = 29.44, (93, 2) = 45174.42435106157, (94, 1) = 29.76, (94, 2) = 46327.37457292304, (95, 1) = 30.08, (95, 2) = 47423.18426884781, (96, 1) = 30.4, (96, 2) = 48461.941464449796, (97, 1) = 30.72, (97, 2) = 49443.66085840369, (98, 1) = 31.04, (98, 2) = 50368.28951655158, (99, 1) = 31.36, (99, 2) = 51235.72564740239, (100, 1) = 31.68, (100, 2) = 52045.84700543612, (101, 1) = 32.0, (101, 2) = 52798.545894891155, (102, 1) = 32.32, (102, 2) = 53493.76778631726, (103, 1) = 32.64, (103, 2) = 54131.55040002059, (104, 1) = 32.96, (104, 2) = 54712.05998610036, (105, 1) = 33.28, (105, 2) = 55235.62161118971, (106, 1) = 33.6, (106, 2) = 55702.7407128391, (107, 1) = 33.92, (107, 2) = 56114.11401013299, (108, 1) = 34.24, (108, 2) = 56470.629066250396, (109, 1) = 34.56, (109, 2) = 56773.353098243046, (110, 1) = 34.88, (110, 2) = 57023.51283942013, (111, 1) = 35.2, (111, 2) = 57222.46823495348, (112, 1) = 35.52, (112, 2) = 57371.68336353016, (113, 1) = 35.84, (113, 2) = 57472.69628043877, (114, 1) = 36.16, (114, 2) = 57527.09312350507, (115, 1) = 36.48, (115, 2) = 57536.483307046925, (116, 1) = 36.8, (116, 2) = 57502.483503504845, (117, 1) = 37.12, (117, 2) = 57426.701275713756, (118, 1) = 37.44, (118, 2) = 57310.72809818529, (119, 1) = 37.76, (119, 2) = 57156.13281182938, (120, 1) = 38.08, (120, 2) = 56964.45898094721, (121, 1) = 38.4, (121, 2) = 56737.224193406844, (122, 1) = 38.72, (122, 2) = 56475.92070598742, (123, 1) = 39.04, (123, 2) = 56182.016566154874, (124, 1) = 39.36, (124, 2) = 55856.9580329071, (125, 1) = 39.68, (125, 2) = 55502.17081279102, (126, 1) = 40.0, (126, 2) = 55119.06197018922, (127, 1) = 40.32, (127, 2) = 54709.021418081196, (128, 1) = 40.64, (128, 2) = 54273.422497023996, (129, 1) = 40.96, (129, 2) = 53813.62237704406, (130, 1) = 41.28, (130, 2) = 53330.96148136475, (131, 1) = 41.6, (131, 2) = 52826.76287862197, (132, 1) = 41.92, (132, 2) = 52302.33042353875, (133, 1) = 42.24, (133, 2) = 51758.94668069454, (134, 1) = 42.56, (134, 2) = 51197.87120334038, (135, 1) = 42.88, (135, 2) = 50620.337490448255, (136, 1) = 43.2, (136, 2) = 50027.550915501844, (137, 1) = 43.52, (137, 2) = 49420.68670780419, (138, 1) = 43.84, (138, 2) = 48800.88768601655, (139, 1) = 44.16, (139, 2) = 48169.26319083107, (140, 1) = 44.48, (140, 2) = 47526.887914591054, (141, 1) = 44.8, (141, 2) = 46874.801304723755, (142, 1) = 45.12, (142, 2) = 46214.00739640121, (143, 1) = 45.44, (143, 2) = 45545.47493257244, (144, 1) = 45.76, (144, 2) = 44870.137749997324, (145, 1) = 46.08, (145, 2) = 44188.89516555731, (146, 1) = 46.4, (146, 2) = 43502.61282236676, (147, 1) = 46.72, (147, 2) = 42812.12329061209, (148, 1) = 47.04, (148, 2) = 42118.226671808974, (149, 1) = 47.36, (149, 2) = 41421.691549040595, (150, 1) = 47.68, (150, 2) = 40723.25551698739, (151, 1) = 48.0, (151, 2) = 40023.62577893836, (152, 1) = 48.32, (152, 2) = 39323.47996344506, (153, 1) = 48.64, (153, 2) = 38623.466534135536, (154, 1) = 48.96, (154, 2) = 37924.2053212481, (155, 1) = 49.28, (155, 2) = 37226.288197788774, (156, 1) = 49.6, (156, 2) = 36530.279409849376, (157, 1) = 49.92, (157, 2) = 35836.71608983991, (158, 1) = 50.24, (158, 2) = 35146.10887060307, (159, 1) = 50.56, (159, 2) = 34458.9422073257, (160, 1) = 50.88, (160, 2) = 33775.67496288262, (161, 1) = 51.2, (161, 2) = 33096.741040694345, (162, 1) = 51.52, (162, 2) = 32422.549760034424, (163, 1) = 51.84, (163, 2) = 31753.486583735266, (164, 1) = 52.16, (164, 2) = 31089.913784355158, (165, 1) = 52.48, (165, 2) = 30432.170902722835, (166, 1) = 52.8, (166, 2) = 29780.575608263476, (167, 1) = 53.12, (167, 2) = 29135.42435262333, (168, 1) = 53.44, (168, 2) = 28496.992899414265, (169, 1) = 53.76, (169, 2) = 27865.537240918005, (170, 1) = 54.08, (170, 2) = 27241.294189261644, (171, 1) = 54.4, (171, 2) = 26624.48194382823, (172, 1) = 54.72, (172, 2) = 26015.300988405863, (173, 1) = 55.04, (173, 2) = 25413.934603205038, (174, 1) = 55.36, (174, 2) = 24820.549439208015, (175, 1) = 55.68, (175, 2) = 24235.2963594596, (176, 1) = 56.0, (176, 2) = 23658.310877571315, (177, 1) = 56.32, (177, 2) = 23089.713730660726, (178, 1) = 56.64, (178, 2) = 22529.61164981127, (179, 1) = 56.96, (179, 2) = 21978.09774024826, (180, 1) = 57.28, (180, 2) = 21435.25206262479, (181, 1) = 57.6, (181, 2) = 20901.14231807439, (182, 1) = 57.92, (182, 2) = 20375.824195211717, (183, 1) = 58.24, (183, 2) = 19859.341960469683, (184, 1) = 58.56, (184, 2) = 19351.7290545417, (185, 1) = 58.88, (185, 2) = 18853.00842490825, (186, 1) = 59.2, (186, 2) = 18363.193118369072, (187, 1) = 59.52, (187, 2) = 17882.286790329756, (188, 1) = 59.84, (188, 2) = 17410.284033978147, (189, 1) = 60.16, (189, 2) = 16947.170961268042, (190, 1) = 60.48, (190, 2) = 16492.925629492423, (191, 1) = 60.8, (191, 2) = 16047.518370682315, (192, 1) = 61.12, (192, 2) = 15610.91234421726, (193, 1) = 61.44, (193, 2) = 15183.063888998568, (194, 1) = 61.76, (194, 2) = 14763.922850435929, (195, 1) = 62.08, (195, 2) = 14353.433090706794, (196, 1) = 62.4, (196, 2) = 13951.532778891476, (197, 1) = 62.72, (197, 2) = 13558.15470903538, (198, 1) = 63.04, (198, 2) = 13173.226761544749, (199, 1) = 63.36, (199, 2) = 12796.672143080667, (200, 1) = 63.68, (200, 2) = 12428.409692532465, (201, 1) = 64.0, (201, 2) = 12068.354289618692}, datatype = float[8], order = C_order), COLOUR(RGB, 0., 0., 1.00000000), LEGEND(Ix(t))), CURVES(Array(1..201, 1..2, {(1, 1) = .0, (1, 2) = .0, (2, 1) = .32, (2, 2) = 0.15296e-1, (3, 1) = .64, (3, 2) = 0.3059200000000001e-1, (4, 1) = .96, (4, 2) = 0.45888e-1, (5, 1) = 1.28, (5, 2) = 0.61184e-1, (6, 1) = 1.6, (6, 2) = 0.7648000000000002e-1, (7, 1) = 1.92, (7, 2) = 0.9177600000000001e-1, (8, 1) = 2.24, (8, 2) = .10707200000000004, (9, 1) = 2.56, (9, 2) = .12236800000000005, (10, 1) = 2.88, (10, 2) = .13766400000000004, (11, 1) = 3.2, (11, 2) = .15296000000000004, (12, 1) = 3.52, (12, 2) = .16825600000000002, (13, 1) = 3.84, (13, 2) = .18355200000000002, (14, 1) = 4.16, (14, 2) = .19884800000000002, (15, 1) = 4.48, (15, 2) = .21414400000000003, (16, 1) = 4.8, (16, 2) = .22944000000000006, (17, 1) = 5.12, (17, 2) = .24473600000000018, (18, 1) = 5.44, (18, 2) = .260032, (19, 1) = 5.76, (19, 2) = .275328, (20, 1) = 6.08, (20, 2) = .29062400000000016, (21, 1) = 6.4, (21, 2) = .3059200000000001, (22, 1) = 6.72, (22, 2) = .32121600000000017, (23, 1) = 7.04, (23, 2) = .33651200000000003, (24, 1) = 7.36, (24, 2) = .3518079999999999, (25, 1) = 7.68, (25, 2) = .367104, (26, 1) = 8.0, (26, 2) = .3824000000000001, (27, 1) = 8.32, (27, 2) = .39769600000000005, (28, 1) = 8.64, (28, 2) = .41299200000000014, (29, 1) = 8.96, (29, 2) = .42837259887796186, (30, 1) = 9.28, (30, 2) = .44400394838196167, (31, 1) = 9.6, (31, 2) = .45989080226996176, (32, 1) = 9.92, (32, 2) = .4760384379623022, (33, 1) = 10.24, (33, 2) = .4926971725107383, (34, 1) = 10.56, (34, 2) = .5104621001687293, (35, 1) = 10.88, (35, 2) = .5299636404660815, (36, 1) = 11.2, (36, 2) = .5518423294363096, (37, 1) = 11.52, (37, 2) = .5767451784324701, (38, 1) = 11.84, (38, 2) = .6053345569245603, (39, 1) = 12.16, (39, 2) = .6383129536788967, (40, 1) = 12.48, (40, 2) = .6764477113673111, (41, 1) = 12.8, (41, 2) = .7205980001558261, (42, 1) = 13.12, (42, 2) = .7717406118949803, (43, 1) = 13.44, (43, 2) = .8309966503895976, (44, 1) = 13.76, (44, 2) = .8996600780435868, (45, 1) = 14.08, (45, 2) = .9792271858138597, (46, 1) = 14.4, (46, 2) = 1.0714321222138972, (47, 1) = 14.72, (47, 2) = 1.1782835087749748, (48, 1) = 15.04, (48, 2) = 1.3021107695428977, (49, 1) = 15.36, (49, 2) = 1.4456131152810643, (50, 1) = 15.68, (50, 2) = 1.6119197376625558, (51, 1) = 16.0, (51, 2) = 1.8046578841633911, (52, 1) = 16.32, (52, 2) = 2.0280304922592065, (53, 1) = 16.64, (53, 2) = 2.2869103204138725, (54, 1) = 16.96, (54, 2) = 2.5869431769374778, (55, 1) = 17.28, (55, 2) = 2.9346722831464604, (56, 1) = 17.6, (56, 2) = 3.33768089389854, (57, 1) = 17.92, (57, 2) = 3.8047528695099, (58, 1) = 18.24, (58, 2) = 4.3460660817482015, (59, 1) = 18.56, (59, 2) = 4.973414194632973, (60, 1) = 18.88, (60, 2) = 5.700460068839297, (61, 1) = 19.2, (61, 2) = 6.543027336227871, (62, 1) = 19.52, (62, 2) = 7.519439340872881, (63, 1) = 19.84, (63, 2) = 8.650911682099023, (64, 1) = 20.16, (64, 2) = 9.962008739225375, (65, 1) = 20.48, (65, 2) = 11.481174165411929, (66, 1) = 20.8, (66, 2) = 13.241335566154955, (67, 1) = 21.12, (67, 2) = 15.280602597096362, (68, 1) = 21.44, (68, 2) = 17.643082881895047, (69, 1) = 21.76, (69, 2) = 20.3798053091543, (70, 1) = 22.08, (70, 2) = 23.54978621526475, (71, 1) = 22.4, (71, 2) = 27.221267289777238, (72, 1) = 22.72, (72, 2) = 31.473119629122113, (73, 1) = 23.04, (73, 2) = 36.396457093855915, (74, 1) = 23.36, (74, 2) = 42.09648739488943, (75, 1) = 23.68, (75, 2) = 48.69461629146385, (76, 1) = 24.0, (76, 2) = 56.33084547350991, (77, 1) = 24.32, (77, 2) = 65.16649306052591, (78, 1) = 24.64, (78, 2) = 75.3872645205209, (79, 1) = 24.96, (79, 2) = 87.20671394384809, (80, 1) = 25.28, (80, 2) = 100.87011250992772, (81, 1) = 25.6, (81, 2) = 116.65875747129097, (82, 1) = 25.92, (82, 2) = 134.89472896302422, (83, 1) = 26.24, (83, 2) = 155.94609362988442, (84, 1) = 26.56, (84, 2) = 180.23254100157487, (85, 1) = 26.88, (85, 2) = 208.2313969989456, (86, 1) = 27.2, (86, 2) = 240.48393387576579, (87, 1) = 27.52, (87, 2) = 277.6018426635578, (88, 1) = 27.84, (88, 2) = 320.27367018278704, (89, 1) = 28.16, (89, 2) = 369.2709572137108, (90, 1) = 28.48, (90, 2) = 425.4537171514422, (91, 1) = 28.8, (91, 2) = 489.7747998591244, (92, 1) = 29.12, (92, 2) = 563.2825922640276, (93, 1) = 29.44, (93, 2) = 647.1213917785899, (94, 1) = 29.76, (94, 2) = 742.5287133764011, (95, 1) = 30.08, (95, 2) = 850.828772051009, (96, 1) = 30.4, (96, 2) = 973.4213811504624, (97, 1) = 30.72, (97, 2) = 1111.7656133421322, (98, 1) = 31.04, (98, 2) = 1267.3578816025235, (99, 1) = 31.36, (99, 2) = 1441.7043854033113, (100, 1) = 31.68, (100, 2) = 1636.2884596459153, (101, 1) = 32.0, (101, 2) = 1852.5339748735987, (102, 1) = 32.32, (102, 2) = 2091.7666172214535, (103, 1) = 32.64, (103, 2) = 2355.1755056980182, (104, 1) = 32.96, (104, 2) = 2643.778022540092, (105, 1) = 33.28, (105, 2) = 2958.3908272648114, (106, 1) = 33.6, (106, 2) = 3299.6096763514065, (107, 1) = 33.92, (107, 2) = 3667.7998973816484, (108, 1) = 34.24, (108, 2) = 4063.098192313986, (109, 1) = 34.56, (109, 2) = 4485.425159460605, (110, 1) = 34.88, (110, 2) = 4934.506723579029, (111, 1) = 35.2, (111, 2) = 5409.90168946892, (112, 1) = 35.52, (112, 2) = 5911.032015206198, (113, 1) = 35.84, (113, 2) = 6437.214162909145, (114, 1) = 36.16, (114, 2) = 6987.686061100008, (115, 1) = 36.48, (115, 2) = 7561.633088818536, (116, 1) = 36.8, (116, 2) = 8158.204957465227, (117, 1) = 37.12, (117, 2) = 8776.533349739799, (118, 1) = 37.44, (118, 2) = 9415.739633345698, (119, 1) = 37.76, (119, 2) = 10074.942454142936, (120, 1) = 38.08, (120, 2) = 10753.261268122053, (121, 1) = 38.4, (121, 2) = 11449.817897484238, (122, 1) = 38.72, (122, 2) = 12163.73676499567, (123, 1) = 39.04, (123, 2) = 12894.144450699405, (124, 1) = 39.36, (124, 2) = 13640.16830833096, (125, 1) = 39.68, (125, 2) = 14400.93572843814, (126, 1) = 40.0, (126, 2) = 15175.573023174753, (127, 1) = 40.32, (127, 2) = 15963.204790848393, (128, 1) = 40.64, (128, 2) = 16762.953781686643, (129, 1) = 40.96, (129, 2) = 17573.941265619742, (130, 1) = 41.28, (130, 2) = 18395.288313148743, (131, 1) = 41.6, (131, 2) = 19226.11681834704, (132, 1) = 41.92, (132, 2) = 20065.552089671066, (133, 1) = 42.24, (133, 2) = 20912.725494259204, (134, 1) = 42.56, (134, 2) = 21766.776592381073, (135, 1) = 42.88, (135, 2) = 22626.85685061796, (136, 1) = 43.2, (136, 2) = 23492.132155034356, (137, 1) = 43.52, (137, 2) = 24361.78526810926, (138, 1) = 43.84, (138, 2) = 25235.018692473037, (139, 1) = 44.16, (139, 2) = 26111.056068136524, (140, 1) = 44.48, (140, 2) = 26989.143822749327, (141, 1) = 44.8, (141, 2) = 27868.552254919145, (142, 1) = 45.12, (142, 2) = 28748.575984129817, (143, 1) = 45.44, (143, 2) = 29628.53432039736, (144, 1) = 45.76, (144, 2) = 30507.771250617785, (145, 1) = 46.08, (145, 2) = 31385.655331289334, (146, 1) = 46.4, (146, 2) = 32261.579307677042, (147, 1) = 46.72, (147, 2) = 33134.95980044971, (148, 1) = 47.04, (148, 2) = 34005.236978645364, (149, 1) = 47.36, (149, 2) = 34871.87403211363, (150, 1) = 47.68, (150, 2) = 35734.35687602916, (151, 1) = 48.0, (151, 2) = 36592.19382089071, (152, 1) = 48.32, (152, 2) = 37444.915135656775, (153, 1) = 48.64, (153, 2) = 38292.07283166153, (154, 1) = 48.96, (154, 2) = 39133.24038890222, (155, 1) = 49.28, (155, 2) = 39968.01241436577, (156, 1) = 49.6, (156, 2) = 40796.00447468771, (157, 1) = 49.92, (157, 2) = 41616.85283478354, (158, 1) = 50.24, (158, 2) = 42430.21412858231, (159, 1) = 50.56, (159, 2) = 43235.76518082943, (160, 1) = 50.88, (160, 2) = 44033.202666040175, (161, 1) = 51.2, (161, 2) = 44822.242712152634, (162, 1) = 51.52, (162, 2) = 45602.620657717765, (163, 1) = 51.84, (163, 2) = 46374.09055767675, (164, 1) = 52.16, (164, 2) = 47136.42471007044, (165, 1) = 52.48, (165, 2) = 47889.413323832225, (166, 1) = 52.8, (166, 2) = 48632.86387767234, (167, 1) = 53.12, (167, 2) = 49366.60062218571, (168, 1) = 53.44, (168, 2) = 50090.46417282438, (169, 1) = 53.76, (169, 2) = 50804.31079535946, (170, 1) = 54.08, (170, 2) = 51508.011940426535, (171, 1) = 54.4, (171, 2) = 52201.45379569751, (172, 1) = 54.72, (172, 2) = 52884.536572272744, (173, 1) = 55.04, (173, 2) = 53557.17409537345, (174, 1) = 55.36, (174, 2) = 54219.29334530436, (175, 1) = 55.68, (175, 2) = 54870.833781160734, (176, 1) = 56.0, (176, 2) = 55511.74698716824, (177, 1) = 56.32, (177, 2) = 56141.99621086849, (178, 1) = 56.64, (178, 2) = 56761.555738462455, (179, 1) = 56.96, (179, 2) = 57370.41058573159, (180, 1) = 57.28, (180, 2) = 57968.556025306556, (181, 1) = 57.6, (181, 2) = 58555.99702613145, (182, 1) = 57.92, (182, 2) = 59132.74796887497, (183, 1) = 58.24, (183, 2) = 59698.832161000064, (184, 1) = 58.56, (184, 2) = 60254.28134392783, (185, 1) = 58.88, (185, 2) = 60799.135417828, (186, 1) = 59.2, (186, 2) = 61333.44194998699, (187, 1) = 59.52, (187, 2) = 61857.255750133125, (188, 1) = 59.84, (188, 2) = 62370.63859576955, (189, 1) = 60.16, (189, 2) = 62873.6587460873, (190, 1) = 60.48, (190, 2) = 63366.3905837499, (191, 1) = 60.8, (191, 2) = 63848.914338382776, (192, 1) = 61.12, (192, 2) = 64321.31562162546, (193, 1) = 61.44, (193, 2) = 64783.68513011823, (194, 1) = 61.76, (194, 2) = 65236.1183700678, (195, 1) = 62.08, (195, 2) = 65678.71522668282, (196, 1) = 62.4, (196, 2) = 66111.57971902598, (197, 1) = 62.72, (197, 2) = 66534.8197317394, (198, 1) = 63.04, (198, 2) = 66948.54662533023, (199, 1) = 63.36, (199, 2) = 67352.87503344066, (200, 1) = 63.68, (200, 2) = 67747.92260476692, (201, 1) = 64.0, (201, 2) = 68133.80965800131}, datatype = float[8], order = C_order), COLOUR(RGB, 1.00000000, 0., 0.), LEGEND(R(t))), AXESLABELS(t, "")), INTERFACE_PLOT(CURVES([[1., 1.], [2., 2.], [3., 3.], [4., 4.], [5., 5.], [6., 6.], [7., 7.], [8., 8.], [9., 9.], [10., 10.], [11., 11.], [12., 12.], [13., 13.], [14., 14.], [15., 15.], [16., 16.], [17., 17.], [18., 18.], [19., 19.], [20., 20.], [21., 21.], [22., 22.], [23., 23.], [24., 24.], [25., 25.], [26., 26.], [27., 27.], [28., 28.], [29., 29.], [30., 30.], [31., 31.], [32., 32.], [33., 33.], [34., 34.], [35., 35.], [36., 36.], [37., 37.], [38., 38.], [39., 39.], [40., 40.], [41., 41.], [42., 42.], [43., 43.], [44., 44.], [45., 45.], [46., 46.], [47., 47.], [48., 48.], [49., 49.], [50., 50.], [51., 51.], [52., 52.], [53., 53.], [54., 54.], [55., 55.], [56., 56.], [57., 57.], [58., 58.], [59., 59.], [60., 60.], [61., 61.], [62., 62.], [63., 63.], [64., 64.]], COLOUR(RGB, 0., 0.54901961e-1, .47058824), LEGEND("__never_display_this_legend_entry")), CURVES([[1., 7.], [2., 31.], [3., 76.], [4., 109.], [5., 141.], [6., 211.], [7., 310.], [8., 388.], [9., 530.], [10., 734.], [11., 1033.], [12., 1211.], [13., 1508.], [14., 2014.], [15., 2562.], [16., 3239.], [17., 3972.], [18., 4870.], [19., 5733.], [20., 6664.], [21., 7764.], [22., 9064.], [23., 10364.], [24., 11564.], [25., 12328.], [26., 13528.], [27., 14528.], [28., 15528.], [29., 16628.], [30., 17628.], [31., 18728.], [32., 19828.], [33., 20646.], [34., 21571.], [35., 22164.], [36., 23070.], [37., 24270.], [38., 25370.], [39., 26114.], [40., 26831.], [41., 27583.], [42., 28449.], [43., 29157.], [44., 30357.], [45., 31100.], [46., 31900.], [47., 32422.], [48., 33184.], [49., 33529.], [50., 34046.], [51., 35037.], [52., 35756.], [53., 36393.], [54., 37171.], [55., 37760.], [56., 38389.], [57., 38775.], [58., 39387.], [59., 40191.], [60., 40987.], [61., 41782.], [62., 42276.], [63., 43476.], [64., 44142.]], COLOUR(RGB, .47058824, 0., 0.54901961e-1), LEGEND("__never_display_this_legend_entry")), STYLE(POINT), AXESSTYLE(BOX))

(1.2)

NULL



NULL

``




Download Delayed_SEIR_vs_FL_Data.mwFL_Cases_3-11_to_5-5.txtFL_Cases_3-11_to_5-5.txt
