As 1D Maple notation input, your expression would need a star or a dot (* or .) between the bracketed terms in order to denote multiplication. For example, (a+b)*(a-b).

As 2D Math input, it would need either a star of a dot (typed in as * or .) for explicitly denoted multiplication or a space for implicitly denoted multiplication. For example .

Without any of these, the first set of bracketed terms get interpreted as (a sum of functions), and the entire expression as one big function application. The 1D and 2D parsers support a distributed function call syntax. Without the multiplication sign (or space for 2D input) the following are all parsed as function application:

> (sin+cos)(x);
                        sin(x) + cos(x)

> (sin+f)(x);
                         sin(x) + f(x)

> (f+g)(x-y);
                      f(x - y) + g(x - y)

> (a+b)(x-y);
                      a(x - y) + b(x - y)

> (a+b)(a-b);
                      a(a - b) + b(a - b)

The first term of even that last result is not the same as a*(a-b). No, it is `a` applied as a function, with argument a-b. There's no reason to prevent the parser from recognizing that an as-yet undefined operator `a` might be applied to the sum of names of other operators. Maple is so much more than just mere math.

Some people have expressed the opinion that Maple's relatively new implicit multiplication syntax (denoted by a space between terms, in 2D Math input) makes for visually confusing documents which obscure these syntax distinctions and lead inexperienced users to make this mistake more often.

acer

You should not be using the (officially) deprecated linalg package. You should use the newer LinearAlgebra package.

For transposition either use the LinearAlgebra:-Transpose command, or raise the Matrix or Vector to the %T power (eg. V^%T).

Remember that Maple is case-sensitive.

Also, use Matrix and Vector, not the deprecated matrix and vector commands.

You can extract a column using the shorter syntax E[1..-1,j]. So E[1..-1,5] would extract the 5th column of a Matrix E.

See ?rtable_indexing

acer

If this is an assignment for which you are supposed to explicitly demonstrate the solving method in action, then see dskoog's Answer.

If, on the other hand, you just want to apply a known method to solve your moderately sized numeric problem then you could use the LinearSolve command with the method=LU options. (Linear solving via LU dcomposition is pretty much just Gaussian elimination in disguise since the L factor provides a way to store the pivoting info. Generally, G.E. of an augmented system would get you half-way there, and you'd back-sub for the second stage. By doing LU and then both forward- and backward-sub'ing the whole task is done. The LinearSolve command would just do all those steps for you, internally.)

The quoted size of your problem makes me think that maybe you just want the system solved. Hence the method=LU and LinearSolve suggestion.

 X := LinearAlgebra:-LinearSolve(A, B, method=LU);

acer

Yes, use Re() and Im(), and not op().

And use I*Im(expr) if you want the imaginary component of expr, as opposed to the "imaginary part". The term "imaginary part" is being used to denote the real number b in a complex number a+b*I, say.

> Xi := sqrt(I);

                               1  (1/2)   1    (1/2)
                         Xi := - 2      + - I 2
                               2          2

> Bs := Matrix([[Re(Xi), I*Im(Xi)], [I*Im(Xi), Re(Xi)]]);

                             [ 1  (1/2)   1    (1/2)]
                             [ - 2        - I 2     ]
                             [ 2          2         ]
                       Bs := [                      ]
                             [1    (1/2)   1  (1/2) ]
                             [- I 2        - 2      ]
                             [2            2        ]

Use capitalized Matrix, not matrix.

acer

[deleted]

I misunderstood the request as being a question on how to expand the denominator. (I ought to read the Questions more carefully...)

acer

The ith entry of the column Vector B=A.x will be equal to add(A[i,j]*x[j], j=1..numcolsA). But for any fixed i the terms A[i,j], j=1..numcolsA are the entries of the ith row of A. The product A.x can be considered as a weighted linear combination of the columns (where the weights used for each of the j entries of any row are the x[j].

> A:=Matrix(2,3,symbol=a);

                           [a[1, 1]  a[1, 2]  a[1, 3]]
                      A := [                         ]
                           [a[2, 1]  a[2, 2]  a[2, 3]]

> x:=Vector(3, symbol=X);

                                      [X[1]]
                                      [    ]
                                 x := [X[2]]
                                      [    ]
                                      [X[3]]

> Vector(2, (i)->add(A[i,j]*x[j],j=1..3)); # Vector of weighted sums along rows

                [a[1, 1] X[1] + a[1, 2] X[2] + a[1, 3] X[3]]
                [                                          ]
                [a[2, 1] X[1] + a[2, 2] X[2] + a[2, 3] X[3]]

> add(A[1..2,j]*x[j], j=1..3); # weighted sum of the column Vectors

                [a[1, 1] X[1] + a[1, 2] X[2] + a[1, 3] X[3]]
                [                                          ]
                [a[2, 1] X[1] + a[2, 2] X[2] + a[2, 3] X[3]]

> A.x;

                [a[1, 1] X[1] + a[1, 2] X[2] + a[1, 3] X[3]]
                [                                          ]
                [a[2, 1] X[1] + a[2, 2] X[2] + a[2, 3] X[3]]

Looking at the last two results above: the Vector of weighted elementwise sums along rows is equal to the sum of weighted column Vectors.

acer

That's right. fsolve is very likely not thread safe. Most of the complicated system Library (interpreted) commands like solve, limit, fsolve, dsolve, int, etc, are not. (I mean Maple 14, and it's true for Maple 12 as well.)

acer

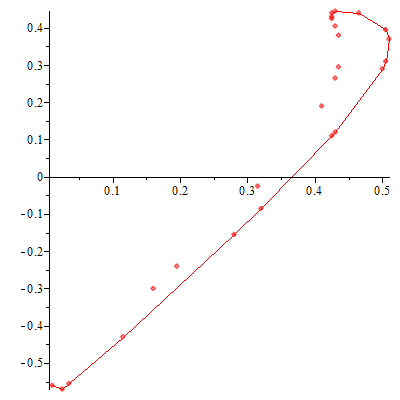

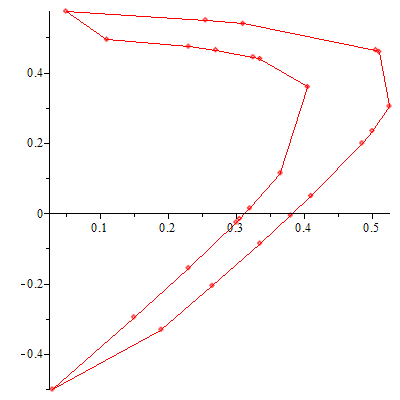

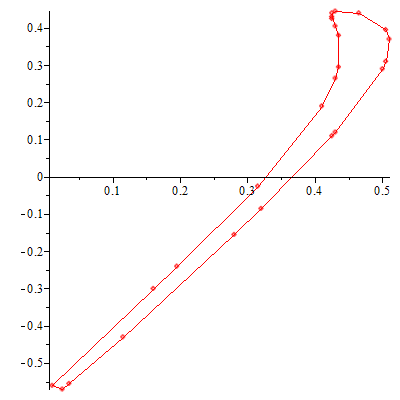

Extrapolating is somewhat dubious, especially back so far. But are you trying to do something like this?

numer_extrap.mws

acer

How about this, where `ee` is your big expression with the arctan call in it.

stuff := seq([op(t)],t in indets(ee,specfunc(anything,arctan)));

stuff[1];
stuff[2];

acer

You wrote "at least 11K nonzero entries". That's not very large, as a dense 110x110 Matrix has about that much.

I'd want to hear what you'd answer to my earlier query about how you plan to judge acceptable roundoff (ie. according to whether it is unlikely, or...?).

But the following code shows that 5000 individual sums over all entries of dense 110x110 float[8] Arrays can be done on a fast PC in less than a second.

Do you have some special reason to think that roundoff is going to be a problem for your data?

The procedure `P` below is a bit like what's under the hood of the 2D AddAlongDimension routine (it calls the same external BLAS function), except it operates on a single Vector. And its first argument must be a float[8] Vector. The procedure `f2` simply aliases a 2D Array to a 1D Vector and then calls P on that.

P := proc(V::Vector(datatype=float[8]),n::posint)
local extlib, ExtCall, x;
   extlib := ExternalCalling:-ExternalLibraryName("linalg", 'HWFloat');
   ExtCall := ExternalCalling:-DefineExternal('hw_f06ecf', extlib);
   x:=Vector(1,'datatype'='float[8]');
   ExtCall(n,1.0,V,0,1,x,0,0);
   x[1];
end proc:

f2:=proc(A::Array(datatype=float[8]))
local B, m, n;
  #(m,n):=op(map(rhs,[rtable_dims(A)]));
  m:=rhs(rtable_dims(A)[1]);
  n:=rhs(rtable_dims(A)[2]);
  B:=ArrayTools:-Alias(A,[m*n]);
  P(B, m*n);
end proc:

M:=LinearAlgebra:-RandomMatrix(110,110,generator=-1.0..1.0,
                               outputoptions=[datatype=float[8]]):
rtable_options(M,subtype=Array);

CodeTools:-Usage( f2(M) );
memory used=64.82KiB, alloc change=0 bytes, cpu time=0.00s, real time=0.02s

                    -11.847884729671568

CodeTools:-Usage( add(t, t in M) );
memory used=0.60MiB, alloc change=0.62MiB, cpu time=0.02s, real time=0.02s

                    -11.847884729671568

str,st,ba,bu:=time[real](),time(),kernelopts(bytesalloc),kernelopts(bytesused):
for i from 1 to 5000 do
   f2(M);
end do:
time[real]()-str,time()-st,kernelopts(bytesalloc)-ba,kernelopts(bytesused)-bu;

                0.640, 0.640, 22540256, 26030924


str,st,ba,bu:=time[real](),time(),kernelopts(bytesalloc),kernelopts(bytesused):
for i from 1 to 5000 do
   add(t, t in M);
end do:
time[real]()-str,time()-st,kernelopts(bytesalloc)-ba,kernelopts(bytesused)-bu;

              33.462, 33.462, 18477768, 3146484956

acer

ee:=1/(5^(1/2)-1)*(10+2*5^(1/2))^(1/2):
simplify(signum(ee)*arccos(cos(arctan(ee))));

acer

That error from `sort` occurs because BigSLTarray is not actually populated with numbers. It's populated with calls to the random number generating proc that rand(-1000..1000) returns.

Observe how the first example below produces nothing but scalar*proc, while the second example actually generates a random float value. You've accidentally coded `foo` like the first example.

> # first example, like in the posted code
> (1/198781)*rand(-1000 .. 1000);

    1
  ------ proc()
  198781
    (proc() option builtin = RandNumberInterface;  end proc;)(6, 2001, 11)
     - 1000
  end proc;

> evalf[50](%);

  0.0000050306618841841021023136014005362685568540252841066 (proc()
    (proc() option builtin = RandNumberInterface;  end proc;)(6, 2001, 11)
     - 1000
  end proc;)

Since BigSLTArray doesn't have actual numeric values, the `sort` routine cannot ascertain whether abs(a)<=abs(b) for `a`, `b` as pairs of entries.

> # second example
> F:=rand(-1000 .. 1000):

> evalf[50](F()/198781);
          -0.00070429266378577429432390419607507759795956353977493

You should be able to get good speed and memory performance by Compiling the routine which adds all the entries. That's probably still true even if you sort the entries (due to a need to avoid roundoff, say) provided that its done inplace. You should be able to Thread the larger process. If I understand you correctly, then at present you are just trying to discover whether the sorting is "necessary". Does your use of random values reflect something in the larger problem, or is it there merely because you are trying to discover how likely the worst roundoff case will be?

Addressing a separate question, in one of the followup responses in this thread: There is no contructor lowercase `float`. It is `Float`. And so floating-point infinity can be created with calls such as Float(infinity) or Float(1,infinity). But since there is no such constructor `float`, then the call float(1,infinity) merely produce an unevaluated function call which Maple does not recognize.

acer

restart:

t_init := 20: # [C] Start temp i mælken
h := 10: # [W/m2*K] varme transmissionskoefficient
A := 0.07: # [m2] Overfladeareal
m := 1: # [kg] massen af mælken
c := 4190: # [j/kgK] specifik varmekapacitet, mælk og karton
t_R := 5: # [C] Temperatur i køleskabet
tau_slut := 3600 * 3: # [s] Simuleringstid
dtau := 10: # [s] Tids step

# Beregning - nogle hjælpestørrelser

i_max := tau_slut/dtau: # Antal elementer (gennemløb i loop'et)

# Tre vektorer oprettes ud udfyldes med nuller

tau := Vector(i_max): # Den numeriske løsning
t := Vector(i_max): # Den numeriske løsning

# Så sættes nogle begyndelsesværdier

t[1] := t_init:
tau[1] := 0: # Starttidspunktet

#Simulering

for i from 2 to i_max do
    tau[i] := tau[i - 1] + dtau; # [s] Den nye tid
    dt := -(h * A)/(m * c) * (t[i - 1] - t_R) * dtau; # [-] Temp. ændringen
    t[i] := t[i - 1] + dt; # [-] Den nye temp.
end do:

plot(<(tau/3600)|t>,gridlines=true,
                    legend="analytisk",legendstyle=[location=right],
                    caption="Mælketemperatur");

acer

> eqn1 := u = V * cos(a) * cos(b):
> eqn2 := v = V*sin(b):
> eqn3 := w = V*sin(a)*cos(b):
> # This below is a roundabout and somewhat arbitrary way to
> # solve for sin(b). By "arbitrary" I mean that it involves
> # visually inspection of the original equations, and deduction
> # of which one(s) to use further.
> #

> res:=solve({eqn1, eqn2, eqn3}, {V,a,b}):
> map(sin, b=eval(b,res)):
> simplify(%);

                                   v
              sin(b) = --------------------------
                             /  2    2    2    2\
                       RootOf\_Z  - v  - w  - u /

# How is the equations for V in `res` known to be the one to use?
# This approach may work less well in general.
#

> subs(eval(V,res)=V,%);

                                    v
                           sin(b) = -
                                    V

> # Is this next `solve` attempt below not as satisfactory a way
> # to solve for sin(b), because u,v,w appear "too often" in the result?
> # If these are satisfactory, we can stop right here.
> #

> solve({eqn1,eqn2,eqn3},[sin(b),cos(a),V]);

    [[         v sin(a) cos(b)           u sin(a)            w      ]]
    [[sin(b) = ---------------, cos(a) = --------, V = -------------]]
    [[                w                     w          sin(a) cos(b)]]

> sin(b)=eval(sin(b),%[1]);

                             v sin(a) cos(b)
                    sin(b) = ---------------
                                    w

> # If the above is not satisfactory, because u,v,w appear "too often"
> # in the RHS's, then we could try to force some preference.
> #
> # Notice that the equations are a system of polynomials, if
> # the trig function calls are considered as being "variables"
> # or atomic names.
> # (This is somewhat justified since `a` and `b` appear only
> # as arguments of those trig calls and not otherwise.)
> # We can thus replace all the trig calls like sin(b) with
> # names, temporarily. Then solve. Then revert those names.
> # Hey, it's worth trying...
> #

> G:=proc(eqs::set, X, lesspreferred::list, morepreferred::set)
> local freezeeqs, thaweqs, T;
>    freezeeqs:=map(t->t=freeze(t),
>                   indets(eqs,specfunc(name,{sin,cos,tan})));
>    thaweqs:=map(rhs=lhs,freezeeqs);
>    T:=SolveTools:-PolynomialSystem(subs(freezeeqs,eqs),
>                                    subs(freezeeqs,
>                                         [X,
>                                          op(lesspreferred),
>                                          op(morepreferred minus {X})]),
>                                    'backsub'=false,'engine'='groebner');
>    subs(thaweqs,isolate(T[1][-1],eval(X,freezeeqs)));
> end proc:

> G({eqn1,eqn2,eqn3}, sin(b), [u,v,w], {sin(b),cos(a),V});

                                    v
                           sin(b) = -
                                    V

> G({eqn1,eqn2,eqn3}, cos(a), [u,v,w], {sin(b),cos(a),V});

                                   u
                       cos(a) = --------
                                V cos(b)

> G({eqn1,eqn2,eqn3}, V, [u,v,w], {sin(b),cos(a),V});

                                 w
                       V = -------------
                           sin(a) cos(b)

> G({eqn1,eqn2,eqn3}, sin(a), [u,v,w], {sin(b),cos(a),V});

                                   w
                       sin(a) = --------
                                V cos(b)

> G({eqn1,eqn2,eqn3}, cos(b), [u,v,w], {sin(b),cos(a),V});

                                   w
                       cos(b) = --------
                                V sin(a)

And one can se that there is still choice in this,

> G({eqn1,eqn2,eqn3}, V, [u,v,w], {sin(b),cos(a),V});

                                 w
                       V = -------------
                           sin(a) cos(b)

> G({eqn1,eqn2,eqn3}, V, [u,v,w], {sin(a),cos(b),V});

                                 v
                           V = ------
                               sin(b)

acer

The FromMatlab translator (emulator) has a few problems, but gets close.

I removed the initial transposition of tau and t when created as zero-Arrays. I added the plot call by hand, afterwards. (It could well be that, if the transposition had not had issues, then the plot call could also be translated. I'm not sure.)

Maple did obtain a similar graph as from Matlab.

Note that translated code is not always optimal. Since FromMatlab is better as an emulator, the Maple code equivalents that it produces are sometimes hard to read and not best to learn from. For this source sample, it's the code that creates tau and t which is least legible and (here) unnecessarily convoluted.

Matlab:-FromMatlab("
t_init      =20;      % [C] Start temp i mælken
h           =10;      % [W/m2*K] varme transmissionskoefficient
A           =0.07;    % [m2] Overfladeareal
m           =1;       % [kg] massen af mælken
c           =4190;    % [j/kgK] specifik varmekapacitet, mælk og karton
t_R         =5;       % [C] Temperatur i køleskabet
tau_slut    =3600*3;  % [s] Simuleringstid
dtau        =10;      % [s] Tids step

% Beregning - nogle hjælpestørrelser

i_max       = tau_slut/dtau; % Antal elementer (gennemløb i loop'et)

% Tre vektorer oprettes ud udfyldes med nuller

tau         = zeros(i_max,1); % Den numeriske løsning
t           = zeros(i_max,1); % Den numeriske løsning

% Så sættes nogle begyndelsesværdier

t(1)=t_init;
tau(1) = 0;       % Starttidspunktet

%Simulering
for i=2:i_max
    tau(i)=tau(i-1)+dtau;              % [s] Den nye tid
    dt=-(h*A)/(m*c)*(t(i-1)-t_R)*dtau; % [-] Temp. ændringen
    t(i)=t(i-1)+dt;                    % [-] Den nye temp.
end
                        "):

plot(<(tau/3600)|t>,gridlines=true,
                    legend="analytisk",legendstyle=[location=right],
                    caption="Mælketemperatur");

acer
