n must be >3
The polygon with maximal area is the cyclic one.
Denote L[i] the sides, here L[i] = i, and r the radius of the circle.
Let a[i] be the angle A[i]OA[i+1], where A[1], ..., A[n] are the vertices
and O is the center of the circumscribed circle. Then

Sum(arcsin(L[i]/r/2, i=1..n) = Pi  ==> r

restart
R := n -> local i,r; fsolve(sum(arcsin(i/r/2), i=1..n) - Pi, r =n/2 .. 2*n):

Vector( 17, k -> 'R'(k+3)=R(k+3));

n:=7:  # Graphic example
r:=R(n):
b[0]:=0:
for i to n do a[i] := 2*arcsin(i/r/2); b[i]:=b[i-1]+a[i] od:
MaxArea:=r^2/2*add(sin(a[i]), i=1..n);
plot([seq]([cos(b[i]),sin(b[i])], i=0..n), axes=none);

        MaxArea := 54.72494665

evala(%);
#           2

Hint for a student solution "by hand":
-  Use  (a+b)^3 = a^3 + b^3 + 3*a*b*(a + b)

-- Obtain a cubic equation satisfied by your number x and factor it as (x-2)(...)=0.



intat(f(x), x=a)  computes an antiderivative F(x) of f(x) and returns F(a).

Two antiderivatives may differ by an additive constant, depending e,g. on the method used to compute it.

 intat is useful when it is desired to subsequently perform a change of variable, or in the case of symbolic manipulation of the solutions of differential equations.



So, for example,

intat(x^2, x=1);

1/3

(1)

has not much sense, unless you know which antiderivative was computed.



restart;

f := sin(x)*cos(x) + 1/x;

sin(x)*cos(x)+1/x

(2)

F1 := intat(f, x=a);

ln(a)+(1/2)*sin(a)^2

(3)

F2 := intat(simplify(f), x=a);

ln(a)-(1/4)*cos(2*a)

(4)

simplify(F1-F2);

1/4

(5)

F3 := Int(f, x=0..a); value(%);

Int(sin(x)*cos(x)+1/x, x = 0 .. a)



infinity

(6)

Note. When Intat(f(x), x=a)  is replaced by Int(f(x). x=0..a), odesolve will verify it, but 0 could be out of dom(f), so, nonsense!



1/2*evalf(Int(min(-6*cos(t), 2-2*cos(t))^2, t=Pi/2..3*Pi/2));
identify(%);
#                          15.70796327
#                              5 Pi

Using Edge is ok, Firefox too; maybe try some font settings:



The answer for your previous problem works here too.

restart;
eq:=x^2+y^2-N*(1+x*y):  # [x=0, y=sqrt(N)] and [x=sqrt(N),y=0] are solutions!
XY:=[X=x, Y=2*y-x*N]: xy:=solve(XY,[x,y])[]:
EQ:=simplify(eval(eq,xy)):
for N in [9, 49 , 729] do
  SOL:=isolve(EQ):
  sol[N]:=map(u -> simplify(eval(xy, u)), [SOL]);
  num:={seq}(simplify(sol[N])[],_Z1=0..2);
  print('N'=N, select(type,num, [anything=integer,anything=integer]));
od:

N = 9, {[x = -1497363, y = -13307787],
  [x = -1497363, y = -168480], [x = -168480, y = -1497363],
  [x = -168480, y = -18957], [x = -18957, y = -168480],
  [x = -18957, y = -2133], [x = -2133, y = -18957],
  [x = -2133, y = -240], [x = -240, y = -2133],
  [x = -240, y = -27], [x = -27, y = -240], [x = -27, y = -3],
  [x = -3, y = -27], [x = -3, y = 0], [x = 0, y = -3],
  [x = 0, y = 3], [x = 3, y = 0], [x = 3, y = 27],
  [x = 27, y = 3], [x = 27, y = 240], [x = 240, y = 27],
  [x = 240, y = 2133], [x = 2133, y = 240],
  [x = 2133, y = 18957], [x = 18957, y = 2133],
  [x = 18957, y = 168480], [x = 168480, y = 18957],
  [x = 168480, y = 1497363], [x = 1497363, y = 168480],
  [x = 1497363, y = 13307787]}

N = 49, {[x = -96687343207, y = -4735705783543],
  [x = -96687343207, y = -1974033600],
  [x = -1974033600, y = -96687343207],
  [x = -1974033600, y = -40303193],
  [x = -40303193, y = -1974033600], [x = -40303193, y = -822857],
  [x = -822857, y = -40303193], [x = -822857, y = -16800],
  [x = -16800, y = -822857], [x = -16800, y = -343],
  [x = -343, y = -16800], [x = -343, y = -7], [x = -7, y = -343],
  [x = -7, y = 0], [x = 0, y = -7], [x = 0, y = 7],
  [x = 7, y = 0], [x = 7, y = 343], [x = 343, y = 7],
  [x = 343, y = 16800], [x = 16800, y = 343],
  [x = 16800, y = 822857], [x = 822857, y = 16800],
  [x = 822857, y = 40303193], [x = 40303193, y = 822857],
  [x = 40303193, y = 1974033600], [x = 1974033600, y = 40303193],
  [x = 1974033600, y = 96687343207],
  [x = 96687343207, y = 1974033600],
  [x = 96687343207, y = 4735705783543]}

N = 729, {[x = -4052517025117644747, y = -2954279352292037818803],
  [x = -4052517025117644747, y = -5559018725201760],
  [x = -5559018725201760, y = -4052517025117644747],
  [x = -5559018725201760, y = -7625554438293],
  [x = -7625554438293, y = -5559018725201760],
  [x = -7625554438293, y = -10460313837],
  [x = -10460313837, y = -7625554438293],
  [x = -10460313837, y = -14348880],
  [x = -14348880, y = -10460313837], [x = -14348880, y = -19683],
  [x = -19683, y = -14348880], [x = -19683, y = -27],
  [x = -27, y = -19683], [x = -27, y = 0], [x = 0, y = -27],
  [x = 0, y = 27], [x = 27, y = 0], [x = 27, y = 19683],
  [x = 19683, y = 27], [x = 19683, y = 14348880],
  [x = 14348880, y = 19683], [x = 14348880, y = 10460313837],
  [x = 10460313837, y = 14348880],
  [x = 10460313837, y = 7625554438293],
  [x = 7625554438293, y = 10460313837],
  [x = 7625554438293, y = 5559018725201760],
  [x = 5559018725201760, y = 7625554438293],
  [x = 5559018725201760, y = 4052517025117644747],
  [x = 4052517025117644747, y = 5559018725201760],
  [x = 4052517025117644747, y = 2954279352292037818803]}

With sol[N] you may inspect the general solution depending on _Z1.






isolve is old and should be updated.

Actually isolve knows to solve generalized Pell equations. It only needs a little help to convert the diophantine quadratic to generalized Pell form.

At the end we must filter the obtained numeric solutions in order to eliminate the non-integer ones due to the form of xy, see below.



restart;

eq:=x^2 - 12*x*y + 6*y^2 + 4*x + 12*y - 3:

XY:=[X = 2*x-12*y+4, Y = -5*y+3]; # via complete squares

[X = 2*x-12*y+4, Y = -5*y+3]

(1)

xy:=solve(XY,[x,y])[];

[x = (1/2)*X+8/5-(6/5)*Y, y = -(1/5)*Y+3/5]

(2)

EQ:=simplify(eval(eq,xy));

(1/4)*X^2+19/5-(6/5)*Y^2

(3)

SOL:=isolve( EQ ):

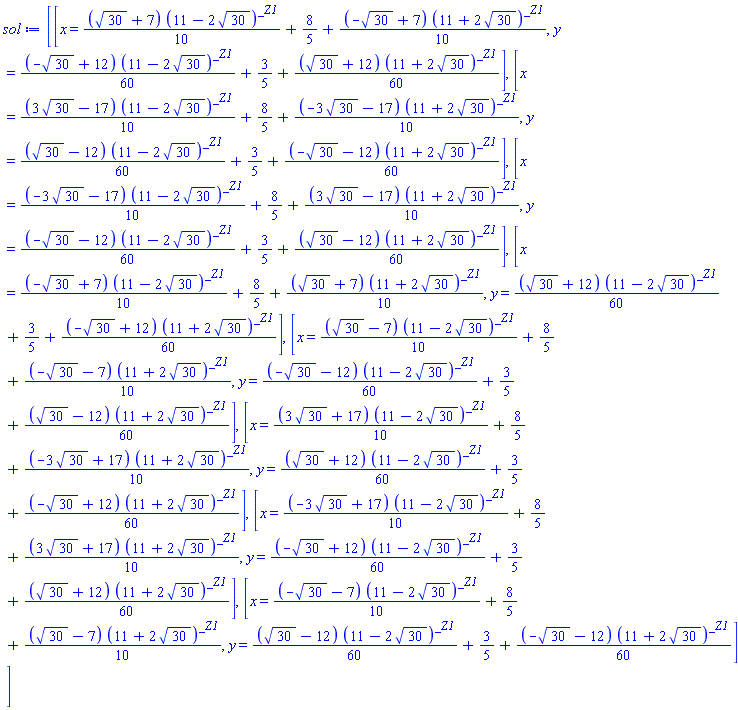

sol:=map(u -> simplify(eval(xy, u)), [SOL]);

[[x = (1/10)*(30^(1/2)+7)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(-30^(1/2)+7)*(11+2*30^(1/2))^_Z1, y = (1/60)*(-30^(1/2)+12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(30^(1/2)+12)*(11+2*30^(1/2))^_Z1], [x = (1/10)*(3*30^(1/2)-17)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(-3*30^(1/2)-17)*(11+2*30^(1/2))^_Z1, y = (1/60)*(30^(1/2)-12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(-30^(1/2)-12)*(11+2*30^(1/2))^_Z1], [x = (1/10)*(-3*30^(1/2)-17)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(3*30^(1/2)-17)*(11+2*30^(1/2))^_Z1, y = (1/60)*(-30^(1/2)-12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(30^(1/2)-12)*(11+2*30^(1/2))^_Z1], [x = (1/10)*(-30^(1/2)+7)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(30^(1/2)+7)*(11+2*30^(1/2))^_Z1, y = (1/60)*(30^(1/2)+12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(-30^(1/2)+12)*(11+2*30^(1/2))^_Z1], [x = (1/10)*(30^(1/2)-7)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(-30^(1/2)-7)*(11+2*30^(1/2))^_Z1, y = (1/60)*(-30^(1/2)-12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(30^(1/2)-12)*(11+2*30^(1/2))^_Z1], [x = (1/10)*(3*30^(1/2)+17)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(-3*30^(1/2)+17)*(11+2*30^(1/2))^_Z1, y = (1/60)*(30^(1/2)+12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(-30^(1/2)+12)*(11+2*30^(1/2))^_Z1], [x = (1/10)*(-3*30^(1/2)+17)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(3*30^(1/2)+17)*(11+2*30^(1/2))^_Z1, y = (1/60)*(-30^(1/2)+12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(30^(1/2)+12)*(11+2*30^(1/2))^_Z1], [x = (1/10)*(-30^(1/2)-7)*(11-2*30^(1/2))^_Z1+8/5+(1/10)*(30^(1/2)-7)*(11+2*30^(1/2))^_Z1, y = (1/60)*(30^(1/2)-12)*(11-2*30^(1/2))^_Z1+3/5+(1/60)*(-30^(1/2)-12)*(11+2*30^(1/2))^_Z1]]

(4)

nops(sol)

8

(5)

num:={seq}(simplify(sol)[],_Z1=0..20): # some numeric solutions

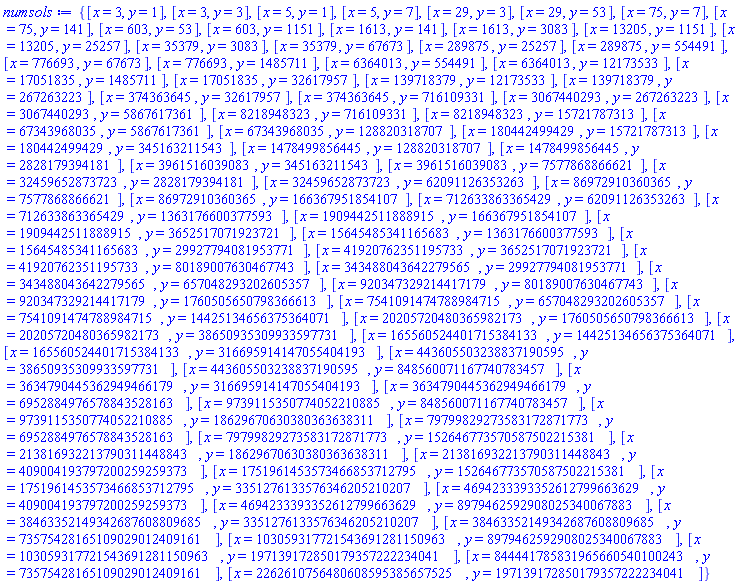

numsols:=select(type,num,  [anything=integer,anything=integer]);

{[x = 3, y = 1], [x = 3, y = 3], [x = 5, y = 1], [x = 5, y = 7], [x = 29, y = 3], [x = 29, y = 53], [x = 75, y = 7], [x = 75, y = 141], [x = 603, y = 53], [x = 603, y = 1151], [x = 1613, y = 141], [x = 1613, y = 3083], [x = 13205, y = 1151], [x = 13205, y = 25257], [x = 35379, y = 3083], [x = 35379, y = 67673], [x = 289875, y = 25257], [x = 289875, y = 554491], [x = 776693, y = 67673], [x = 776693, y = 1485711], [x = 6364013, y = 554491], [x = 6364013, y = 12173533], [x = 17051835, y = 1485711], [x = 17051835, y = 32617957], [x = 139718379, y = 12173533], [x = 139718379, y = 267263223], [x = 374363645, y = 32617957], [x = 374363645, y = 716109331], [x = 3067440293, y = 267263223], [x = 3067440293, y = 5867617361], [x = 8218948323, y = 716109331], [x = 8218948323, y = 15721787313], [x = 67343968035, y = 5867617361], [x = 67343968035, y = 128820318707], [x = 180442499429, y = 15721787313], [x = 180442499429, y = 345163211543], [x = 1478499856445, y = 128820318707], [x = 1478499856445, y = 2828179394181], [x = 3961516039083, y = 345163211543], [x = 3961516039083, y = 7577868866621], [x = 32459652873723, y = 2828179394181], [x = 32459652873723, y = 62091126353263], [x = 86972910360365, y = 7577868866621], [x = 86972910360365, y = 166367951854107], [x = 712633863365429, y = 62091126353263], [x = 712633863365429, y = 1363176600377593], [x = 1909442511888915, y = 166367951854107], [x = 1909442511888915, y = 3652517071923721], [x = 15645485341165683, y = 1363176600377593], [x = 15645485341165683, y = 29927794081953771], [x = 41920762351195733, y = 3652517071923721], [x = 41920762351195733, y = 80189007630467743], [x = 343488043642279565, y = 29927794081953771], [x = 343488043642279565, y = 657048293202605357], [x = 920347329214417179, y = 80189007630467743], [x = 920347329214417179, y = 1760505650798366613], [x = 7541091474788984715, y = 657048293202605357], [x = 7541091474788984715, y = 14425134656375364071], [x = 20205720480365982173, y = 1760505650798366613], [x = 20205720480365982173, y = 38650935309933597731], [x = 165560524401715384133, y = 14425134656375364071], [x = 165560524401715384133, y = 316695914147055404193], [x = 443605503238837190595, y = 38650935309933597731], [x = 443605503238837190595, y = 848560071167740783457], [x = 3634790445362949466179, y = 316695914147055404193], [x = 3634790445362949466179, y = 6952884976578843528163], [x = 9739115350774052210885, y = 848560071167740783457], [x = 9739115350774052210885, y = 18629670630380363638311], [x = 79799829273583172871773, y = 6952884976578843528163], [x = 79799829273583172871773, y = 152646773570587502215381], [x = 213816932213790311448843, y = 18629670630380363638311], [x = 213816932213790311448843, y = 409004193797200259259373], [x = 1751961453573466853712795, y = 152646773570587502215381], [x = 1751961453573466853712795, y = 3351276133576346205210207], [x = 4694233393352612799663629, y = 409004193797200259259373], [x = 4694233393352612799663629, y = 8979462592908025340067883], [x = 38463352149342687608809685, y = 3351276133576346205210207], [x = 38463352149342687608809685, y = 73575428165109029012409161], [x = 103059317721543691281150963, y = 8979462592908025340067883], [x = 103059317721543691281150963, y = 197139172850179357222234041], [x = 844441785831965660540100243, y = 73575428165109029012409161], [x = 2262610756480608595385657525, y = 197139172850179357222234041]}

(6)

nops(numsols);

82

(7)

{seq}( eval(eq, s), s=numsols); #check

{0}

(8)





Download dioph-sols-vv.mw



select(u -> nops(u)=m and andmap(isprime,u), L);





restart;

dis:= (A,B) -> sqrt( (A[1]-B[1])^2 + (A[2]-B[2])^2 ):
P:= unapply(dis(A,B)+dis(B,C)+dis(C,A), [A,B,C]):

A0:=[0,0]:
A1:=[u1,0]:
A2:=[u2,u3]:
A3:=v1*~A1:
A4:=A1+v2*~(A2-A1):
A5:=A1+v3*~(A2-A1):
A6:=A0+v4*~(A2-A0):
A7:=A0+v5*~(A2-A0):
A8:=A6+v6*~(A4-A6):

eps:=0.05:

perim:=
P(A0,A3,A6)=10, P(A6,A3,A4)=15, P(A3,A1,A4)=11,
P(A6,A8,A7)=9,  P(A8,A5,A7)=13, P(A8,A4,A5)=12,
P(A7,A5,A2)=20:

vars := u1=1..50, u2=1..50, u3=1..50,
v1=eps ..1-eps, v2=eps ..1-eps, v3=eps ..1-eps, v4=eps ..1-eps, v5=eps ..1-eps, v6=eps ..1-eps:

inisol:=[u1 = 8, u2 = 3, u3 = 12, v1 = 0.5, v2 = 0.3, v3 = 0.5, v4 = 0.09, v5 = 0.3, v6 = 0.5]:

sol:=DirectSearch:-SolveEquations([perim], [vars], initialpoint=inisol );

[7.928429359693041*10^(-17), Vector(7, {(1) = 0.1798504456e-8, (2) = -0.1393335225e-8, (3) = -0.7304805649e-9, (4) = 0.7992083439e-8, (5) = -0.1359651947e-8, (6) = 0.1542570516e-8, (7) = 0.2339469063e-8}), [u1 = 8.211758237046912, u2 = 1.8442345202064532, u3 = 12.033442054587029, v1 = .5526589984562774, v2 = .26313930832995064, v3 = .5414796127553622, v4 = 0.7943775626427665e-1, v5 = .2941739734925204, v6 = .485843681048224], 5405]

(1)

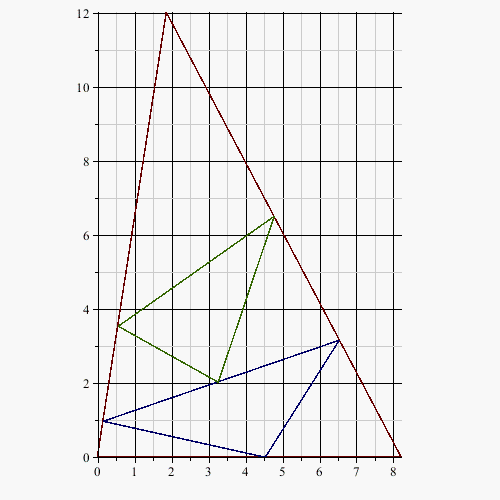

plots:-display(plot(eval([A0,A1,A2,A0],sol[3])), plot(eval([A3,A4,A6,A3],sol[3])), plot(eval([A5,A7,A8,A5],sol[3])), scaling=constrained);



eval([perim], sol[3]);

[HFloat(10.000000001798504) = 10, HFloat(14.999999998606665) = 15, HFloat(10.99999999926952) = 11, HFloat(9.000000007992083) = 9, HFloat(12.999999998640348) = 13, HFloat(12.00000000154257) = 12, HFloat(20.00000000233947) = 20]

(2)

eval(seq("A"||i=A||i,i=0..8), sol[3])

"A0" = [0, 0], "A1" = [HFloat(8.211758237046912), 0], "A2" = [HFloat(1.8442345202064532), HFloat(12.033442054587029)], "A3" = [HFloat(4.538302082851432), 0], "A4" = [HFloat(6.536212450422957), HFloat(3.166471619072571)], "A5" = [HFloat(4.763873960641556), HFloat(6.515863543831874)], "A6" = [HFloat(0.14650185231032542), HFloat(0.9559096369525809)], "A7" = [HFloat(0.5425257968612042), HFloat(3.539925463989865)], "A8" = [HFloat(3.2509023701302153), HFloat(2.029897207531015)]

(3)




(Edited - a typo).

Download perims-vv.mw

The curve length is infinite. The integrand has a singularity at t=ln(Pi/2):

restart;
f:= t -> sqrt((sin(t/cos(exp(t))) + t*(1/cos(exp(t)) + t*exp(t)*sin(exp(t))/cos(exp(t))^2)*cos(t/cos(exp(t))))^2 + (cos(t) - t*sin(t))^2 + 2*t):
a:=ln(Pi/2): evalf(a);
#                          0.4515827054

Digits:=15:
:-int(f, a..a+1/10, numeric, epsilon=1e-5);
#                     3.33001574946940* 10^13
Optimization:-Minimize(AD, {CD=AB-2, BC=AB+2, AD=AB+BC+CD, AB>=1, BC>=1, CD>=1}, assume=integer);
#        [9, [AB = 3, AD = 9, BC = 5, CD = 1]]



eval(E-A, solve({C-A + D-B + E-C = a, D-B = b}, {A,B,C,D,E}));
#                             -b + a





A more precise version and a simple proof



The cited result is true only when the curbe is not "too flat" and in those cases the result of the limit is different.



To simplify things we shall consider the Ox axes as one of the tangents to the curve.

So, we shall take  f(0) = 0, f'(0) = 0.

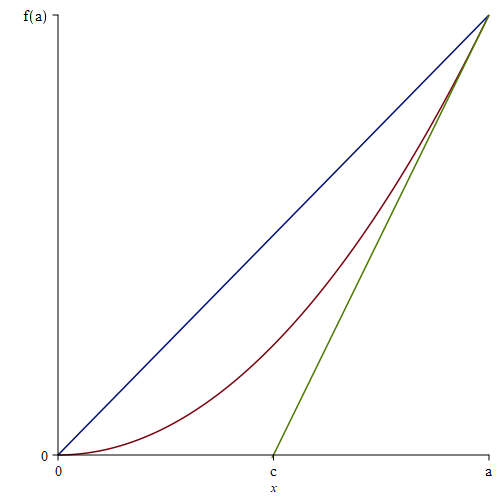

The tangent at the point P(a, f(a)) intersects the Ox axis for the abscissa  c = a - f(a)/f'(a);



So, the ratio r of the two areas is



restart;

r := (a*f(a)/2 - int(f(t),t=0..a))/ (1/2 * (a-f(a)/D(f)(a))* f(a));

2*((1/2)*a*f(a)-(int(f(t), t = 0 .. a)))/((a-f(a)/(D(f))(a))*f(a))

(1)

# f(0) = 0, f'(0)=0

0

(2)

eval( r,  f = (u -> u^2*g(u)) ):
series(%, a);

series(2/3+(2*(-(1/30)*((D@@2)(g))(0)+(1/12)*(D(g))(0)^2/g(0))/g(0))*a^2+O(a^3),a,3)

(3)

Hence  limit(r, a=0)  = 2/3   indeed.



What happens if f is more "flat".  E.g. f(0) = 0, f'(0)=0, f''(0)=0



eval( r,  f = (u -> u^3*g(u)) ):
series(%, a);

series(3/4+((1/40)*(D(g))(0)/g(0))*a+O(a^2),a,2)

(4)

And so on; if the first nonzero derivative (at 0) is the 10th we obtain:



eval( r,  f = (u -> u^10*g(u)) ):
series(%, a, 14);

series(10/11+((2/297)*(D(g))(0)/g(0))*a+(2*((7/2574)*((D@@2)(g))(0)-(31/10692)*(D(g))(0)^2/g(0))/g(0))*a^2+O(a^3),a,3)

(5)

So, the limit will be  k/(k+1)  it  the first nonzero derivative of f at 0 is the k-th.




Download voller-vv.mw

Optimization:-NLPSolve works very well and fast without the need of any simplification.

restart;
Digits:=15:
e:=(x,y) -> x^2 + 2*y^2 - 1:
h:=(x,y) -> (x-sin(x))^2 + (y-sin(y))^2 - 1:
constr:=
e(x1,y1)=0, h(x2,y2)=0, h(x3,y3)=0, r>=0,
D[1](e)(x1,y1)*(y1-y0) - D[2](e)(x1,y1)*(x1-x0) = 0,
D[1](h)(x2,y2)*(y2-y0) - D[2](h)(x2,y2)*(x2-x0) = 0,
D[1](h)(x3,y3)*(y3-y0) - D[2](h)(x3,y3)*(x3-x0) = 0,
(x1-x0)^2 + (y1-y0)^2 = r^2,
(x2-x0)^2 + (y2-y0)^2 = r^2,
(x3-x0)^2 + (y3-y0)^2 = r^2,
x3 >= x2 + 1/10:

sol:=Optimization:-Maximize(r, {constr},   x0=1..1.4, y0=1..1.4, x1=0..1, y1=0..1, x2=1..2, y2=1..2, x3=1..2, y3=1..2);

sol := [0.769863723979874459, [r = 0.769863723979874, x0 = 1.13805882552303, x1 = 0.699729170630851, x2 = 1.27446720511737, x3 = 1.89574141571275, y0 = 1.13805882552303, y1 = 0.505162888466810, y2 = 1.89574141571275, y3 = 1.27446720511737]]

p1:=plots:-implicitplot(e, -2..2, -2..2): p2:=plots:-implicitplot(h, -2..2, -2..2):
p3:=plottools:-circle(eval([x0,y0],sol[2]), eval(r,sol[2]), color=red):
p4:=plots:-pointplot(eval([[x0,y0],[x1,y1],[x2,y2],[x3,y3]],sol[2]), symbolsize=8, color=blue):
p5:=plots:-textplot(eval({seq}([x||i,y||i,P__||i], i=0..3), sol[2]), align={below, left}, color=blue):
plots:-display(p1,p2,p3,p4,p5);
