Hello,

Maple needs 827 characters to write a equation of a straight line.
Is that true or what am I doing wrong?

Can anybody help me or give a direction to handle with such problems?

Putting
  assume(2<alpha , alpha<=4);about (alpha);
before it does not help either.

f:=-(6*(3*alpha^2*(alpha-1+sqrt(alpha^2-3*alpha+2))^4/(alpha-1)^4-12*alpha^2*(alpha-1+sqrt(alpha^2-3*alpha+2))^3/(alpha-1)^3-6*alpha*(alpha-1+sqrt(alpha^2-3*alpha+2))^4/(alpha-1)^4+16*alpha^2*(alpha-1+sqrt(alpha^2-3*alpha+2))^2/(alpha-1)^2+24*alpha*(alpha-1+sqrt(alpha^2-3*alpha+2))^3/(alpha-1)^3+3*(alpha-1+sqrt(alpha^2-3*alpha+2))^4/(alpha-1)^4-8*alpha^2*(alpha-1+sqrt(alpha^2-3*alpha+2))/(alpha-1)-24*alpha*(alpha-1+sqrt(alpha^2-3*alpha+2))^2/(alpha-1)^2-12*(alpha-1+sqrt(alpha^2-3*alpha+2))^3/(alpha-1)^3+8*(alpha-1+sqrt(alpha^2-3*alpha+2))^2/(alpha-1)^2+8*alpha+(8*(alpha-1+sqrt(alpha^2-3*alpha+2)))/(alpha-1)-7))/(alpha*(alpha-1+sqrt(alpha^2-3*alpha+2))^2/(alpha-1)^2-2*alpha*(alpha-1+sqrt(alpha^2-3*alpha+2))/(alpha-1)-(alpha-1+sqrt(alpha^2-3*alpha+2))^2/(alpha-1)^2+(2*(alpha-1+sqrt(alpha^2-3*alpha+2)))/(alpha-1)-1)^4;

Hello,

• Is there a simple way to find the domain for the real solutions of f(x)?

• And is there a way to let maple get the part of f(x) with the sqrt?
   (not by typing it by hand as I dit below)

• Is there a way to write the summary of the found domains in one line?

Thanks for your help.

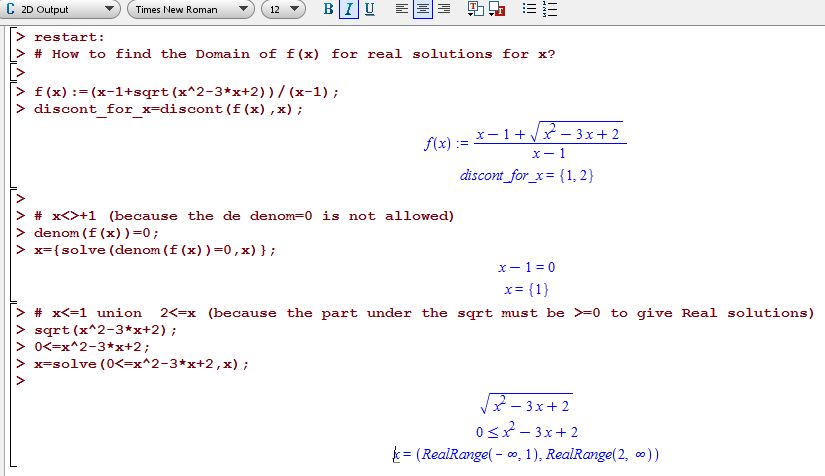

restart:
# How to find the Domain for real solutions for x?
f(x):=(x-1+sqrt(x^2-3*x+2))/(x-1);
discont_for_x=discont(f(x),x);
# x<>+1 (because the de denom=0 is not allowed)
denom(f(x))=0;
x={solve(denom(f(x))=0,x)};
# x<=1 union  2<=x (because the part under the sqrt must be >=0 to give Real solutions)
sqrt(x^2-3*x+2);
0<=x^2-3*x+2;
x=solve(0<=x^2-3*x+2,x);

I was required to purchase Maple 17 for my upcoming Calculus III course, and until now, I have been using my TI-Nspire CAS CX for all of my CAS needs.  I am going through various tutorials/labs in an effort to learn how to use the Maple 17 Software. As a part of this process, I am attempting to solve a system of equations and was told to use the following command:

>solve({2*x+3*y=7,5*x+8*y=9},{x,y});

in order to receive the answer

{y=-17,x=29}.

Instead, I have received the following error message, which has no help attached to it through the help page.

solve({2*x+3*y = 7, 5*x+8*y = 9}, {x, y});
Warning, solving for expressions other than names or functions is not recommended.

I am hoping this has something to do with Mac vs. Windows software, and that it has a simple solution.  I would greatly appreciate any guidance!

Hello,

As a means of encoding information, I'm working with nested array objects (I had originally used lists, but they became too large and Maple suggested that I use arrays). The nesting should be at most four deep, but the nested arrays can have varying lengths. In order to work with the arrays, I have a series of procedures that manipulate a given array and update the existing array object to contain the result. The issue that I have is that one of my procedures needs to simultaneously use both the original array and a modified version of the array, but once the modification is performed, the original version no longer exists.

Ultimately, my issue boils down to this: is there a clean (or messy, I'm not picky) way to duplicate an array so that there are two copies of the array in memory? Just writting Array2 := Array1 just creates another pointer to the same array in memory from what I can tell, so that doesn't work. There is a function copy, but it doesn't seem to work on nested arrays.

For example, running the following does not modify Array2.

Array1 := Array([Array([1, 2]), Array([3, 4])]);
Array2 := Array([Array([1, 2]), Array([5, 6])]);
copy(Array1, Array2);

Indeed, neither does

Array1 := Array([Array([1, 2]), Array([3, 4])]);
Array2 := Array([Array([1, 2]), Array([5, 6])]);
copy(Array1(2), Array2(2));

Unfortunately, the latter case would seem to mean that I can't just write a procedure to recurse through my layers of arrays and copy piecewise either.

Thanks in advance for any help.

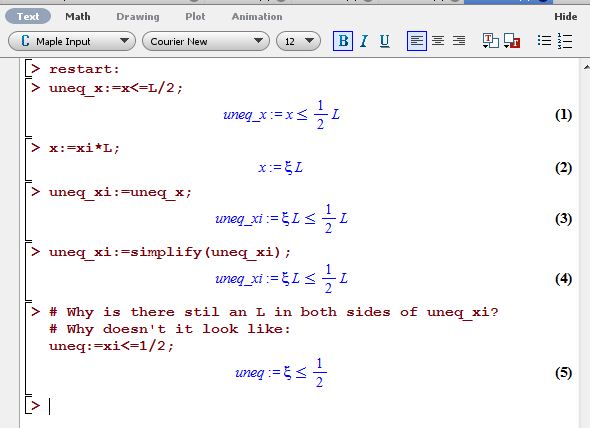

Can anybody tell me what I'm doing wrong?
Or does anybody have some tips for things like this? (Things like this occur often)

Stephan

Is it possible to set maple to fill in a header or footer for every new document I make?

Now i have to do it fot each new file by hand:

View => Header footer ..=>

 - select custom  - goto tab cusom headers put in the left textfield "&[File] pag. &[Page]/&[Pages]"

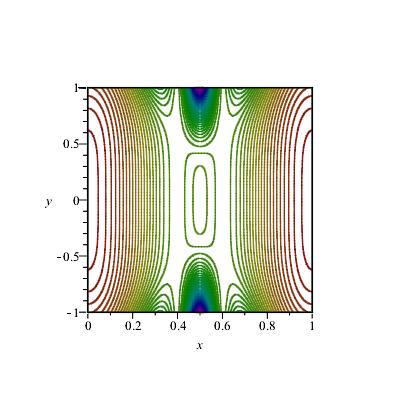

restart:with(plots):

TSol:= f(x,y,Q); # The actual funtion is in the attached maple sheet because of its size.

animate( plot3d, [TSol,y=-1..1,x=0..1], Q=0..2,contours=65,style=patchnogrid, grid=[80,80], orientation=[-360,-180], lightmodel=light4, shading=zhue, transparency=0.3,style=contour);

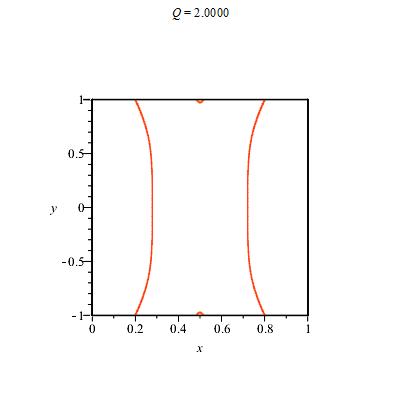

plot3d(subs(Q=2,TSol),y=-1..1,x=0..1,contours=65,style=patchnogrid, grid=[80,80], orientation=[-360,-180], lightmodel=light4, shading=zhue, transparency=0.3,style=contour);

For Q = 2, why there is a big difference between these two ouputs?

 3d_anim_try.mw (If the maple sheet is not accessible then let me know, I will copy past the function (f(x,y,Q))?)

I am trying to produce an animation. Everything seems correct, but the evaluation is taking a very long time. Even after an hour, it still tries to crank out a graph for me. I even tried to truncate the integral!

Here is my code.

with(plots):

z:= x -> 2*(int((sin(2*y)-sin(y))*cos(y*x)*exp(-y^2*t)/y, y = 0 .. 200))/Pi;

animate(plot, [z(x), x = 0 .. 10, y = -.1 .. 2], t = 0 .. 1, frames = 100);

Would could be the problem?

Hello

I'm doing some calculation reports in maple. These reports are to be submitted to various classification societies - which all have different requirements to the calculations.

I would like to make a report, where the class specific calculations would be append based on a selection of class in the main calculation.

How do I do this?

If I was using latex, matlab, APDL or something like that, I would do and *IF Class=class1, *INPUT class.calc, *ENDIF, but how to do this in maple?

Hi

I use Maple perhaps only one time per year and thus i'm a beginner with the product (even if i use it since 1996). I'm trying to make the following script work in Maple 17:

http://www.maplesoft.com/applications/view.aspx?SID=4268&ref=Feed&L=F

but i fail.... Some help will be appreciate

restart:

Eq1:=1/r*diff(r*diff(w(r),r),r)-(cos(z1))^2*(w(r)+1)-DP;

dsolve({Eq1});

bcs:=D(w)(0)=0,w(r2)=A1;

dsolve({Eq1,bcs},w(r)):

where z1, Dp, r2, A1 are constants.

Hi MaplePrime-ers!

I've been using the Maple(17) toolbox in Matlab(2012b) to quickly enumerate systems of equations by: (i) solving them symbolically, (ii) using unapply to make them functions, (iii) then supplying the points (driver equations) to get the system solution.  Speed is a must, because there may be 3 million+ systems to solve.  Symbolics is also very important because I am evaluating topology, so the structure of the equations may change, and therefore a functional approach will not work.

I have had success (seen in the first code snippet).  I would like similiar behaviour in the second code snippet, but sometimes I get 'solutions may be lost' as an error message,  or 'Error, (in unapply) variables must be unique and of type name'

The system of equations include:  Linear equations, 5th order polynomials, absolute functions, and pieceiwse functions.

Here is code with a topology that solves:

#Interconnection Equations
eq2[1] := FD_T + EM2_T = 0;
eq2[2] := ICE_T + GEN_T = 0;
eq2[3] := EM2_A + GEN_A + BAT_A = 0;
eq2[4] := -FD_W + EM2_W = 0;
eq2[5] := -ICE_W + GEN_W = 0;
eq2[6] := -EM2_V + GEN_V = 0;
eq2[7] := -EM2_V + BAT_V = 0;

#ICE
eq_c[1] := ICE_mdot_g=((671.5) + (-21.94)*ICE_T + (0.1942)*ICE_W + (0.5113)*ICE_T^2 + (-0.01271)*ICE_T*ICE_W + ( -0.0008761)*ICE_W^2 + (-0.006071)*ICE_T^3 + (9.867e-07)*ICE_T^2*ICE_W + (5.616e-05)*ICE_T*ICE_W^2 + (1.588e-06)*ICE_W^3 + (3.61e-05)*ICE_T^4 + (8.98e-07)*ICE_T^3*ICE_W + (-2.814e-07)*ICE_T^2*ICE_W^2 + (-8.121e-08)*ICE_T*ICE_W^3 + ( -8.494e-08 )*ICE_T^5 + (-2.444e-09)*ICE_T^4*ICE_W + (-9.311e-10)*ICE_T^3*ICE_W^2 + ( 5.835e-10)*ICE_T^2*ICE_W^3 ) *1/3600/1000 * ICE_T * ICE_W;

#BAT
eq_c[2] := BAT = 271;

#EM2
EM2_ReqPow_eq := (-148.3) + (4.267)*abs(EM2_W) + (12.77)*abs(EM2_T) + (-0.0364)*abs(EM2_W)^2 + ( 1.16)*abs(EM2_W)*abs(EM2_T) + (-0.258)*abs(EM2_T)^2 + ( 0.0001181)*abs(EM2_W)^3 + (-0.0005994)*abs(EM2_W)^2*abs(EM2_T) + ( 0.0001171)*abs(EM2_W)*abs(EM2_T)^2 + (0.001739 )*abs(EM2_T)^3 + (-1.245e-07 )*abs(EM2_W)^4 + ( 1.2e-06)*abs(EM2_W)^3*abs(EM2_T) + ( -1.584e-06)*abs(EM2_W)^2*abs(EM2_T)^2 + ( 4.383e-07)*abs(EM2_W)*abs(EM2_T)^3 + (-2.947e-06)*abs(EM2_T)^4;
eq_c[3] := EM2_P = piecewise( EM2_T = 0, 0, EM2_W = 0, 0, EM2_W*EM2_T < 0,-1 * EM2_ReqPow_eq, EM2_ReqPow_eq);
eq_c[4] := EM2_A = EM2_P/EM2_V;

#GEN
GEN_ReqPow_eq:= (-5.28e-12) + ( 3.849e-14)*abs(GEN_W) + (-71.9)*abs(GEN_T) + (-1.168e-16)*abs(GEN_W)^2 +(1.296)*abs(GEN_W)*abs(GEN_T) + (2.489)*abs(GEN_T)^2 + (1.451e-19)*abs(GEN_W)^3 + (0.0001326)*abs(GEN_W)^2*abs(GEN_T) + (-0.008141)*abs(GEN_W)*abs(GEN_T)^2 + (-0.004539)*abs(GEN_T)^3 +(-6.325e-23)*abs(GEN_W)^4 + (-2.091e-07)*abs(GEN_W)^3*abs(GEN_T) + ( 3.455e-06)*abs(GEN_W)^2*abs(GEN_T)^2 + ( 2.499e-05)*abs(GEN_W)*abs(GEN_T)^3 + (-5.321e-05)*abs(GEN_T)^4;
eq_c[5] := GEN_P = piecewise( GEN_T = 0, 0, GEN_W = 0, 0, GEN_W*GEN_T < 0,-1 * GEN_ReqPow_eq, GEN_ReqPow_eq);
eq_c[6] := GEN_A = GEN_P/GEN_V;

#ASSUMPTIONS
assume(BAT_V::nonnegative);
assume(FD_W::nonnegative);

#FINAL EQUATIONS

sys_eqs2 := convert(eq2,set) union {eq_c[1],eq_c[2],eq_c[3],eq_c[4],eq_c[5],eq_c[6]};

#Selecting which variables to solve for:

drivers2:= { ICE_T,ICE_W,FD_T,FD_W};
symvarnames2:=select(type,indets(convert(sys_eqs2,list)),name);
notdrivers2:=symvarnames2 minus drivers2;

#Symbolic solve

sol2:=solve(sys_eqs2,notdrivers2) assuming real:
symb_sol2:=unapply(sol2,convert(drivers2,list)):


#Enumerate (there will generally be about 40, not 6)

count := 0;
for i1 from 1 to 40 do
     for i2 from 1 to 40 do
          for i3 from 1 to 40 do
               for i4 from 1 to 40 do
                    count := count + 1;
                    solsol2(count) := symb_sol2(i1,i2,i3,i4);
               od;
          od;
     od;
od;
count;

This works great!  I would like simliar output in my second code snippet, but this time with more inputs to symb_sol.  However, if I try and change the interconnection equations a little, and add a piecewise function, and another driver... (differences in bold)

#Interconnection Equations
eq1[1] := FD_T+EM2_T = 0;
eq1[2] := ICE_T+GBb_T = 0;
eq1[3] := GEN_T+GBa_T = 0;
eq1[4] := EM2_A+GEN_A+BAT_A = 0;
eq1[5] := -FD_W+EM2_W = 0;
eq1[6] := -GEN_W+GBa_W = 0;
eq1[7] := -ICE_W+GBb_W = 0;
eq1[8] := -EM2_V+GEN_V = 0;
eq1[9] := -EM2_V+BAT_V = 0;

#ICE
eq_c[1] := ICE_mdot_g=((671.5) + (-21.94)*ICE_T + (0.1942)*ICE_W + (0.5113)*ICE_T^2 + (-0.01271)*ICE_T*ICE_W + ( -0.0008761)*ICE_W^2 + (-0.006071)*ICE_T^3 + (9.867e-07)*ICE_T^2*ICE_W + (5.616e-05)*ICE_T*ICE_W^2 + (1.588e-06)*ICE_W^3 + (3.61e-05)*ICE_T^4 + (8.98e-07)*ICE_T^3*ICE_W + (-2.814e-07)*ICE_T^2*ICE_W^2 + (-8.121e-08)*ICE_T*ICE_W^3 + ( -8.494e-08 )*ICE_T^5 + (-2.444e-09)*ICE_T^4*ICE_W + (-9.311e-10)*ICE_T^3*ICE_W^2 + ( 5.835e-10)*ICE_T^2*ICE_W^3 ) *1/3600/1000 * ICE_T * ICE_W;

#BAT
eq_c[2] := BAT = 271;

#EM2
EM2_ReqPow_eq := (-148.3) + (4.267)*abs(EM2_W) + (12.77)*abs(EM2_T) + (-0.0364)*abs(EM2_W)^2 + ( 1.16)*abs(EM2_W)*abs(EM2_T) + (-0.258)*abs(EM2_T)^2 + ( 0.0001181)*abs(EM2_W)^3 + (-0.0005994)*abs(EM2_W)^2*abs(EM2_T) + ( 0.0001171)*abs(EM2_W)*abs(EM2_T)^2 + (0.001739 )*abs(EM2_T)^3 + (-1.245e-07 )*abs(EM2_W)^4 + ( 1.2e-06)*abs(EM2_W)^3*abs(EM2_T) + ( -1.584e-06)*abs(EM2_W)^2*abs(EM2_T)^2 + ( 4.383e-07)*abs(EM2_W)*abs(EM2_T)^3 + (-2.947e-06)*abs(EM2_T)^4;
eq_c[3] := EM2_P = piecewise( EM2_T = 0, 0, EM2_W = 0, 0, EM2_W*EM2_T < 0,-1 * EM2_ReqPow_eq, EM2_ReqPow_eq);
eq_c[4] := EM2_A = EM2_P/EM2_V;

#GEN
GEN_ReqPow_eq:= (-5.28e-12) + ( 3.849e-14)*abs(GEN_W) + (-71.9)*abs(GEN_T) + (-1.168e-16)*abs(GEN_W)^2 +(1.296)*abs(GEN_W)*abs(GEN_T) + (2.489)*abs(GEN_T)^2 + (1.451e-19)*abs(GEN_W)^3 + (0.0001326)*abs(GEN_W)^2*abs(GEN_T) + (-0.008141)*abs(GEN_W)*abs(GEN_T)^2 + (-0.004539)*abs(GEN_T)^3 +(-6.325e-23)*abs(GEN_W)^4 + (-2.091e-07)*abs(GEN_W)^3*abs(GEN_T) + ( 3.455e-06)*abs(GEN_W)^2*abs(GEN_T)^2 + ( 2.499e-05)*abs(GEN_W)*abs(GEN_T)^3 + (-5.321e-05)*abs(GEN_T)^4;
eq_c[5] := GEN_P = piecewise( GEN_T = 0, 0, GEN_W = 0, 0, GEN_W*GEN_T < 0,-1 * GEN_ReqPow_eq, GEN_ReqPow_eq);
eq_c[6] := GEN_A = GEN_P/GEN_V;

#GB
FiveSpeedGearbox_R := proc(ig)
local i ,eq;
i[1]:=3.32;
i[2]:=2;
i[3]:=1.36;
i[4]:=1.01;
i[5]:=0.82;
eq:= piecewise(ig=1,i[1],ig=2, i[2],ig=3,i[3],ig=4,i[4],ig=5,i[5],1);
return eq(ig);
end proc;

eq_c[7] := GBb_T = -1/GB_R * GBa_T;
eq_c[8] := GBb_W = GB_R * GBa_W;
eq_c[9] := GB_R = FiveSpeedGearbox_R(ig);



#System Equations
sys_eqs := convert(eq1,set) union convert(eq_c,set);



 #Solve for variables
symvarnames:=select(type,indets(convert(sys_eqs,list)),name);
drivers:= {ig, ICE_T,ICE_W,FD_T,FD_W};
not_drivers := symvarnames minus drivers;

#Assumptinons

assume(BAT_V::nonnegative);
assume(FD_W::nonnegative);

sol:=(solve(sys_eqs,not_drivers) assuming real);

symb_sol:=unapply(sol,convert(drivers,list)): ---> Error, (in unapply) variables must be unique and of type name

Subsequent parts don't work...

count := 0;
for i1 from 1 to 40 do
     for i2 from 1 to 40 do
          for i3 from 1 to 40 do
               for i4 from 1 to 40 do
                    for i5 from 1 to 40 do
                         count := count + 1;
                         solsol2(count) := symb_sol2(i1,i2,i3,i4,5);
                    od;
               od;
          od;
     od;
od;
count;

While running the last line sol:, 1 of 2 things will happen, depending on the solver. Maple17 will take a long time (30+ minutes) to solve, then report nothing, or sol will solve, but will report "some solutions have been lost".

Afterwards, evaluating symb_sol(0,0,0,0,0) will return a viable solution (real values for each of the variables).  Whereas evaluating symb_sol(0,X,0,0,0), where X <> 0, will return and empty list [].

Does anyone know how to (i) speed up the symbolic solve time?  (ii) Return ALL of the solutions?

Thanks in advance for reading this.  I've really no idea why this isn't working.  I've also attached two worksheets with the code: noGB.mw   withGB.mw

 Adam

Please I need programme to solve this nonlinear couple ode with values of k_1 from 1.5 to 2.5 and eta from 0.0 to 2.0 real_work_3.mw Thanks for your help.

Hi all,

We're programming with Maple objects, and would like to have a Maple object that is appliable (i.e. acts as an operator).  We're really after partial differential operator (PDO) objects, but I give a simpler example below.  The problem is this: the ?ModuleApply proc needs to be non-static (so that each object has its own ?ModuleApply), and it may want to refer to the object instance, via ?thismodule.  Code like this works great when it is typed at the command line or read in from .mpl file, but it barfs as soon as saved to a .mla.  Why is that?  And is there an easy fix / workaround?

Here is an example worksheet, that creates a basic "compute mod p" object

BugThismoduleMLA.mw

The issue seems to be that, for code typed at command line, ?thismodule is resolved when I would expect, i.e. in the instance object; but saving to the .mla seems to cause ?thismodule to be resolved then-and-there, which means it resolves to the prototype object.  For this particular case there is an easy workaround, but we really want to refer to ?thismodule if possible.  Is there a way to do that?

BTW I'm running Maple 17.02 (sorry don't have access to 18 yet).

Thanks,
Ian and Tracy

I try to solve these two nonlinear odes, but no desire outcome. Please helpreal_work1.mwreal_work1.mw  or real_work1.mw
