I want to highlight the intersection between 2 graphs; pp(m,a) and the plane m=-0.2

PP := .8707945038*exp(-50.00000000*(m-0.842e-1)^2+(2.745342070*(m-0.842e-1))*(a-2.3722)-.1046792095*(a-2.3722)^2)

How can I do that?

Thank you

Hello every body

I have a plot that contains two curve. I need to chracterize the curves with `min(D_{T})` and `max(D_{E})`. Is it possible to write legend of plot such that when include it in latex file,  T and E be presented in indices?

With this app you will be able to interpret the curvatures generated by two position vectors, either in the plane or in space. Just enter the position vectors and drag the slider to calculate the curvature at different times and you will of course be able to observe its respective graph. At first I show you how it is developed using the natural syntax of Maple and then optimize our
 app with the use of buttons. App made in Maple for engineering students. In spanish.

Plot_of_Curvature.mw

Videotutorial:

https://www.youtube.com/watch?v=SbXFgr_5JDE

Lenin Araujo Castillo

Ambassador of Maple

i used this  commend to plot three equation and it actually work .my question her how to show any point cordinates just i pointed on it ? could i do it by maple or what ?
help please
implicitplot3d({f[1], f[2], f[3]}, Q[h] = 0 .. 100, S[h] = 0 .. 100, R[h] = 0 .. 100);

when i evaluate this summation if Q[h],S[h],R[h] are big floating numbers it take along time how i decrease this time
P := simplify(sum(sum((t+1)*Q[h]^2*(1-Q[h])^(t+T)/(t+1+(R[h]/S[h])^sigma*(T+1)), t = 0 .. infinity), T = 0 .. infinity))

The link below has my code for generating 2 matrices.  The 1st one does not generate flfoating point numerical data; whereas, the 2nd one does.  What is wrong with the 1st case?  I am attempting to single out one harmonic which works in the 2nd case.  Also, is there a way I can generate a spectrum of S2(k= 1 to 100, t= 0 to 1)?

?untitled6.mw

int(1/(s^2+1), s = 1-I*infinity .. 1+I*infinity); # as expected
                               0

evalf(Int(1/(s^2+1), s = 1-I*infinity .. 1+I*infinity)); # Pi?
                          3.141592654

So evalf(Int(...)) either doesn't know how to handle complex infinite endpoints or handles them in a way incompatible with how int() does it.

Hello every body

I have three vectors `X`, `Y` and `Z`. I need to plot `X` vs `Z` and `Y` vs `Z` in one plot. How can I do this?

Thanks in advance

Hi,

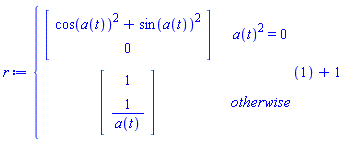

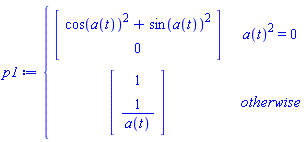

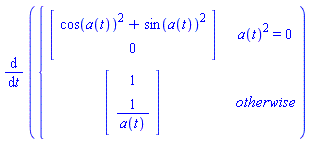

I have some matrix valued functions that that I can only define piecewise. Unfortunately I have some problems to manipulate those functions. Piecewise sees to do the job for  scalar valued functions. There I can easily differentiale and add results. For Matrix valued functions however, those features seem to not be availible.


I can work around these limitations by manually applying all operations to the operands of the piecewise function. Like I show here:

Download Scratch.mw

I think my workaround is very cumbersome and error prone. Is there a better way to tackle this probem? Or should I try to overload all needed operations, and is this even possible?

Thanks for all suggestions!

Honigmelone

is it possible to express rational number into fraction in terms of power of 2

input

2.142857143

output

(2^3+2^2+2+1)/(1+2+2^2)

Hi, there.

I have a program, and I want to make an interface where I can text in the figures and show the results. But I have no idea about this. Anyone can give me some instructions? Thanks!

Hello

I'm importing some data from Excel which comes across as L:

L := Matrix(1, 6, [["TC,DB", "PC,JL", "TD,JK", "IW,CM", "CC,PG", "KJ,DJ"]])

M: = convert( L,'list' );

["TC,DB", "PC,JL", "TD,JK", "IW,CM", "CC,PG", "KJ,DJ"

map(convert, M, 'name') ; # remove inverted commas

[`TC,DB`, `PC,JL`, `TD,JK`, `IW,CM`, `CC,PG`, `KJ,DJ`]

How to I add square brackets to each pair in the output?

What I want is a command to display L or M as:

[[TC,DB], [PC,JL], [TD,JK], [IW,CM], [CC,PG], [KJ,DJ]]

1.
tanh(1-x) = sum(p(ii)*x^q(ii), ii=0..infinity) or product(p*x^q(ii), ii=0..infinity) ?
2.
tanh(1-x)*1/(1-x) = sum(p(ii)*x^q(ii), ii=0..infinity) or product(p*x^q(ii), ii=0..infinity) ?
3.
tanh(x) = sum(p(ii)*x^q(ii), ii=0..infinity) or product(p*x^q(ii), ii=0..infinity) ?

Remark: it may not be possible to use diff to find p(ii)

update

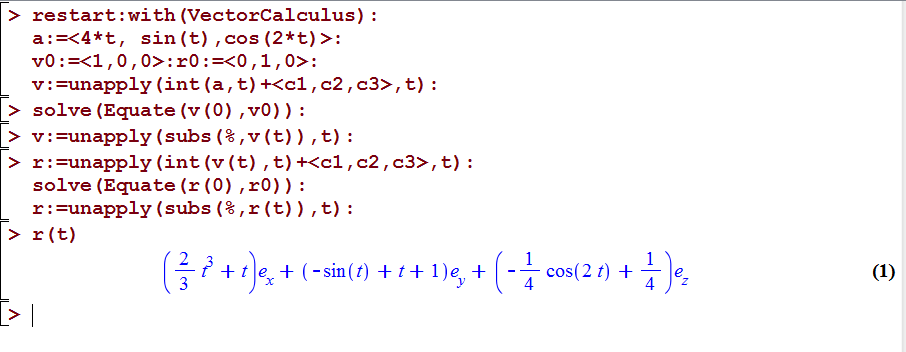

I am trying to solve a vector calculus problem, find r(t) given:

a(t) = < 4t, sin t, cos(2t) > ,  v(0) = <1,0,0>  , r(0) = <0, 1, 0 >

My approach below seems kind of complicated for such a straightforward problem.  I am trying to do this without copying pasting previous results. Also there might be a recursion issue when i defined v in terms of v(t).

I am a newbie at generating numeric data sets using the Matrix command.  Linked is the code I used to generate a time profile for various values of k.  The output results in 10 separate matrices for each value of k.  Instead I would like one matrix that has all ten data sets included.   Can anyone provide assistance?

untitled5.mw
