Question: HELP !! Maple doesn t want to give me the integral expression

Question:HELP !! Maple doesn t want to give me the integral expression

mathiaszip 15 Maple
integration 2dmath
December 01 2017
2


Hi

I have to create a function "I(epsilonc)" by integrating a function "sigma(y)"  from 0 to the variable "epsilonc"

but maple doesn t give me the actual formula of the integrated function, it only gives me equation 4 which is utterly useless to me.



How do I get Maple to actually calculate and give me the integrated function ??

Any help will be greatly appreciated

>

restart


#data

>

`ϵc1` := 2.1*10^(-3);

0.2100000000e-2

 (1)
>

`ϵcu1` := 3.5*10^(-3):
>

Ecm := 31000:
>

fcm := 25:
>

Fy := 500:
>

Es := 200000:

#geometry

>

As := 1885:
>

b = 250:
>

d := 450:


#coefficients

>

eta := epsilon/`ϵc1`:
>

k := 1.05*Ecm*`ϵc1`/fcm:
>

``


#formula



>

``
>

`σc` := proc (epsilon) options operator, arrow; fcm*(k*epsilon/`ϵc1`-epsilon^2/`ϵc1`^2)/(1+(k-2)*epsilon/`ϵc1`) end proc;

proc (epsilon) options operator, arrow; fcm*(k*epsilon/`ϵc1`-epsilon^2/`ϵc1`^2)/(1+(k-2)*epsilon/`ϵc1`) end proc

 (2)
>

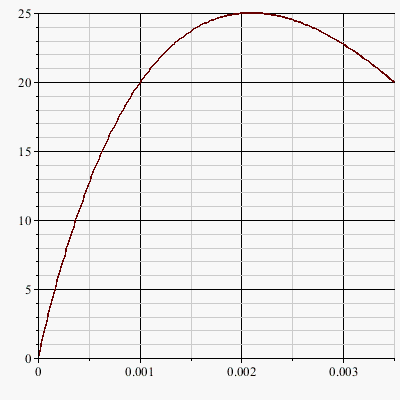

plot(`σc`, 0 .. `ϵcu1`);


>

``

#Pressure as a function of y (y=`ϵc`*y/x) :

>

`σc` := proc (y) options operator, arrow; fcm*(k*`ϵc`*y/(x*`ϵc1`)-`ϵc`^2*y^2/(x^2*`ϵc1`^2))/(1+(k-2)*`ϵc`*y/(x*`ϵc1`)) end proc;

proc (y) options operator, arrow; fcm*(k*`ϵc`*y/(x*`ϵc1`)-`ϵc`^2*y^2/(x^2*`ϵc1`^2))/(1+(k-2)*`ϵc`*y/(x*`ϵc1`)) end proc

 (3)
>

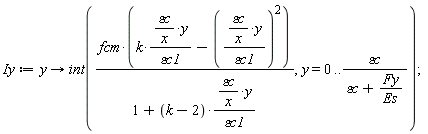

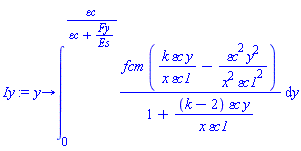

Iy := proc (y) options operator, arrow; int(fcm*(k*`ϵc`*y/(x*`ϵc1`)-`ϵc`^2*y^2/(x^2*`ϵc1`^2))/(1+(k-2)*`ϵc`*y/(x*`ϵc1`)), y = 0 .. `ϵc`/(`ϵc`+Fy/Es)) end proc;

proc (y) options operator, arrow; int(fcm*(k*`ϵc`*y/(x*`ϵc1`)-`ϵc`^2*y^2/(x^2*`ϵc1`^2))/(1+(k-2)*`ϵc`*y/(x*`ϵc1`)), y = 0 .. `ϵc`/(`ϵc`+Fy/Es)) end proc

 (4)
>

Iy(`ϵc`/(`ϵc`+Fy/Es))

Error, (in int) integration range or variable must be specified in the second argument, got `ϵc`/(`ϵc`+1/400) = 0 .. `ϵc`/(`ϵc`+1/400)


>

solve(Iyy*b = Fy*As, `ϵc`);
>

``

``
