Works for sums

2*A*B/(A*m+m)+C^2+D^2;

convert([op(%)],Vector);
expand~(numer~(%)/A);
collect((x->1/x)~(expand~(denom~(%%)/A)),m);
(%.%%)assuming real;

By coincidence, I found what you were looking for in the layout palette.

Simply select whatever is selectable with the mouse and click on one of the layout brakets.

Your can make them your favorites for easier access as I have done here

Carl Love has provided an answer for a=b=c=d here.

inrt := `%*`(a*b);
inrt2 := subs(a = `%*`(2*Unit('m')), b = `%*`(3*Unit('m')), inrt);
MultiEquation(((A = inrt) = inrt2) = value(inrt2));

I could not find a way to remove the brackets in the output

We get closer (still one pair of brackets left) to what you are looking for by modifing an answer from acer (same link above)

Maybe someone has an idea how to remove the brackets.

I cannot see a way to write from the above a proc with only one parameter. A, a and b must somehow be given. Or at least a and b if A is fixed.

Download abc_modif.mw

@Carl Love

Your explantion makes sense: only curved arrows are affeted (curve and comet).  Each time either the head or the tail of a curve extends into the complex domain an error is thrown (the curves midpoints are centered on the grid).

Algorithmwise I see only two simple options. Clipping of the curves or suppression of arrows in case of boundary extension. The later case is implemented and works for straight arrows and for curved arrows if the inital point for arrow calculation matches the singularity.

For curved boundaries (or boundaries not parallel to the axes) clipping of arrows might be better looking since the plot will stay complete and the boundary of the domain can be better guessed and is not jagged. Or the opposite ... we have to see how it looks like

A slight reduction of the plotrange helps in this case without changing the grid and the labels.

restart;
ode:=diff(y(x),x)-1/(-x^2+1)^(1/2) = 0;
x_range:=-0.98 .. 0.98;
DEtools:-DEplot(ode,y(x),x =x_range,y = -1.6 .. 1.6,[y(0) = 0],arrows = 'curve')

Or a larger range and clipping the view

restart;
ode := diff(y(x), x) - 1/(-x^2 + 1)^(1/2) = 0;
x_range := -1.1 .. 1.1;
DEtools:-DEplot(ode, y(x), x = x_range, y = -1.6 .. 1.6, [y(0) = 0], arrows = 'curve', iterations = 1, view = [-1 .. 1, -1.6 .. 1.6]);

This is only works for odes with simple singularities on the x-axis.

By the way: dfieldplot (probably used by DEplot) throws the same error

restart;
ode := diff(y(x), x) - 1/(-x^2 + 1)^(1/2) = 0;
x_range := -0.99 .. 0.99;
DEtools:-dfieldplot(ode, y(x), x = x_range, y = -1.6 .. 1.6, [y(0) = 0], arrows = 'curve');

Entering solve with 6 equations in 3 variables:

     This can be explained by solve interpreting the assumptions on the variables lambda as 3 new equations.
     These assumptions alone trigger the Solutions lost message.

There a quite some assumptions in the document. I feel a bit uneasy about which assumptions solve uses when called with useassumptions.

I also feel a bit uneasy about the indexed subscripts because of typos that may not be visible.

I have to stop here but attach my attempts. Maybe this gives you some ideas.

061123_solving_with_assumptions-1_reply.mw

To add the example in your own worksheet, place the cursor where you want to add the task.

Then goto the task an insert the content and replace the integrand and boundaries by yours if you want

See the attached. Is that what you are looking for?

task_example.mw

If you mean by coordinat node the points where the three curves intersect

you can can define a procedure and use fsolve. Here is a code snippet for one point that you can paste at the end of you worksheet and see how ist works

dd:=proc(tt)
    rhs(Solusi5(tt)[2])- rhs(Solusi5(tt)[3])
end;
A5x:=fsolve(dd,0..5);
A5y:=rhs(Solusi5(A5x)[2]);
plots:-pointplot([[A5x,A5y]]);
display(PlotA5, PlotI5, PlotS5,%)

Try


with(Statistics):
L1 := [2, 4, 6]:
ColumnGraph(L1, axis[1] = [tickmarks = [[0.4 = "abe", 1.4 = "banan", 2.4 = "palme"], rotation = Pi/2]]);

Your general solution Sol1 should also simplify to an expression with signum(xc1-xc2) without the need to restrict the domain to real

sqrt((xc1 - xc2)^2)/(xc1 - xc2);
simplify(%);
                                    (1/2)
                      /           2\
                      \(xc1 - xc2) /
                      -------------------
                           xc1 - xc2

                       signum(xc1 - xc2)


Perhaps the radical is too complex and Maple overlooks this simplifcation or there is no simplification possible in the complex domain (for a reason I can't see at the moment).

Anyway, your substitution is equivalent to the assumption xc1 > xc2. You could use


simplify~(solve({eq1, eq2}, [x, y], explicit), radical) assuming (xc2 < xc1)

to avoid a call to realdomain and the substitution step. It's just a little bit neater.

Edit:

No simplification to an expression with signum possible in the complex domain without assumptions because the expression bellow is in general not zero

To change a style, navigate to style under format and modify 2d input this way

See https://www.maplesoft.com/support/help/maple/view.aspx?path=worksheet%2Fdocumenting%2Fstyles

to make it permanet for all worksheets

Without the model it is difficult to help.

In general:

What you have to do is to constrain the end effector position using parameters. There are several ways to do this.

https://fr.maplesoft.com/products/maplesim/modelgallery/detail.aspx?id=38

for example constrains the position a radar points to.

There are videos describing the whole process. Here is one

https://www.youtube.com/watch?v=7IKFqRkKqI0

Once constrained, MapelSim can generate and export algebraic constraints that you need to calulate the inverse kinematics.

The tricky part is to preserve the pulley coordinates in the algebraic constraints. For that you might find the following helpfull

https://www.mapleprimes.com/posts/217390-Equation-Extraction-For-Kinematics

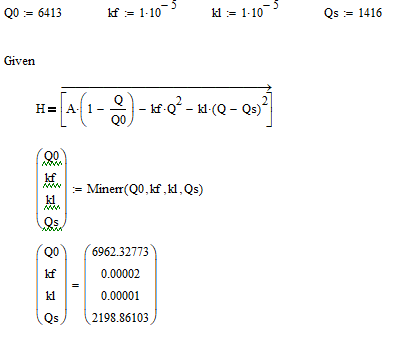

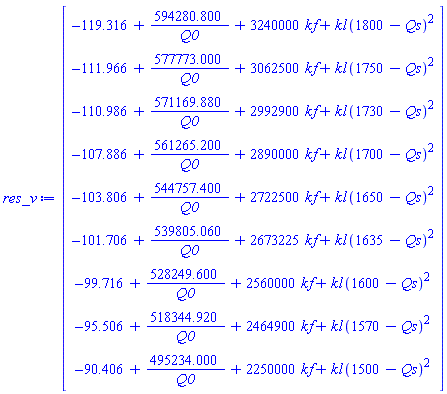

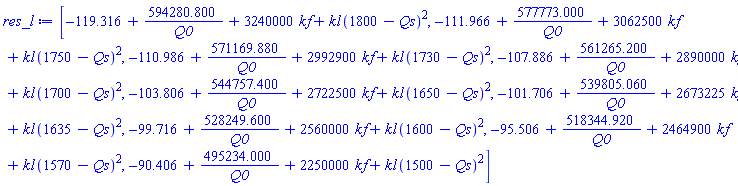

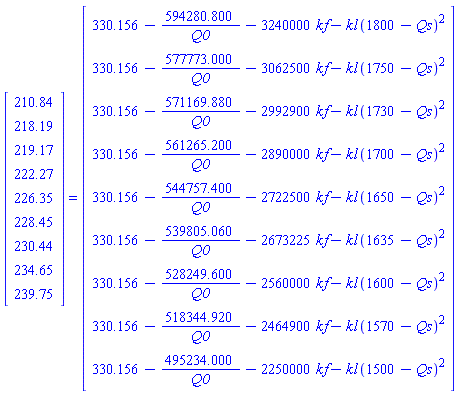

Attached you will find a way in Maple. Since the problem is nonlinear there can be more minima (local or global). That's most likely the reason why the result from Maple and Mathcad do not agree in a first attempt.

NLPsolve (and the Optimization package in general) has a bunch of options Minerr in a solve block does not seem to have. If you want to reproduce whatever Minerr does you have to go through all the options and their combinations. I would start with methods first.

Download SolveBlockQuestion-reply.mw

For comparision:
The best I could do with substitutions. What makes it tricky is the coefficient R1*R2 of s.

I spare out the sorting detail since its already twice as long as acers solution.

Download subsway.mw

Your parameters still do not match. In the following I have tried to show how the substitution should be done and what needs to be changed.

Download parameter_mismatch.mw
