I would like to play the applet that is within the zip file in Maple.
Or find the procedure that allows me to perform a given experiment with alpha and beta (type I and II) predefined using the least number of experimental data.

Gracias

I got Error

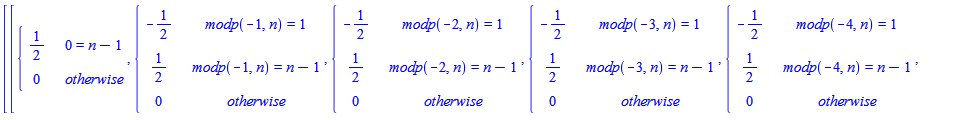

Matrix(8,8,shape=Circulant[[0,1/2,0$n-3,-1/2]]); Error, (in Matrix) invalid subscript selector Matrix(8,8, (i,j) -> piecewise(i-j mod n = 1, -1/2, i-j mod n = n -1, 1/2, 0)); **** Gracias ## @Christopher2222 Two Examples N ... Two Examples N := 500 t := Vector(N, i->evalf[4]((2*i-2)*Pi/N), datatype = float[8]) x := Vector(N, i-> cos(10*t[i])+I*sin(4*t[i])+ArrayTools[RandomArray](distribution = normal) , datatype = complex[8]) =============================================================================== rnd := n-> RandomVector(n, generator = (1/10)*rand(-2 .. 2)); N := 500; i := <$0 .. N-1>;
t := evalf(2*i*Pi/N);
y := evalf(~[cos](10.0*t)+I*~[sin](4.0*t));
y := y+rnd(Count(y));
==============================================================================

## three options...

These three options work satisfactorily. Pay attention to the spaces.

process[launch](cat("sndrec32.exe ", "/play /close ", currentdir(), "\\mywav.wav"));

ssystem(cat("sndrec32.exe ", "/play /close ", currentdir(), "\\mywav.wav"));

process[launch](cat("sndrec32.exe ", "/play ", ", currentdir(), "\\mywav.wav", ", " /close"));

I deposited the application, Sndrec32.exe, in the folder where the files to play. Any suggestions?

Gracias

## this work...

this work good, it open , run and close the wav file.

Gracias

## Sound Recorder (Windows)...

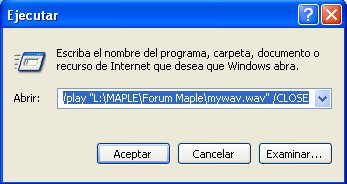

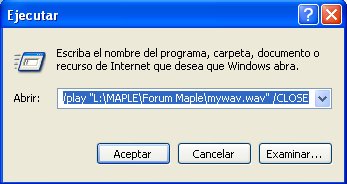

This may help, but  I can not get the SYNTAX IN MAPLE

(SNDREC32.exe /PLAY "C:\Path\File.wav" /CLOSE)

Gracias

## Shift zero-frequency component to center...

Shift zero-frequency component to center of spectrum

----------------------------------------------------------------------------------

another way to do it whit Maple

## convolution with AudioTools...

Thanks to the instructions of Markiyan Hirnyk, show you this instruction set to achieve the convolution with the help of the package AudioTools. This approach is very fast and handles large volumes of data.

with(AudioTools);
v1 := Vector([1, 2, 1, 2], datatype = float[8]);
v2 := Vector([1, 3, 1, 2], datatype = float[8]);
s1 := [.8147, .9
s2 := [0.975e-1, .2785, .5469, .9575, .9649, .1576, .9706, .9572, .4854, .8003];
MatLab := <,>(0.795e-1, .3153, .7102, 1.3999, 2.0389, 1.7996, 2.2764, 3.1658, 2.1398, 2.1994, 2.2745, 1.1502, 1.0379, .5061);

aud := Create(v1);

[1, 2, 1, 2]

Convolution(v1, v2)

[1, 5, 8, 9, 11, 4, 4]

aud := Create(s1):

AudT := convert(Convolution(aud, convert(s2, Vector)), Vector[column]);

<AudT | MatLab>;

What is the difference between v1 and aud delivered by Create?

convolution with AudioTools

Gracias

## convolution with FFT...

How I can use the command AudioTools [Convolution] to run the above example?

Could I think of to use the command ImageTools [Convolution]?

Using package command DiscreteTransforms: FourierTransform and InverseFourierTransform:

s1 := [1, 2, 1, 2]; s2 := [1, 3, 1, 2];
with(DiscreteTransforms);

Digits := 15;
v1 := Vector(nops(s1)+nops(s2)-1, s1, fill = 0);

v2 := Vector(nops(s1)+nops(s2)-1, s2, fill = 0);

FourierTransform(v1, inplace = true, normalization = none);

FourierTransform(v2, inplace = true, normalization = none);

evalf[8]~(Re(InverseFourierTransform(v1*~ v2, normalization = full)));

[1, 5, 8, 9, 11, 4, 4]

s1 := [.8147, .9058, .1270, .9134, .6324]
s2 := [0.975e-1, .2785, .5469, .9575, .9649, .1576, .9706, .9572, .4854, .8003]

v1 := Vector(nops(s1)+nops(s2)-1, s1, fill = 0);

v2 := Vector(nops(s1)+nops(s2)-1, s2, fill = 0);

FourierTransform(v1, inplace = true, normalization = none);

FourierTransform(v2, inplace = true, normalization = none);

M:=evalf[8]~(Re(InverseFourierTransform(v1*~ v2, normalization = full)));

Matlab:=<0.795e-1, .3153, .7102, 1.3999, 2.0389, 1.7996, 2.2764, 3.1658, 2.1398, 2.1994, 2.2745, 1.1502, 1.0379, .5061>:

<M|Matlab>;

convolutionWithFFT

Gracias

## Spectral Analysis of an airconditioner...

I ask for comments and critical eye to this implementation, since they are present the 10 Hz
How could validate these results?
What is the uncertainty in these results?

map(with, [plots, DiscreteTransforms, AudioTools]);
audiofile := cat(currentdir(), "\\airconditioner.wav");

fs := attributes(x)[1];

Preview(x, method = nearest, color = [blue]);

mono := ToMono(x);

Preview(mono, method = nearest, color = [blue]);

bCall := Vector(mono);

n := Statistics:-Count(bCall);

tb := Vector(n, proc (i) options operator, arrow; (i-1)/fs end proc);

plot(tb, bCall, style = line, color = blue, title = "airconditioner", labels = ["Time (seconds)", "Amplitude"], axes = box);

m := Statistics:-Count(bCall);
n := 2^ceil(log[2](m));
y := FourierTransform(bCall, normalization = none, padding = n-m)[2];

f := Vector(n, proc (i) options operator, arrow; (i-1)*fs/n end proc);

p := y*~conjugate~(y)/n;  #Power of the DFT

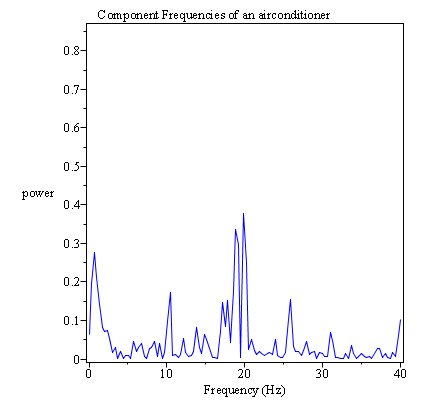

plot(f[1 .. floor((1/2)*n)], abs(p[1 .. floor((1/2)*n)]), view = [0 .. 400, DEFAULT], color = blue, style = line, title = "Component Frequencies of an airconditioner", labels = ["Frequency (Hz)", "power"], axes = box);

plot(f[1 .. floor((1/2)*n)], abs(p[1 .. floor((1/2)*n)]), view = [0 .. 40, DEFAULT], color = blue, style = line, title = "Component Frequencies of an airconditioner", labels = ["Frequency (Hz)", "power"], axes = box);

Spectral Analysis of a airconditioner

Gracias

## Demodulation as an Optimization Problem...

I hope this document will be useful .. Solving Demodulation as an Optimization Problem

## Why so inefficient...

What makes this set of command lines is so inefficient:
1. By increasing n> 8 increases significantly in runtime and graphics.
2. the graphics do not have the resolution presented by the graphs displayed by Robert Israel.

> n := 2^7;
> M := Matrix(n, n, 1, datatype = float[8]);
> Ii := Vector(n, proc (i) options operator, arrow; i end proc, datatype = float[8]);
> x := Vector(n, proc (i) options operator, arrow; Ii[i]-(1/2)*n end proc);
> y := Vector(n, proc (i) options operator, arrow; (1/2)*n-Ii[i] end proc);
> X, Y := Matrix(n, n, proc (i, j) options operator, arrow; x[j] end proc), Matrix(n, n, proc (i, j) options operator, arrow; y[i] end proc);
> R := 10;
> A := ~[@(evalb, <=)](~[+](~[^](X, 2), ~[^](Y, 2)), R^2);
> M := ~[evalhf](~[and](A, M));
> listdensityplot(M, smooth = true, axes = none);
> D1 := FourierTransform(M, normalization = none);
> D2 := ArrayTools[CircularShift](D1, (1/2)*n, (1/2)*n);
> listdensityplot(abs(D2), smooth = true, axes = none, colorstyle = HUE);
> D3 := ~[log[2]](D2);
> listdensityplot(abs(D3), smooth = true, axes = none, colorstyle = HUE);

Gracias

HERCLAU

## Genial...

Brilliant Roberto:

Great, saving resources and commands.
What follows is the following code:

D1 = fft2(M);
D2 = fftshift(D1);in Maple->ArrayTools[CircularShift](D1, (1/2)*n) o.k?

imagesc(abs(D2))
axis image
colormap(hot)
title('{\bf Diffraction Pattern}')

But what I was interested in obtaining the final matrix M.

What is the equivalent of maple instruction: "meshgrid (x, y)";

Gracias

## It will be possible to develop these p...

It will be possible to develop these plots starting from SVD, for example:
