@Carl Love

The mentioned formula is used for first order ODE. I modify it for 2nd order ODE.

I think Maple uses some controller steps or something like that to guarantee the convergence of the numerical solution.

I am very appreciate for your contribution.

Your hints make it possible to dig through the algorithm.

@Carl Love

Thank you for your hints

The plot below shows difference between exact and approximated solutions based on my algorithm.

Plot (odeplot command) of the numerical solution for method= classical[adambash] shows a complete agreement between exact and approximated solutions.

If it is possible, can I find the correct algorithm which is used by Maple?

@tomleslie

{eval(phi, y = -sqrt(-z^2+1)), eval(phi, y = sqrt(-z^2+1))}

Two last equations (above mentioned Eqs.) make balance between 39 equations and 41 unknowns.

The function phi is obtained in terms of two variables y and z, therefore the result of double integral is a number.

I just want to solve double integral in less possible time.

Is there a way to calculate it in less possible time?



@vv
Thank you

@tomleslie

Your code rectifies the deficiencies of previous code

Thanks

@Carl Love



Thanks for your valuable hints

@tomleslie

Thank you for your hints

I expected that P should be approached to zero. Now I can be sure that my assumptions are true!

If it is possible, please help me to find the amount of Omega in attached file

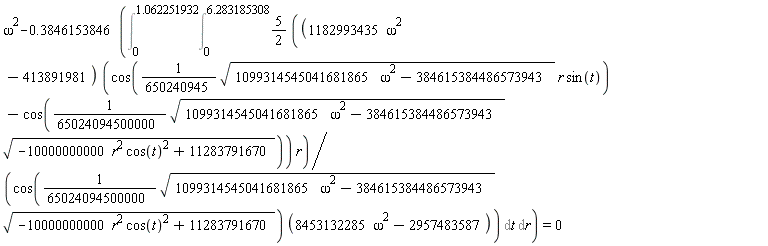

omega^2-.3846153846*(Int(Int((5/2)*(1182993435*omega^2-413891981)*(cos((1/650240945)*sqrt(1099314545041681865*omega^2-384615384486573943)*r*sin(t))-cos((1/65024094500000)*sqrt(1099314545041681865*omega^2-384615384486573943)*sqrt(-10000000000*r^2*cos(t)^2+11283791670)))*r/(cos((1/65024094500000)*sqrt(1099314545041681865*omega^2-384615384486573943)*sqrt(-10000000000*r^2*cos(t)^2+11283791670))*(8453132285*omega^2-2957483587)), t = 0 .. 6.283185308), r = 0 .. 1.062251932)) = 0
``



SOLVE-OMEGA.mw







@vv

At y=0 the function 'psi' in attached file and its second derivative are vanished. Also by taking G as a constant amount, 'G,y' is zero. Therefore the problem has solution.

We haven't the integration constant. By assuming this constant equal to zero, I try to solve the problem (it is a guess!)

My questions are

1- The MAPLE can not solve the last equations in 1.mw by fsolve. What is the reason? The problem hasn't answer or some codes like the Newton's iterative method must be used instead of fsolve?

2- Is it possible to minimize 'phi' by using two coupled nonlinear equations in 2.mw? If yes then which commands can be used?

3- Please suggest a method to solve the problem, if it is possible.

Thanks a lot

@vv

Hi

Please find the attachment

Yours sincerely

PROBLEM.pdf



@tomleslie



The ODE exp(B*x)*w''+A*w=0 is stability equation of a rod and we can not change it to

exp(B*x)*(diff(w(x),x,x)+A*w(x))=0 which is equivalent to diff(w(x),x,x)+A*w(x)=0 .

When B approaches to zero we have a rod with uniform mass distribution



Thank you anyway

@tomleslie





The PDE is arisen from stress analysis of a solid



I have another question:

Consider the ODE  (w''+A*w=0)

Assuming (A>0) yields w=_C1*sin(sqrt(A*x))+_C2*cos(sqrt(A*x))

Now consider the ODE  (exp(B*x)*w''+A*w=0)

Why when B approaches to zero the answer of second ODE (Which is in terms of Bessel functions)  is not

w=_C1*sin(sqrt(A*x))+_C2*cos(sqrt(A*x))

and approaches to zero?

limit(rhs(dsolve(exp(B*x)*(diff(w(x), x, x))+A*w(x) = 0)), B = 0);

@Joe Riel



There is no any backup unfortunately

Also I do the instruction which is described in Online Help:

http://www.maplesoft.com/support/help/Maple/view.aspx?path=worksheet/managing/restorebackup

But it dosent work again!



Thank you any way

@Carl Love

Thank you very much

Your great hints are useful for me

But I have more question (not only about lsode)

I will be grateful, if you can help me again

Please download the attached file

The value of C[2] is assumed to be zero for relative error checking ( as you recommended)

1- It is reasonable that by assigning a little value to C[1], the little tolerance of C[1] for little amount of absolute maximum step size in interval [0,1], should be ineffective to the answer. By taking the value C[1]=Float(1,-15) and C[7]=1E-3, the answer is  0.229491 but for C[1]=Float(1.-14) the answer is 0.221455. Is it show the instability of solution?

2- I use the Implode and Explode commands in line 14. Is there a better way for obtaining the expression from 'RootOf' without using the String Tools?

3- Can I solve the ode in line 12 directly by maple commands?

ODE.mw



@Carl Love



Thanks a lot for your valuable hints

But I have some questions again

When we use the relative and absolute errors (C[1] and C[2]) simultaneously it leads to the more accuracy or using absolute error is sufficient?

Why after solution C[12] to C[21]  (the components of array corresponding to output data) are zero?

@Mac Dude

Thank you for your hints

Some of options like 'legend' and 'thickness' are available in command "curve" .

but some of options like 'label' and 'size' aren't usable in command "curve" .

IS there a way to use all options in command "curve" or plot the piecewise function

by using the command "plot" in logarithmic scale with straight lines?



Please write a code if it is possible.
