These are questions asked by rashid

Hi

Anyone could help me in solving the following system of equations to get constants C1, C2, C3 and C4. MALPE give me this "soution may have been lost".  The MAPLE sheet is also attached.



restart:

Eq1:=simplify(C3*exp(-(1/4)*(C2*(x^2-2*0)+sqrt(C2*(x^2-2*0)^2+4*M*(x^2-2*0)*w1*(x^2-2*0)))/w1)+C4*exp((1/4)*(-C2*(x^2-2*0)+sqrt(C2*(x^2-2*0)^2+4*M*(x^2-2*0)*w1*(x^2-2*0)))/w1)-U) = 0;

C3*exp(-(1/4)*(C2*x^2+(x^4*(4*M*w1+C2))^(1/2))/w1)+C4*exp(-(1/4)*(C2*x^2-(x^4*(4*M*w1+C2))^(1/2))/w1)-U = 0

(1)

Eq2:=simplify(exp(-(1/4)*(C2+sqrt(C2^2+4*M*w1))*(x^2-2*0)/w1)*C3*x+exp((1/4)*(-C2+sqrt(C2^2+4*M*w1))*(x^2-2*0)/w1)*C4*x+C2-V-z) = 0;

exp(-(1/4)*(C2+(C2^2+4*M*w1)^(1/2))*x^2/w1)*C3*x+exp(-(1/4)*(C2-(C2^2+4*M*w1)^(1/2))*x^2/w1)*C4*x+C2-V-z = 0

(2)

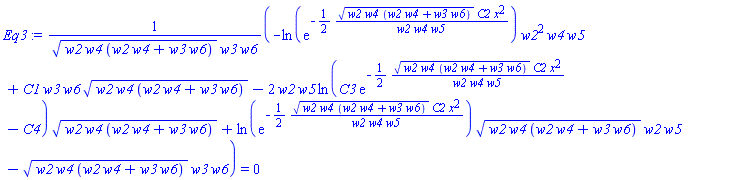

Eq3:=simplify((-2*w2*w5*ln(C3*exp(-(1/2)*sqrt(w2*w4*(w2*w4+w3*w6))*C2*(x^2-2*0)/(w2*w4*w5))-C4)*sqrt(w2*w4*(w2*w4+w3*w6))+w2*w5*(-w2*w4+sqrt(w2*w4*(w2*w4+w3*w6)))*ln(exp(-(1/2)*sqrt(w2*w4*(w2*w4+w3*w6))*C2*(x^2-2*0)/(w2*w4*w5)))+C1*w3*w6*sqrt(w2*w4*(w2*w4+w3*w6)))/(sqrt(w2*w4*(w2*w4+w3*w6))*w3*w6)-1)= 0;

(-ln(exp(-(1/2)*(w2*w4*(w2*w4+w3*w6))^(1/2)*C2*x^2/(w2*w4*w5)))*w2^2*w4*w5+C1*w3*w6*(w2*w4*(w2*w4+w3*w6))^(1/2)-2*w2*w5*ln(C3*exp(-(1/2)*(w2*w4*(w2*w4+w3*w6))^(1/2)*C2*x^2/(w2*w4*w5))-C4)*(w2*w4*(w2*w4+w3*w6))^(1/2)+ln(exp(-(1/2)*(w2*w4*(w2*w4+w3*w6))^(1/2)*C2*x^2/(w2*w4*w5)))*(w2*w4*(w2*w4+w3*w6))^(1/2)*w2*w5-(w2*w4*(w2*w4+w3*w6))^(1/2)*w3*w6)/((w2*w4*(w2*w4+w3*w6))^(1/2)*w3*w6) = 0

(3)

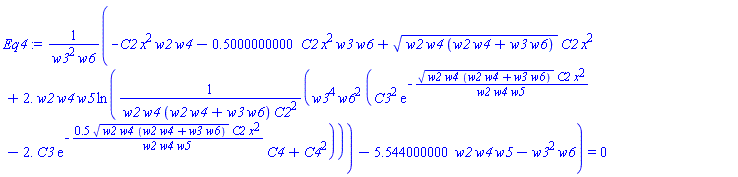

Eq4:= simplify((-C2*x^2*w2*w4-.50*C2*x^2*w3*w6+sqrt(w2*w4*(w2*w4+w3*w6))*C2*x^2+2.*w2*w4*w5*ln(w3^4*w6^2*(C3^2*exp(-1.0*sqrt(w2*w4*(w2*w4+w3*w6))*C2*x^2/(w2*w4*w5))-2*C3*exp(-.5*sqrt(w2^2*w4^2+w2*w3*w4*w6)*C2*x^2/(w2*w4*w5))*C4+C4^2)/(w2*w4*(w2*w4+w3*w6)*C2^2))-5.544000000*w2*w4*w5-w3^2*w6)/(w3^2*w6)) = 0;

(-C2*x^2*w2*w4-.5000000000*C2*x^2*w3*w6+(w2*w4*(w2*w4+w3*w6))^(1/2)*C2*x^2+2.*w2*w4*w5*ln(w3^4*w6^2*(C3^2*exp(-(w2*w4*(w2*w4+w3*w6))^(1/2)*C2*x^2/(w2*w4*w5))-2.*C3*exp(-.5*(w2*w4*(w2*w4+w3*w6))^(1/2)*C2*x^2/(w2*w4*w5))*C4+C4^2)/(w2*w4*(w2*w4+w3*w6)*C2^2))-5.544000000*w2*w4*w5-w3^2*w6)/(w3^2*w6) = 0

(4)

solve({Eq1, Eq2, Eq3,Eq4}, {C1, C2, C3,C4});

Warning, solutions may have been lost



``

``

Download solution_lost.mw





Hi Guys,

I was wondering if there is a way to get data from an array solution.

The system of odes, I am trying to solve is

eq2:= diff(f(eta),`$`(eta,3))+f(eta)*diff(f(eta),`$`(eta,2))+beta*(1-diff(f(eta),eta)^2) = 0;

eq2 := diff(theta(eta),`$`(eta,2))+pr(f(eta)+(beta-1)*
eta*diff(f(eta),eta))*diff(theta(eta),eta) = 0;

bcs:=f(0)=gama,D(f)(0)=lambda,D(f)(N)=1,theta(0)=0,theta(N)=1:

gama:=2;lambda:=1:pr:=10:N:=10:beta:=3:

Hi i have difficulty to obtain the function of theta(eta) and diff(theta,eta) form the matrix. Every time i have to take the values from the matrix inorder to make the function of theta(eta) and diff(theta(eta),eta) which is very difficult.

Can you please make a code in MAPLE so that i may get the direct fuction of theta(eta) and diff(theta(eta),eta)from the matrix gernerated by MAPLE.

i WILL WAIT FOR YOUR QUICK RESPONSE.

Hi

I am a PhD scholar at the University of Queensland. I am reviweing a paper titled as "A similarity solution for laminar thermal boundary layer over a flat plate with a convective surface boundary condition"(the pdf is available online). In this paper the author has written a MAPLE code. I copied the same code in MAPLE but could nt succedded. The author used the Runge Kutta RK5 Method to solve the model.

Please help me to solve the same model...
