Maple 2016 Questions and Posts

These are Posts and Questions associated with the product, Maple 2016




StringTools['Explode']("1≤ n≤m")

["1", "&", "l", "e", ";", " ", "n", "&", "l", "e", ";", "m"]

(1)

``




Download q1stringtool.mw

I recieved the following error:

Error, (in ifactor/QuadraticSieve:-SieveCube) sieving failure

But when I review the procedure ifactor, it doesnt tell me anything about A Quadratic Sieve algorithm, and it's really long and looks dodgey and suspicious, like line 24 for example, why is it computing the greatest integer divisor of a local variable and a random enormous square free number? and then another with an additional factor a few lines later?

I need the final line of the uploaded worksheet to be the "Select Action", preprogrammed prior to the execution of the insert xml command, how do i do this?

Maple Worksheet - Error

Failed to load the worksheet /maplenet/convert/ASK.mw .


Download ASK.mw

Hi,

How can I extract the coefficients of uij in Eq.(3) to form a system of PDEs in F, P and Q?



coeff_of_DE.mw

Hi

I use Maple 2016.

The following command calculates semicircle perimeter, but it returns infinity.

`assuming`([int(sqrt(1+(diff(sqrt(R^2-(x-R)^2), x))^2), x = 0 .. 2*R)], [R > 0])

I was trying to learn more about the commands in this package and found it to be someone non satisfying:




Download sockets_strangeness.mw



Maple gave Lie algebras of a system of PDE in which some of them do not leave the system invariant. Dont know whether the mistake is maple's or mine. File attached.



Maple_2016_bug_or...mw



restart:
with(PDEtools);
PDE :=  diff(y(x,t), t)-diff(y(x,t), x,x,t)-diff(y(x,t), x$2)+ diff(y(x,t), x)+y(x,t)*diff(y(x,t),x)=exp(-t)*(cos(x)-sin(x)+1/2*exp(-t)*sin(2*x));

# Initial/boundary conditions
  BCs:=y(0,t) = 0, y(Pi,t)=0;
  ICs:=y(x,0) =sin(x) ;

pdsolve(PDE, {BCs,ICs});
exact_solution:=exp(-t)*sin(x);
Test1:=pdetest(exact_solution,[PDE, BCs,ICs]);

The solution of the PDE is exp(-t)*sin(x).

I want to check whether it is right or not by Maple.

I wrote the code. You can download the code.mw

But, the code doesn' t work. What is the problem?

Thanks.



The worksheet below animates a hamster running back and forth on a linear floor within a wheel. Its motion is such that the wheel remains stationary.

What math would describe the hamster running back and forth such that the wheel oscillates with a constant frequency and the floor's vertical angle oscillates between plus and minus an angle greater than zero and less than 2 Pi?

Hamster_in_wheel.mw

I am trying to solve a simple two-equation linear system with solve, but I keep getting this weird result where the magnitude order of the numerator and denominator don't cancel out. Whenever I have a linear system with floating-point numbers, more unknowns than equations and try to solve it for a specific set of variables, this happens.

Any suggestions on how to get around this? Or do I need to solve it manually?

Can you help me

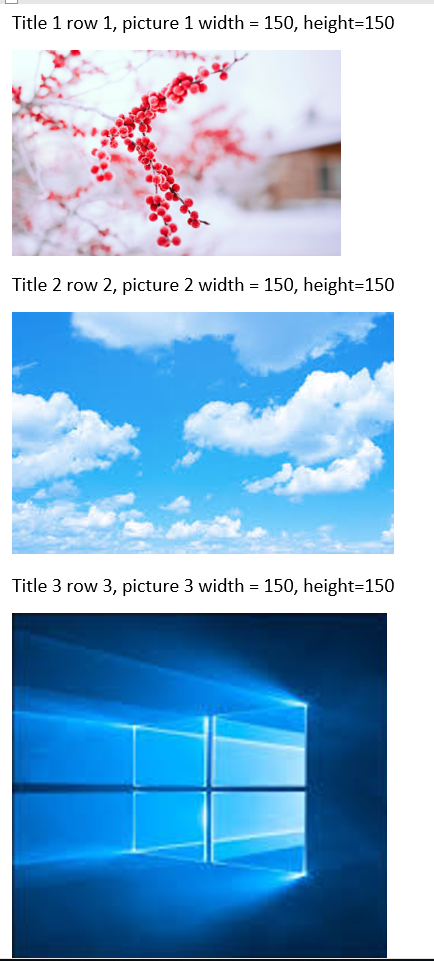

myproc := proc () local img1, img2, img3;

with(DocumentTools); with(DocumentTools:-Layout);

img1 := "c:\\1.jpg"; img2 := "c:\\2.jpg"; img3 := "c:\\3.jpg";

print("Title 1 row 1, picture 1"); print(img1); print("Title 2 row 2, picture 2");

print(img2); print("Title 3 row 3, picture 3"); print(img3);

print("The End");

end proc

``

myproc := proc () local img1, img2, img3; with(DocumentTools); with(DocumentTools:-Layout); img1 := "c:\\1.jpg"; img2 := "c:\\2.jpg"; img3 := "c:\\3.jpg"; print("Title 1 row 1, picture 1"); print(img1); print("Title 2 row 2, picture 2"); print(img2); print("Title 3 row 3, picture 3"); print(img3); print("The End") end proc:

``




Download insert_picture.mw

print monitor



Can someone please explain to me why this occurs:






with(StringTools):

Join(["H:\\USB 1 BACKUP\\ESD-USB\\", "Chemical Engineering"])

"H:\USB 1 BACKUP\ESD-USB\ Chemical Engineering"

(1)

convert("H:\\USB 1 BACKUP\\ESD-USB\\ Chemical Engineering", 'symbol')

`H:\USB 1 BACKUP\ESD-USB\ Chemical Engineering`

(2)

convert('`H:\USB 1 BACKUP\ESD-USB\ Chemical Engineering`', 'string')

"H:USB 1 BACKUPESD-USBChemical Engineering"

(3)

``




Download this_makes_me_grumpy.mw

Hello,

I am trying to solve a set of coupled ODEs in the following code (ODE_Prob.mw). But I am getting an error.

Please, what does this error mean and what is the solution.

Thanks in advance.


restart; PDEtools[declare](f(eta), prime = eta, theta(eta), prime = eta); Digits := 16; inf := 9

f(eta)*`will now be displayed as`*f



`derivatives with respect to`*eta*`of functions of one variable will now be displayed with '`



theta(eta)*`will now be displayed as`*theta

(1)

equ1 := (2*n+1)*f(eta)*(diff(theta(eta), eta))/(2*(n+1)) = (diff(theta(eta), eta, eta))/Pr^(2/(n+1))

(2*n+1)*f(eta)*(diff(theta(eta), eta))/(2*n+2) = (diff(diff(theta(eta), eta), eta))/Pr^(2/(n+1))

(2)

equ2 := (1/2)*(diff(f(eta), eta))^2-(2*n+1)*f(eta)*(diff(f(eta), eta, eta))/(2*n+2) = -n*(diff(f(eta), eta, eta))^(n-1)*(diff(f(eta), eta, eta, eta))+theta(eta)

(1/2)*(diff(f(eta), eta))^2-(2*n+1)*f(eta)*(diff(diff(f(eta), eta), eta))/(2*n+2) = -n*(diff(diff(f(eta), eta), eta))^(n-1)*(diff(diff(diff(f(eta), eta), eta), eta))+theta(eta)

(3)

indets(equ1);

{Pr, eta, n, Pr^(2/(n+1)), diff(diff(theta(eta), eta), eta), diff(theta(eta), eta), f(eta), theta(eta)}



{eta, n, (diff(diff(f(eta), eta), eta))^(n-1), diff(diff(diff(f(eta), eta), eta), eta), diff(diff(f(eta), eta), eta), diff(f(eta), eta), f(eta), theta(eta)}

(4)

Bcs := f(0) = 0, (D(f))(0) = 0, (D(f))(inf) = 1, theta(0) = 1, theta(inf) = 0;

f(0) = 0, (D(f))(0) = 0, (D(f))(9) = 1, theta(0) = 1, theta(9) = 0



1.301763965



1.4

(5)

equ1;

.7916666666666667*f(eta)*(diff(theta(eta), eta)) = .8027059130737796*(diff(diff(theta(eta), eta), eta))



(1/2)*(diff(f(eta), eta))^2-.7916666666666667*f(eta)*(diff(diff(f(eta), eta), eta)) = -1.4*(diff(diff(f(eta), eta), eta))^.4*(diff(diff(diff(f(eta), eta), eta), eta))+theta(eta)

(6)

SolP1 := dsolve({Bcs, equ1, equ2}, numeric); SolP1(0); SolP1(inf)

Error, (in dsolve/numeric/BVPSolve) unable to store '-.4744942626692375+1.460343180701223*I' when datatype=sfloat



SolP1(0)



SolP1(9)

(7)

p1 := plots:-odeplot(SolP1, [eta, f(eta)], 0 .. inf); p2 := plots:-odeplot(SolP1, [eta, theta(eta)], 0 .. inf); p3 := plots:-odeplot(SolP1, [eta, diff(f(eta), eta)], 0 .. inf); plots:-display(Array([p1, p2, p3]))

Error, (in plots/odeplot) input is not a valid dsolve/numeric solution



Error, (in plots/odeplot) input is not a valid dsolve/numeric solution



Error, (in plots/odeplot) input is not a valid dsolve/numeric solution



Error, (in plots:-display) element 1 of the rtable is not a valid plot structure



``




Download ODE_Prob.mw
