Hi, I'm importing an Excel file then trying to feed it to FrequencyTable. While it works, it shows me some range intervals that seem to be calculated by the function. I would like to use a specific interval, but I can't find what parameter to use. Bins won't do the trick, since it doesn't let me specify the range.

Thanks in advancce.

I got a list containing all non isomorphic connected graphs with 6 vertices. Total number of the list members is 112 , and they are not too many . So I want to draw them all . It is good for Maple worksheet .

In order to save it and print it out on paper, I import it as pdf form . But the problem is that every page in pdf only contains 8 graphs . It wastes wasted too many spaces. It is unreasonable . I want to draw 20-30 graphs in one page of pdf. What is the solution to my problems? Thanks in advance. This problem has puzzled me for a long time.

with(GraphTheory):
s1:=[NonIsomorphicGraphs(6,restrictto = connected,output=graphs,outputform=graph)]:
DrawGraph~(s1);

fourthNONLINEARBOUD234.mwfourthNONLINEARBOUD234.mw


Download fourthNONLINEARBOUD234.mw

Hello.

With the Curvefitting[Spline] command I calculate a piecewise function from discrete points. I perform this action 250 times and save the piecewise functions into a matrix. The process takes quite a while. Is it possible to save said matrix to a file such that I may call it from other maple worksheets, instead of re-calculating the matrix every time I want to use it?

Thanks.

Hi. I'm using the interactive plot builder. I click in add button in the expression section and then enter:

2x+y+2x-15=0

and click the accept button and I get an error message saying "Please enter a valid Maple expression". How am I supposed to enter the equation of the plane?

Thanks in advance!

1. The member() function doesn't find the value in a table if that value is associated with the key (aka index)  '0'
2. Doesn't seem to matter if the table is created explicitly (ie by calling table()) or implicitly (ie by simple indexed assignment)
3. member() doesn't seem to have the same issue with a zero-based Array()
4. I'm pretty sure that this is a bug, but I'd like some opinions before I report it
5. This behaviour has been around for a while: same thing happens all the way back to Maple 18. (I can't check anything earlier)

Check the ouput of member(10,t1) in the attached

Download memberProp.mw

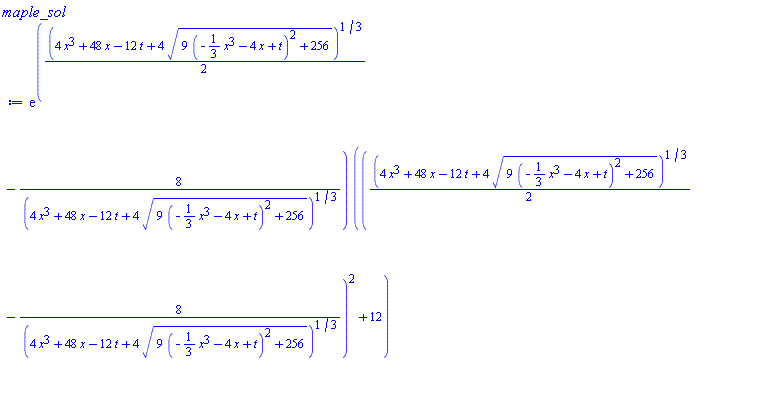

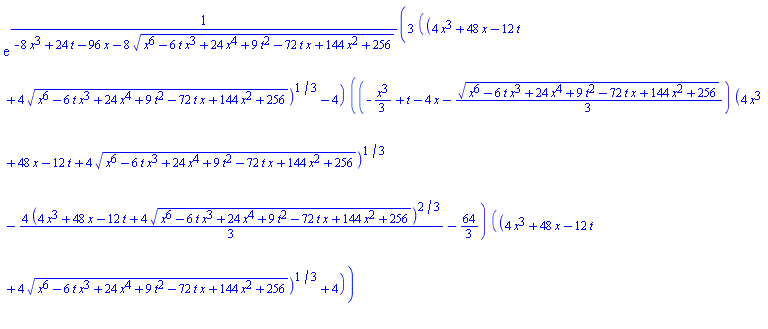

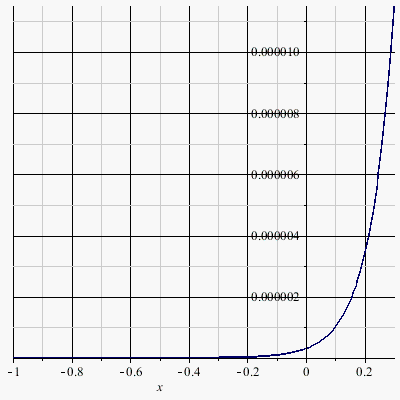

This is a solution to a PDE. I solved this by hand and got a much simpler solution. Maple solution is also correct but very complicated. They are both the same, as when I plot them  for different t values, they match. I am sure they are the same.

How would one simplify Maple solution to the simpler one? Tried number of options to simplify, but can't get Maple to simplify it to the hand solution. Also tried different assumptions on t and x (real, positive etc..) nothing helps.

Maple 2019.1 on windows 10. Physics 436

Download how_to_simplify.mw

hi

can anyone help me with this error.

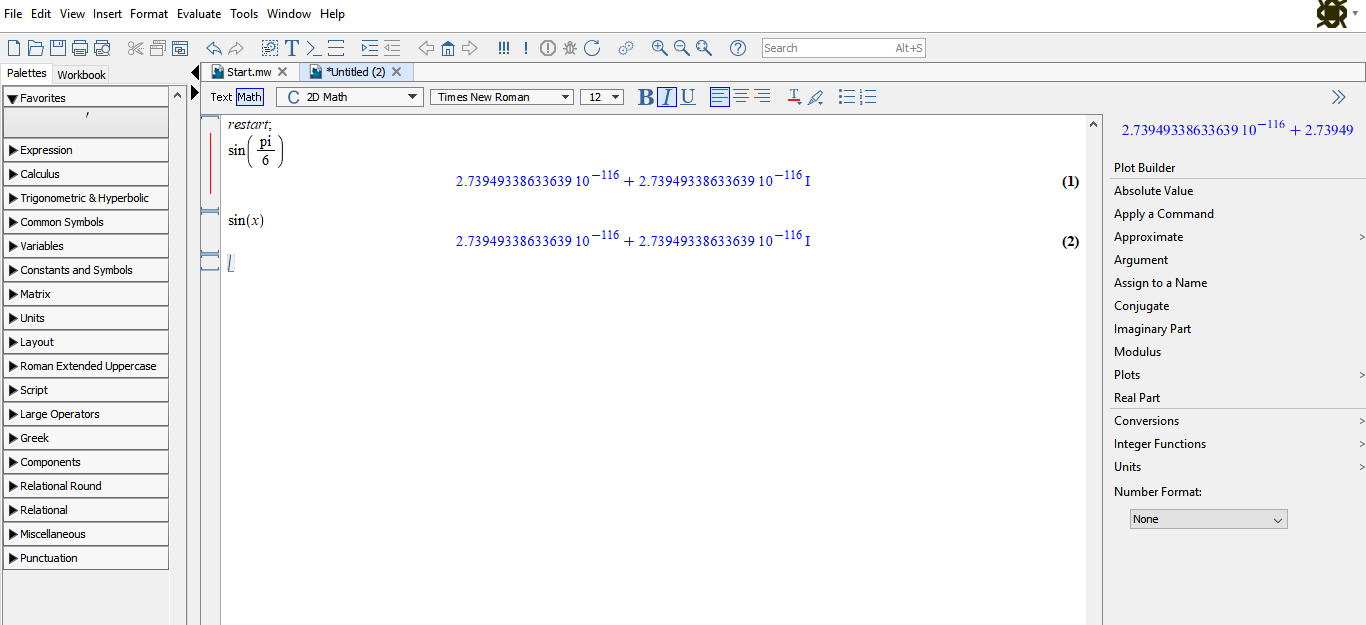

why maple2019 gives result of trigonometric function in terms of I.

snapshot attached

I have an arc length parametrization question. The problem says to find a function g(s) that you can use to calculate the arc length parametrization, then find a formula for the arc length parametrization. I have r(t)= <cos(2t), sin(3t), 4t>. How would I do this?

I have a question about animating 3d space curves (vector-valued functions). I have a curve that has a component x(t), component y(t), component z(t), and a time, t. The problem says to create an animation of a point moving around the curve. How do I do this?

Thank you.

first I define some constants (note I may change the constants later based on the context of the application)

p_l := 10^(-15);
epsilon := 1.09*10^(-10);
p_B := 1.09*10^(-8);

n_A := 10^7;
k_A := 0;
n_B := 10^8;
k_B := 0;

then I define a function l(x,y):

l := (x, y) -> x^k_A*(1 - x)^(n_A - k_A)*y^k_B*(1 - y)^(n_B - k_B)

Now I use both with(GlobalOptimization) and with(Optimization) to maximize l(x,y) give some constraints and I get:

GlobalSolve(l(x_1, y_1), x_1 = p_l .. epsilon, y_1 = p_B .. 1, maximize, initialpoint = [x_1 = 0, y_1 = 0]);
  [-0., [x_1 = 1.09000000000000 10^(-10)   , y_1 = 0.633548870211381]]

Maximize(l(x_1, y_1), x_1 = p_l .. epsilon, y_1 = p_B .. 1, initialpoint = [x_1 = 0, y_1 = 0]);
 [0.33621648834727435318,  [x_1 = 1.00000000000000 10^(-15)   , y_1 = 1.0900000000000000000 10^(-8)  ] ]

Clearly the second answer is right and the first is wrong... I am not sure why the ``global optimazation'' is doing worse than the normal and free ``optimazation''.. Am I using the GlobalSolve in a wrong way??

Hello people in mapleprimes,
I have a question.

I use maple2019 with mac os 10.14.6.

$ sw_vers
ProductName:	Mac OS X
ProductVersion:	10.14.6
BuildVersion:	18G95

With maple2019, errors appears.

> kernelopts(version);
        Maple 2019.1, APPLE UNIVERSAL OSX, Jun 6 2019, Build ID 1403154

> assume(a>-1,b>0);
> additionally(a<=1);
> about(a);
Originally a, renamed a~:
  is assumed to be: FAIL

> assume(tau<1,tau>0,s<1,s>0):
> a_e1:=tau*s*(1+tau)<tau*s+tau+s-1:
> b_e2:=expand(lhs(a_e1)-rhs(a_e1))<0:
>  b_e3:=collect(b_e2,s,factor):
> solve(b_e2,s) assuming tau<1;
Error, (in assuming) when calling 'property/ConvertProperty'. Received: 'FAIL
is an invalid property'

On the other hand, with maple2018, they do not.

> kernelopts(version);
       Maple 2018.2, APPLE UNIVERSAL OSX, Nov 16 2018, Build ID 1362973

> assume(a>-1,b>0);
> additionally(a<=1);
> about(a);
Originally a, renamed a~:
  is assumed to be: RealRange(Open(-1),1)

> assume(tau<1,tau>0,s<1,s>0):
> a_e1:=tau*s*(1+tau)<tau*s+tau+s-1:
> b_e2:=expand(lhs(a_e1)-rhs(a_e1))<0:
> b_e3:=collect(b_e2,s,factor):
> solve(b_e2,s) assuming tau<1;
                                    1
                               [{-------- < s~}]
                                 1 + tau~

Are errors due to some bugs in maple2019 when being used with mac os 10.14.6?

Take care.

taro

Is there or will there be a german version or is there a language pack available somewhere?

r=a+b sin(x), this is the function I want to plot the graph in polar co-ordinates but how to manage those arbitrary constants "a and b" ?

Hi everyone, I need someone’s expertise with the Maple Soft Application, I am currently into my 4^th day of my Maple Soft experience and also returning to School after many years. Can someone help me with the following codes to solve step by step Differential Equation 1 below;

Please help me with following codes below

1. Boundary Condition 1
2. Boundary Condition 2
3. General Solution
4. The integration Part of the Equation
5. Solving the Differential Equation

Equation 1.

Determine the equilibrium temperature for a one dimensional rod with a constant thermal properties with the following source and boundary conditions.

1. Q = 0, U(0) = 10, u(L) = 20
2. Q/K0 = x, u(0) = 0, u(L) = 10

I understand how to obtain the solution to the equation above,

(a) Equilibrium satisfies

                                                U’’(x) = 0,

Whose general solution is u = c1 + c2x.

The boundary condition u(0) = 0 implies c1 = 0 and u(L) = T implies c2 = T/L so that u = T x/L.

(f) In equilibrium, u satisfies

U’’(x) = −Q/K0 = −x^2,

Whose general solution (by integrating twice) is

u = −x ^4 /12 + c1 + c2x.

The boundary condition u(0) = T yields c1 = T, while u’(L) = 0 yields c2 = L^3/3.

Thus u = −x ^4 /12 + L^3x/3 + T.
