If a:=[1,4,2,6,8]  create all combinations of numbers with this list below 50



I am writting a program that needs to rename variables by increasing the second index of a variable, all the variables will be named y[something,number].

e.g.

y[a,2]->y[a,3]

If I was doing this outside maple I can see how I could use regular expressions, but I can't see how to do it in maple

i got this code, but for any n = 2N (par) i get some high errors, my M goes nuts.  anyone knwos wheres my mistake?

With(CurveFitting); Digits; 5; f := proc (x) options operator, arrow; abs(x) end proc; n := 8; h := 2/n; for i from 0 to n do x[i] := h*i-1 end do; for i from 0 to n-1 do L[i] := (product((x-x[j])/(x[i]-x[j]), j = 0 .. i-1))*(product((x-x[k])/(x[i]-x[k]), k = i+1 .. n-1)) end do; lagr := sum(f(x[p])*L[p], p = 0 .. n-1); P := expand(lagr); plot({P, f(x)}, x = -1 .. 1, y = 0 .. 2); M := maximize(abs(abs(x)-P), x = -1 .. 1); M1 := numapprox:-infnorm(abs(abs(x)-P),

x = -1 .. 1)



Thanks in advance

so i  got this code:

But it cannot Find a value for M (wich would be the maximum distance between) it literaly stays working for severeal minutes and necer gives an answer, also i cant find a function to do this for every value for n (n-1 steps from a to b), also would mean that xy would need to get more points, any idea of how can i solve this for any n? or at least fix the problem with M, and i do the steps from a to b Manually.

heeeelp me please this is driving me nuts

thanks a lot :)

hi

why this equation does not any answer?

thanks

s-s.mw


restart

``

eq:={-J*g[1]*(diff(w(x), x, x, x, x, x, x))+J*c[1]*(diff(w(x), x, x, x, x))+A*g[113113]*(diff(w(x), x, x, x, x))+(beta[11]*A*0)*`ΔT`*(diff(w(x), x, x))+2*b*f[1133]*(Pi/L)^2*(d[33]*lambda[3]*`ΔT`*L/mu[33]-2*f[1133]*a*Pi/L-P[3]*`ΔT`*L)*sin(Pi*x/L)*sinh(h*Pi/(2*L))/(2*cosh(h*Pi/(2*L))*(-a33+d[33]^2/mu[33])) = 0, w(0) = 0, w(L) = 0, (D(w))(0) = 0, (D(w))(L) = 0, ((D@@3)(w))(0) = 0, ((D@@3)(w))(L) = 0}

{-J*g[1]*(diff(diff(diff(diff(diff(diff(w(x), x), x), x), x), x), x))+J*c[1]*(diff(diff(diff(diff(w(x), x), x), x), x))+A*g[113113]*(diff(diff(diff(diff(w(x), x), x), x), x))+b*f[1133]*Pi^2*(d[33]*lambda[3]*`ΔT`*L/mu[33]-2*f[1133]*a*Pi/L-P[3]*`ΔT`*L)*sin(Pi*x/L)*sinh((1/2)*h*Pi/L)/(L^2*cosh((1/2)*h*Pi/L)*(-a33+d[33]^2/mu[33])) = 0, w(0) = 0, w(L) = 0, (D(w))(0) = 0, (D(w))(L) = 0, ((D@@3)(w))(0) = 0, ((D@@3)(w))(L) = 0}

(1)

dsolve(eq, w(x))

``




Download s-s.mw



I'm trying to solve a Quantum Mechanics problem that requires me to normalize a wavefunction before I proceed. I have the book solutions to these problems (I'm just trying to practice solving using Maple) so I know what the answers are SUPPOSED to be. But I'm not getting the answers I expected when dumping it into Maple.

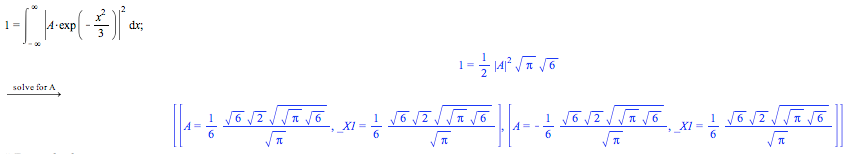

What I put into Maple:

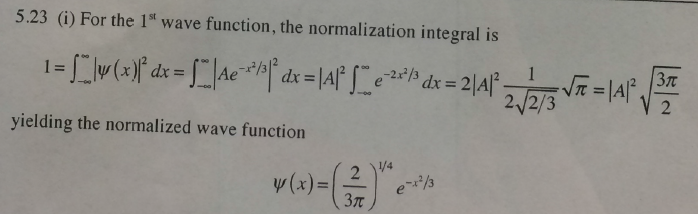

What I was SUPPOSED to get:

I assume this is a radical simplication I need to make. But in highlighting the expression, right clicking, and trying the different simplification options, nothing worked.

Thanks!

http://www.maplesoft.com/applications/view.aspx?SID=4229

from book example, it seems assumed that input size of data such as list size or matrix size is the same as

trained data set size, but this need to hard code infinite number of types of size

What is the method to programming neural network when input size is smaller or changing and not equal to size of trained data set?

Hello,

I have a list of equations. I would like to display this list in column.
Problem : as each term of my list is an equation, i can not transform my list in a vector.
How can I do to display a list of equations in column ?

Thank you for your help.

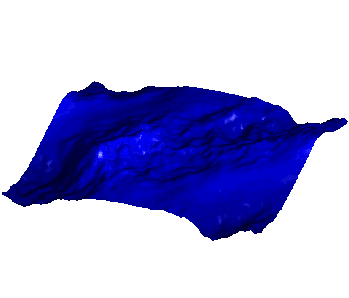

Probably not Maple's territory, but maybe a challenge?  Can we can get maple to do this?  Done by Matlab found here..

http://stackoverflow.com/questions/28279337/matlab-cuda-ocean-wave-simulation

i got 2 curves
a := abs(x);
b := (3/4)*x^2+1/4;

how can i get the max distance between them from x = -1 until x =1?

 heeeeeeeeeelp


Hello! Hope everyone would be fine. I want to solve the following system of ODEs please help to find the numerical solution

N := .6; alpha := .4; beta := .1; Nt := .2; Pr := .5; Nb := .1; s := .2; lambda[1] := 1; delta := .5; gm := 1; Sc := 1:L:=1:

Eq1 := (alpha*s+1)*(diff(F(eta), eta, eta, eta))-(F(eta)+(1/2)*s*eta)*(diff(F(eta), eta, eta))+((1/2)*(diff(F(eta), eta))-s)*(diff(F(eta), eta))-2*(G(eta)^2-(1-gm)^2)-2*lambda[1]*(H(eta)+N*Y(eta))-(alpha+beta-(1/4)*delta*(diff(F(eta), eta, eta, eta)))*(diff(F(eta), eta, eta))^2-(alpha-2*beta)*(diff(F(eta), eta))*(diff(F(eta), eta, eta, eta))-(2*(alpha-beta-(1/4)*delta*(diff(F(eta), eta, eta, eta))))*(diff(G(eta), eta))^2-(2*(alpha-(1/4)*delta*(diff(F(eta), eta, eta))))*G(eta)*(diff(G(eta), eta, eta)) = 0; Eq2 := (alpha*s+1)*(diff(G(eta), eta, eta))-F(eta)*(diff(G(eta), eta))+G(eta)*(diff(F(eta), eta))+s*(1-gm-G(eta)-(1/2)*eta*(diff(G(eta), eta)))-(1/2)*alpha*s*eta*(diff(G(eta), eta, eta, eta))+((3/2)*alpha+beta)*G(eta)*(diff(F(eta), eta, eta, eta))-((1/2)*alpha+beta)*(diff(F(eta), eta))*(diff(G(eta), eta, eta))-delta*((diff(F(eta), eta, eta))^2+6*(diff(G(eta), eta))^2)*(diff(G(eta), eta, eta)) = 0; Eq3 := (diff(H(eta), eta, eta))/Pr-F(eta)*(diff(H(eta), eta))+(1/2)*H(eta)*(diff(F(eta), eta))-s*(2*H(eta)+(1/2)*eta*(diff(H(eta), eta)))+Nb*(diff(H(eta), eta))*(diff(Y(eta), eta))+Nt*(diff(H(eta), eta))^2 = 0; Eq4 := (diff(Y(eta), eta, eta))/Sc-F(eta)*(diff(Y(eta), eta))+(1/2)*Y(eta)*(diff(F(eta), eta))-s*(2*Y(eta)+(1/2)*eta*(diff(Y(eta), eta)))+Nt*(diff(H(eta), eta, eta))/Nb = 0;

IC1 := F(0) = 0, (D(F))(0) = 0, G(0) = gm, H(0) = 1, Y(0) = 1; IC2 := (D(F))(L) = 0, G(L) = 1-gm, (D(G))(L) = 0, H(L) = 0, Y(L) = 0; dsys1 := {Eq1, Eq2, Eq3, Eq4, IC1, IC2}; dsol1 := dsolve(dsys1, numeric, output = listprocedure, range = 0 .. L);

dsol1f := subs(dsol1, F(eta));

dsol1g := subs(dsol1, G(eta)); dsol1h := subs(dsol1, H(eta)); dsol1y := subs(dsol1, Y(eta));

With my best regards and sincerely.

Graphical Programming with MapleSim in Vector Mechanics to Structures 2D

At the present time before constructing or starting to develop a mechanical structures project it is necessary to model it using graphic programming; In this opportunity and used MapleSim as a computational tool belonging to the company Maplesoft. The modern approach to modeling and simulation makes the fabrication of complex designs easy to solve. We will cover some examples taken from the engineering being implemented in Maplesim with insertion of physical objects; To be seen in real time through video output; Then integrates with Maple to analyze the equations and data through the static and dynamic behavior of the fabricated. Solved methods of physical block components include functionality for many domains: rotational and translational mechanics, multi-body dynamics, logic, and structural blocks; With techniques like: Drag-and-Drop Physical Modeling Environment and Create Custom Components Directly From Their Equations, thus the systems that would take hours or days to build from equations; In principle they can be created in a fraction of time using MapleSim, so it can incorporate significantly more complex graphical algorithms. In MapleSim, I use the revolutionary multibody technology that perfectly combines advanced multi-domain modeling tools to provide all the functionality you need in one environment.

FAST_UNT_2017.pdf

Lenin Araujo Castillo

Ambassador Maple - Perú





Let:

f:=x->1/sqrt(2*Pi)*exp(-x^2/2);

I.e. f is a standard Gaussian PDF.

Then (in Maple 2016.1):

Int(convert(f(x)*f(y)*x*x*abs(x+y),piecewise,x),x=-infinity..infinity,y=-infinity..infinity):
evalf(%);

Returns:

1.692568751

However (again in Maple 2016.1):

int(convert(f(x)*f(y)*x*x*abs(x+y),piecewise,x),x=-infinity..infinity,y=-infinity..infinity):
evalf(%);

Returns:

-0.5641895835

This is clearly incorrect, as the integral of a positive function must be positive.

This also seems to be a problem in which ever version of Maple is used behind the scenes on this forum.

int(convert(1/sqrt(2*Pi)*exp(-x^2/2)*1/sqrt(2*Pi)*exp(-y^2/2)*x*x*abs(x+y),piecewise,x),x=-infinity..infinity,y=-infinity..infinity)

gives:

int(convert(1/sqrt(2*Pi)*exp(-x^2/2)*1/sqrt(2*Pi)*exp(-y^2/2)*x*x*abs(x+y),piecewise,x),x=-infinity..infinity,y=-infinity..infinity)

Hi, there

How can I find the recurrence relation  for second derivative of sequence of functions  f-{n}(x)=\frac{(1-x^2)^n}{n!} in  maple 15?

please specify the commands.

we know the solution f"_{n}(x)=2(1-2n)f_{n-1}(x)+4f_{n-2}(x)

Regards

M.R. Yegan

Dear all

I have created a script code in maple. I also have contructed a power circuit in matlab simulink. How I use my code in matlab?
