Um den Studierenden zu helfen, deren Mathematikkenntnisse nicht auf dem von Studienanfängern erwarteten Niveau waren, hat die TU Wien einen Auffrischungskurs mit Maple T.A. entwickelt.  Die vom Team der TU Wien ausgearbeiteten Fragen zu mathematischen Themen wie der Integralrechnung, linearen Funktionen, der Vektoranalysis, der Differentialrechnung und der Trigonometrie, sind in die Maple T.A. Cloud übernommen worden.  Außerdem haben wir diesen Inhalt als Kursmodul zur Verfügung gestellt.

Laden Sie das Kursmodul der TU Wien herunter.

Bei Interesse können Sie mehr über das Projekt der TU Wien in diesem Anwenderbericht lesen: Erfolgreiches Auffrischen von Mathematikkenntnissen an der Technischen Universität Wien mit Maple T.A.

Jonny
Maplesoft Product Manager, Maple T.A.

The Maple 2015.2 update is now available for Windows and Linux users. It provides official support for Windows 10, connectivity to the latest MATLAB release, support for MapleSim 2015.2, updates to Physics, and a variety of small improvements throughout the product.  It is available through the Check for Updates system, and is also available from our website on the Maple 2015.2 download page.

The Mac update will be released as soon as we have finished fixing the problems on Mac OS X 10.11. We’re working on it.

eithne

We have just released a major update to MapleSim 2015. MapleSim 2015.2 provides a variety of enhancements that make it even easier to create, simulate, and analyze your multidomain, system-level models, including:

• Advanced diagnostic tools that help you identify the source of problems in your models and simulations, and improve their efficiency and robustness
• Over 50 new components in the magnetic, thermal, electrical, and signal block libraries
• A new connections manager that makes it easier to keep track of connections and port variables
• And more! See What’s New in MapleSim 2015.2 for more information about these and other improvements in MapleSim.

We have also updated and expanded the MapleSim 2015 family of products:

• The new MapleSim CAD Toolbox, which is available as a separate product, helps engineers understand and improve their mechanical designs by making it easy to import CAD models directly into MapleSim and understand how they behave as part of a larger system.
• MapleSim Connector, for connectivity with Simulink®, and the MapleSim Connector for FMI both generate code that provides more detailed run-time error reporting to assist in trouble-shooting on the target platform
• Updates to the specialized component libraries MapleSim Battery Library,  MapleSim Driveline Library, and MapleSim Tire Library provide improved modeling power and scope

This update is being distributed through the automatic Check for Updates system, and is also available from our website. See MapleSim 2015.2  for details on obtaining this update. This new MapleSim release is available immediately on Windows and Linux, with a Mac version following in the coming days.

eithne

Some time ago, @marc005 asked how he could send an email from the Maple command line.

Why would you want to do this? Using Maple's functionality, you could programatically construct an email - perhaps with the results of a computation - and email it yourself or someone else.

I originally posted a solution that involved communicating with a locally-installed SMTP server using the Sockets package. But of course, you need to set up an SMTP server and ensure the appropriate ports are open.

I recently found a better solution. Mailgun (http://mailgun.com) is a free email delivery service with an web-based API. You can communicate with this API via the URL package; simply send Mailgun a URL:-Post() message that contains account-specific information, and the text of your email.

The general steps and Maple commands are given below, and you can download the worksheet here.

Note: Maplesoft have no affiliation with Mailgun.

Step 1:
Sign up for a free Mailgun account.

Step 2:
In your Mailgun account, go to the Domains section - it should look like the screengrab below (account-specific information has been blanked).

Note down the API Base URL and the API key.

• the API Base URL looks like https://api.mailgun.net/v3/sandboxXXXXXXXXXXXXXXXXXXXXXXXXXXX.mailgun.org.
• •the API Key looks like key-XXXXXXXXXXXXXXXXXXXXXXXXXX

Step 3:

In Maple, define strings containing your own API Base URL and API Key. Also, define the recipient's email address, the email you want the recipient to reply to, the email subject and email body.

>restart:

>APIBaseURL := "https://api.mailgun.net/v3/sandboxXXXXXXXXXXXXXXXXXXXXXXXX.mailgun.org":

>APIKey:="key-XXXXXXXXXXXXXXXXXXXXXXXX":

>toEmail := "xxxxx@xxxxxx.com":

>fromEmail:="First Last <FirstLast@Domain.com>":

>subject:= "Email Subject Goes Here":

>emailBody := "I'd rather have a bottle in front of me than a frontal lobotomy":

Step 4:
Run the following code

> URL:-Post(cat(APIBaseURL,"/messages"),[

"from"=fromEmail,"to"=toEmail,

"subject"=subject,

"text"= emailBody],

user="api",password=APIKey);

If you've successfully sent the email, you should see something like this (account-specific information is blanked out)

You can also send HTML emails by replacing the "text" line with "html" = str, where str is a string with your HTML code.

For those who are running Maple and/or MapleSim on the Mac, and who may have missed an earlier question on this site, we wanted to let you know that there are some problems with running Maple and MapleSim on the new Mac OS, Mac OS X 10.11 (El Capitan). We’re working on a solution, which we expect will be ready in a few weeks. We’ll keep you posted, but in the meantime, please delay updating your Mac OS for now to avoid problems.

eithne

This October 21st, Maplesoft will be hosting a full-production, live streaming webinar featuring Dr. Robert Lopez, Emeritus Professor and Maple Fellow. You might have caught Dr. Lopez's Clickable Calculus webinar series before, but this webinar is your chance to meet the man behind the voice and watch him use Clickable Math techniques live!

In this webinar, Dr. Lopez will present examples of what "resequencing concepts and skills" looks like when implemented with Maple's point-and-click syntax-free paradigm. He will demonstrate how Maple can not only be used to elucidate the concept, but also, how it can be used to illustrate and implement the manipulations that ultimately the student must master.

Click here for more information and registration.

A wealth of knowledge is on display in MaplePrimes as our contributors share their expertise and step up to answer others’ queries. This post picks out one such response and further elucidates the answers to the posted question. I hope these explanations appeal to those of our readers who might not be familiar with the techniques embedded in the original responses.

Before I begin, a quick note that the content below was primarily created by one of our summer interns, Pia, with guidance and advice from me.

The Question: Rearranging the expression of equations

SY G wanted to be able to re-write an equation in terms of different variables.  SY G presented this example:

I have the following two equations:

x1 = a-y1-d*y2;
x2 = a-y2-d*y1;

I wish to express the first equation in terms of y1 and x2, so that

x1 = c - b*y1+d*x2;

where c=a-a*d and b=1-d^2. How can I get Maple to rearrange the original equation x1 in term of y1, x2, c and b?

This question was answered by nm who provided code with a systematic approach:

restart;
eq1:=x1=a-y1-d*y2:
eq2:=x2=a-y2-d*y1:
z:=expand(subs(y2=solve(eq2,y2),eq1)):
z:=algsubs((a-a*d)=c,z):
algsubs((1-d^2)=b,z);

On the other hand, Carl Love answered this enquiry using a more direct and simple code:

simplify(x1=a-y1-d*y2, {a-y2-d*y1= x2, 1-d^2= b, a-a*d= c});

Let’s talk more about the expand, algsubs, subs, and simplify commands

First let’s take a look at the method nm used to solve the problem using the commands expand, subs, solve and algsubs.

The expand command, expand(expr, expr1, expr2, ..., exprn), distributes products over sums. This is done for all polynomials. For quotients of polynomials, only sums in the numerator are expanded; products and powers are left alone.

The solve command, solve(equations, variables), solves one or more equations or inequalities for their unknowns.

The subs command, subs(x=a,expr), substitutes a for x in the expression expr.

The function algsubs, algsubs(a = b, f),performs an algebraic substitution, replacing occurrences of a with b in the expression f.  It is a generalization of the subs command, which only handles syntactic substitution.

Let’s tackle the Maple code written by nm step by step:

1) restart;
The restart command is used to clear Maple’s internal memory

2)  eq1:=x1=a-y1-d*y2:
      eq2:=x2=a-y2-d*y1:
The names eq1 and eq2 were assigned to the equations SY G provided.

3) z:=expand(subs(y2=solve(eq2,y2),eq1)):
A new variable, z, was created, which will end up being x1 written in the terms SY G wanted.

• solve(eq2,y2)
  • the solve command was used to solve the expression eq2 for the variable y2.


• subs(y2=solve(eq2,y2),eq1)
  • The subs command was used to replace in expression eq1, y2 as determined by the solve step.


• expand(subs(y2=solve(eq2,y2),eq1))
• The expand command was used to distribute products over sums. Note: this step served to ensure that the final output looked exactly how SY G wanted.

4) z:=algsubs((a-a*d)=c,z):
First, nm equated a-a*d to c, so later the algsubs command could be applied to substitute the new variable c into the expression z.

5) algsubs((1-d^2)=b,z);
Again, nm equated 1-d^2 to b, so later the algsubs command could be applied to substitute the new variable b into the expression z.

An alternate approach

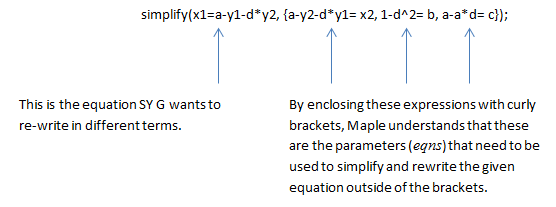

Now let us check out Carl Love’s approach. Carl Love uses the simplify command in conjunction with side relations.

The simplify command has many calling sequences and one of them is the simplify(expr,eqns), that is known as simplify/siderels. A simplification of expr with respect to the side relations eqns is performed. The result is an expression which is mathematically equivalent toexpr but which is in normal form with respect to the specified side relations. Basically you are telling Maple to simplify the expression (expr) using the parameters (eqns) you gave to it.

I hope that you find this useful. If there is a particular question on MaplePrimes that you would like further explained, please let me know.

 Obtain the tri-stimulus XYZ values from the CIE Color matching functions.

 Show the gamut of maximum chroma for the standard observer model with a D65 Illuminant.

 Approximate the white point of a Planckian source and compare to D65.

 Translate the maximum chroma gamut in xy to Lab (CIE L*a*b*) for perceived gamut (Violet and Magenta come together)

 Map the RGB color cube of fully saturated color into Lab and compare to perceivable colors.

10/6/15  Initial Document

•12/28/15 Improve RGB gamut with more data points: Procedures added for RGB to Lab: Wavlength Colors now based on CIEDE2000 model for Lab.

 Here is the latest version of this document, the MSL_data must be in a directory set in the mw file;

MSL_data.xlsx    Vision_RGB_Gamut.mw

We have a new video about plotting with procedures, specifically on how to avoid an error related to evaluation that many people make.

The worksheet I used in the video is available here:  PlottingWithProcedures.mw

By the way, this mistake doesn't occur just in the context of plotting. Users of Optimization commands (and other commands that allow functions to be expressed as either an expression in a variable or as a procedure) frequently run into this problem too.

We are happy to announce that Maple T.A. now supports the Learning Tools Interoperability® (LTI) standard, which means that Maple T.A. can be easily integrated with course management systems that support LTI. Maplesoft officially supports LTI connectivity with Canvas, Blackboard Learn™, Brightspace™, Moodle™, and Sakai.

Using the LTI standard, you can integrate Maple T.A. directly into your existing course management or learning management platforms. This allows for single-sign on in one central location and Maple T.A. assignment delivery and grade pushing right inside of your existing solutions.

If you would like to use the LTI connectivity feature, please contact Maplesoft Technical Support at support@maplesoft.com. They will provide the instructions and files you need to set up your connection, and answer any questions you may have about how the integration works on your platform.

Jonny
Maplesoft Product Manager, Maple T.A.

We are happy to announce that Maple T.A. now supports the Learning Tools Interoperability® (LTI) standard, which means that Maple T.A. can be easily integrated with course management systems that support LTI. Maplesoft officially supports LTI connectivity with Canvas, Blackboard Learn™, Brightspace™, Moodle™, and Sakai.

Using the LTI standard, you can integrate Maple T.A. directly into your existing course management or learning management platforms. This allows for single-sign on in one central location and Maple T.A. assignment delivery and grade pushing right inside of your existing solutions.

If you would like to use the LTI connectivity feature, please contact Maplesoft Technical Support at support@maplesoft.com. They will provide the instructions and files you need to set up your connection, and answer any questions you may have about how the integration works on your platform.

Jonny
Maplesoft Product Manager, Maple T.A.

A wealth of knowledge is on display in MaplePrimes as our contributors share their expertise and step up to answer others’ queries. This post picks out one such response and further elucidates the answers to the posted question. I hope these explanations appeal to those of our readers who might not be familiar with the techniques embedded in the original responses.

Before I begin, a quick note that the content below was primarily created by one of our summer interns, Pia, with guidance and advice from me.

The Question: Source Code of Math Apps

Eberch, a new Maple user, was interested in learning how to build his own Math Apps by looking at the source code of some of the already existing Math Apps that Maple offers.

Acer helpfully suggested that he look into the Startup Code of a Math App, in order to see definitions of procedures, modules, etc. He also recommended Eberch take a look at the “action code” that most of the Math Apps have which consist of function calls to procedures or modules defined in the Startup Code. The Startup Code can be accessed from the Edit menu. The function calls can be seen by right-clicking on the relevant component and selecting Edit Click Action.

Acer’s answer is correct and helpful. But for those just learning Maple, I wanted to provide some additional explanation.

Let’s talk more about building your own Math Apps

Building your own Math Apps can seem like something that involves complicated code and rare commands, but Daniel Skoog perfectly portrays an easy and straightforward method to do this in his latest webinar. He provides a clear definition of a Math App, a step-by-step approach to creating a Math App using the explore and quiz commands, and ways to share your applications with the Maple community. It is highly recommended that you watch the entire webinar if you would like to learn more about the core concepts of working with Maple, but you can find the Math App information starting at the 33:00 mark.

I hope that you find this useful. If there is a particular question on MaplePrimes that you would like further explained, please let me know.

The GroupTheory package in Maple includes facilities for working with finitely presented groups - groups defined by finitely many generators and defining relations.  We now have a video tutorial that covers the basics of this aspect of the package.  As always, we appreciate feedback and suggestions regarding this feature, or new features that you would like to see in the GroupTheory package.

Maple's dsolve numeric can solve delay ODEs and DAEs as of Maple 18. However, if I am not wrong, it cannot solve delay equations with a time dependent history. In this post I show two examples.

Example 1:

y1(t) and y2(t) with time dependent history. Use of piecewise helps this problem to be solved efficiently. Hopefully Maple will add history soon in its capability.

Example 2:

This is a very a complicated stiff problem from immunology. As of now, I believe only Maple can solve this (other than RADAR5 from Prof. Hairer). Details and plots are posted in the attached code.

Let me know if any one has a delay problem that needs to be solved. I have tested many delay problems in Maple (they work fine). The attached examples required addtional tweaking, hence the post.

I want to take this opportunity to congratulate and thank Maple's dsolve numeric/delay solvers for their fantastic job. Maple is world leader not because of example1, but because of its ability to solve example 2.

Download delayimmunetopost.mws

Maple 2015 has a new command, dataplot, for plotting datasets. It was designed to be easy to use and it offers several new features that are not available in Maple's other plotting commands. A few months ago, I recorded a video that gives an overview of the command. If you have any questions or comments about dataplot, feel free to post here. I'm also including the worksheet that is shown in the video: DataplotWebinar.mw
